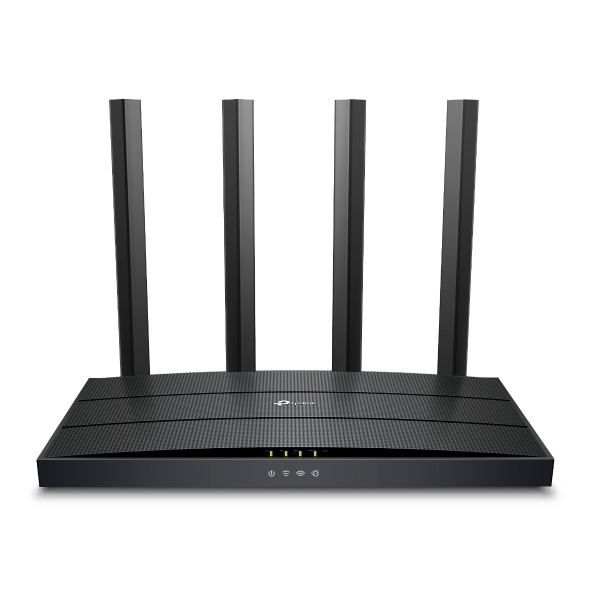

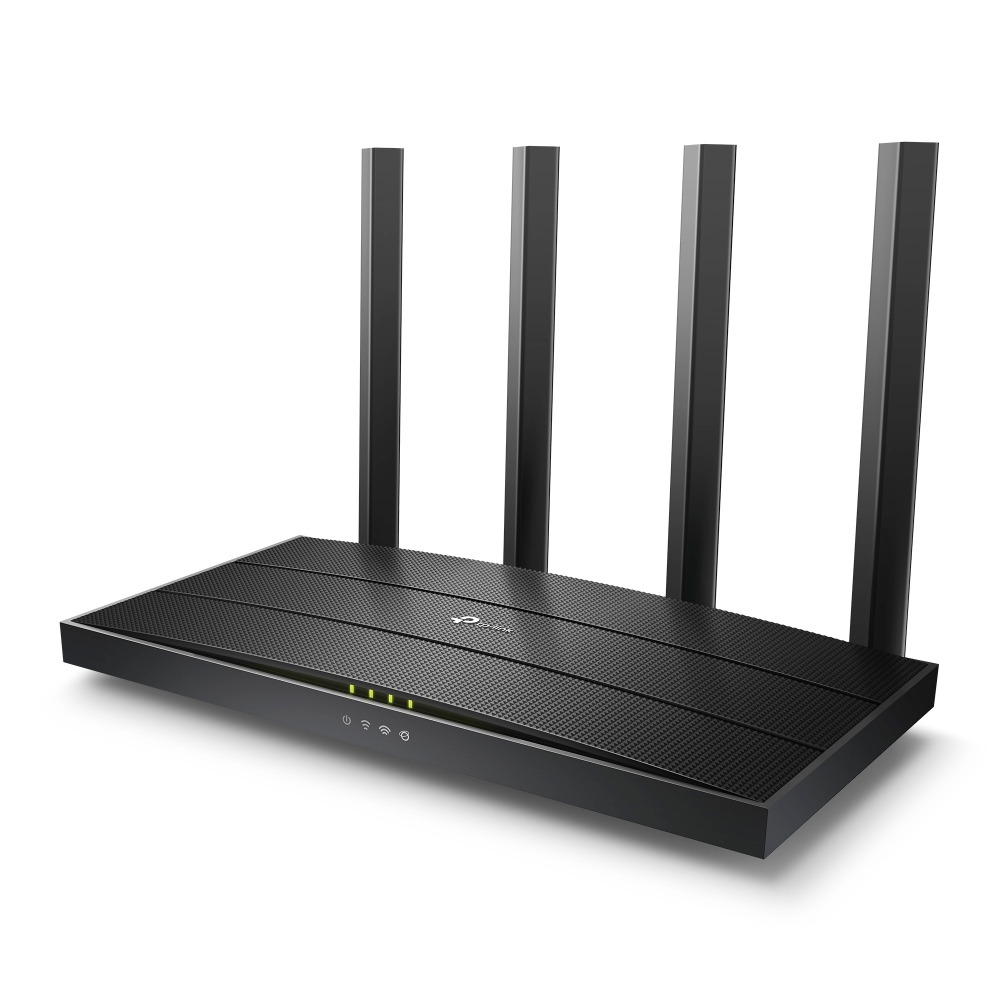

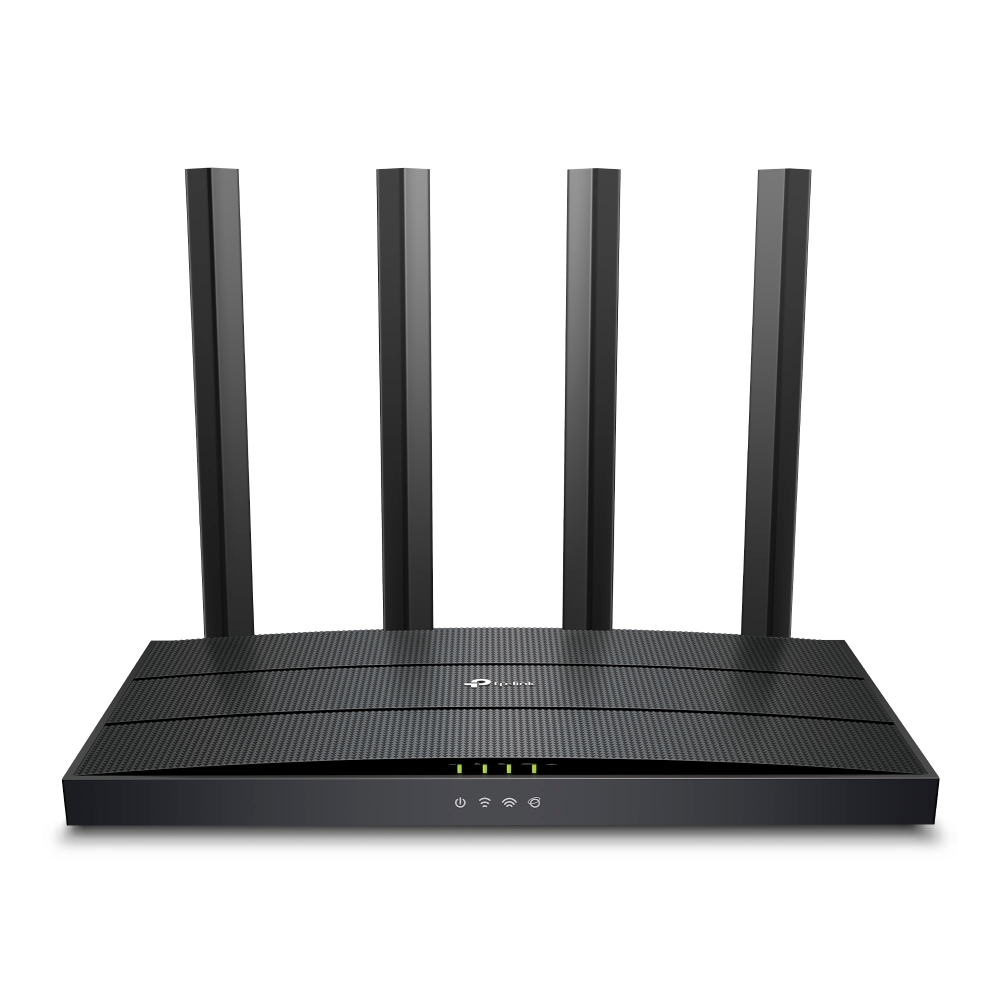

Archer AX1300
AX1300 Gigabit Wi-Fi 6 Router
- Wi-Fi 6 Technology: Archer AX1300 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds: Archer AX1300 dual-band router reaches even faster speeds up to 1.3 Gbps (960 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)†
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.‡
- More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX1300 as it focuses signal strength to your devices using Beamforming technology and four antennas.
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.△
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible: Archer AX1300 supports all previous 802.11 standards and all WiFi devices.
Upgrade to WiFi 6
Gigabit Ports
Connect more devices
WPA3 Security
Boosted Coverage

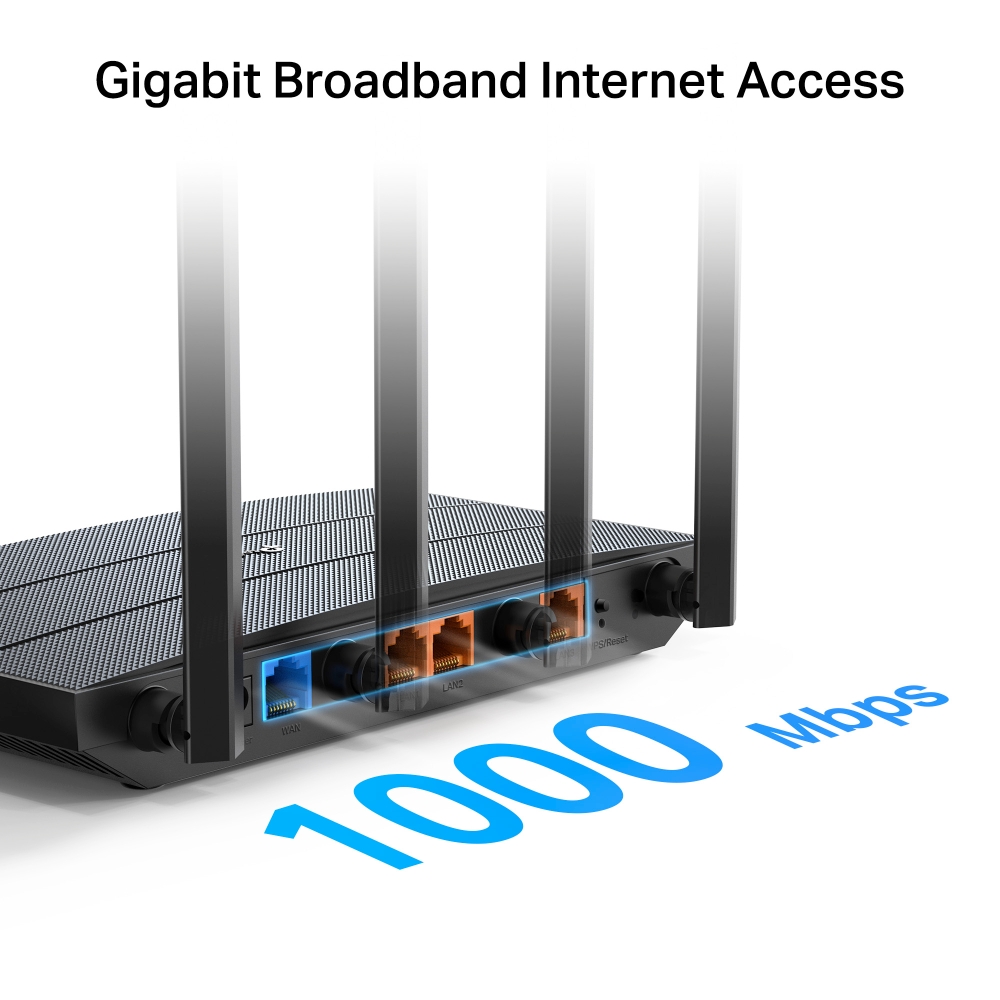

Gigabit Broadband Internet Access
All gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four gigabit ethernet LAN ports for fast, reliable wired connections.
up to
1000 Mbps
Internet Access*
WiFi Coverage Throughout Your Home
4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AX1300 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Encryption VPN Connection (OpenVPN/PPTP/L2TP/WireGuard VPN)
Ordinary Internet

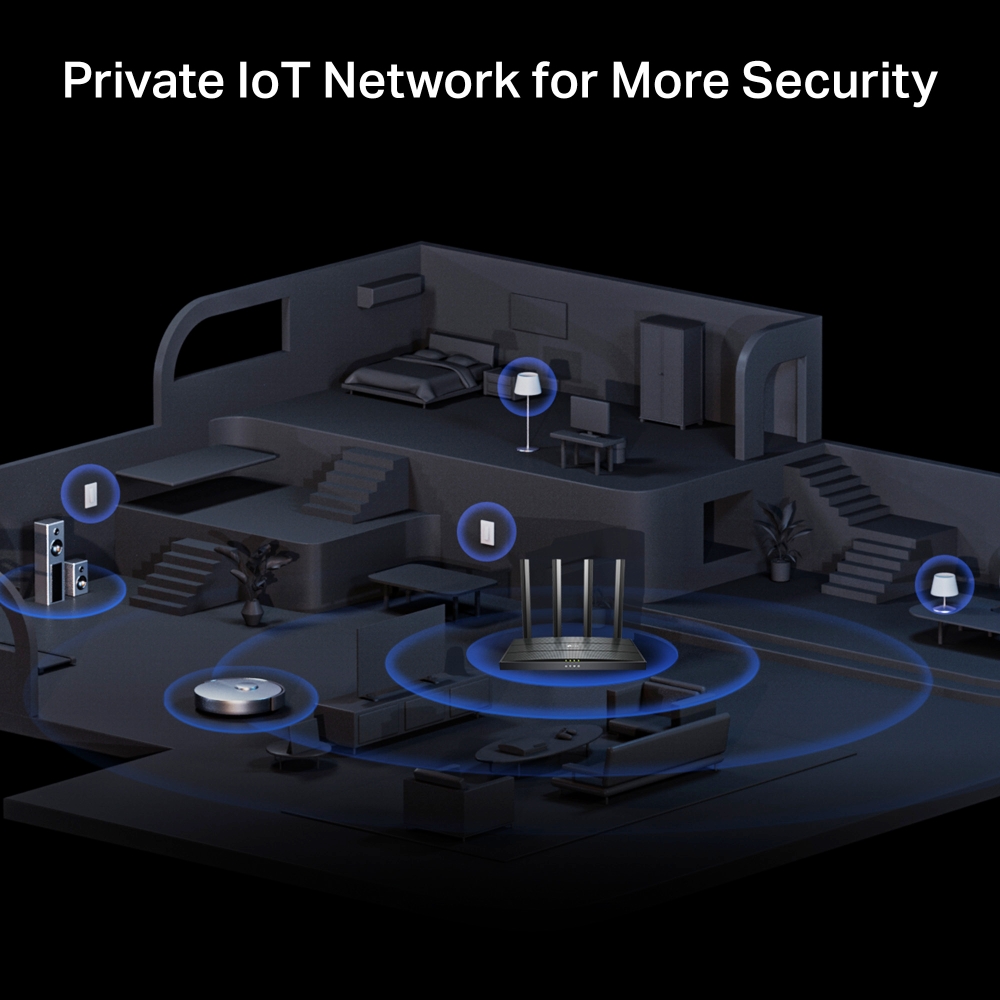

Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption§ to better protect the security of your home network and IoT devices.

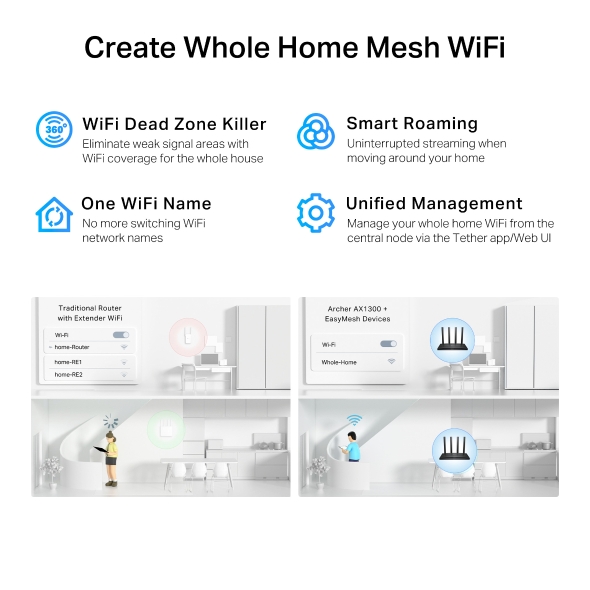

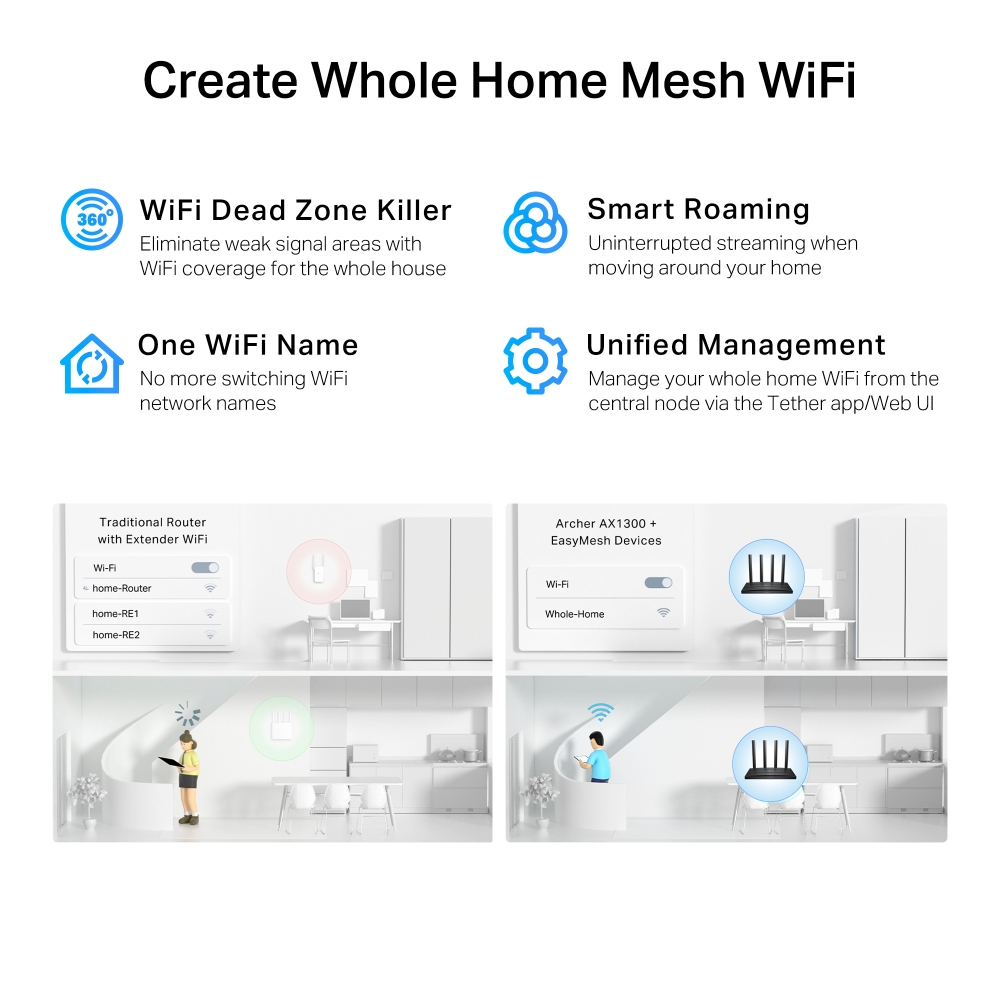

Create Whole Home Mesh WiFi
Archer AX1300 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
-
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One WiFi Name
No more switching WiFi network names
-
Unified Management
Manage your whole home WiFi from the central node via the Tether app/Web UI
-
-
Archer AX1300 +
EasyMesh Devices
Set Up in Minutes
Install the Tether app and simply follow the
on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
Learn more about the Tether app
-
CONNECT
to a modem and power on both.
-
DOWNLOAD
and launch the Tether app.
-
CONFIGURE
by following the in-app instructions.
| Standards and Protocols | Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | AX13005 GHz: 960 Mbps (802.11ax)2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2-3 Bedroom Houses 4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | High Dual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupation4 StreamsConnect your devices to more bandwidth |
| Working Modes | Router ModeAccess Point Mode |
| Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
|---|---|
| Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
| VPN Server | OpenVPNPPTP |
| WiFi Encryption | WPA2-PSK WPA2-PSK/WPA-PSKWPA3-PersonalWPA3-Personal/WPA2-PSKWPA2-EnterpriseWPA/WPA2-Enterprise encryptions |

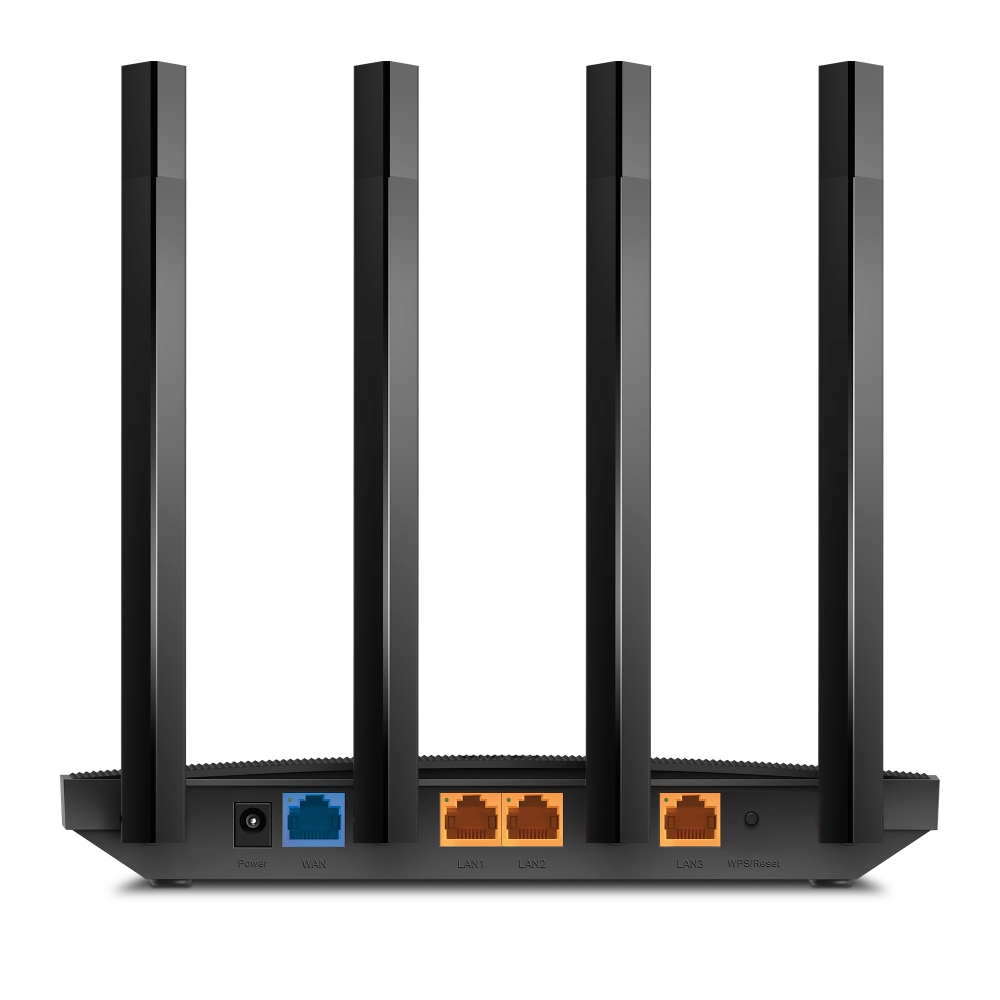

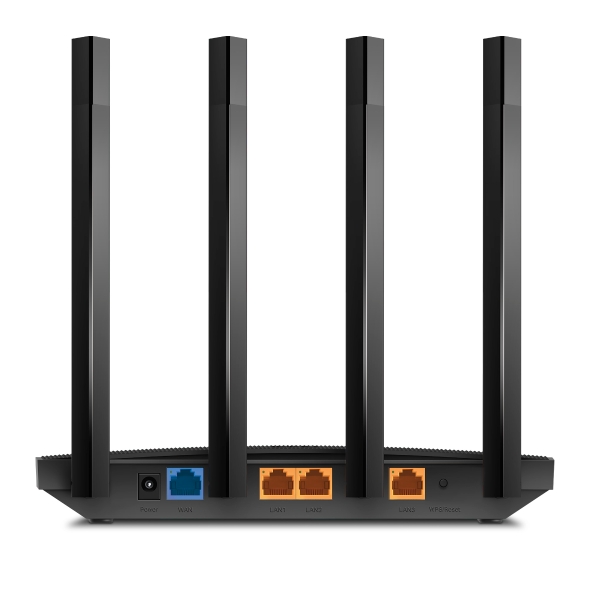

| Ethernet Ports | 1× Gigabit WAN Port3× Gigabit LAN Ports |
|---|---|
| Power | 12 V ⎓ 1 A |
| Buttons | WPS/Reset Button |
| Protocols | IPv4IPv6 |
|---|---|
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | URL FilteringTime Controls |
| WAN Types | Dynamic IPStatic IPPPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS |
| NAT Forwarding | Port ForwardingPort TriggeringDMZUPnP |
| IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | TP-LinkNO-IPDynDNS |
| Management Features | Tether AppWebpageCheck Web Emulator> |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP |
|---|---|
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MACOS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserCable or DSL ModemSubscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~60℃ (-40℉ ~140℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| WiFi Transmission Power | CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
|---|---|
| WiFi Reception Sensitivity | 5 GHz:11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm2.4 GHz:11g 6Mbps: -96 54Mbps: -80HT20-MCS0: -97 MCS7: -78HT40-MCS0: -94 MCS7: -75 |
| Dimensions (W×D×H) | 8.5 × 4.6 ×1.3 in(215 × 117 × 32 mm) |
|---|---|
| Package Content | Wireless Router Archer AX1300Power AdapterRJ45 Ethernet CableQuick Installation Guide |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including MU-MIMO, DL/UL OFDMA and 1024QAM requires clients to also support those functions.
△Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.
§Latency improvement requires that the AP and all clients support OFDMA.
*1 Gbps internet speeds require compatible service plans and equipment.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
