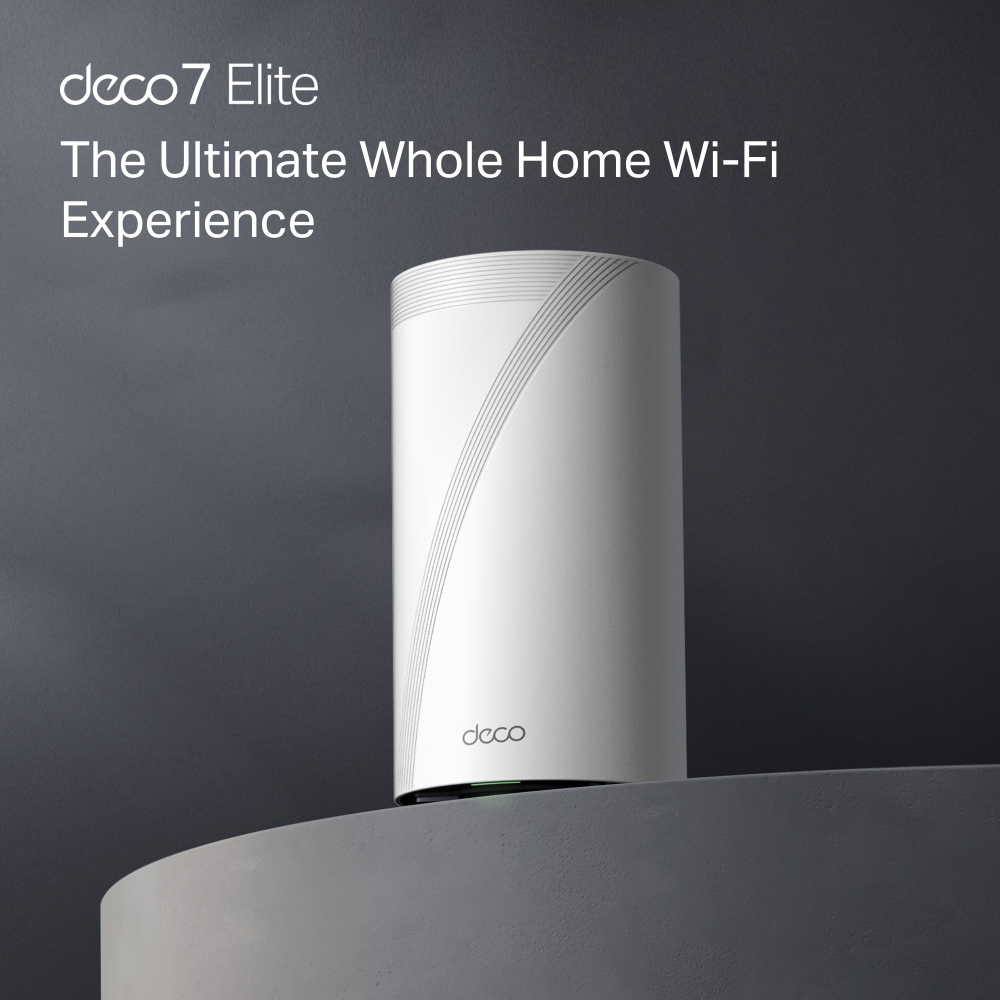

Deco BE95
BE33000 Quad-Band Whole Home Mesh WiFi 7 System
- 16-Stream 33 Gbps Quad-Band WiFi – 11520 Mbps (6 GHz-1) + 11520 Mbps (6 GHz-2) + 8640 Mbps (5 GHz) + 1148 Mbps (2.4 GHz).†
- Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.

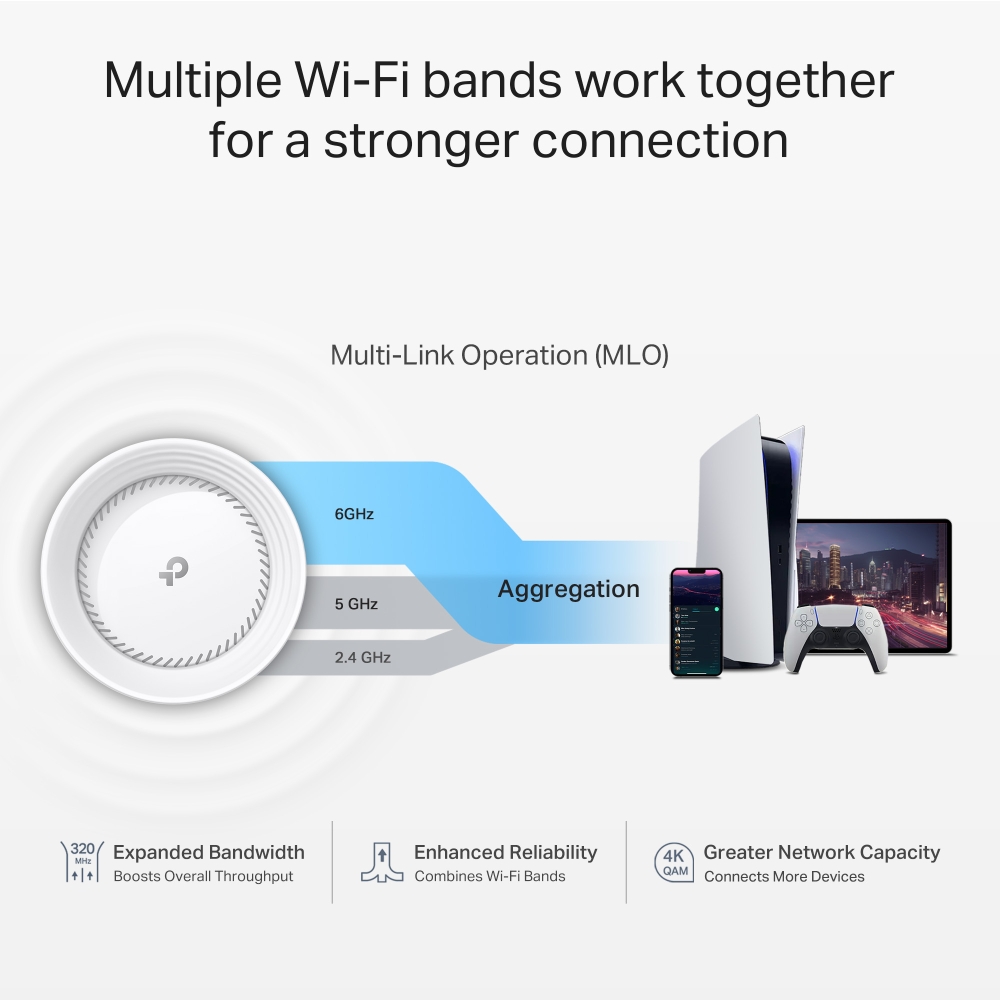

- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.☆
Quad-Band WiFi 7
Speeds up to 33 Gbps
Seamless AI Roaming
TP-Link HomeShield
Multi-Link Operation
4K-QAM

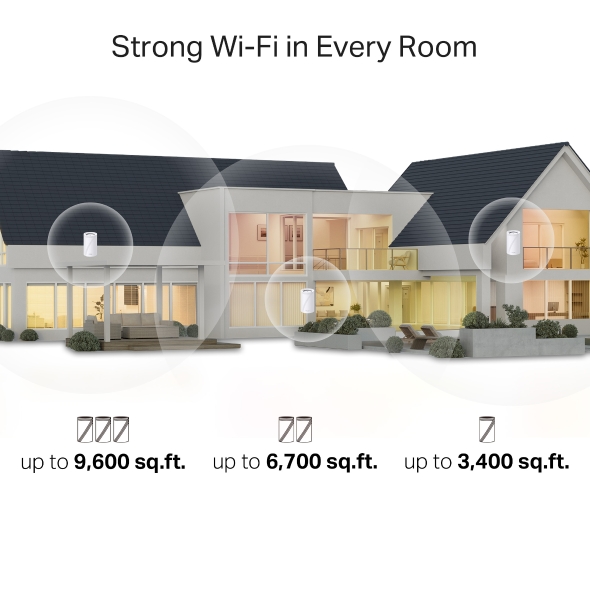

A True Whole Home
Multi-Gigabit
Mesh WiFi
Up to
320 MHz
Bandwidth
The Ultimate 10G Connectivity
Fiber and Ethernet
Connect Over
200 Devices
WiFi 7, WiFi Like Never Before
WiFi 7 includes the new 6 GHz band, which is exclusive to 6 GHz devices, eliminating interference from legacy devices. The additional 3× 320 MHz channels enable more simultaneous transmissions at the highest possible speeds. 4K-QAM brings 20% higher theoretical transmission rates than 1024-QAM. Also, Multi-RU and MLO make full use of every resource and deliver a more reliable network.△
Industry’s Most High-Class Mesh Ever — 33 Gbps
The Fastest Mesh WiFi to Date
Experience a high-end Quad-Band Whole Home WiFi 7 Mesh system with blazing-fast WiFi speeds up to 33 Gbps.† Now, every device in your home network will run at top performance. The exclusive 6 GHz band provides exceptional bandwidth and congestion-free channels exclusive to your devices.‡
-
33 Gbps
-
6 GHz-1
11520 Mbps
-
6 GHz-2
11520 Mbps
-
5 GHz
8640 Mbps
-
2.4 GHz
1148 Mbps
Whole Home
Multi-Gigabit Connectivity
Deco BE95 Speed Heatmap
-
10 Gbps Wired Backhaul
Every room where a Deco BE95 is located receives 8-9 Gbps of wireless speeds, gradually decreasing with distance. Most of the tested villa clocks in at 7-8 Gbps. Due to a large number of walls, the edge of the home receives around 5-6 Gbps.***
-
Wireless Backhaul
The 1st-floor Deco BE95 remains the same as with a wired backhaul. But due to the walls and ceiling between the two floors, the center of the other Deco BE95s receives around 5 Gbps with the rest of the house’s speed reaching 4-5 Gbps.***
4,600 sq. ft | 2 Floors | 5 Bedrooms
Tested with 4x4 MLO-compatible clients
4,600 sq. ft | 2 Floors | 5 Bedrooms
Tested with 4x4 MLO-compatible clients
Entering a True 10G Era

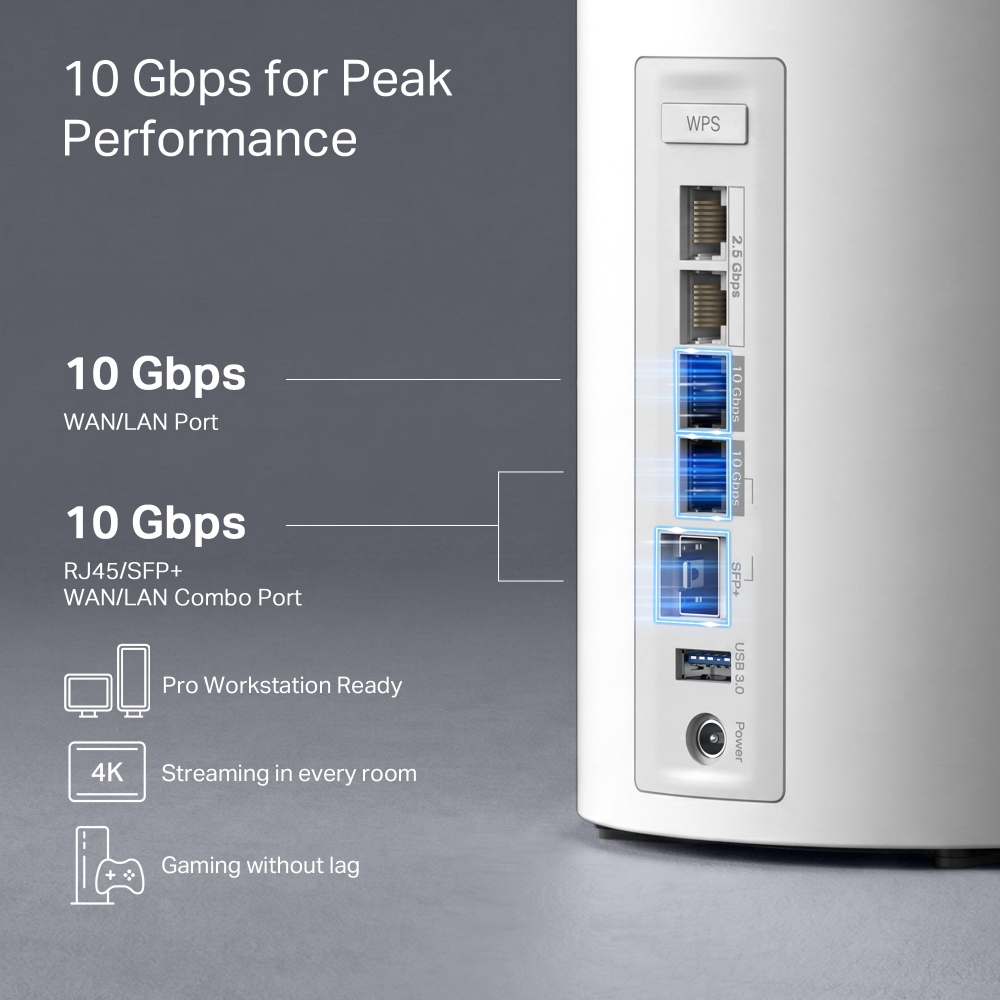

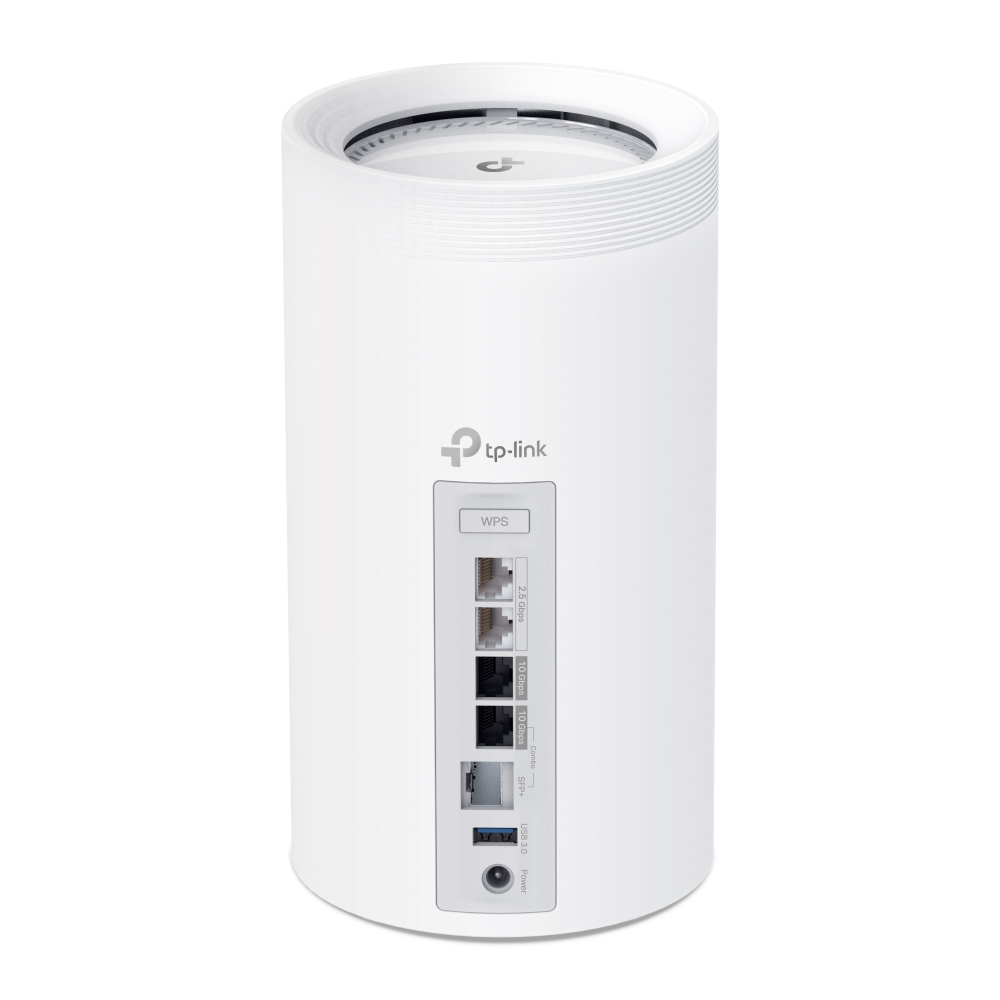

Equipped with two 10 Gbps WAN/LAN ports — one RJ45 port and an RJ45/SFP+ combo port — Deco BE95 provides flexible support for both fiber and copper connections.§ The additional 2.5 Gbps ports and USB 3.0 port make it an ideal solution for future-proofing your home network.
-
2× 2.5 Gbps WAN/LAN Ports
-
10 Gbps WAN/LAN Port
-
10 Gbps RJ45/SFP+ WAN/LAN Combo Port
Able to convert fiber data to Ethernet cable data with an SFP module
-
1× USB 3.0 Port
Down to the Last Detail
TP-Link’s in-house component research and thorough hardware selection ensure the quality and value of the entire Deco BE95 system. Everything comes together to form the perfect Mesh device.
6 GHz Antennas
(12× High-Gain Antennas Total)
Eight omnidirectional antennas radiate radio power in all directions
Radio Frequency Integrated Circuits (RFIC)
Deliver ultra-fast WiFi speed of up to 33 Gbps
High-Power FEMs
(4× for Each RFIC)
Deliver better performance with superior range

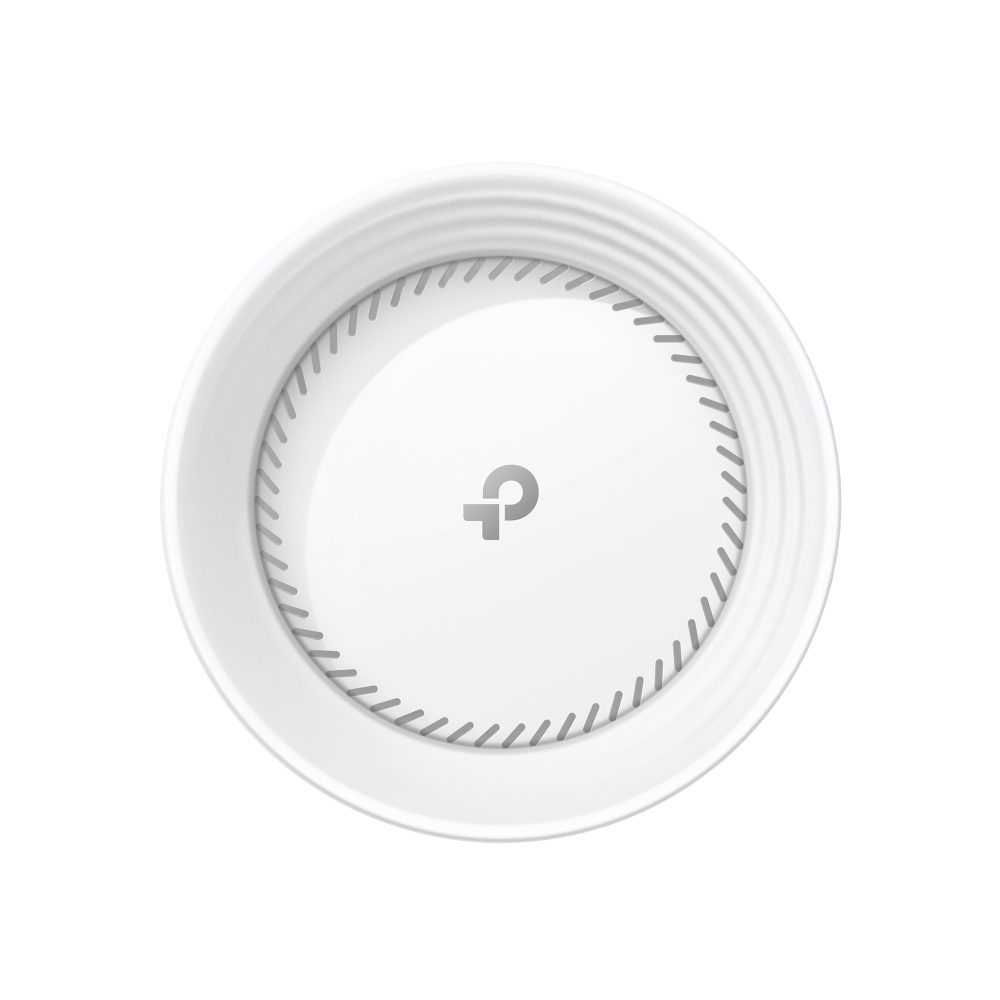

Thermal Convection Shell Design
Ideal for thermal convection from top to bottom
Internal Cooling Fans
Cool down the working environment, ideal for maximizing the working load limit and ensuring high performance even under high capacity

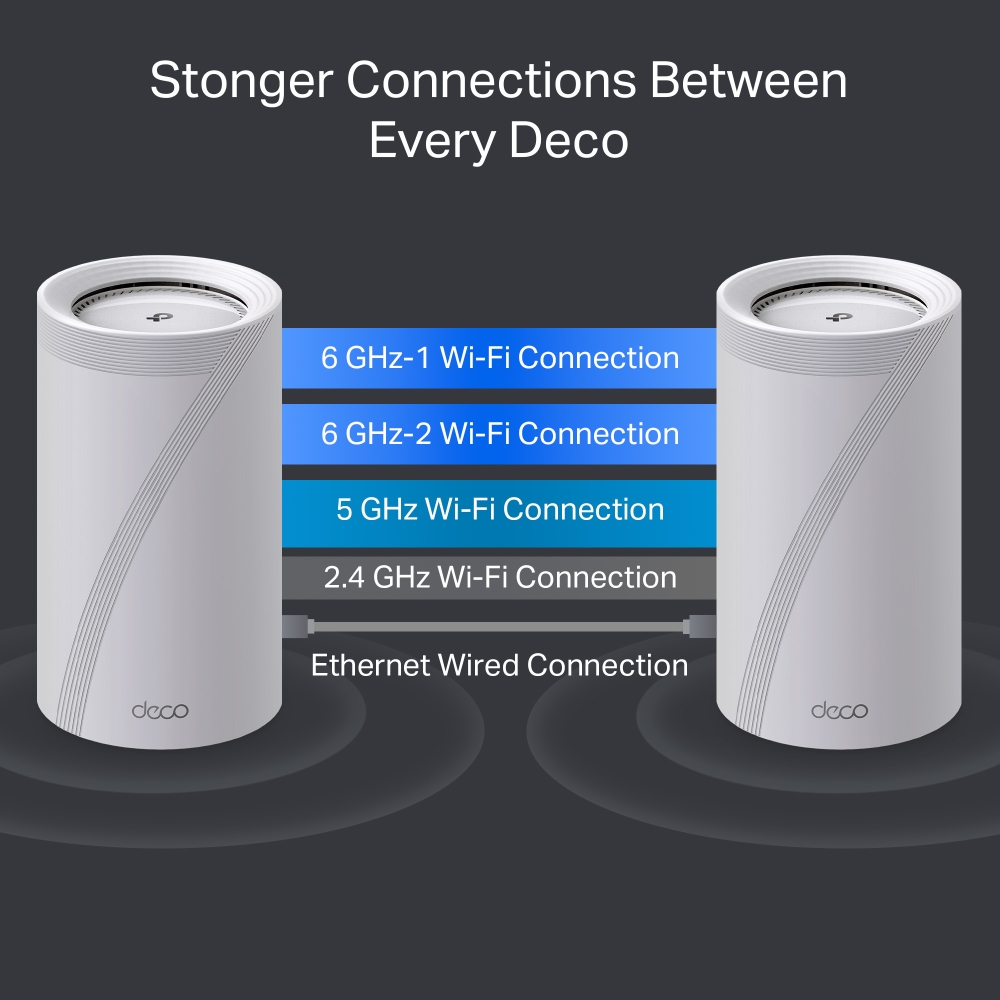

The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE95 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
Wireless and Wired Combined Backhaul
![HomeShield](/assets/images/icon/tag-homeshield.png)
Smart Security for Smart Living
HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.
-
Network Protection
Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.*
-
Parental Controls
Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.*
-
Maintain Protection Away from Home
KidShield App
Devices Security App
Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go.*
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, Deco can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.

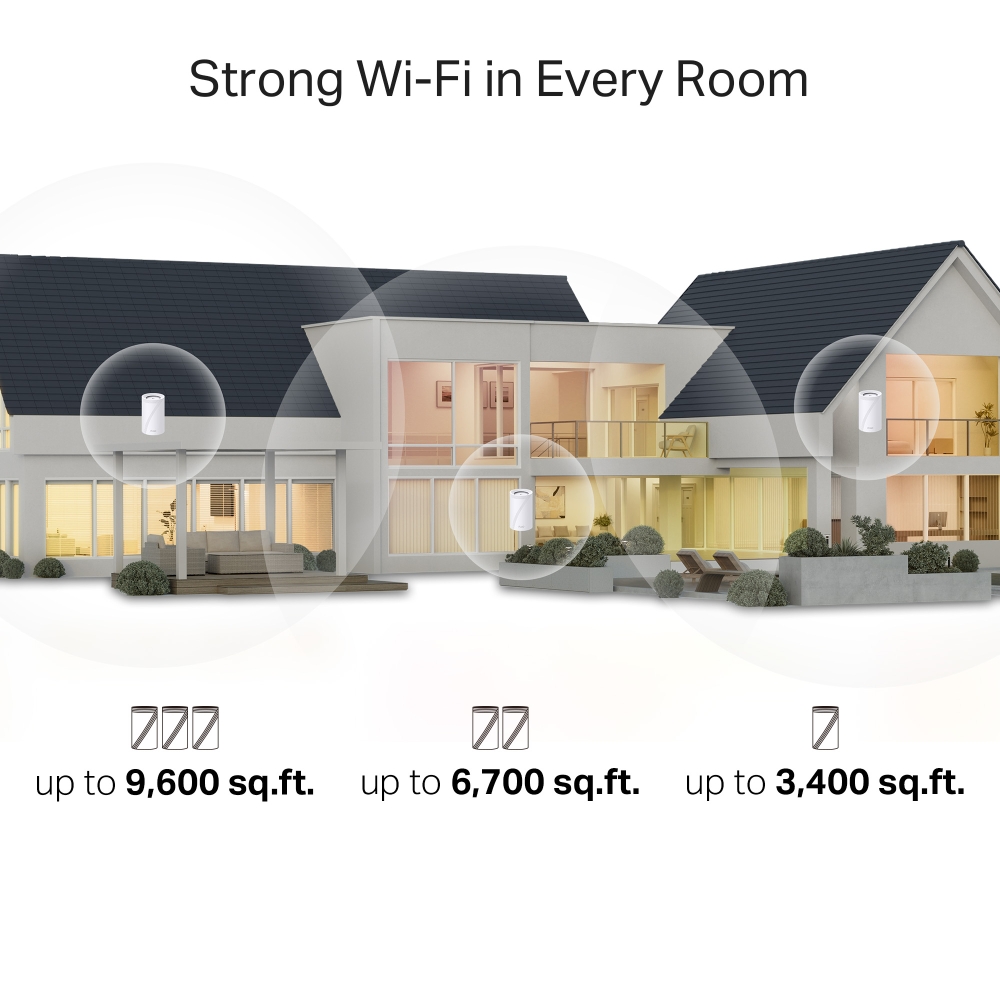

Seamless AI-Driven Mesh
Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.‡
-
Seamless Roaming with One WiFi Name
-
Sophisticated Algorithms
-
Seamless AI-Driven Mesh
-
Customized WiFi
More Compatibility,
More Interoperability
With the Matter protocol, Deco works as a central controller to manage all your Matter-certified devices. Matter enables seamless communication among IoT devices across platforms, regardless of their manufacturer. Furthermore, it allows you to access the devices in your local area network (LAN) through the Deco app even when your home goes offline. ◊

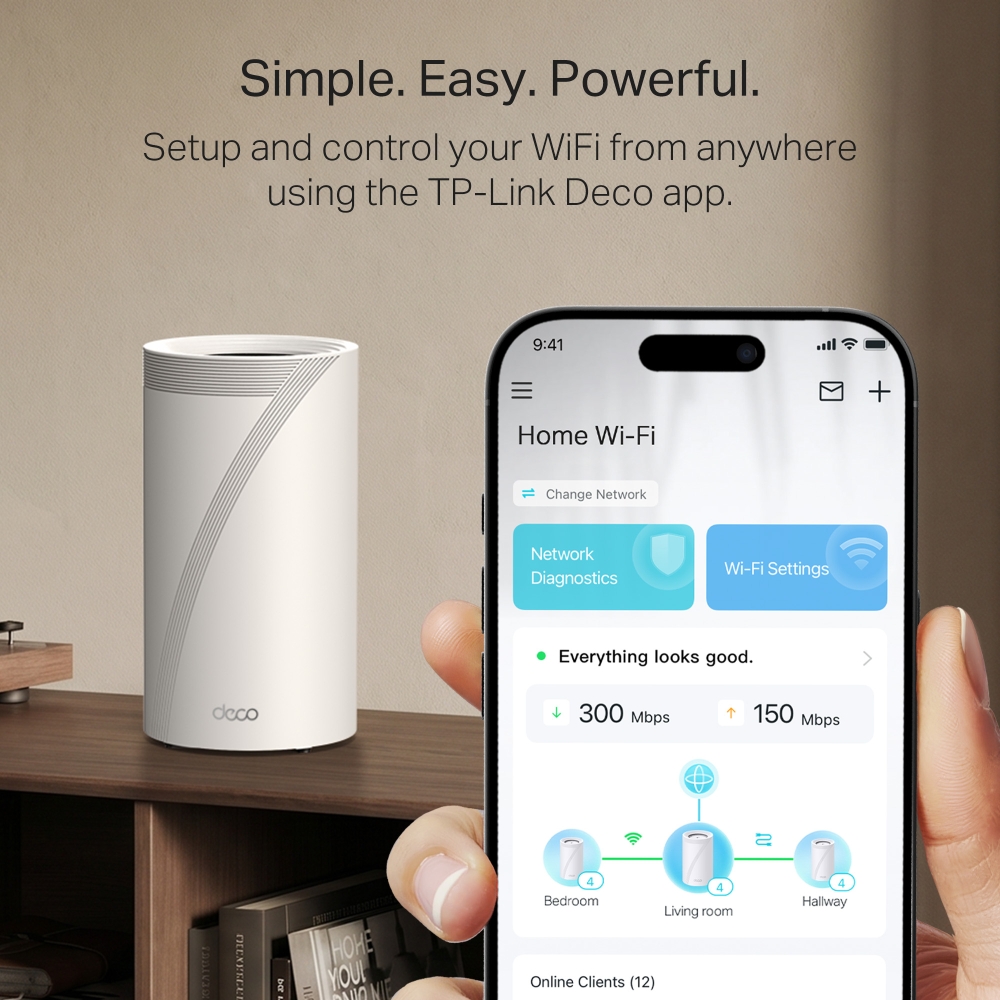

Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
-
1 CONNECT
to a modem and power on both. -
2 DOWNLOAD
and launch the Deco app. -
3 CONFIGURE
by following the in-app instructions.
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
Voice Control
Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE95 with just your voice.
All Decos Work Together
Deco BE95 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
WIRELESS | |
---|---|
Standards | Wi-Fi 7IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | BE330006 GHz-1: 11520 Mbps (802.11be)6 GHz-2: 11520 Mbps (802.11be)5 GHz: 8640 Mbps (802.11be)2.4 GHz: 1148 Mbps (802.11ax) |
WiFi Range | Broader Whole Home Coverage TP-Link Mesh TechnologyOptional Ethernet backhaul work together to link Deco units to provide seamless coverageAI-Driven MeshIntelligently learns the network environment to provide ideal Wi-Fi unique to your home12× High-Gain Antennas (Internal)Multiple antennas form a signal-boosting array to cover more directions and large areasQuad-BandThe greenfield 6 GHz band brings more bandwidth and faster speeds |
WiFi Capacity | Very High Quad-BandDistribute devices to different bands for optimal performance4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple WiFi 7 clients16 Streams, 4 Streams on Each BandMore than enough bandwidth for connected devices |
Working Modes | Router ModeAccess Point Mode |
Advanced Functions | • Multi-Link Operation (MLO)• 320 MHz Channel• 4K-QAM• Multi-RUs• Works with Alexa and Google Assistant |
SECURITY | |
---|---|
Network Security | SPI FirewallAccess ControlHomeShield Security Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
Guest Network | 1× 6 GHz Guest Network1× 5 GHz Guest Network1× 2.4 GHz Guest Network Effective TimeBandwidth Control |
VPN Server | • OpenVPN Server• PPTP VPN Server• L2TP/IPSec VPN Server |
VPN Client | • OpenVPN Client• PPTP VPN Client• L2TP/IPSec VPN Client |
WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE | |
---|---|
Ethernet Ports | • 1× 10 Gbps• 1× 10 Gbps SFP+/RJ45 Combo• 2× 2.5 Gbps*Per Deco Unit Supports WAN/LAN auto-sensing |
USB Support | 1× USB 3.0 Port FTP ServerMedia ServerSamba Server |
Buttons | 1× Reset Button1× WPS |
SOFTWARE | |
---|---|
Advanced Features | • Reboot Schedule• Tapo/Kasa Onboarding• IoT network & Device Isolation• Static Routing Function• Node/Band Connection Preference |
Protocols | IPv4 IPv6 |
Service Kits | HomeShieldLearn More> |
Parental Controls | HomeShield Parental Controls Youtube RestrictionSafeSearchCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports |
WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
Quality of Service | HomeShield QoS QoS by Device |
Cloud Service | OTA Firmware UpgradeTP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP ProxyIGMP SnoopingBridge Tag VLAN |
DHCP | Address ReservationDHCP Client ListServer |
DDNS | TP-Link |
Management | Deco App |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |

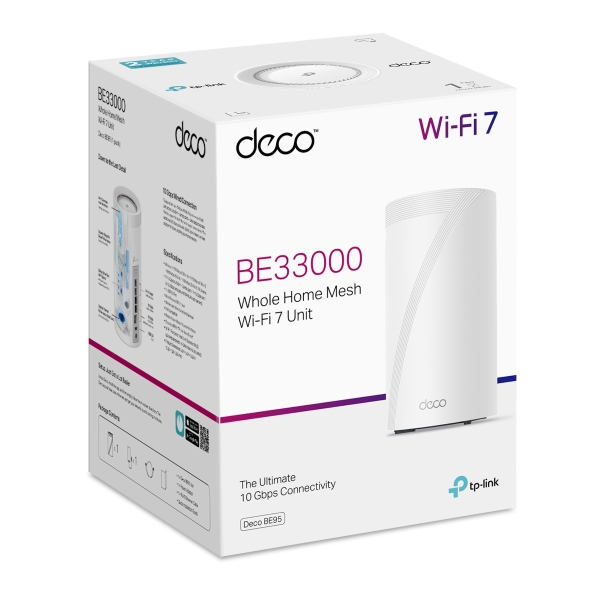

Package Contents | Deco BE95 (2-pack)2 Deco BE95 units1 RJ45 Ethernet cable2 Power adaptersQuick Installation GuideDeco BE95 (1-pack)1 Deco BE95 unit1 RJ45 Ethernet cable1 Power adapterQuick Installation Guide |
OTHERS | |
---|---|
Certifications | CE, FCC, RoHS |
Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F)Storage Temperature: -40°C~60°C (-40 °F~140 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.
§10 Gbps and 2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates.
***The test was conducted in a 4,600 sq. ft. two-story villa with 5 bedrooms with an interior made up of drywall. The Deco BE95 was tested with 4x4 MLO-compatible clients. Home networking performance may vary, depending on the network's speeds, fiber or Ethernet access, WiFi interference, obstacles, walls, areas, and clients.
☆WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
