Festa F52-Outdoor

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

  • Up to 1.2 Gbps AC1200 Speeds: 300 Mbps on 2.4 GHz & 867 Mbps on 5 GHz*
  • Free cloud centralized management via the Festa app or the web
  • Mesh & Seamless Roaming enable smooth wireless connectivity
  • 1× Gigabit Port for high-speed transmissions
  • Supports both 802.3af PoE and Passive PoE (PoE adapter included) for easy installation
  • Professional antennas with high-power amplifiers provide long-range coverage
  • IP65 weatherproof enclosure ideal for outdoor environments
  • Easy setup and use, no professional technician required. Self-Organizing Networking and Zero-Touch Provisioning technology make it a breeze
Interface 1x Gigabit Ethernet Port
Button Reset
Power Supply • 802.3af PoE
• 24V Passive PoE (+4,5 pins; -7,8 pins. PoE Adapter Included)
Power Consumption 10.5W
Weight 120g

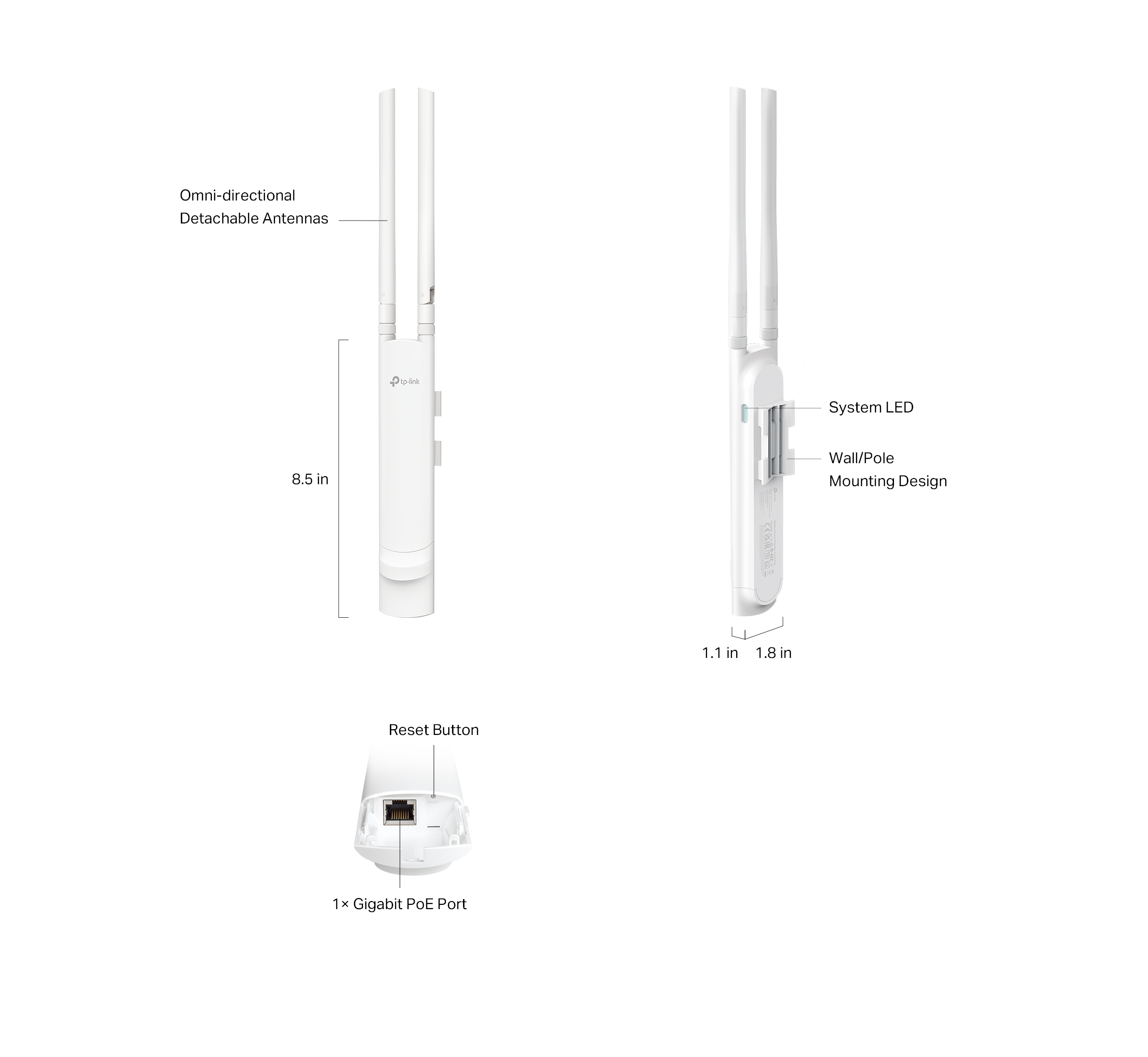

Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1 in (214.9 × 46 × 26.7 mm)
Antenna Type 2 Dual-Band Omni Antennas (External Detachable)
• 2.4 GHz: 3 dBi;
• 5 GHz: 5 dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall mouting (Kits included)
Concurrent Clients 220+**
Wireless Standards IEEE 802.11 a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: 867 Mbps*
• 2.4 GHz: 300 Mbps
Wireless Functions • Mesh
• Seamless Roaming
• Beamforming
• MIMO: 2*2 (2.4G and 5G) MU-MIMO
• Automatic Channel Selection
• Band Steering
• Load Balance
• Airtime Fairness
• RADIUS Accounting
• Wireless Schedule
• Wireless Statistics
• Static IP/Dynamic IP
• Rate Limit: Based on SSID/Client
• Multiple SSIDs: 16(8 on each band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Transmit Power Control: Adjust Transmit Power on dBm
• QoS (WMM)
Wireless Security • Captive Portal Authentication
• Access Control
• Maximum Number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
• 802.1X Support
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<27 dBm(5 GHz,EIRP)

• FCC:
<23 dBm (2.4 GHz)
<22 dBm (5 GHz)
Firmware update via Web
Centralized Management
APP support Festa App
Cloud Access Free cloud
LED ON/OFF Control
SNMP v1, v2c
System Logging Local/Remote Syslog
Zero-Touch Provisioning
Certification CE, FCC, RoHS
Package Contents • Festa F52-Outdoor
• Two Detachable External Antennas
• Passive PoE Adapter
• Power Cord
• Wall/Pole Mounting Kit
• Waterproof Rubber Insert
• Installation Guide

Environment • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
