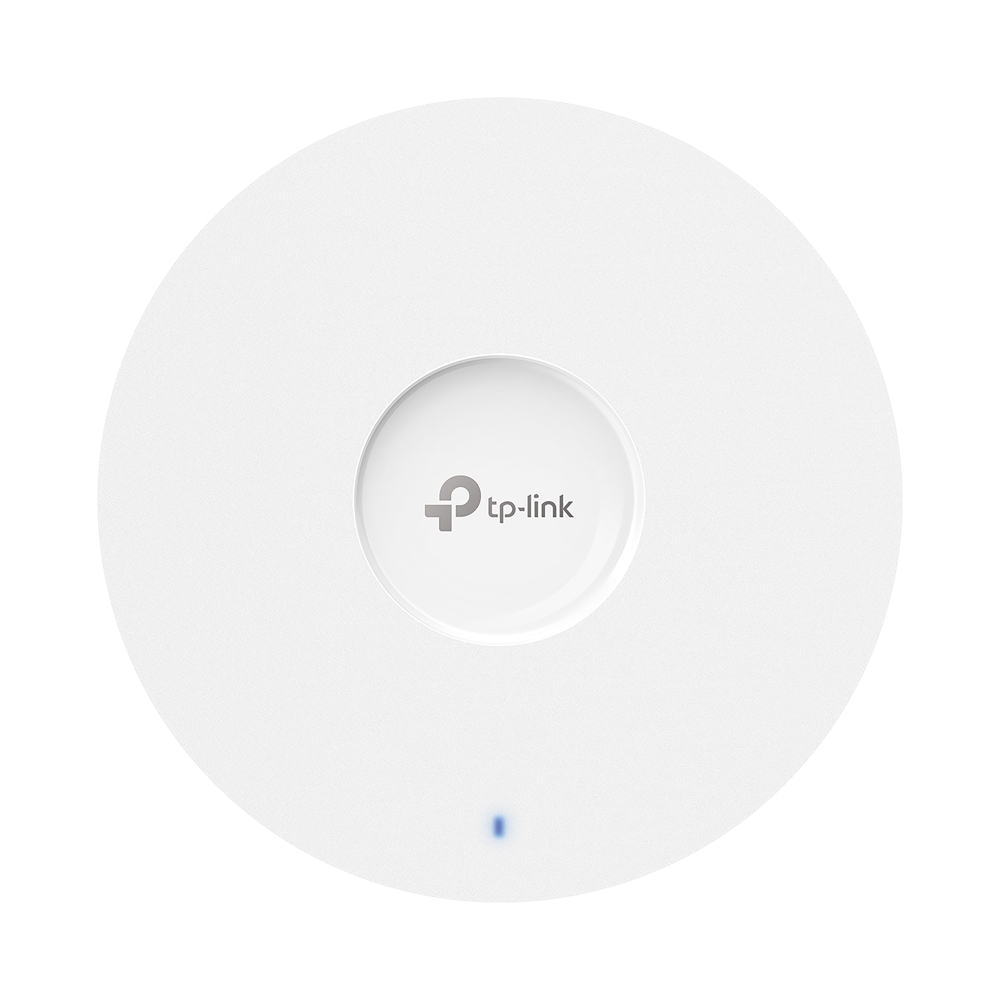

AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
- Integrates with Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included).
Ultra-Fast AX6000 WiFi 6 Speeds†
4-Stream WiFi 5
EAP683 LR: 4 Stream WiFi 6
2 Stream WiFi 5
EAP683 LR: 4 Stream WiFi 6
Long OFDM Symbol
Seamless Integration into Omada SDN
Wall Plate AP
Omada Cloud-Based Controller △
Easy Deployment and Higher Performance with Omada Mesh§
Easy Pairing, Less Wiring
Traditional Wired Networking
Mesh Wireless Networking
Optimized Network Performance
|Interface||1× 2.5 Gigabit PoE+ Port|
|Power Supply||• 802.3at PoE• 12 V / 2 A DC Note：Power adapter is not included.|
|Power Consumption||• EU: 20.43W• US: 23.69W|
|Dimensions ( W x D x H )||8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)|
|Antenna Type||Internal Omni• 2.4 GHz: 4× 4 dBi• 5 GHz: 4× 5 dBi|
|Mounting||Ceiling /Wall Mounting (Kits included)|
|Wireless Standards||IEEE 802.11ax/ac/n/g/b/a|
|Frequency||2.4 GHz and 5 GHz|
|Signal Rate||• 5 GHz: Up to 4804 Mbps• 2.4 GHz: Up to 1148 Mbps|
|Wireless Functions||• 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • HE160 (160 MHz Bandwidth)‡• Seamless Roaming §• Omada Mesh§• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client|
|Wireless Security||• Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise|
|Transmission Power||• CE: <20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band1 & band2, EIRP)<28 dBm(5 GHz, band3, EIRP)• FCC: <26 dBm (2.4 GHz)<26 dBm (5 GHz)|
|Centralized Management||• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller|
|Cloud Access||Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.|
|LED ON/OFF Control||Yes|
|Management MAC Access Control||Yes|
|SNMP||v1, v2c, v3|
|System Logging Local/Remote Syslog||Local/Remote Syslog|
|Zero-Touch Provisioning||Yes. Require the use of Omada Cloud-Based Controller.|
|Package Contents||• EAP683 LR• Ceiling/Wall Mounting Kits• Installation Guide|
|System Requirements||Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux|
|Environment||• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing|
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
§Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Use of Omada Cloud-Based Controller may incur device license fees.
