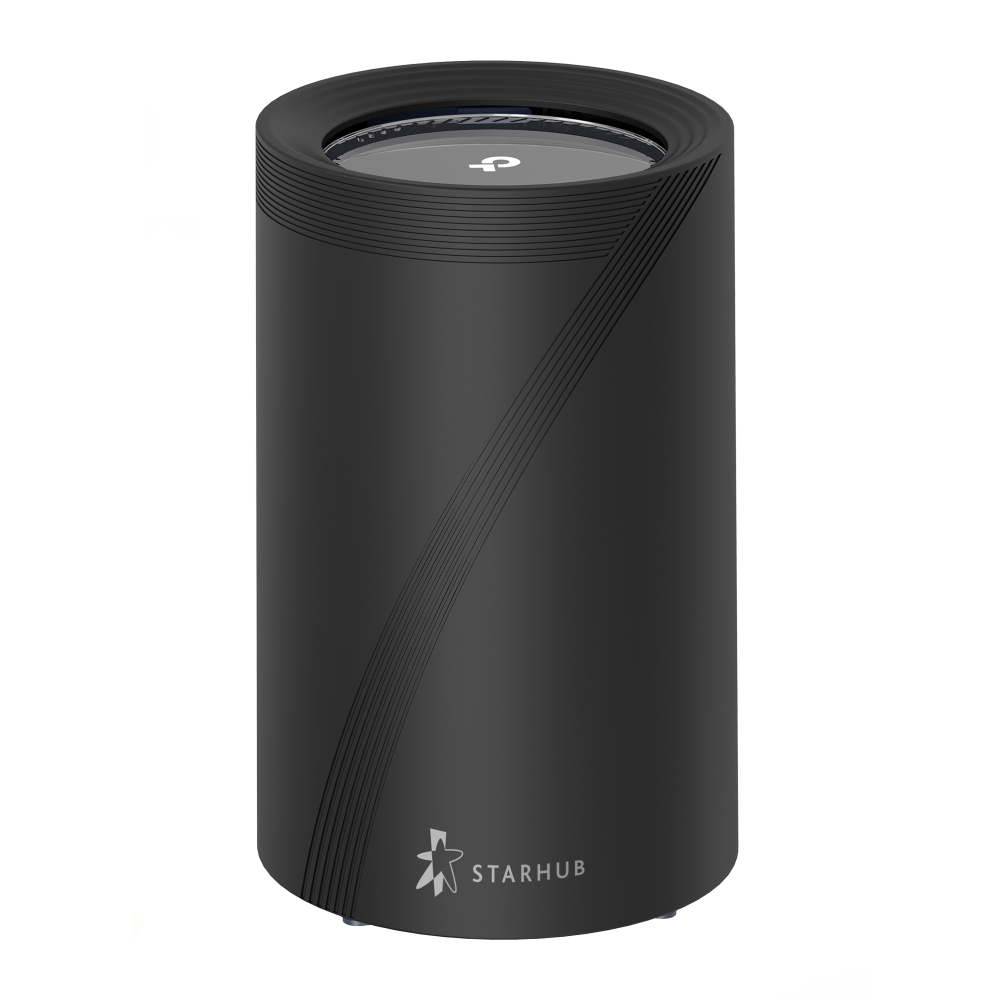

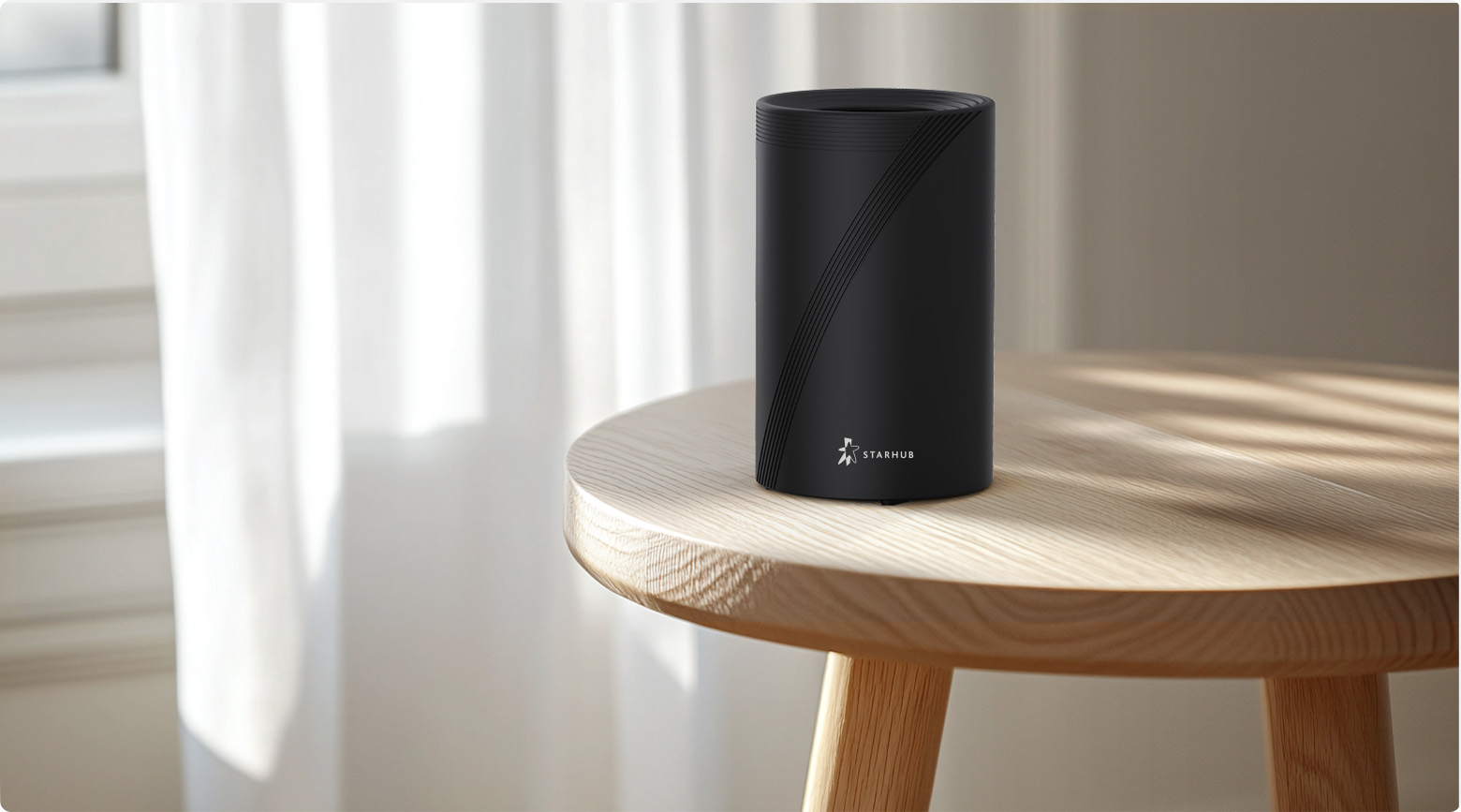

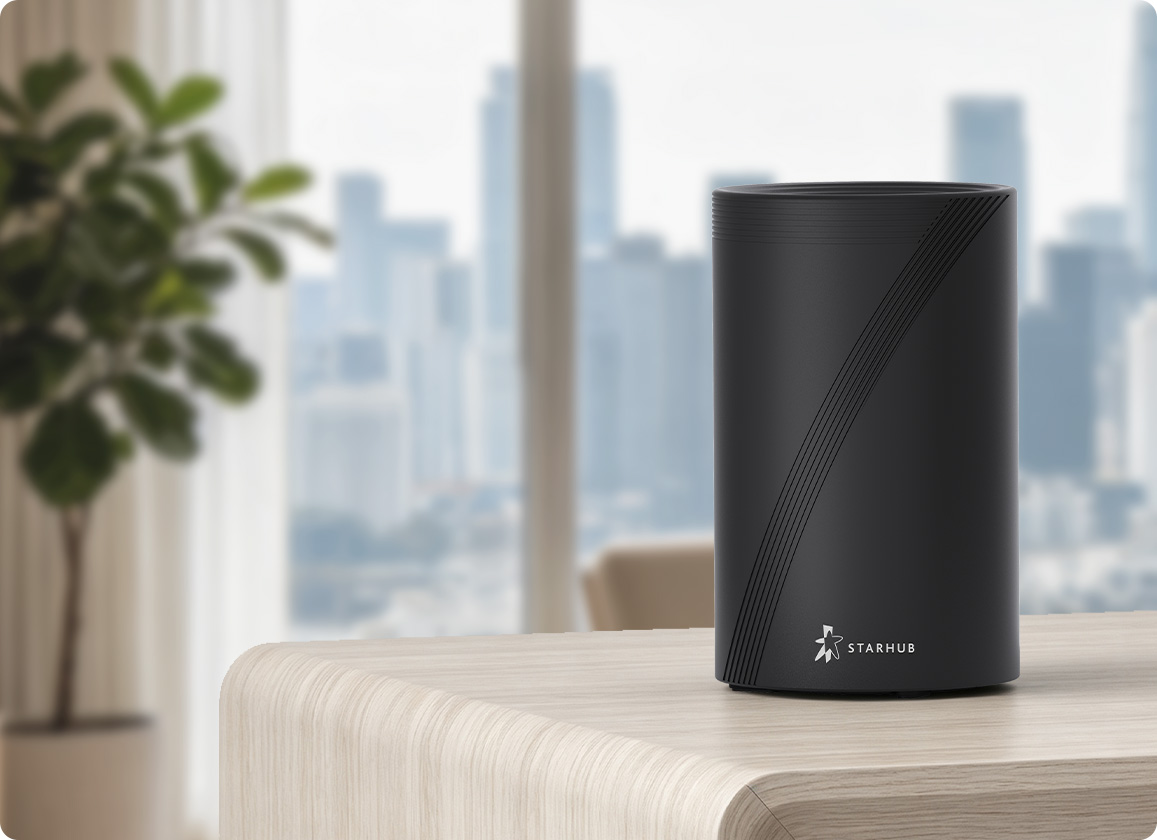

HB615
BE11000 Whole Home Mesh WiFi 7 AP
- 11 Gbps Tri-Band WiFi 7: 6-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
- 5G Multi-Gig Connectivity: Unlock speeds up to 5 Gbps and future-proof your home network for the ultra-fast internet era.△
- Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
- Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across three bands.†
- Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels on the expansive and less-congested 6 GHz band.†
- Works on the 6 GHz Band: Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
- Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.‡
- More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.†
- Enhanced Security: WPA3 encryption, multi-SSID, and parental controls provide a personalized and safer online experience.†
- Easy Setup and Use: Set up and manage your mesh network in minutes with the powerful Aginet app.
- Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.
Super
Mesh-Powered
WiFi 7
BE11000 Whole Home Mesh WiFi 7 AP
HB615
11 Gbps Tri-Band Speeds
6 Simultaneous Spatial Streams
320 MHz
Channels
4K-QAM
Multi-Link
Operation
EasyMesh-
Compatible
Seamless
Roaming
5G
Multi-Gig
Connectivity
Parental
Controls
Enhanced
Security
Aginet Solution
End-to-End
Management Platform
TR-069/TR-369
Remote Management
Revolutionize Your WiFi
Experience with WiFi 7
WiFi 7 has arrived with unprecedented
performance—offering accelerated
throughput, lower latency, stronger
anti-jamming, and higher
efficiency. Join the
league of pros and experience the sheer
performance of the next generation of WiFi.†
-
Wi-Fi 6
-
Wi-Fi 5
-
320 MHz
Doubles the bandwidth,
doubles the speed -
4K-QAM
Packs 120% data for
higher speeds -
Multi-Link Operation
Increases throughput, reduces
latency,
and improves reliability -
Multi-RUs
Make full use of every resource
for
maximum efficiency
11 Gbps Tri-Band WiFi Speeds
Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands
enhance WiFi speeds and efficiency
significantly, ensuring a smoother experience
for all
applications. Enjoy fluent 4K/8K
streaming, immersive gaming, and blazing-fast
downloads.*
Multi-Gig Internet Connections
Unlock your broadband plan with speeds of up
to 5 Gbps, enabling high-speed home
networking through a 5 GbE WAN/LAN port.
The 5
GbE LAN and 2.5 GbE LAN ports provide
robust backhauls, ensuring a stronger and more
stable mesh network while simultaneously
enhancing overall flexibility. Additionally, the
USB port allows for the high-speed sharing of
files, music, and videos within your network.△
Extensive WiFi Coverage
High-performance antennas and beamforming
technology combine
to adapt WiFi coverage to
perfectly fit home and concentrate signal
strength towards every device.
Beamforming
4× High-Gain
Antennas
The optimally
positioned antenna
array
ensures
balanced WiFi
coverage with
high
isolation and less
interference
Whole Home Coverage Backed
by a Robust Backhual
Empowered by EasyMesh technology, HB615
delivers strong WiFi signals to every corner of
your home. Wireless backhaul or Ethernet
backhaul links each unit, providing faster
network speeds and truly seamless
coverage.Want more coverage? Simply add
another
HB615 unit wherever you want.‡
Ranch-Style Home
Multi-Story Home
L-Shaped Home
Ethernet Backhaul
Up to 5 Gbps connections
Wireless Backhaul
Across 2.4 GHz, 5 GHz, and 6 GHz
Seamless Roaming with One
WiFi Name
All units work together to form one unified
network. Your mobile device will automatically
connect to the fastest unit when you move
through your home, creating a truly seamless
WiFi experience. ‡
-
Mesh System
-
Traditional Router with Extender
More Connections, Less Buffering
Enhanced by WiFi 7 and featuring OFDMA,
Multi-link operation (MLO), and MU-MIMO, you
can connect up to 250 devices
simultaneously
to build a fully connected home. Enjoy a more
efficient network that loads faster without
dragging down performance.†
-
Web
Browsing -
Smart Home
Devices -
IP Camera
Streaming -
High-speed
Downloading -
Online
Gaming -
8K
Streaming -
720p
Streaming -
1080p
Streaming -
4K
Streaming
Connects up to
devices§
§Testing of multiple
applications and devices is
conducted in TP-Link labs.
Actual results may vary.
Robust Network Protection
-
WPA3 Security
Higher password safety and
enhanced
protection against attacks† -
Parental Controls
Block inappropriate content and
restrict time spent online -
Multi-SSID
Create separate networks for visitors
and keep your main network secure
2-in-1 Router and Access Point
The versatile and multi-purpose HB615
features options to serve as either a router or
access point. Select the mode that suits your
requirements for adaptable wireless and wired
networking.
Router Mode
Create a private
wireless and wired network
Access Point Mode
Create WiFi access for
your existing wired network
Easy to Set Up and Use
You can set up your device and network in
minutes,
whether you prefer the powerful
Aginet app or the
intuitive web interface. The
Aginet app allows you
to manage your mesh
network from a smartphone
or tablet.
Supports TR-069/TR-369 Remote Management
ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. More operations are supported with compatibility for TR-181, TR-111, and TR-143, ensuring a more efficient service experience for home users.
TR-069/TR-369
Remote Management
TR-181 TR-111 TR-143Aginet Solution:
An End-to-End
Management
Platform
for ISPs
The Aginet solution offers ISPs powerful and
flexible platforms to
manage multiple devices
for connected homes, such as dynamic
service provisioning, zero-touch firmware
upgrading, and remote
troubleshooting and
mesh WiFi diagnostics.

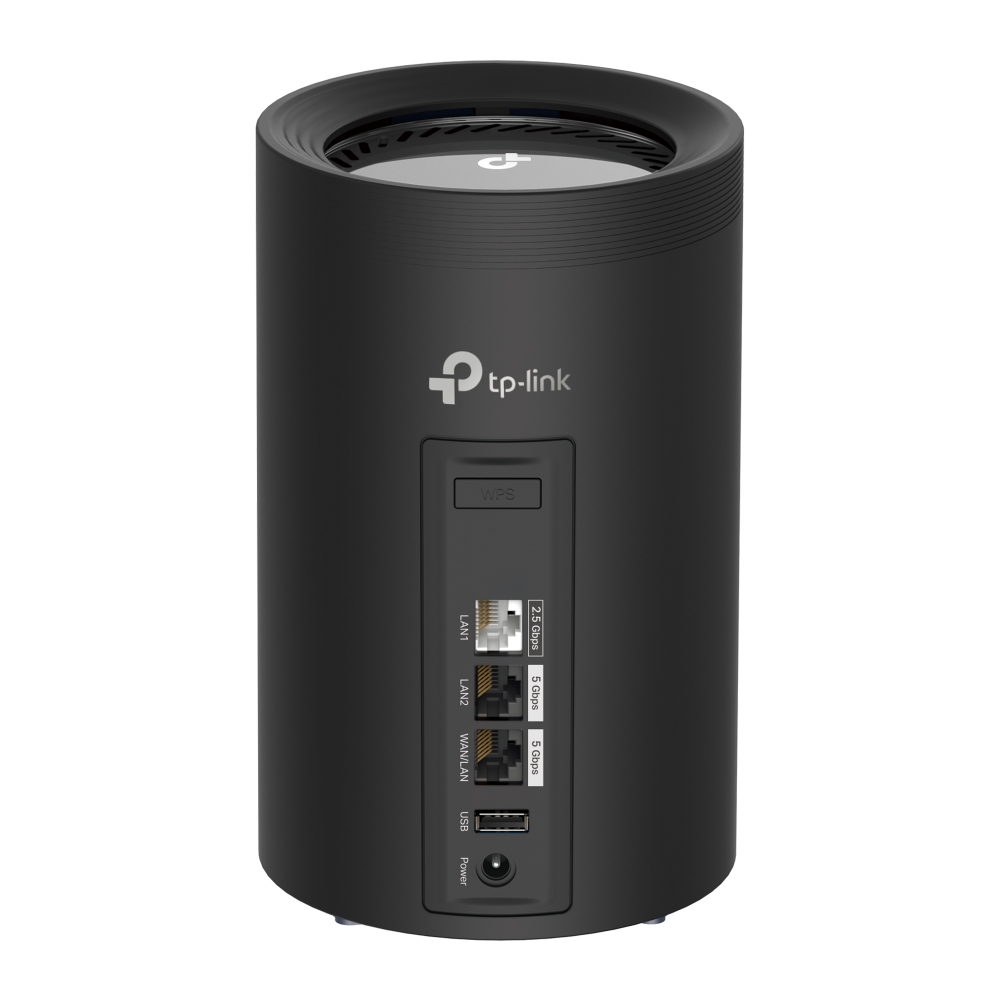

| Interface | 1× 5 GbE WAN/LAN Port1× 5 GbE LAN Port1× 2.5 GbE LAN Port1× USB 2.0 Port*Per Unit |
|---|---|
| Button | WPS ButtonReset Button |
| External Power Supply | 12V/3.3A |
| Dimensions ( W x D x H ) | 4.23 × 4.23 × 6.93 in(107.5 × 107.5 × 176 mm) |
| Quality of Service | WMM |
|---|---|
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS ColorQoS (Quality of Service), Port Forwarding, CWMPParental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| Management Features | Local management: WebGUI, Aginet app (for end users)Remote management:TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providersAginet App for end users (need to log in with TP-Link ID and bind your device to it)Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| VPN | PPTP, OpenVPN, IPSec |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4 IPv6 |
| Working Modes | Router ModeAccess Point Mode |
| Wireless Standards | IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/g/b 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | BE110006 GHz: Up to 5760 Mbps (EHT320)5 GHz: Up to 4320 Mbps (EHT240)2.4 GHz: Up to 688 Mbps (EHT40)* |
| Wireless Security | WPA/WPA2/WPA3-Personal |
| Transmission Power | IMDA:<23 dBm (2.4 GHz)<30 dBm(5 GHz)<24 dBm(6 GHz) |
| Multi-SSID | 2× 6 GHz Multi-SSID2× 5 GHz Multi-SSID2× 2.4 GHz Multi-SSID |
| Mesh Technology | EasyMesh compatible and supports 802.11k/v/r |
| Package Content | HB615 (1-Pack)1× HB615 Unit1× Power Adapter1× RJ45 Ethernet Cable1× Quick Installation Guide |
|---|---|
| Certifications | IMDA, CLS Level 1 |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Use of WiFi 7 (802.11be), WiFi 6E/WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 mesh.
‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.
△5 Gbps or multi-gig internet speeds require compatible service plans and equipment. The WAN/LAN port will operate as either a WAN or LAN port. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
