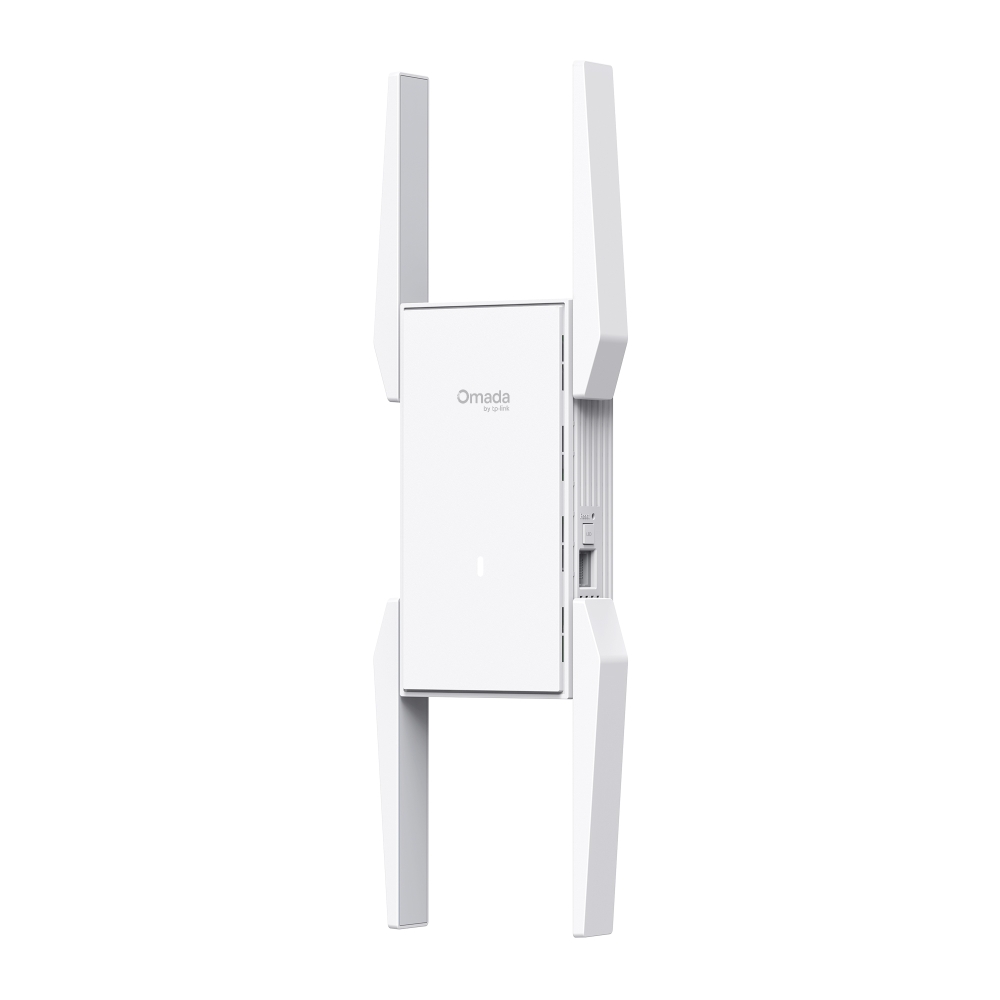

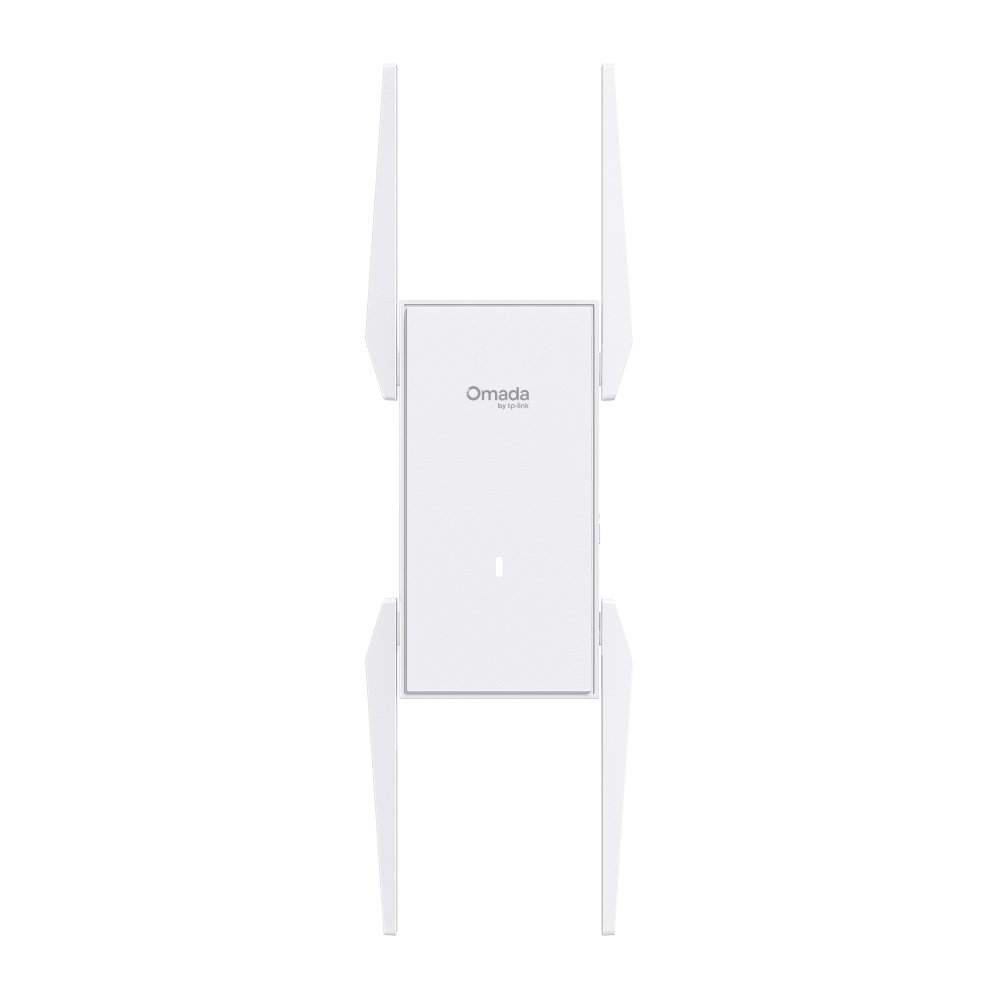

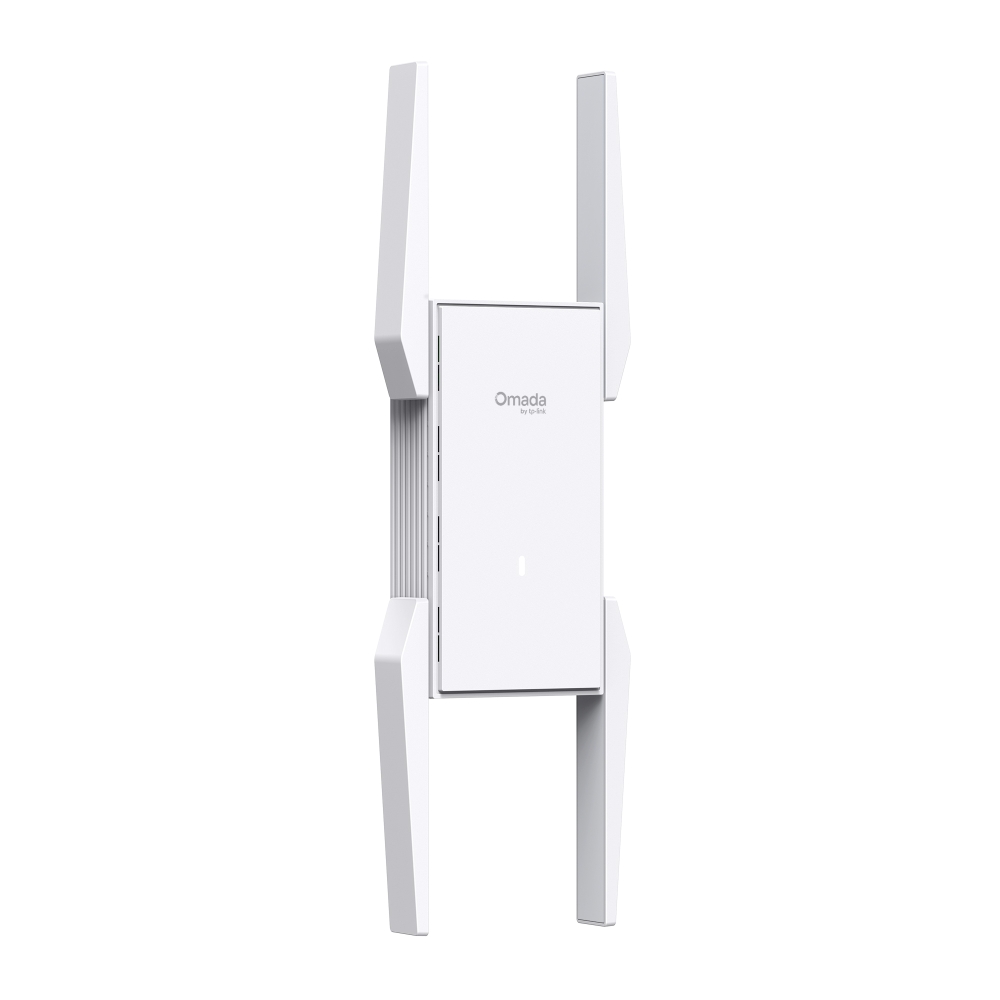

AX5400 Mesh Wi-Fi 6 Extender

AX5400 Dual-Band Wi-Fi 6: Up to 5.4 Gbps wireless speeds.^†
WiFi Dead-Zone Killer: Four high-gain external antennas extend WiFi signals to every dead zone.
AP Mode: Simply plug in an Ethernet cable to create a new Wi-Fi AP.
Seamless Mesh Networking: Supports Omada mesh and roaming for reliable networking.^§
Easy & Quick Installation: Standard AC power supply for flexible deployment.
Quick Adoption: Convenient operation via Omada web or app once the extender powers on.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.

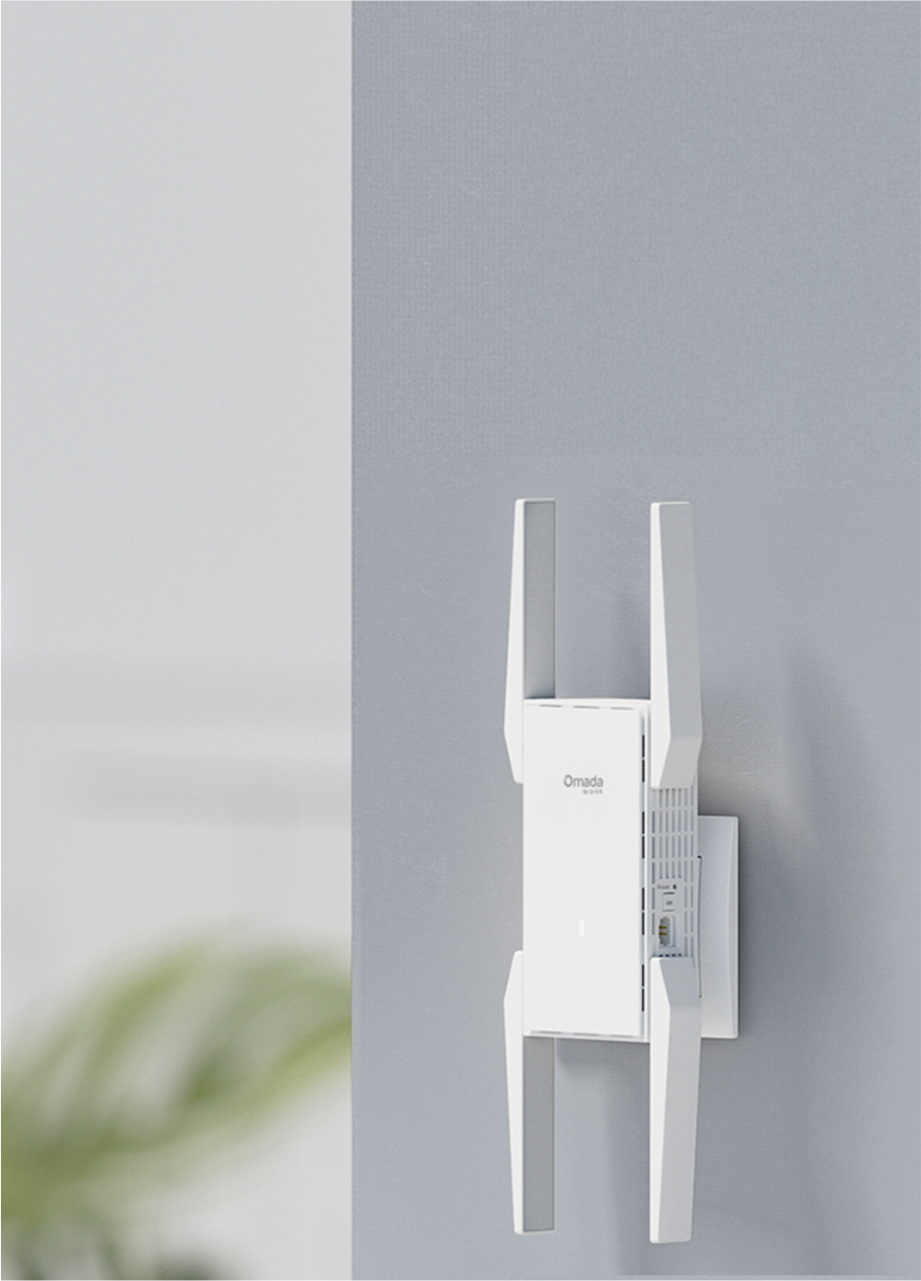

Omada AX5400 Mesh Wi-Fi 6
Extender Expand Your
Reach Smoothly

EAP673-Extender

Wi-Fi Speeds up to
5.4 Gbps

High-Efficiency
Wi-Fi 6

Wi-Fi
Dead-Zone Killer

Standard AC
Power Plug

Omada Mesh &
Seamless Roaming^△

AP Mode

Quick,
Easy Setup

Centralized Cloud
Management

Wi-Fi Speeds up to
5.4 Gbps

High-Efficiency
Wi-Fi 6

Wi-Fi
Dead-Zone Killer

Standard AC
Power Plug

Omada Mesh &
Seamless Roaming^△

AP Mode

Quick,
Easy Setup

Centralized Cloud
Management

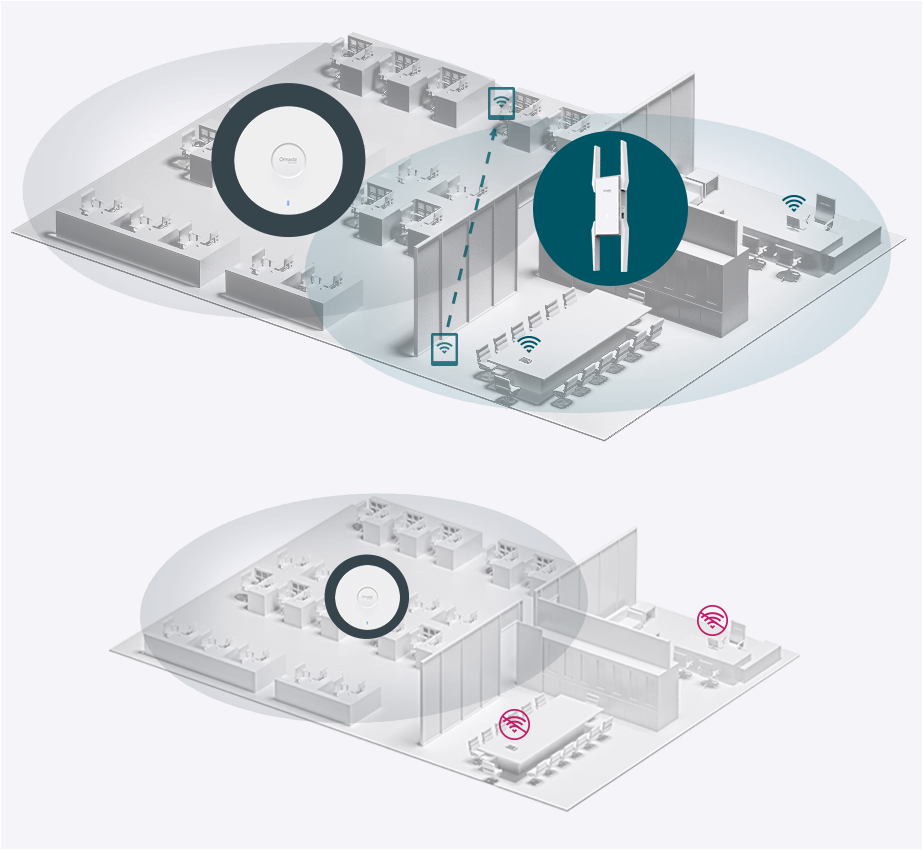

Seamless Coverage to Remove Dead Zones EAP673-Extender, featuring four high-gain antennas and mesh technology, eliminates dead zones, extending coverage by 1,500 ft² (140m²). Enjoy seamless roaming for uninterrupted connectivity.

Access Point

Roaming

EAP673-Extender

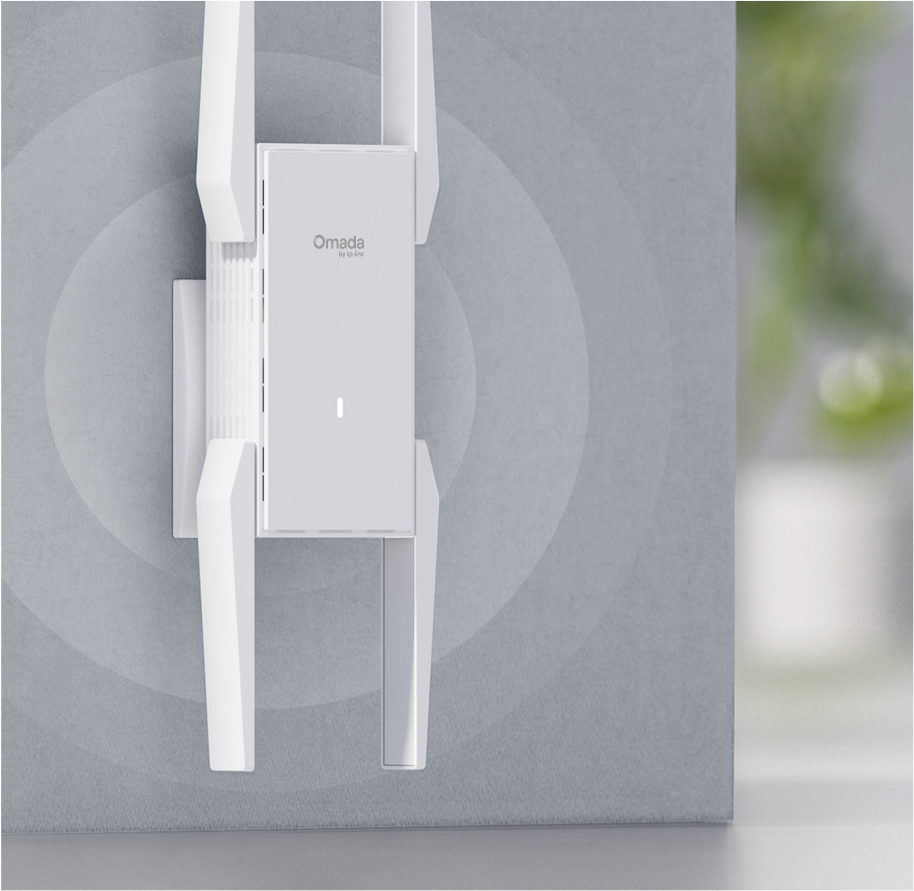

Effortless Installation with AC Power Overcome cabling challenges with EAP673-Extender, delivering seamless Wi-Fi via AC power. Enjoy stable, high-performance coverage—no extra wires needed.

Power Up Your Business with New-Era Wi-Fi 6

Lightning-Fast AX5400 Wi-Fi 6 Speeds

Up to 250+ Concurrent Connections**

5 GHz

4,804 Mbps

2.4 GHz

574 Mbps

1024
QAM

160 MHz
Channel

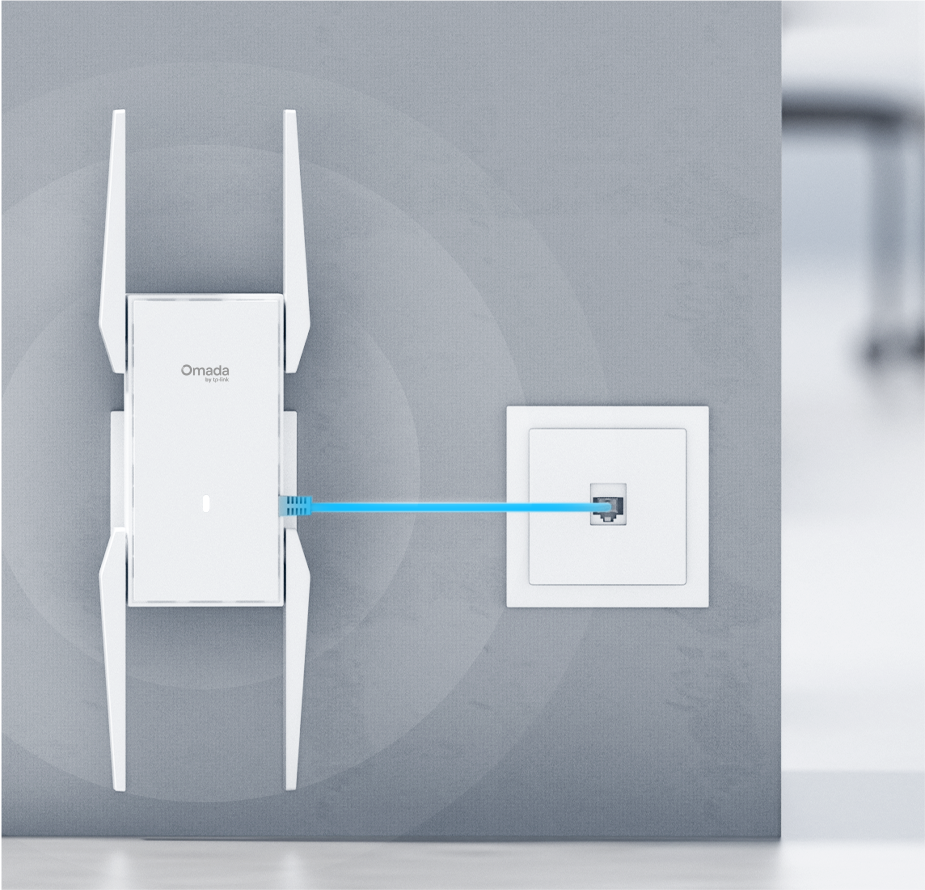

AP Mode for Flexible Deployment EAP673-Extender's built-in AP mode delivers a robust, stable Wi-Fi signal without a PoE switch or infrastructure renovations, enhancing flexibility and reducing costs.

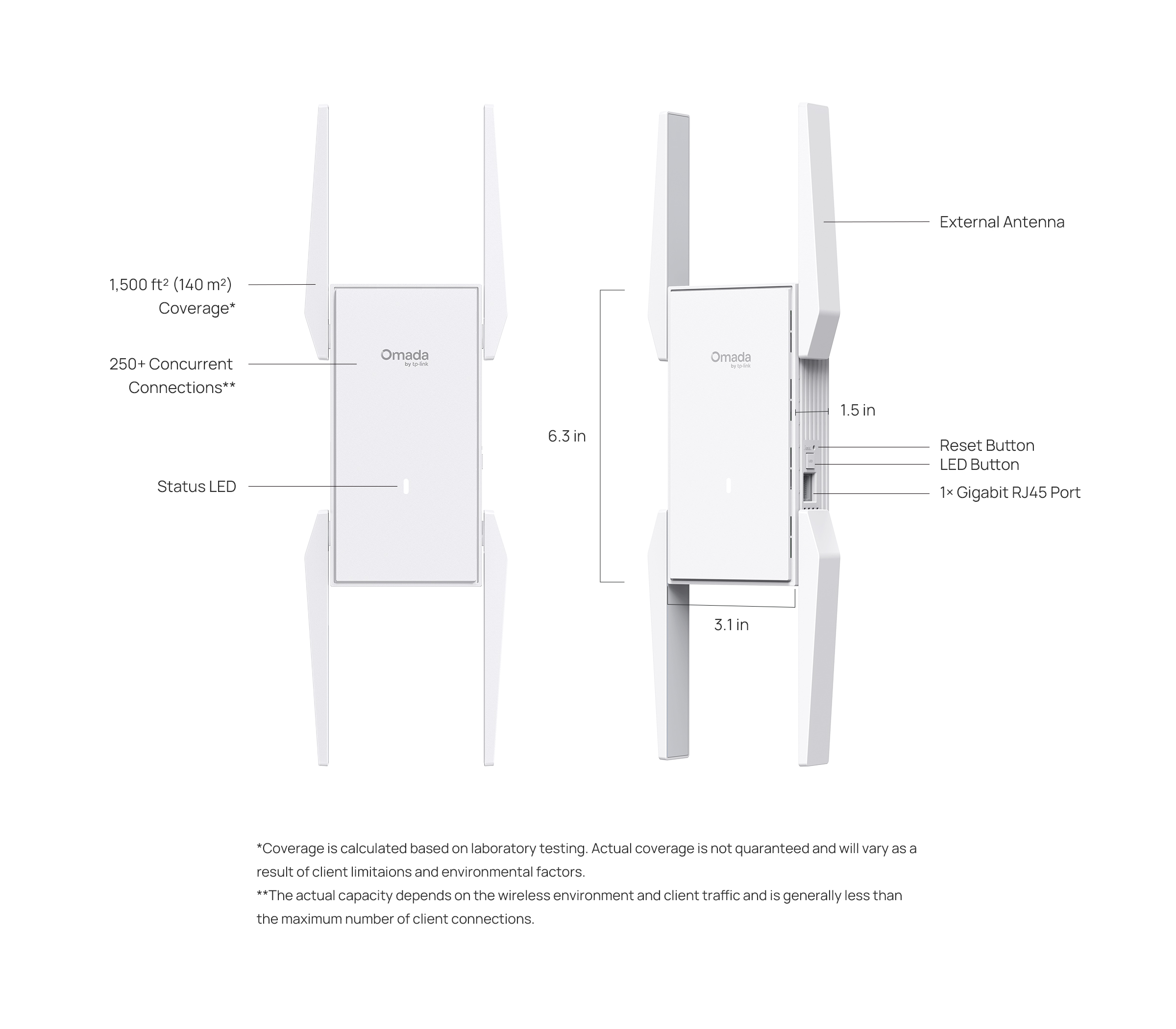

HARDWARE FEATURES
Interface	1 x 10M/100M/1000M Ethernet Port
Physical Security Lock	No
Button	Reset, LED
Power Supply	100-240 V ~ 50/60 Hz
Max. Power Consumption	16.5 W (Idle Power Consumption: 6.7 W)
Dimensions ( W x D x H )	6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm)
Antenna	4× External Antennas • 2.4 GHz: 2× 5 dBi • 5 GHz: 4× 6 dBi
Mounting	Plug-in Wall Mounting

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

WIRELESS FEATURES
Coverage	140 ㎡ (1500 ft²)^***
Concurrent Clients	250+^**
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming^§ • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Authentication • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE 7-20 dBm (2.4 GHz, EIRP) 9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9-30 dBm (5 GHz, U-NII-2C, EIRP) • FCC 4-25 dBm (2.4 GHz) 7-28 dBm (5 GHz, U-NII-1 & U-NII-2A & U-NII-2C & U-NII-3)

OTHERS
Certification	CE, FCC, VCCI, JRF, SAA, RCM

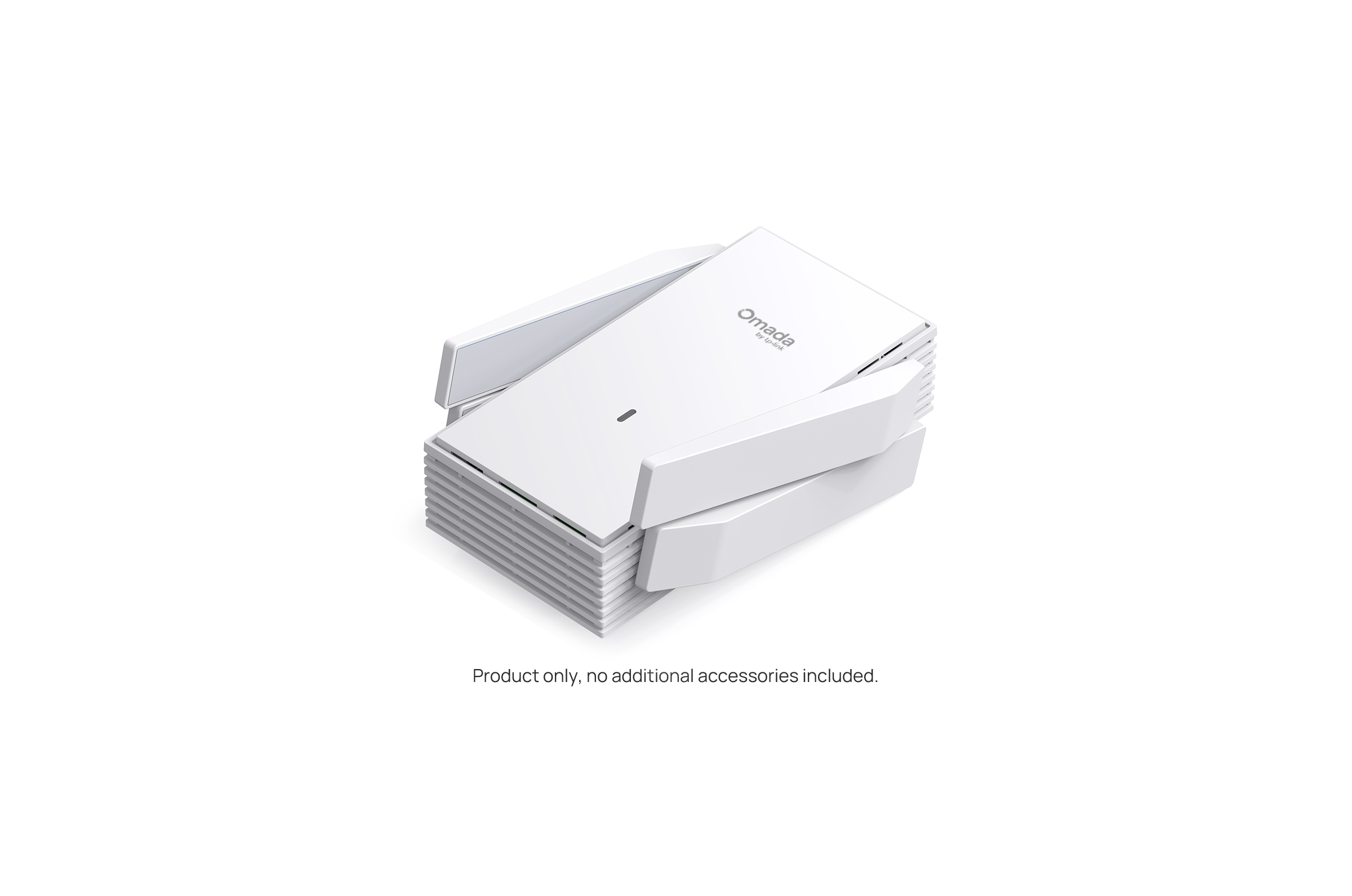

Package Content	• EAP673-Extender • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing •Storage Altitude: up to + 2000 m (6561 feet) •Operating Altitude: up to + 2000 m (6561 feet)

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^‡Use of Wi-Fi 6 (802.11ax) and features including 160 MHz bandwidth, OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
^§These features require the use of an Omada controller.
^**Actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
^***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
