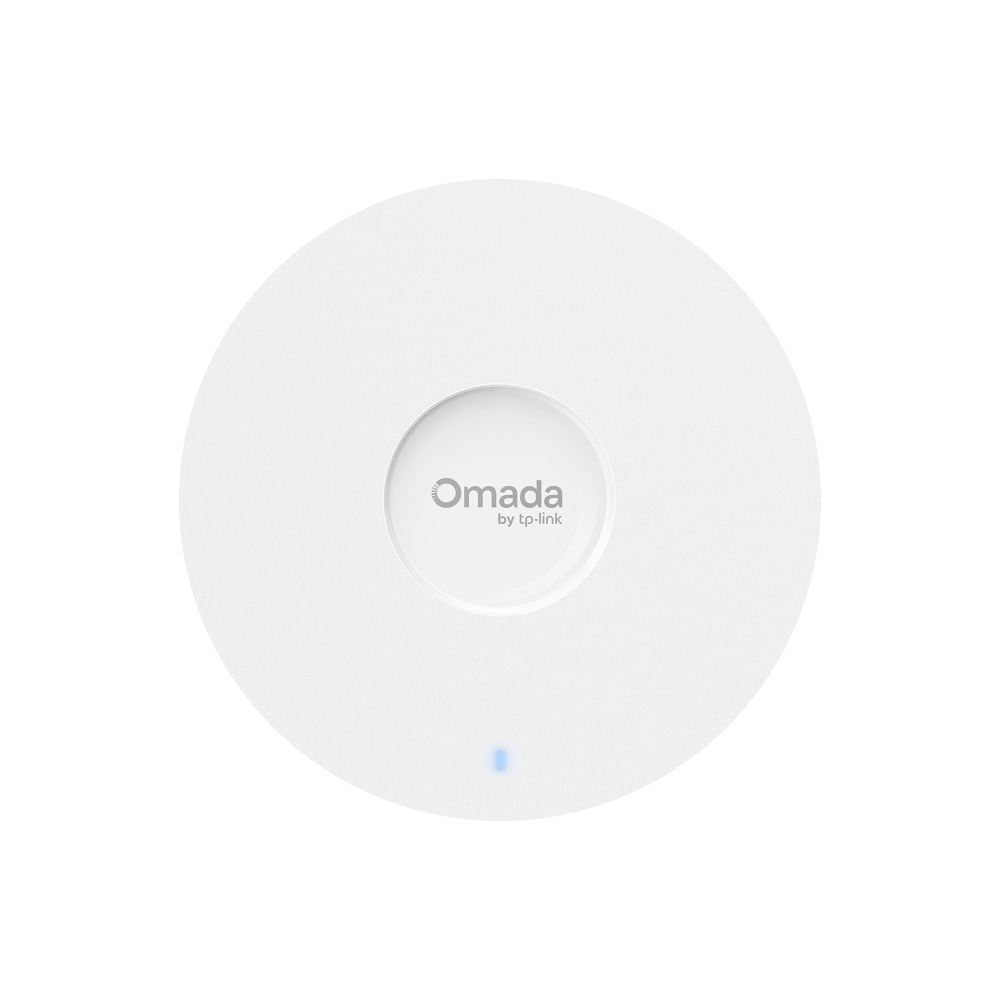

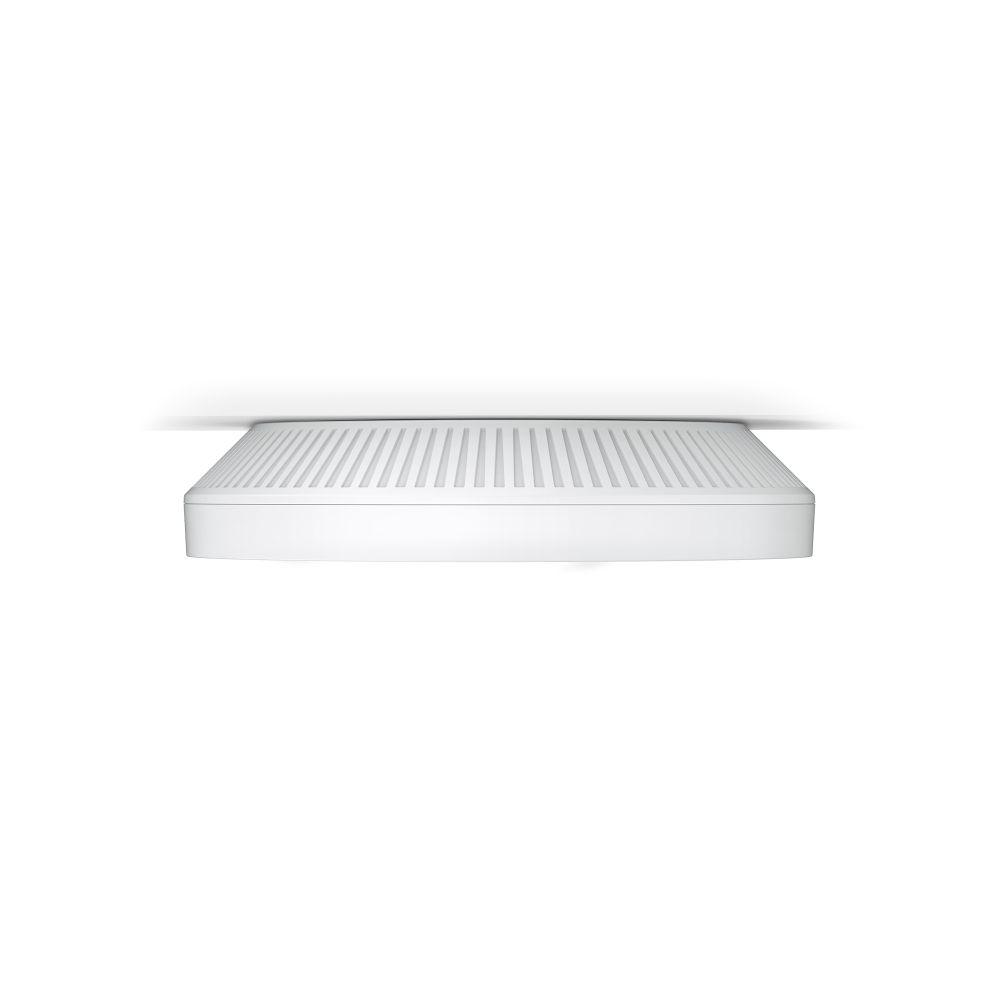

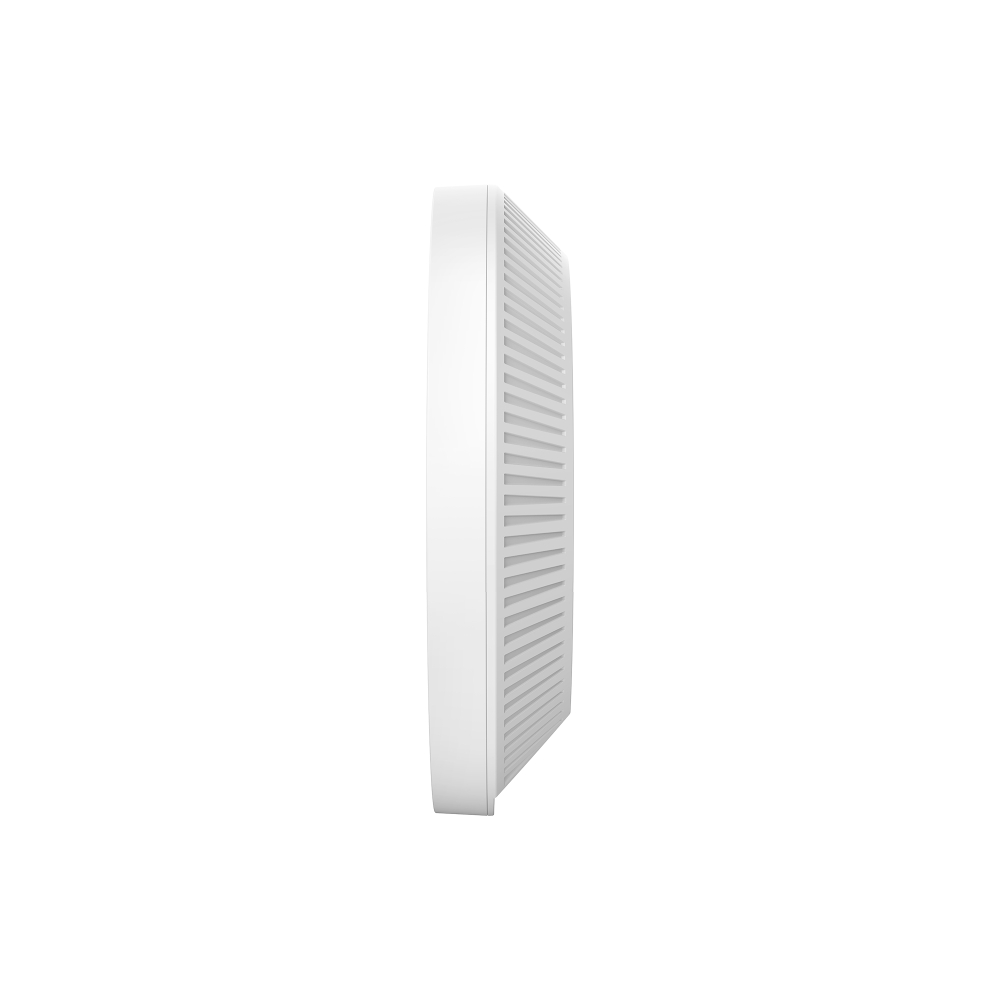

AX3000 Ceiling Mount WiFi 6 Access Point
- 4-Stream Dual-Band Wi-Fi 6: 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- Ultra-Range Coverage: Up to 2,000 ft² (185 m²) coverage of stable connectivity in expansive deployments.*
- 1× Gigabit Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: 160 MHz Bandwidth, MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- More Connections: Supports up to 510+ concurrent connections.**
Omada AX3000
Ultra-Range
Ceiling
Mount Wi-Fi 6
Access Point
AX3000 Dual-Band Wi-Fi 6†
Ultra-Range Coverage
1× Gigabit Port
802.3at PoE
Omada Mesh & Seamless Roaming△
Centralized Cloud Management
Enhanced Security
Easy, Quick Setup
Ultra-Range Wireless Coverage
2 × 2 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.
Power Up Your Business
with New-Era Wi-Fi 6
Lightning-Fast AX3000 Wi-Fi 6 Speeds
5 GHz
2402 Mbps
2.4 GHz
574 Mbps
Wi-Fi 6 with OFDMA
Wi-Fi 5 with OFDM
Higher Efficiency with OFDMA
More Simultaneous Connections with
MU-MIMO
Optimized Wired Performance with Gigabit PoE+ Port
Boost overall network efficiency with a
high-performance Gigabit PoE+ port, delivering
blazing-fast data speeds.
Compatibility with 802.3at
PoE is ideal for flexible deployment.
Gigabit PoE+
Boosted Network Security
Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free
Open Public Networks
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN
Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches,
and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP
EAP653 UR
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud-Based)

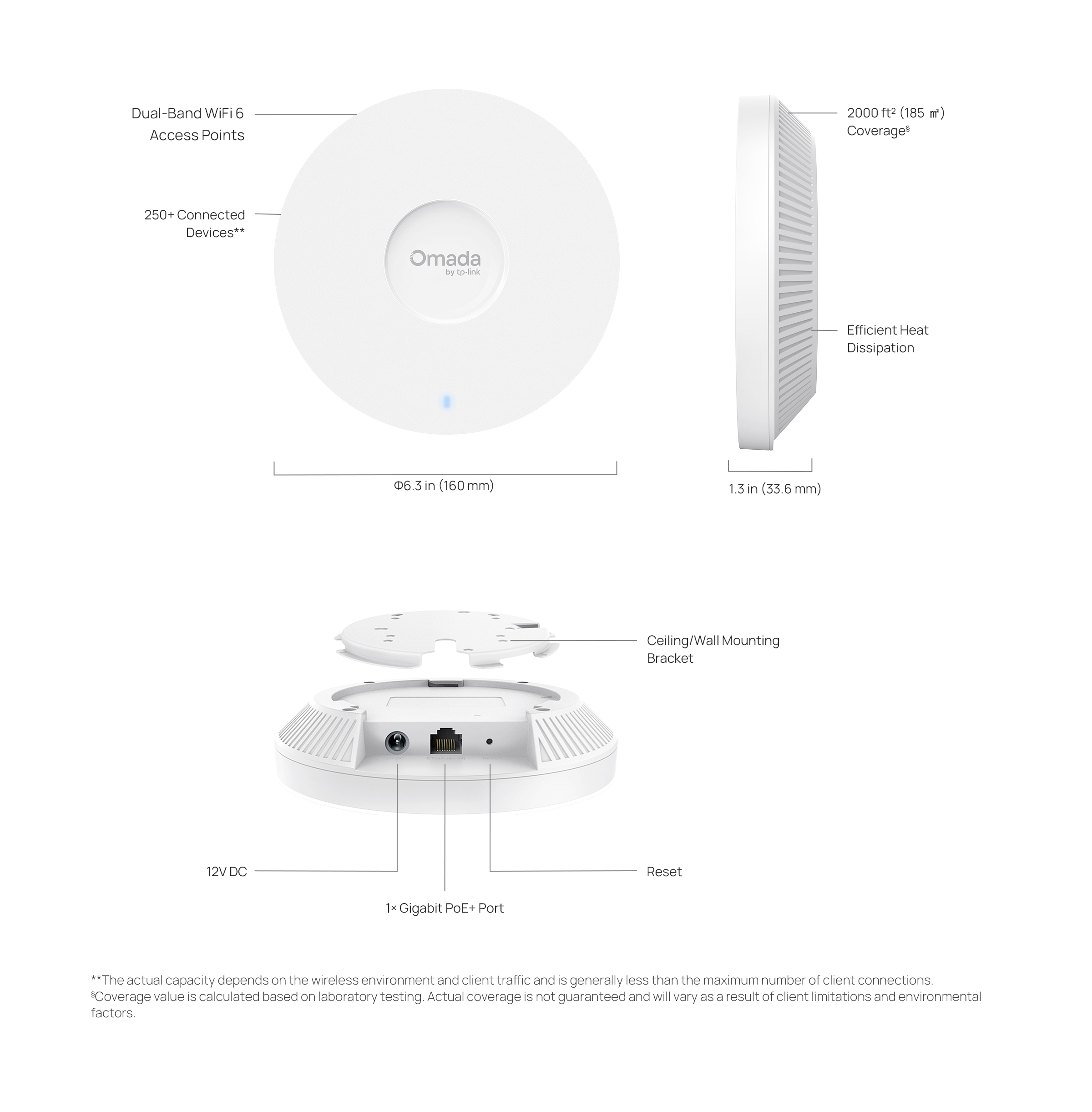

| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 12V DC / 1.5 A• 48V Passive PoENote: DC Power adapter is not included. |
| Max. Power Consumption | • EU: 14.2 W• US: 15.5 W |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | • 2.4 GHz: 2× 5 dBi• 5 GHz: 3× 5 dBi |
| Bluetooth | V5.2 |

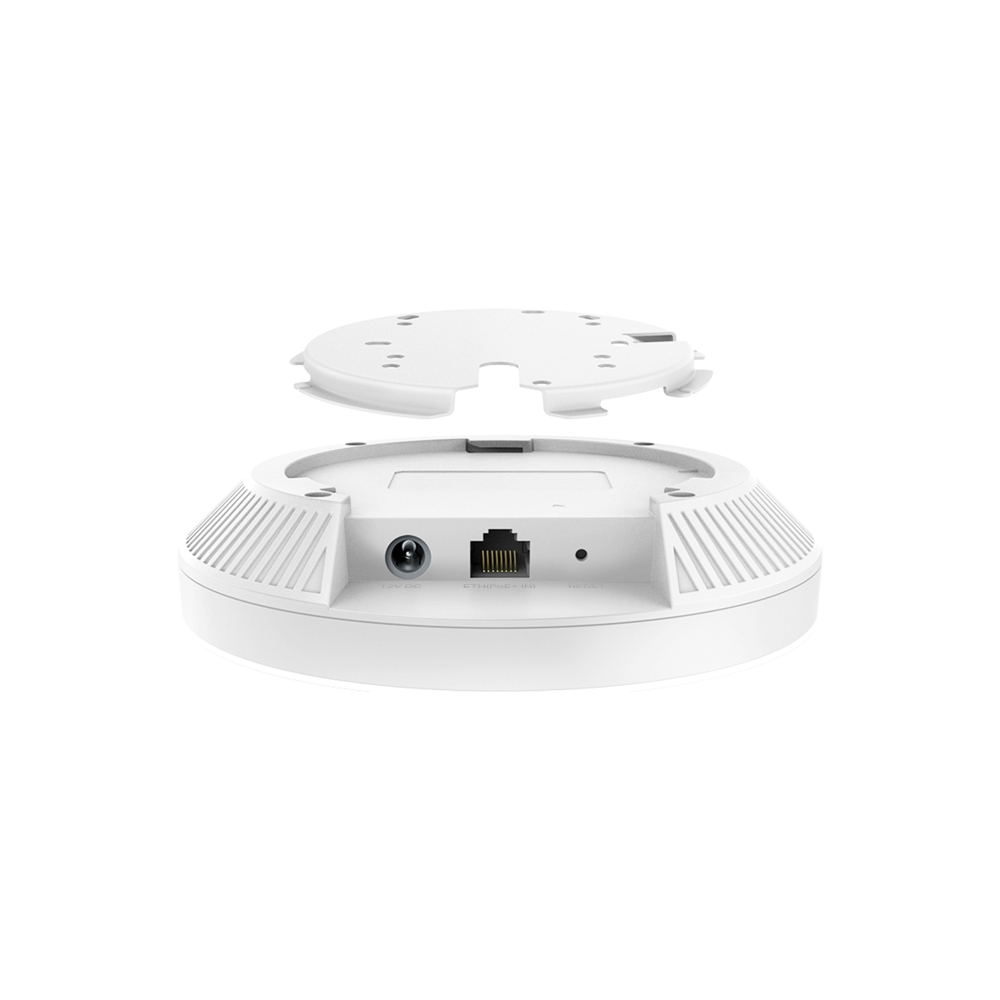

| Mounting | Ceiling/Wall/Junction Box/T-Bar Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 2000 ft² (185 ㎡)* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps†• 2.4 GHz: Up to 574 Mbps† |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)‡• Seamless Roaming(802.11k/v/r)§• Omada Mesh§• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:7-20 dBm(2.4 GHz, EIRP)6-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)6-29 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-26 dBm (2.4 GHz)4-27 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of an Omada controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, MIC, VCCI, ISED |
| Package Content | • EAP653 UR• Ceiling/Wall Mounting Kit• Installation GuideNote: DC adapter is not included in the package, and is sold separately. |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including 160 MHz Bandwidth, OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.
