SG2008 V4.30

Omada Access 8-Port Gigabit Switch

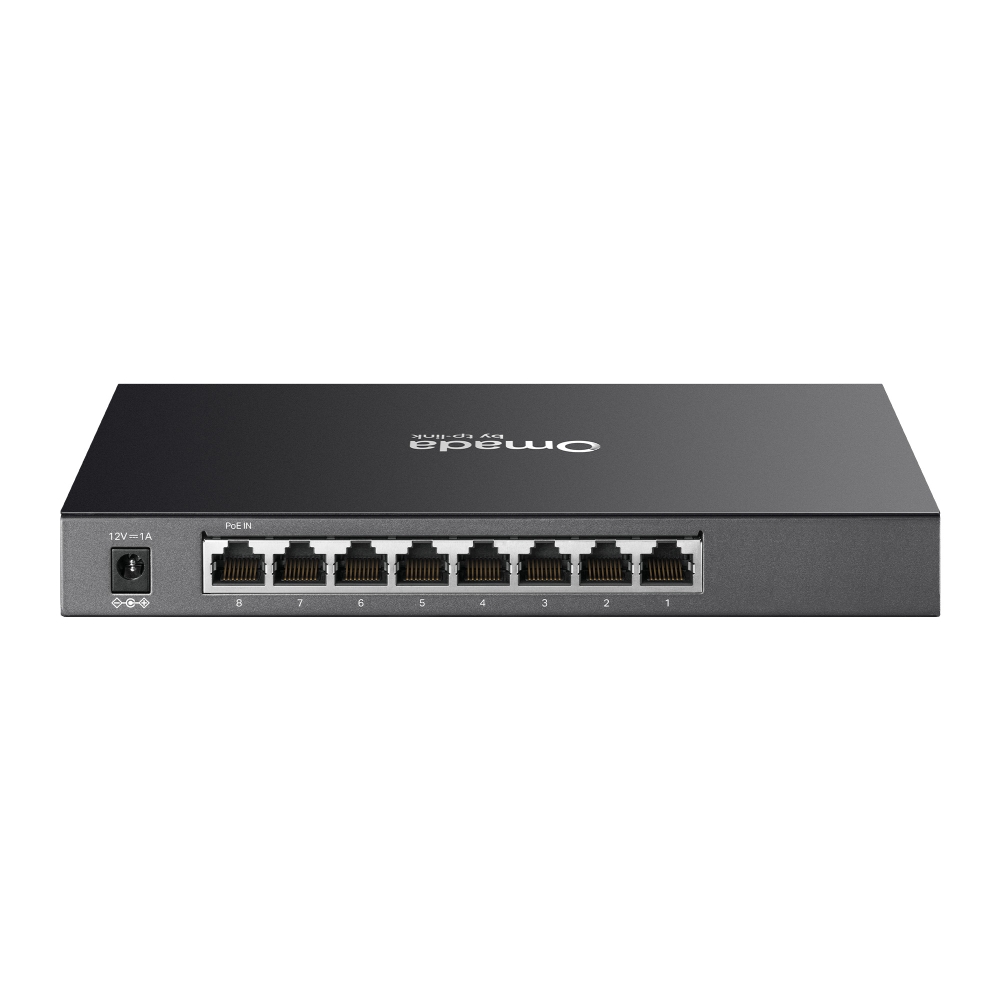

8× Gigabit RJ45 ports (1× PoE in port)
Centralized cloud management via the web or the Omada app^†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Learn more about Omada Cloud SDN>

Omada Access
8-Port Gigabit Switch

SG2008

8× Gigabit RJ45 Ports
(1× PoE in port
included)
Fanless Design for
Silent Operation
Centralized
Management^†
Omada
App^†

Zero-Touch
Provisioning^†
Static
Routing
Traffic
Separation
Traffic
Separation

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Learn More >

Cloud-Based Controller

Standard Version or Essentials Version

On-Premises Controllers

Software

Hardware

Internet

Omada Gateway

Omada Switch

NAS

Desktop

Cloud Access to Omada Controller

Web Browser

Omada App

Printer

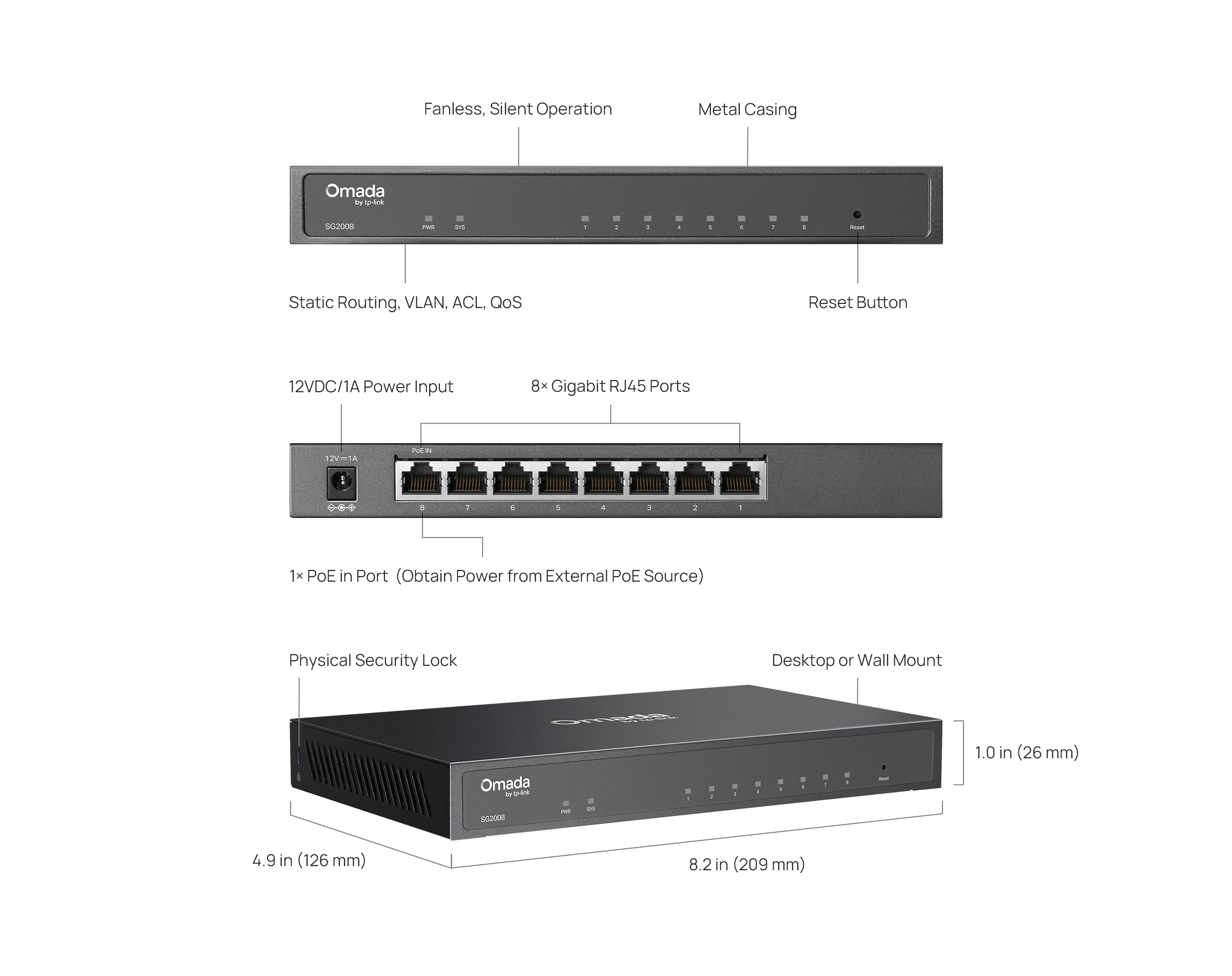

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps RJ45 Ports (including 1× PoE in Port) • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Physical Security Lock	√
Power Supply	AC/DC Adapter (Input: 100-240V AC; Output: 12V DC/1A) or Obtain Power from PoE Source
Dimensions ( W x D x H )	8.2×4.9×1.0 in (209×126×26 mm)
Surge Protection	±6 kV

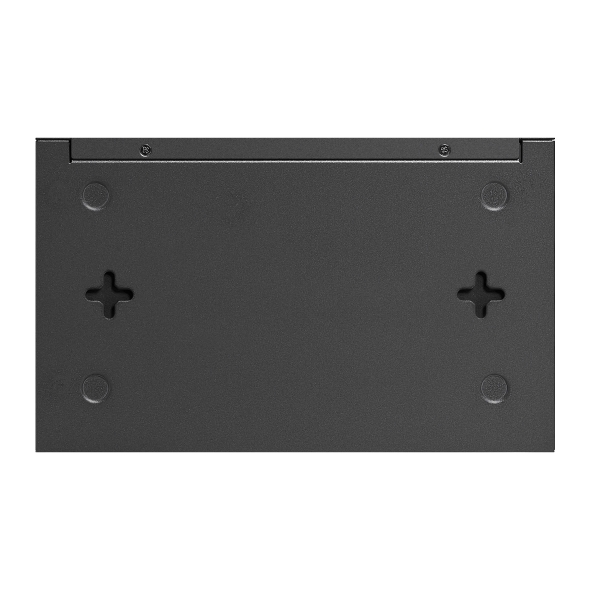

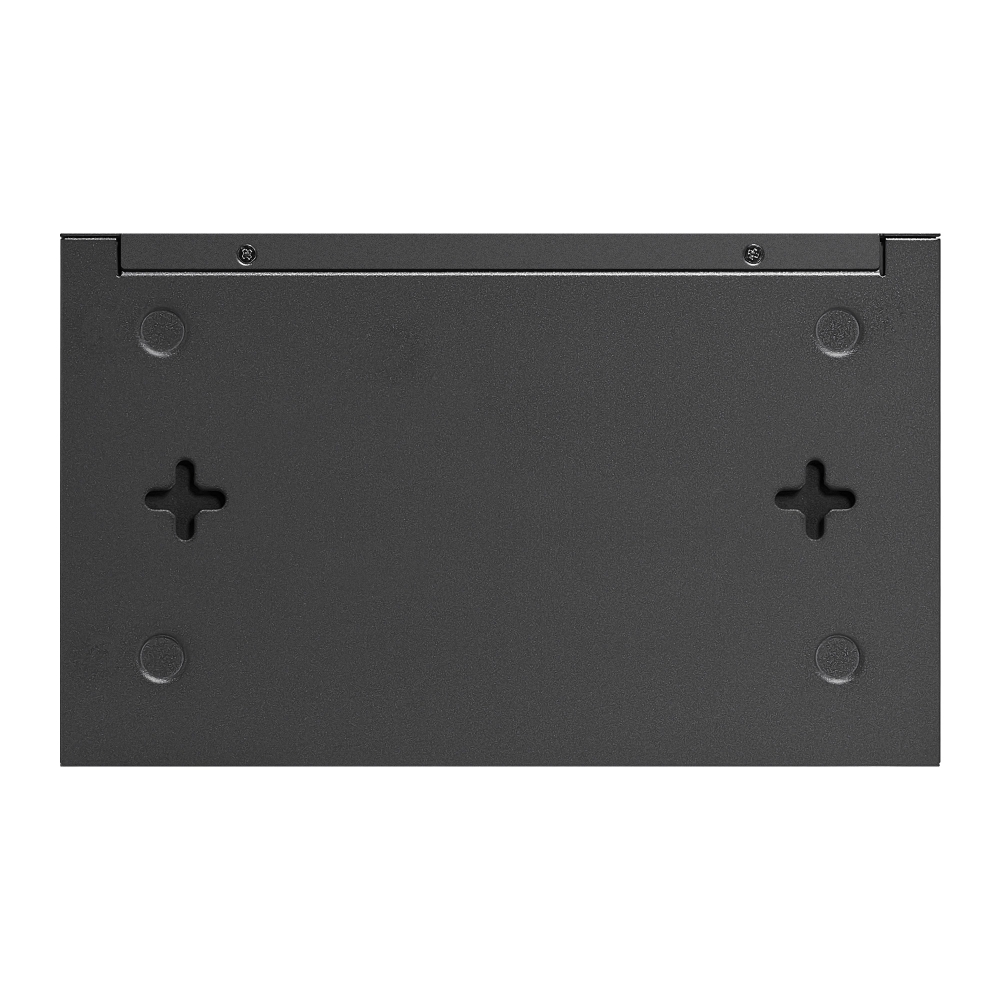

Mounting	Desktop / Wall-Mounting
Max. Power Consumption	• 6.4 W (220 V/50 Hz) • 6.2 W (110 V/60 Hz)
Max. Heat Dissipation	• 21.73 BTU/hr (220 V/50 Hz) • 21.15 BTU/hr (110 V/60 Hz)

PERFORMANCE
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
Bandwidth/Backplane	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	8K

SOFTWARE FEATURES
Quality of Service	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port/Flow-based Rating Limit • Smoother Performance • Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	• 32 IPv4/IPv6 Interfaces • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
L2 Multicast	• Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Multicast Listener Discovery (MLD) Snooping • Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^†
VLAN	• VLAN Group: Max 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
Access Control List	• Support up to 230 entries • Time-Range • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
Security	• AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection - ND Snooping • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • DHCP Filter • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)

Management Features
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log • ONVIF

OTHERS
Certification	CE, FCC, RoHS

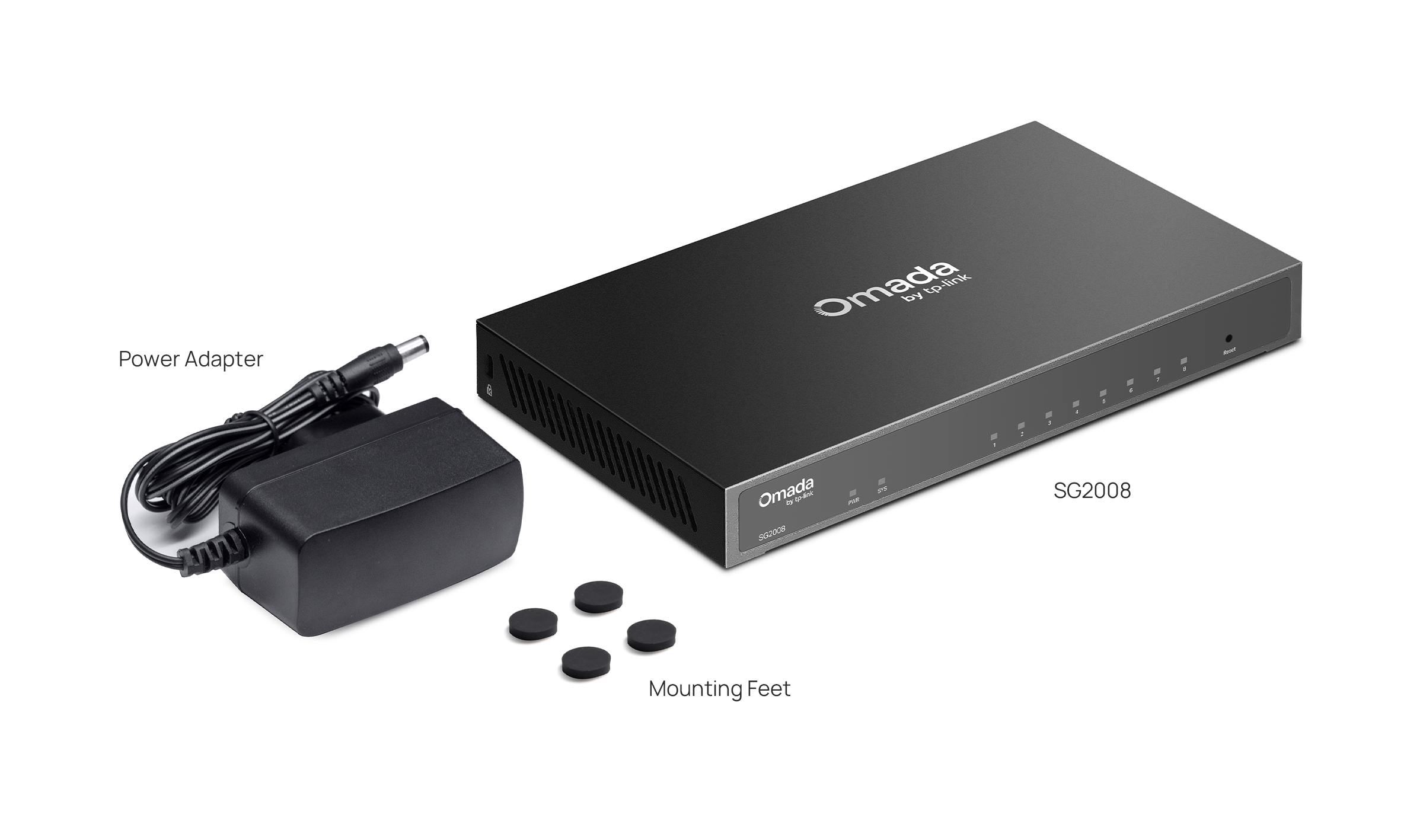

Package Content	• SG2008 • Power Adapter • Mounting Feet • Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5 ̊C–40 ℃ (23 °F–104 ℉); • Storage Temperature: -40 °C–70 ℃ (-40 °F–158 ℉) • Operating Humidity: 10%–90% RH non-condensing • Storage Humidity: 5%–90% RH non-condensing

For additional version information, please go to the support page.

^†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
