Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
- 9× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
- 1× Gigabit SFP/RJ45 Combo port
- 123W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Omada 10-Port
Gigabit Easy
Managed Switch
with 8-Port PoE+
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other 802.3af PoE or 802.3at PoE+ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Deployment and Setup
Surveillance Networking
Troubleshoot Remotely
Cost-Performance Solution
Looking for free, worry-free cloud management for life?
Omada Central Essentials
Lifetime Free Cloud Without Additional Fees
On-site work eating up time and resources?
Reduce Maintenance Costs
Manage and Maintain from Anywhere
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

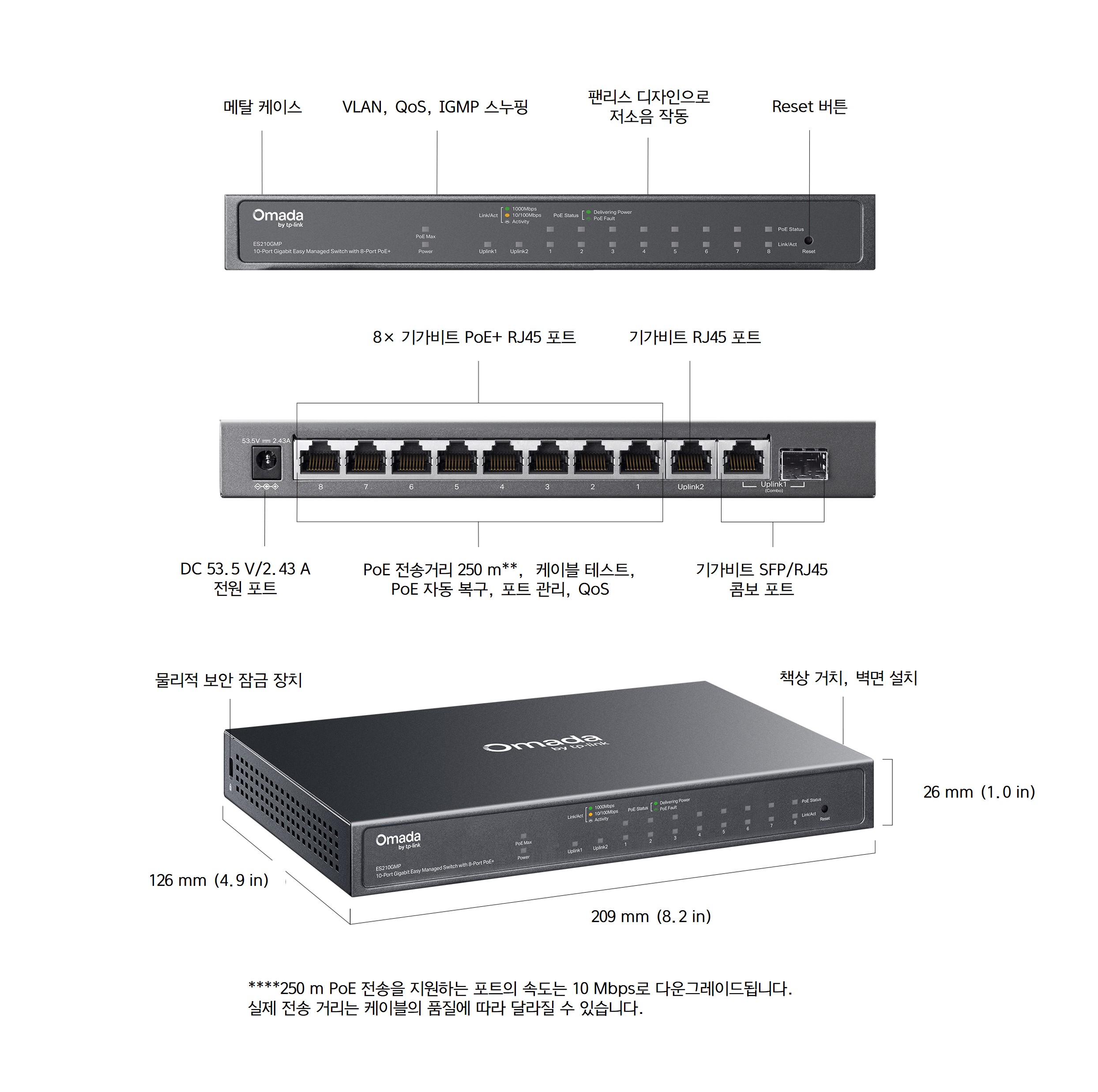

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
| 하드웨어 사양 | |
|---|---|
| 인터페이스 및 주요 사양 | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+)• 1× 10/100/1000 Mbps RJ45 Port• 1× Gigabit SFP/RJ45 Combo Port• Auto-Negotiation/Auto MDI/MDIX |
| 팬(Fan) 수량 | Fanless |
| 설치 | • Desktop• Wall Mount |
| 물리적 보안 잠금 장치 | √ |
| 전원 공급 | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/2.43A) |
| PoE 포트 (RJ45) | • Standard: 802.3af/at PoE+ compliant• PoE Ports: 8 ports• PoE Budget: 123W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery‡• Up to 250m PoE transmission distance** |
| 크기 ( 가로 x 세로 x 높이 ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| 서지 보호 | ±6kV |
| 성능 | |
|---|---|
| 패킷 버퍼 메모리 | 4 Mbit |
| 점보 프레임 | 15 KB |
| 스위칭 용량 | 20 Gbps |
| 패킷 전달 속도 | 14.88 Mpps |
| MAC 주소 테이블 | 8K |
| 소프트웨어 기능 | |
|---|---|
| 서비스 품질(QoS) | • Port-based/802.1p/DSCP QoS△• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 기능 | • Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 6 ports per group• Port Isolation• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• IEEE 802.3az EEE |
| L2 멀티캐스트 | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave / Report Suppression |
| VLAN | • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| 전송 방법 | Store-And-Forward |
| 관리 | |
|---|---|
| Omada 앱 | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 중앙 집중식 관리 | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| 클라우스 액세스 | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 제로 터치 프로비저닝 | Yes. Requires the use of Omada Cloud-Based Controller |
| 관리 기능 | • HTTPS/HTTP• DHCP Client• Cable Diagnostics• ONVIF***• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| 기타 | |
|---|---|
| 인증 | FCC, CE |

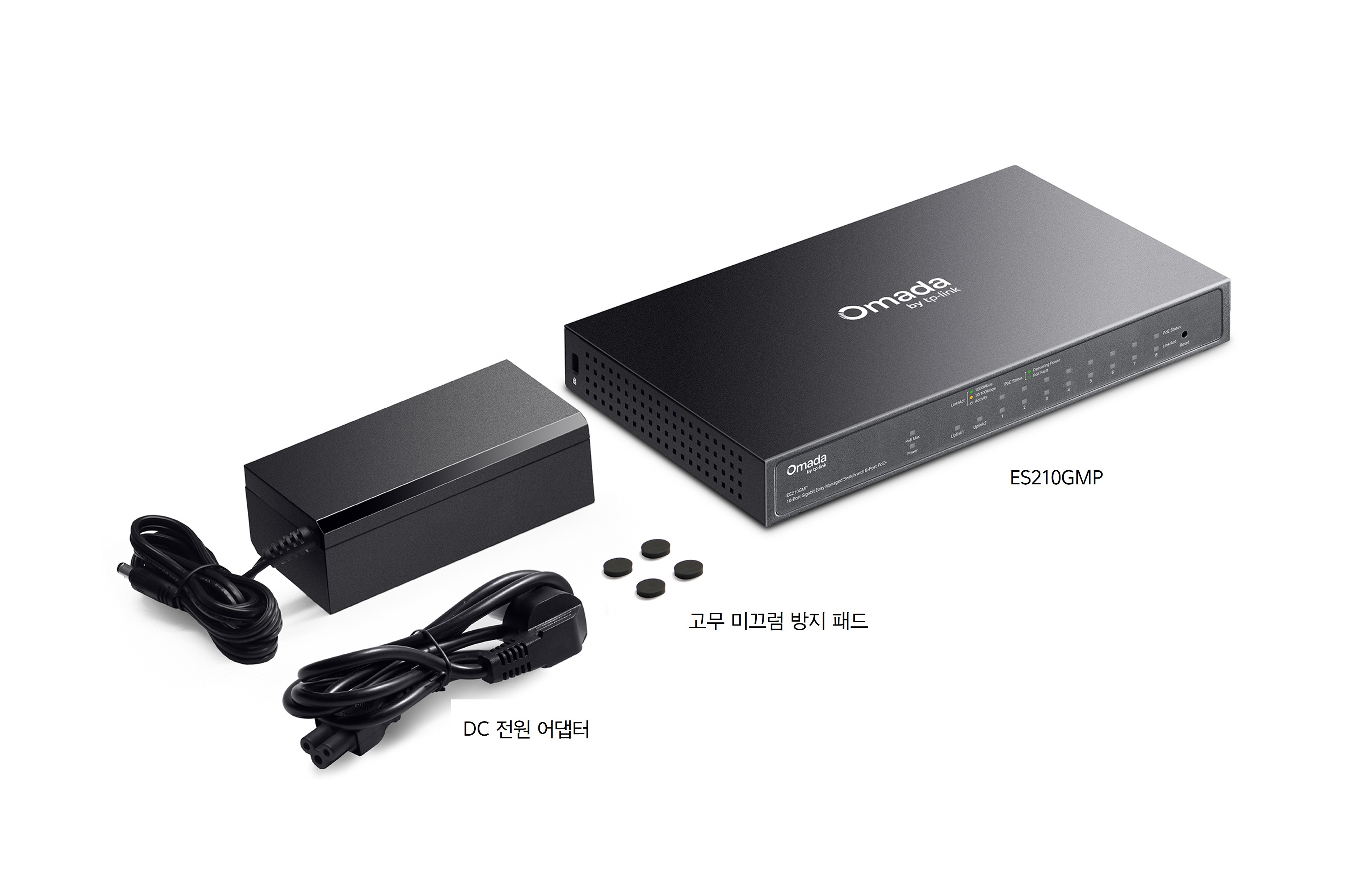

| 패키지 구성품 | • ES210GMP• Power Adapter• Power Cord• Mounting Feet• Installation Guide |
| 사용 환경 | • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
‡IntelliRecover is supported under Controller Mode. POE Auto Recovery is supported under Standalone Mode.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode. QoS Rule is supported under Controller mode.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
***ONVIF is supported only in Controller mode.
