Fusion Pro 2.5G PoE
Coming soonOmada Fusion Pro 2.5G PoE Gateway con slot SSD
- Gestione unificata di networking e videosorveglianza in un unico sistema: gestisci centralmente Access Point e switch Omada, telecamere e NVR, semplificando la gestione anche su larga scala.
- Gestione Cloud senza costi di licenza con funzionalità avanzate di networking e videosorveglianza AI: accesso completo a tutte le funzionalità.
- Configurazione semplificata: onboarding guidato tramite app e Bluetooth, con adozione in blocco dei dispositivi con un solo tocco.
- Prestazioni di livello Enterprise: CPU quad-core, 9 porte 2.5G, bilanciamento del carico fino a 8 WAN con failover automatico e 8 porte PoE+ con budget PoE totale di 180 W.
- Videosorveglianza professionale: ricerca AI con analisi degli attributi di persone e veicoli, gestione integrata dei casi, supporto per telecamere di terze parti (ONVIF/RTSP) e opzioni flessibili di archiviazione su Cloud e NAS.

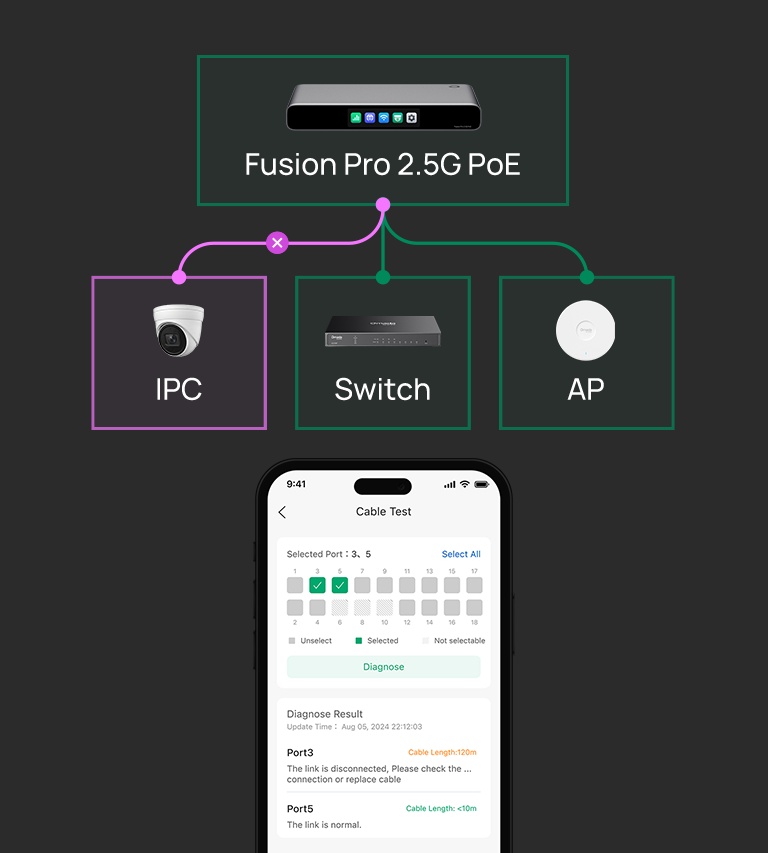

- Efficienza O&M intelligente: riavvio remoto delle telecamere, ripristino intelligente (funzione PoE Auto Recovery avanzata), troubleshooting tramite touchscreen e test dei cavi integrato per un'identificazione precisa dei guasti.
- Funzionalità software avanzate: IPS/IDS, VPN complete, SD-WAN Full Mesh, Auto QoS, Content Filtering e DPI.
Stay tuned: seguiranno maggiori dettagli.
-
Gestione unificata di
networking e videosorveglianza -
Configurazione semplificata
tramite Bluetooth -
Gestione Cloud
senza licenze -
9 porte Ethernet 2.5G
(1× WAN, 8× LAN/WAN) -
8 porte PoE+ con
180W Total Budget -
CPU Quad-Core
ad alte prestazioni -
SSD Video Storage
fino a 2 TB* -
Throughput IPS/IDS
fino a 2.1 Gbps† -
Fast troubleshooting
tramite Touchscreen -
Accesso remoto
sicuro in un clic
Unified Control for Networking & Surveillance in One Platform Unified Control for
Networking & Surveillance
in One Platform
Combining a gateway, controller, and video management system in a single device, Omada Fusion Pro 2.5G PoE delivers a unified
networking and surveillance solution. Centrally manage APs, switches, cameras, and an NVR through one intuitive interface.
Instantly detect, diagnose, and resolve issues without switching between systems. Combining a gateway, controller, and video
management system in a single device, Omada Fusion
Pro 2.5G PoE delivers a unified networking and surveillance
solution. Centrally manage APs, switches, cameras,
and an NVR through one intuitive interface. Instantly
detect, diagnose, and resolve issues without
switching between systems.
Fusion Pro 2.5G PoE A Unified Management Platform
Networking
Surveillance
Access
Points
Switches
NVR*
Cameras
*Supports connecting one NVR to expand camera capacity for larger surveillance deployments.
License‑Free Cloud Management, Lower Ongoing Costs
Enjoy premium networking and AI-powered security features, including DPI, IDS/IPS, AI Search*, and more, all included with no additional subscription fees.
* AI features are only available with VIGI Insight cameras.
-
Built-in Controller &
Video Management,
No Device License -
Remote Cloud Control
via Web/App -
Centralized,
Secure Access to Disparate Sites
Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion Pro 2.5G PoE via Bluetooth using the Omada app. Automatically discover and batch adopt all other Omada and VIGI devices at once, saving time and simplifying IT deployment.
Enterprise‑Grade Performance, Built for Demanding Environments
Quick Troubleshooting via Touchscreen,
Reducing On-Site Visits
With an innovative 3.69-inch touchscreen, enjoy quick troubleshooting—all at your fingertips. Reduce on‑site visits and save time with direct, on‑device monitoring.
Secure Remote Network Access, One Click Away
With Omada LightLink VPN, securely access your network from anywhere with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.
Advanced Networking Capabilities for Secure and Intelligent Management
Simple Multi-Site Connectivity with Full-Mwsh SD-WAN
Connect up to 20 sites with direct inter‑site links—simpler to deploy, smoother for multi‑site networking.
Content Filtering & Ad Blocking
Blocks unwanted sites and intrusive ads for a safer, cleaner experience.
App‑Based Access Control
Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.
One-Click Auto QoS
Ensure critical traffic always gets priority, with one-click presets or full customization.
Professional Features for High-Efficiency Video Monitoring
Simplify monitoring and accelerate response with integrated surveillance tools.
Search and locate persons or vehicles of interest in seconds—speeding investigations and simplifying workflows.‡
Create, organize, and track cases from a single workspace.
Supports a broader range of ONVIF and RTSP cameras with extensive feature coverage.
Archive recordings to Google Drive, OneDrive, Dropbox, or on-premises NAS for flexible long-term retention.
Uninterrupted Surveillance with Easier Maintenance

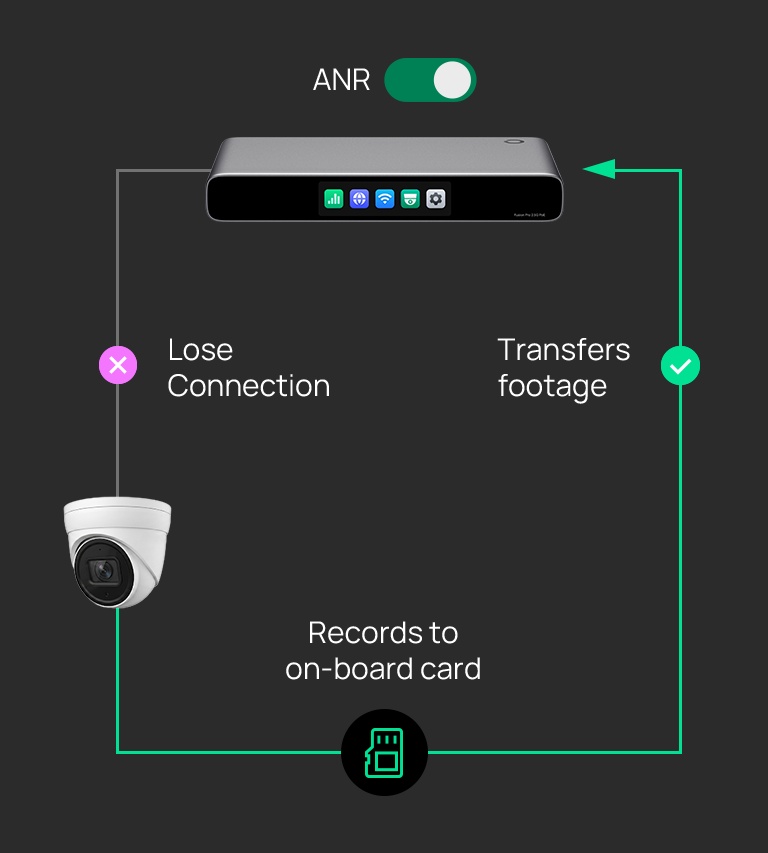

ANR Lose Connection Transfers footage Records to on-board card

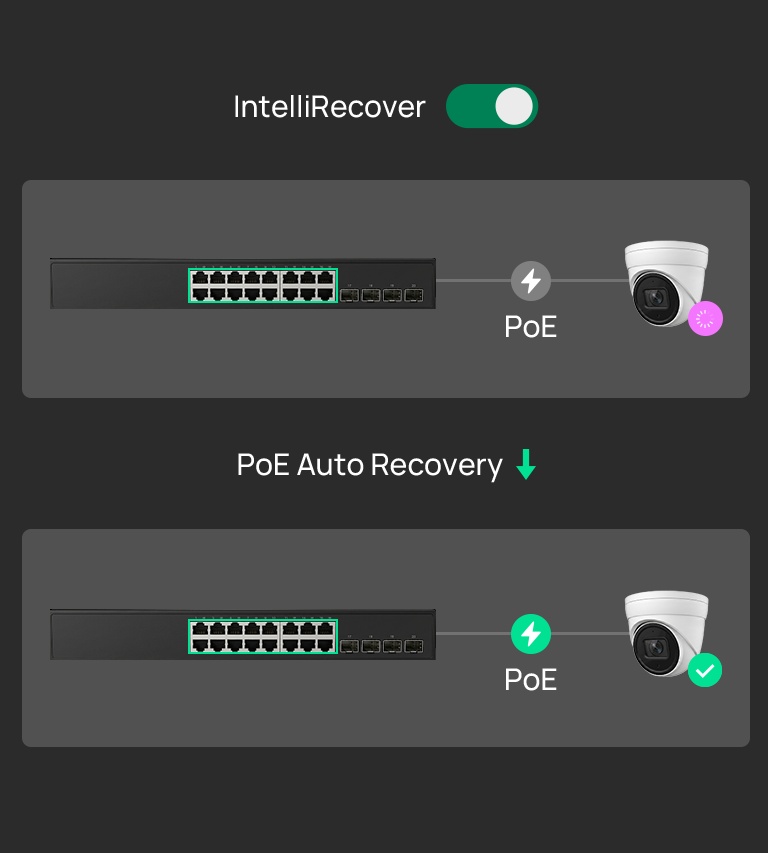

IntelliRecover PoE PoE PoE Auto Recovery
Fusion Pro 2.5G PoE IPC Switch AP△These features require implementation with compatible cameras and PoE switches.
Flexible Mounting for Diverse Business Environments

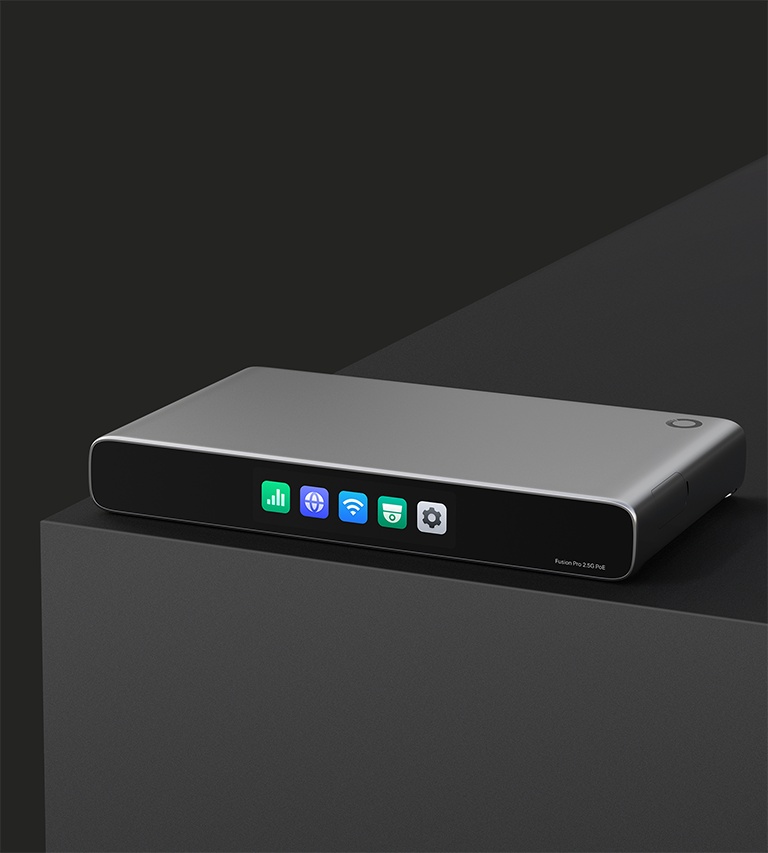

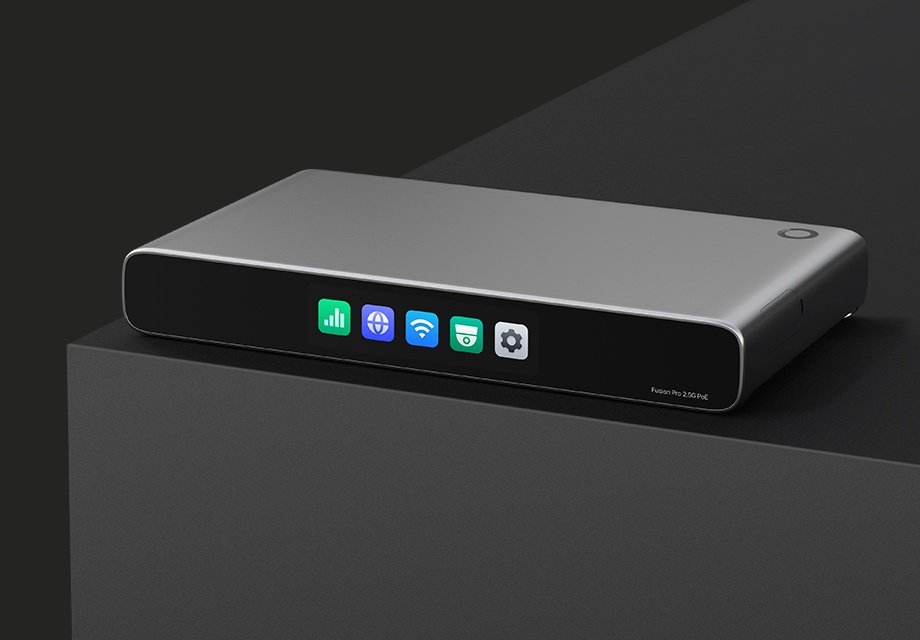

Desktop
No Additional Installation Needed
Designed for Forward-Thinking Businesses
| Overview | |
|---|---|
| Built-In Omada Applications | • Network Application• Guard Application |
| Managed Omada Network Devices | Recommended for up to 30 devices |
| Managed Devices | • Recommended Omada Network Devices: 30§• Recommended Cameras: - Local Recording: 16× HD / 14× 2K / 12× 4K / 6× 12MP Cameras§ - NVR Expansion: Up to 24 Cameras with 1 Omada or VIGI NVR§• Recommended NVRs: 1• Omada SightCast: Supported |
| Max. Supported Cameras | 24× 4K |
| Client Capacity | Recommended for up to 300 connected clients |
| Interface | • 1× 2.5G RJ45 WAN port• 8× 2.5G RJ45 LAN/WAN ports• 8× PoE+ ports with 180W total budget• Up to 8 simultaneous WAN ports |
| IPS Throughput | 2,364 Mbps |
| Site-to-Site VPN Throughput | 1,332 Mbps |
| Management | • Cloud Access• Account & Role• Local Management• Omada App• Multi-Site Management |

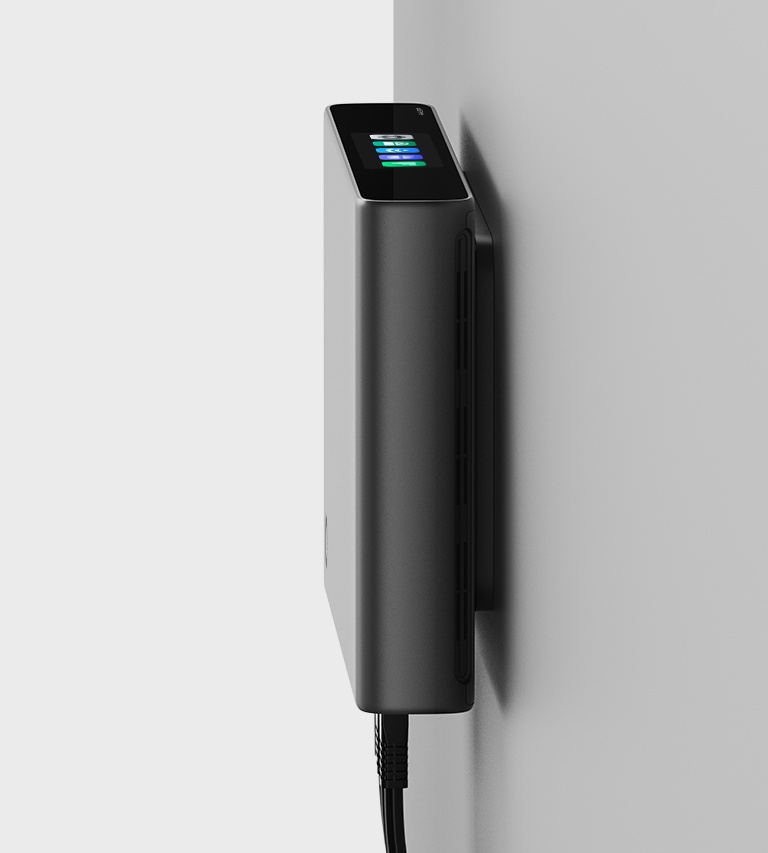

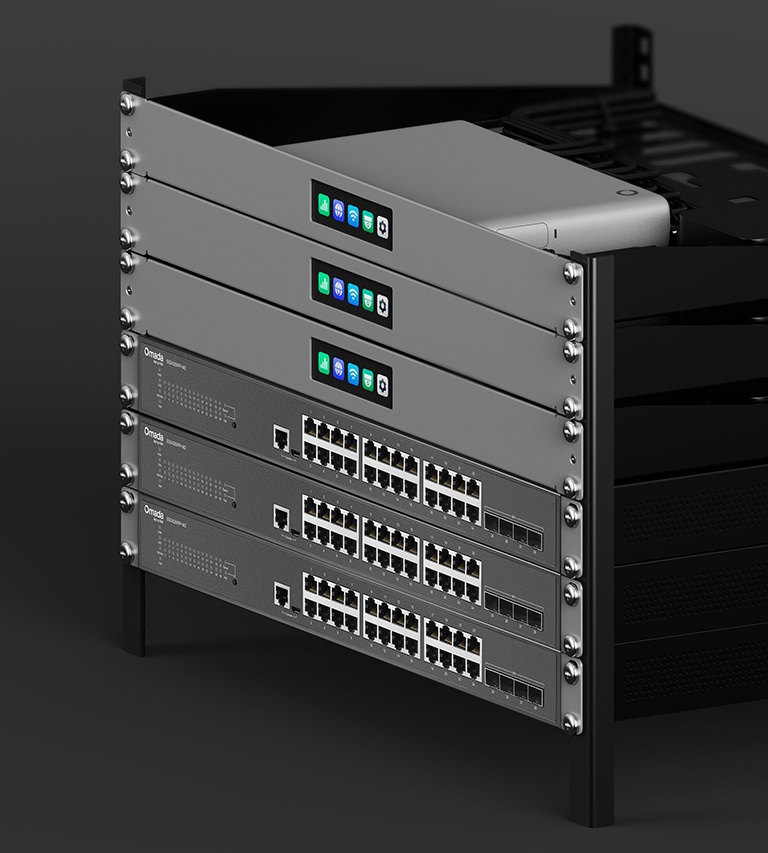

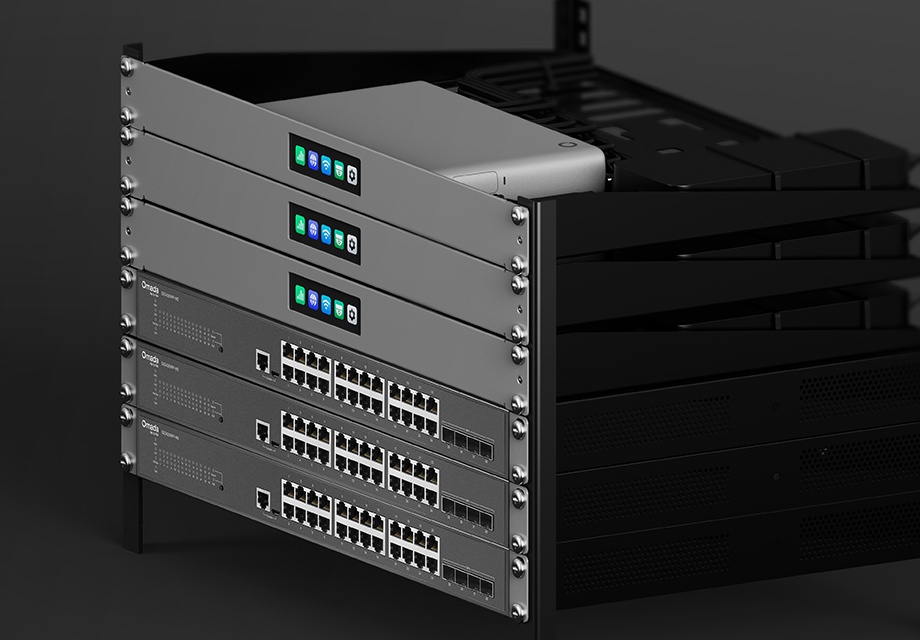

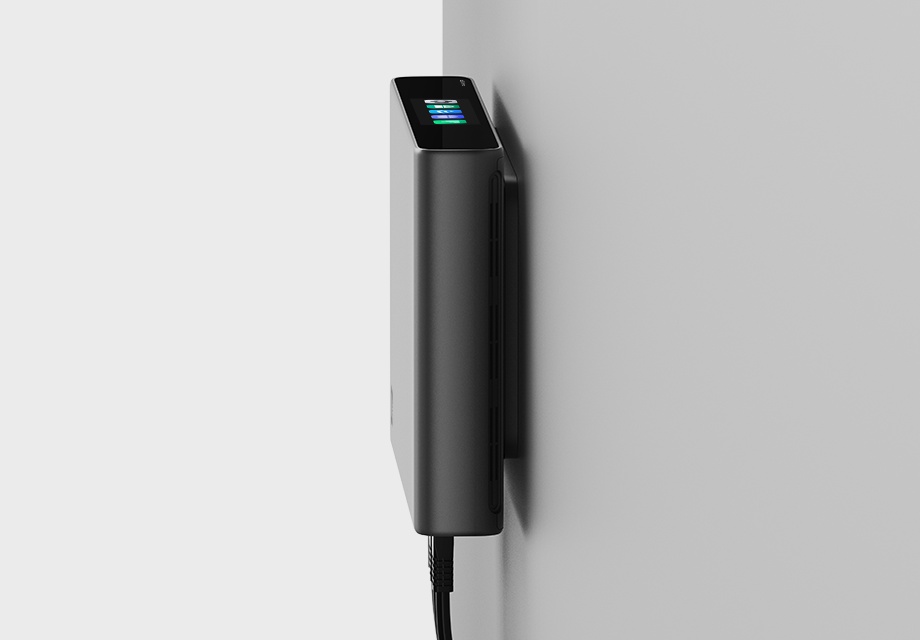

| Mounting | • Desktop• Wall-mount (magnetic-mount plate sold separately)• Rack-mount (rackmount kit sold separately) |
| Dimensions | 8.9 × 5.3 × 1.24 in (226 × 135 × 31.5 mm) |
| SICUREZZA | |
|---|---|
| IDS/IPS | √ |
| DPI | √ |
| Application-Based ACL | √ |
| Content Filtering | √ |
| Ad Blocker | √ |
| Safe Search | √ |
| DNS Security | √ |
| Firewall | √ |
| Attack defence | √ |
| ARP inspection | √ |
| VPN & SD-WAN | |
|---|---|
| Omada LightLink VPN | √ |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput | • Omada LightLink VPN: 1,017 Mbps• IPsec VPN: 1,332 Mbps• WireGuard VPN: 1,044 Mbps• OpenVPN: 393 Mbps• L2TP VPN: 1,109 Mbps• PPTP VPN: 404 Mbps• SSL VPN: 371 Mbps |
| Network Management | |
|---|---|
| Dashboard-Overview/Wi-Fi/Clients/Traffic | √ |
| Dashboard-Network Topology | √ |
| Health Monitoring | √ |
| Device Management | Automatic Device Discovery |
| Switch Ports | √ |
| Client Management | √ |
| Reports | √ |
| Logs | Alerts / Events / Audit Logs |
| Maintenance Tools | Ping Test / Packet Capture / Terminal / Cable Test / Interference Detection / Remote Access |
| IntelliRecover | √ |
| SNMP | v1/v2c/v3 |
| Bonjour/mDNS | √ |
| Dynamic DNS | Dyndns / No-IP / Peanuthull / Comexe / TP-Link DDNS / DDNS Customization |
| Multi-WAN Failover & Load Balancing | √ |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| VLAN Segmentation | √ |
| SSID | √ |
| PPSK | √ |
| WLAN Optimization | √ |
| QoS | √ |
| Portal | √ |
| Bluetooth | √ |
| NAT | √ |
| GESTIONE DELLA SORVEGLIANZA | |
|---|---|
| Videos | • Live View• Playback |
| Device Management | √ |
| Events | √ |
| Smart Search | √ |
| Case Center | √ |
| Recording | √ |
| Logs | Alerts / System Events / Audit Logs |
| Storage Management | √ |
| Smart Analytics | √ |
| Archiving Management | √ |
| HARDWARE | |
|---|---|
| SSD Tray | 1× NVMe SSD Tray (Up to 2 TB Video Storage) |
| Touchscreen | 3.69-inch Color LCM Touchscreen |
| Button | Reset Button |
| Memory | 4 GB DDR4 |
| Power Supply | 100-240V~ 50/60Hz 54V/4.16A |
| PoE Budget | 8× Ports PoE+ Output, 180W PoE Budget§ |
| Max Power Consumption | 225 W, with Power Adapter |
| Enclosure | Polycarbonate |
| LED | Link, PoE |
| Fan | Quantity: 1Noise:• Max: 28.0 dBA@1m• Min: Fanless Mode |
| Net Weight | Without SSD: 1.83 lb (828 g) |
| Surge Protection | 4 kV Surge Protection |
| Onboarding | Bluetooth or Ethernet |
