Archer TXE70U Plus 1.0_Datasheet
Overview

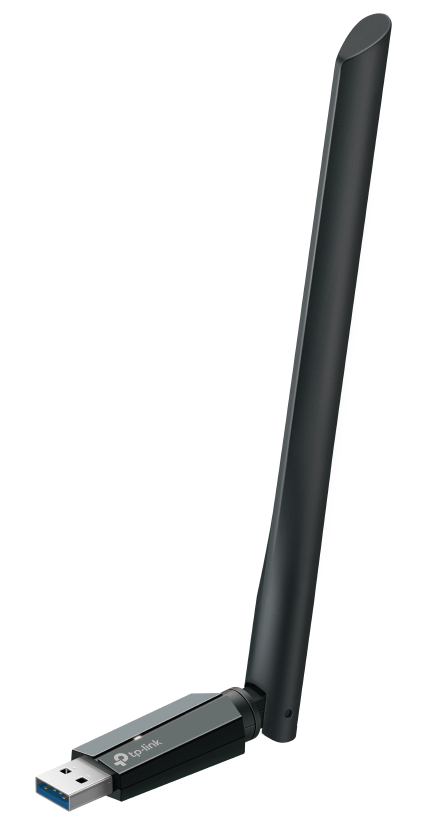

AXE5400 Tri-Band Wi-Fi 6E High Gain Wireless USB Adapter
Highlights
 |
Unparalleled Tri-Band Speed† Ultra-fast performance for next-gen connectivity |
 |
Expand into the 6 GHz Band 2402 Mbps+2402 Mbps+574 Mbps† |
|---|---|---|---|
 |
Boosted Wi-Fi Reception Adjustable high-gain antennas |
 |
Superspeed USB 3.0 Blazing-fast transfers, 10× faster than USB 2.0.☆ |
Mini Size, Big Performance
|

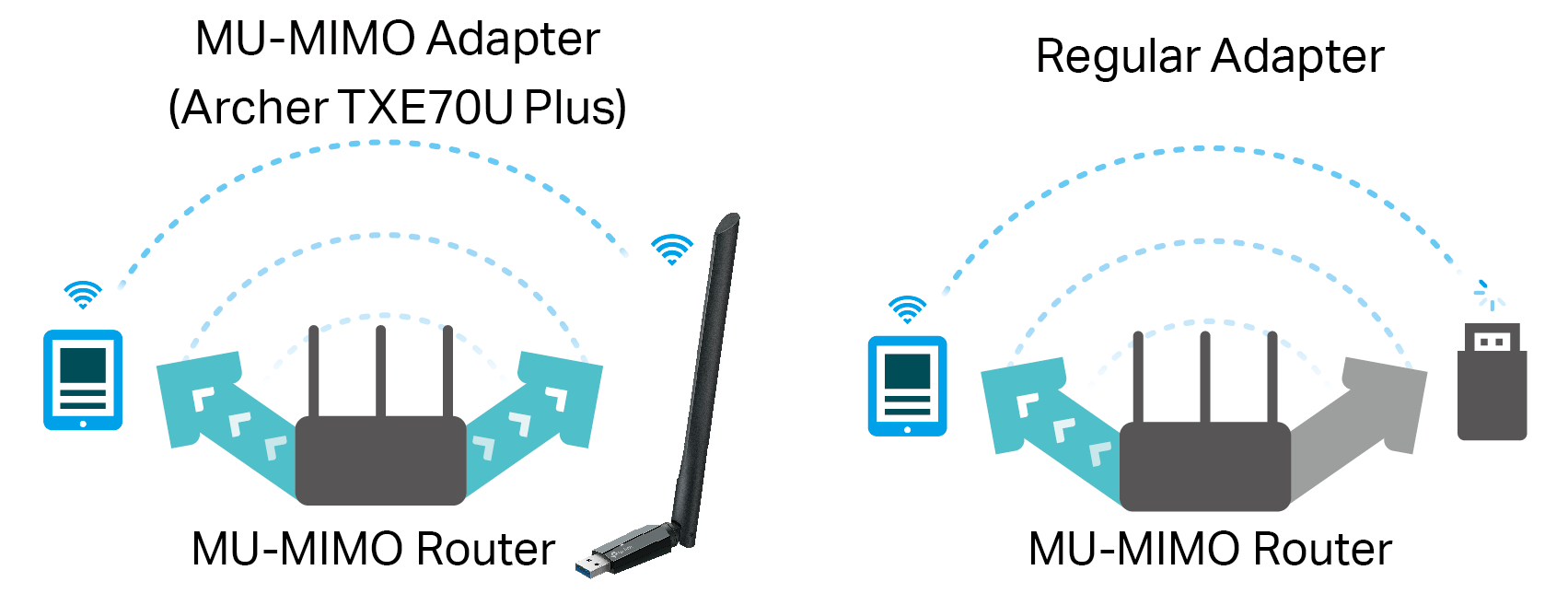

Boosted Throughput with MU-MIMO Archer TXE70U Plus works with MU-MIMO routers, which provide simultaneous data streams, boosting throughput and efficiency.‡ |
|
|---|---|
|
|
|
|
Smarter Wi-Fi for Your PC, Optimized by AIFlow AIFlow Internet Accelerator optimizes bandwidth, prioritizes your apps, and keeps every connection running smooth. |
|
|
|
|
|
Improved Security with WPA3 The latest Wi-Fi security protocol provides enhanced protection in personal password safety.§ |
|
 |
Specification
| WLAN Features | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate | 6 GHz: 11ax: Up to 2402 Mbps(dynamic) 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity | 6 GHz: 11ax HE160 MCS11: -57 dBm 11ax HE160 MCS0: -80 dBm 5 GHz: 11ax HE160 MCS11: -59 dBm 11ax HE160 MCS0: -84 dBm 2.4 GHz: 11ax HE40 MCS11: -64 dBm 11ax HE40 MCS0: -92 dBm |
| Transmit Power | 6 GHz: 13dBm (FCC) (EIRP)/ 13dBm(CE) (EIRP) 5 GHz: 12dBm (FCC) (EIRP)/ 12dBm(CE) (EIRP) 2.4 GHz: 15dBm(FCC) (EIRP)/ 15dBm(CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK△ |
| Hardware | |
| Antennas | High-Gain Tri-Band Antennas (2T2R) |
|
Dimensions |
69.7 × 18.8 × 173.9 mm (2.7 × 0.7 × 6.8 in) |
| Others | |
| Package Contents | AXE5400 Tri-Band Wi-Fi 6E High Gain Wireless USB Adapter Archer TXE70U Plus Quick Installation Guide |
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| System Requirements | Windows 10 (32-bit), Windows 10/11 (64-bit)※ |
| Environment | |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Disclaimers
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
‡Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, MU-MIMO, 1024-QAM, or HE160 require APs to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
§Use of WPA3 requires APs also to support the corresponding feature.
△The number is based on testing conducted by the USB-IF and your computers are required to also support USB 3.0.
☆To ensure compatibility, you may need to update the adapter’s drivers after an OS update, you can find our latest drivers in the download center at https://www.tp-link.com/en/support/download/
