TL-PA8035P KIT_Datasheet

AV1300 3-port Gigabit

Passthrough Powerline Starter Kit

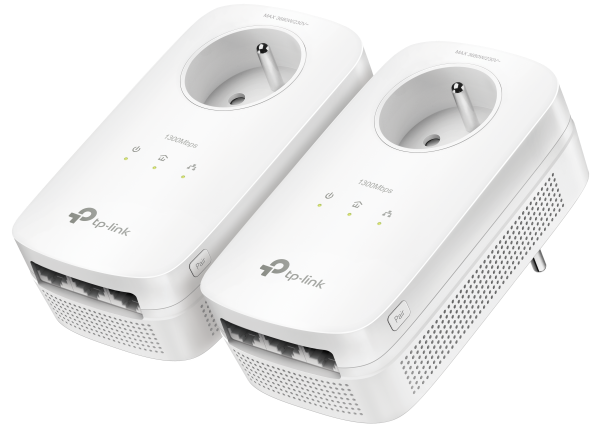

Product image

A banner showing AV1300 1300 Mbps Powerline specs featuring 3 Gigabit Ethernet Ports. highlight features of the product

* TL-PA8035P KIT (French version) is used for demonstration here. Images may differ from your actual product.

Highlights

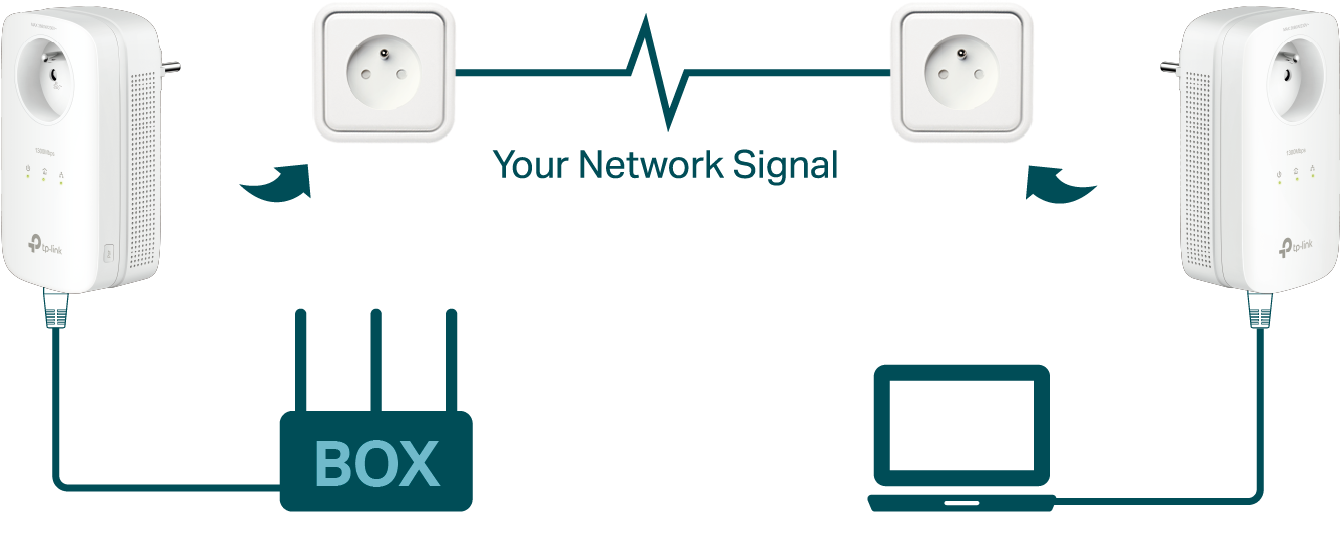

Plug and Play

Powerline adapters and extenders must be deployed in a set of two or more, and be connected to the same electrical circuit.

Don't Lose an Outlet

An integrated socket lets you power regular devices as normal, and a built-in noise filter prevents them from interrupting the powerline signal.

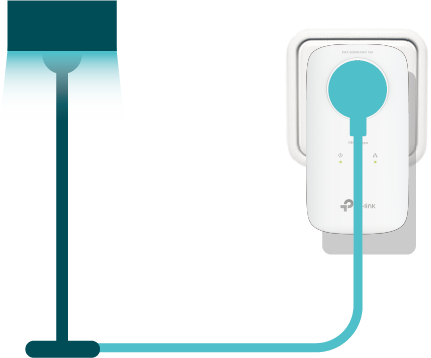

An illustration of a Powerline adapter plugged into a wall with a lamp cord connected to its pass-through outlet.

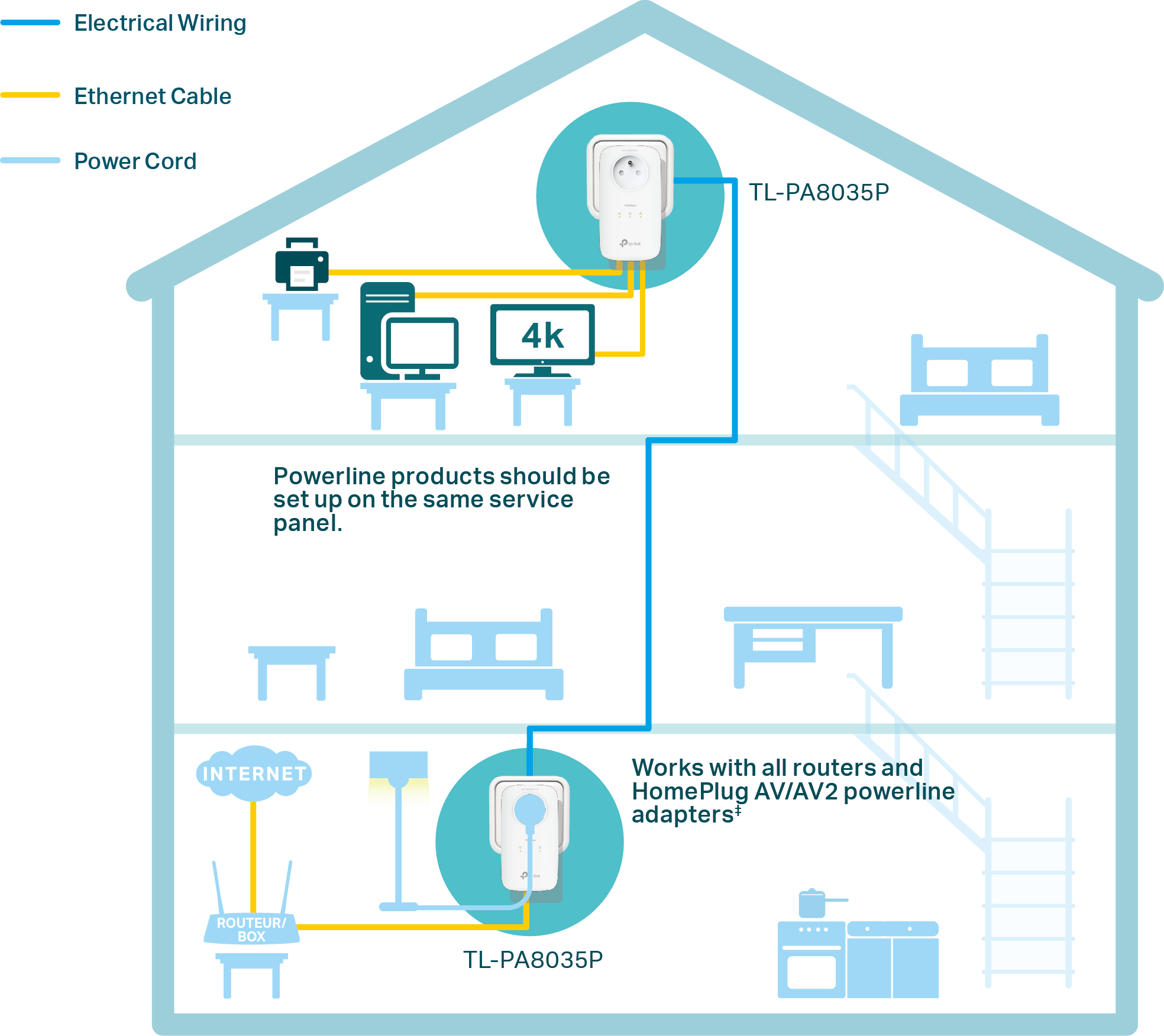

Get Reliable Gigabit Network from Any Outlet

The AV1300 3-port Gigabit Passthrough Powerline Starter Kit brings internet to any area with a power outlet using your home’s electrical wiring.

• No need for new wires or drilling

• Network passes through walls and floors

	Power Saving^§ Automatically switches to Power-Saving mode when wired devices are disconnected or powered off, reducing energy consumption by more than 60%.
	Gigabit Ethernet for Fast Connections Three Gigabit Ethernet ports provide reliable high-speed wired connections for game consoles, smart TVs, STB and more.
	1300 Mbps Powerline with 2×2 MIMO^† Advanced HomePlug AV2 1,300 Mbps Powerline accompanyied with 2×2 MIMO technology significantly improves data transfer rates, stability and coverage.

Power Saving^§

Automatically switches to Power-Saving mode when wired devices are disconnected or powered off, reducing energy consumption by more than 60%.

Gigabit Ethernet for Fast Connections

Three Gigabit Ethernet ports provide reliable high-speed wired connections for game consoles, smart TVs, STB and more.

1300 Mbps Powerline with 2×2 MIMO^†

Advanced HomePlug AV2 1,300 Mbps Powerline accompanyied with 2×2 MIMO technology significantly improves data transfer rates, stability and coverage.

Features

Speed

· Ultra-fast Powerline Speed – HomePlug AV2 standard compliant, high-speed data transfer rate of up to 1300 Mbps, ideal for Ultra HD streaming and online gaming

· Gigabit Ethernet Port – Provides warp-speed wired connection for 4K HD video streaming, lag-free gaming and more

Range

· 300-meter Range – Up to 300 meters/1,000 feet over existing electrical wiring

Reliability

· Mains Filter – Mains Filter inside the outlet reducesm electrical noise interference and improves powerline communication performance

Ease of Use

· Plug and play – Plug and play, no configuration required

· No new wires – No new wires, use existing electrical wiring to expand your home network

· Keep your outlet – An integrated socket lets you power regular devices as normal, and a built-in noise filter prevents them from interrupting the powerline signal

· TP-Link tpPLC – Allows you to easily manage your network using the tpPLC Utility from Download Center at https://www.tp-link.com/support

Security

· Pair Button – 128-bit AES encryption easily at a push of "Pair" button

Energy Saving

· Power Saving – Power Saving Mode helps reducing power consumption by more than 60%^§

Specifications

Hardware

· Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

· Power Consumption: Maximum: 5.53W, Typical: 5.32W, Standby: 1.36W

· Compatibility: Compatible with all routers and HomePlug AV/AV2 Powerline adapters†

· Coverage: Connects more devices by adding more adapters or connecting an access point or a switch

· Range: Up to 300 meters/1000 feet over existing electrical wiring^‡

· Interface: Three Gigabit Ethernet Ports, Power Socket

· Button: Pair Button

· LED Indicator: Power, Powerline, Ethernet

· Dimensions (W x D x H): 2.8 × 1.7 × 5.2 in (72 × 42 × 131 mm)

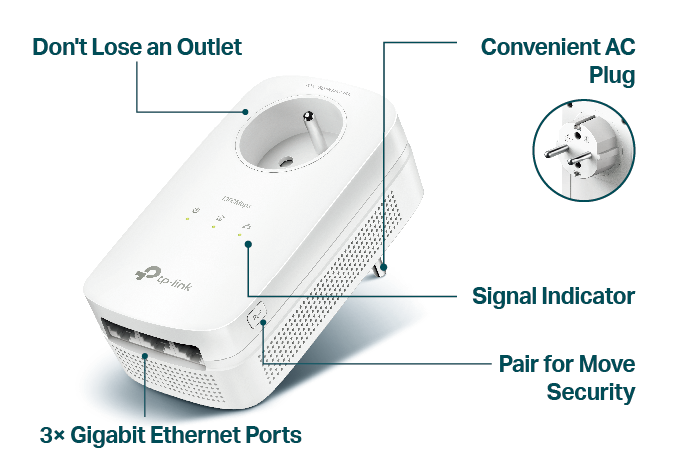

product image displaying the ports, buttons and plug

* TL-PA8035P KIT (French version) is used for demonstration here. Images may differ from your actual product.

Software

· Modulation Technology: OFDM (PLC)

· Powerline Security: 128-bit AES Encryption

Others

· Certification: CE

· Package Contents:

AV1300 3-port Gigabit Passthrough Powerline Starter Kit

2 × TL-PA8035P

2 × Ethernet Cable

1 × Quick Installation Guide

· System Requirements: Windows11/10/ 8.1/8/7/Vista/XP, Mac OS X, Linux

· System Requirements for tpPLC Utility: Windows 11/10/8.1/8/7 and Mac OS 10.15 or later

· Environment:

Operating Temperature: 0°C~40°C (32°F ~104°F)

Operating Humidity: 10%~90% non-condensing

The QR code for scanning to visit the product page online

For more information, please visit https://www.tp-link.com/products/details/?model=TL-PA8035P+KIT_V3 or scan the QR code left.

Specifications are subject to change without notice. Other brands and product names are trademarks or registered trademarks of their respective holders.

^† Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.

^†Maximum Powerline signal rates are the physical rates derived from HomePlug AV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline adapters separated between two or more service panels.

^§The model switches from its regular "Working" mode to "Power Saving" mode when disconnected from devices or when the devices are powered off for more than five minutes. This power-saving data is tested under controlled laboratory conditions. Actual power-saving data will vary in different network conditions and environments.
