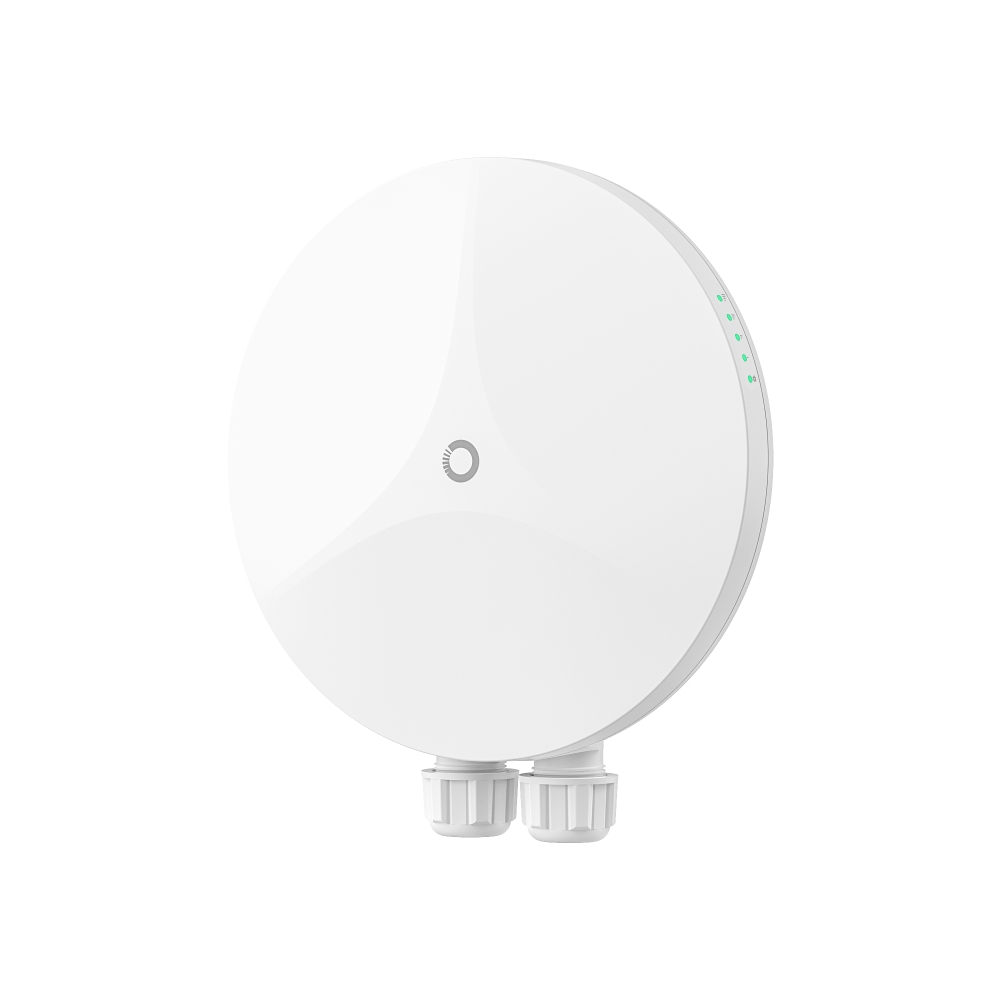

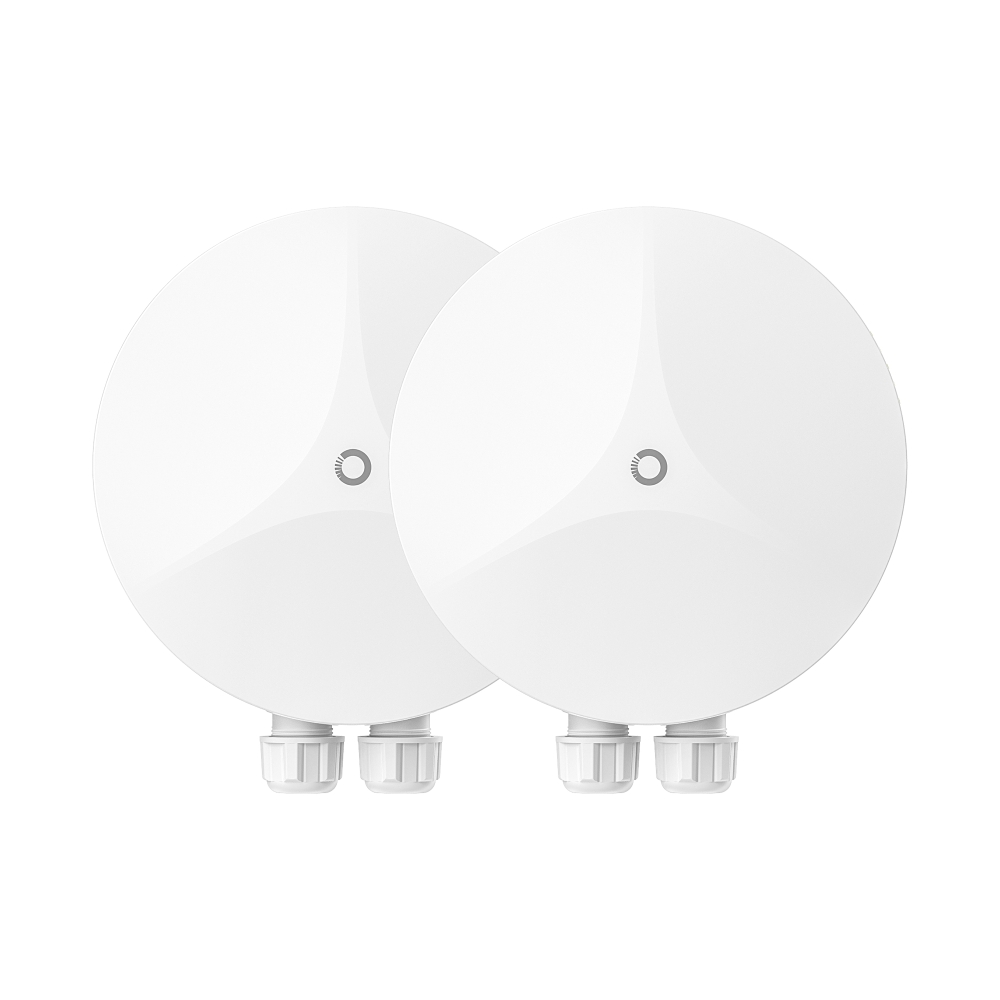

Beam Bridge 7 KIT
Coming SoonOmada Wi-Fi 7 5 GHz & 6 GHz MLO PtP Wireless Bridge
- Fiber-Grade Performance: Delivers multi-gigabit wireless throughput within 0.6 mi (1 km).*
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- 6 GHz Band Unlocked by AFC: AFC enables the 6 GHz band for outdoor uses, minimizing congestion and interference.**
- Seamless 5 GHz / 6 GHz Auto-Failover: Improve service continuity with 6 GHz/5 GHz MLO redundancy and DFS-resilient 5 GHz static puncturing.
- Flexible Multi-Gigabit Connectivity: Features 1× 2.5 GbE port and 1× SFP+ port to fully maximize Wi-Fi 7 bandwidth. Supports flexible deployments with standard 802.3at PoE+ or 54V Passive PoE.
- Outdoor-Ready Durability: Features an IP68-rated weatherproof enclosure, UV-resistant coating, and 6kV lightning protection.
- App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via web UI or app.†
-
Multi-Gig Wireless Transmission Within
0.6 mi (1 km)* -
AFC-Enabled
6 GHz -
Seamless
5 GHz / 6 GHz Auto-Failover -
IP68 Weatherproof
Enclosure -
Auto-Pairing with Preconfigured Kit
-
1× 2.5G RJ45 Port &
1× SFP+ Port -
802.3at PoE or 54V Passive PoE
-
Centralized
Management via
Web or App

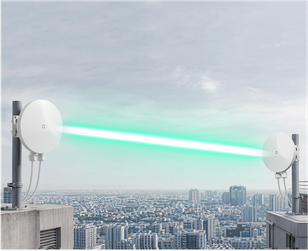

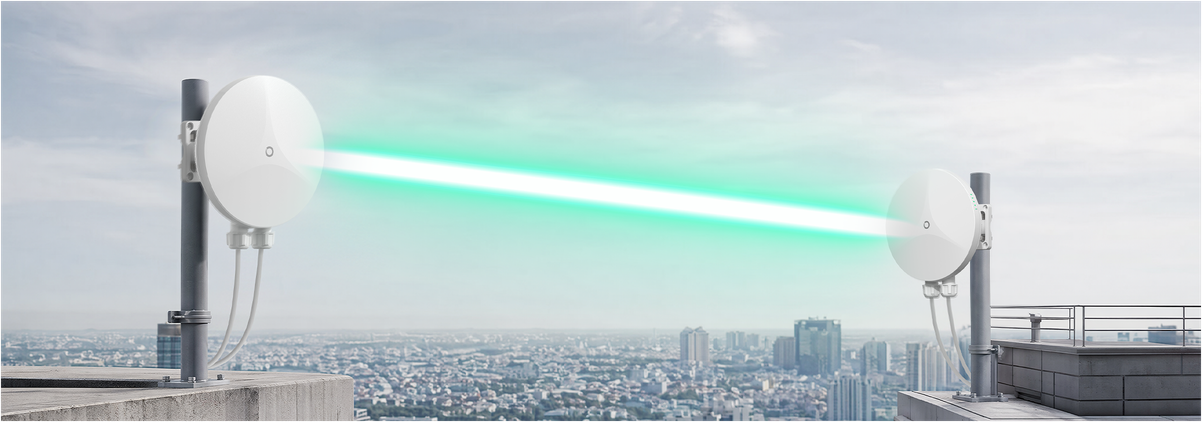

Fiber-Grade PtP Wireless Backbone
Driven by integrated 14 dBi directional antennas, experience multi-gigabit throughput that turns your point-to-point link into a fiber-gride extension of your high-speed local network at a long distance.
Multi-Gig Speeds Within 0.6 mi (1 km)*Based on TP-Link’s real field testing, the bidirectional wireless transmission is over 3.5 Gbps at 0.6 mi (1 km) using Wi-Fi 7’s 5 + 6 GHz MLO technology,
while over 1.4 Gbps at the same distance with 5 GHz only. Actual performance varies as a result of local regulations, environmental factors, and network configuration.
Plug-and-Play Effortless Installation
-

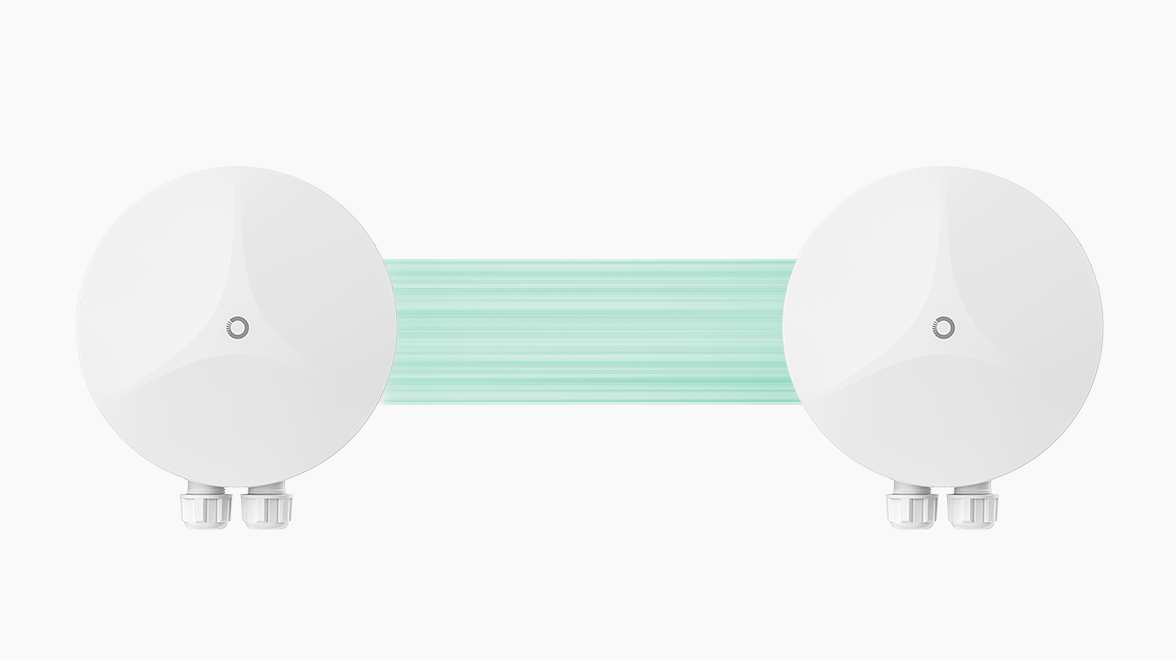

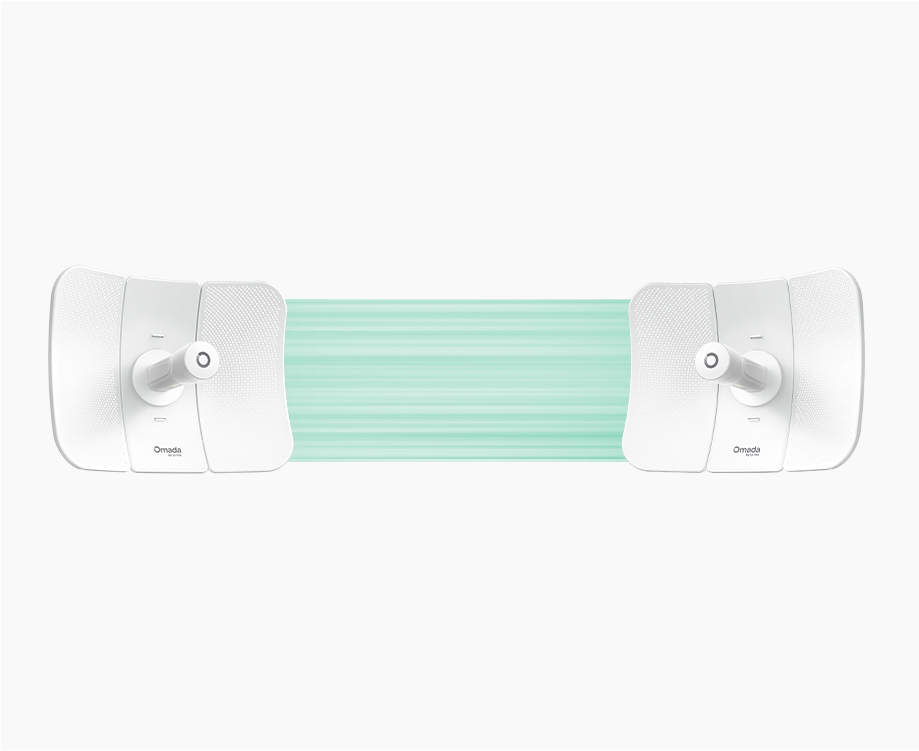

Auto-PairingAuto-Pairing,
No Manual Setup Needed -

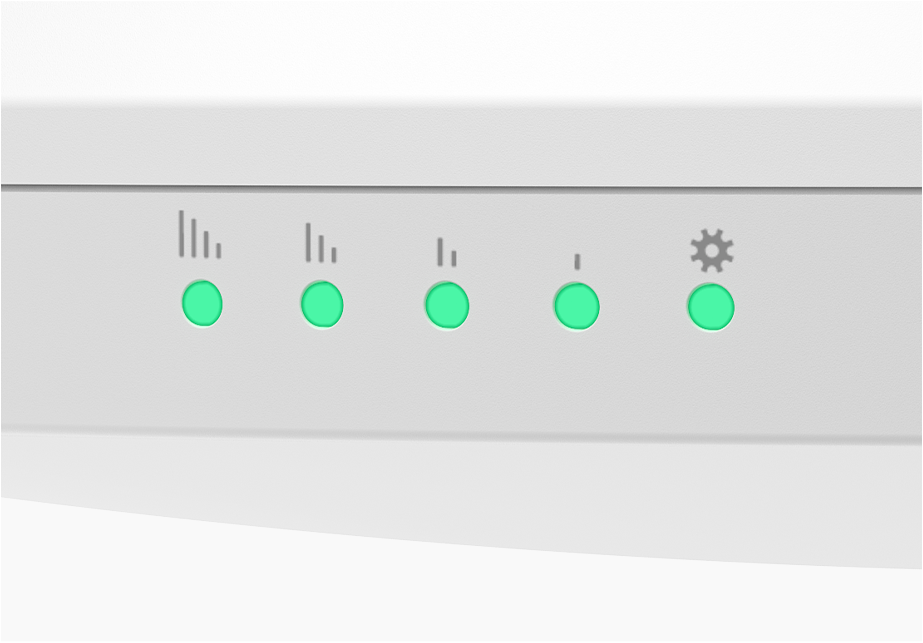

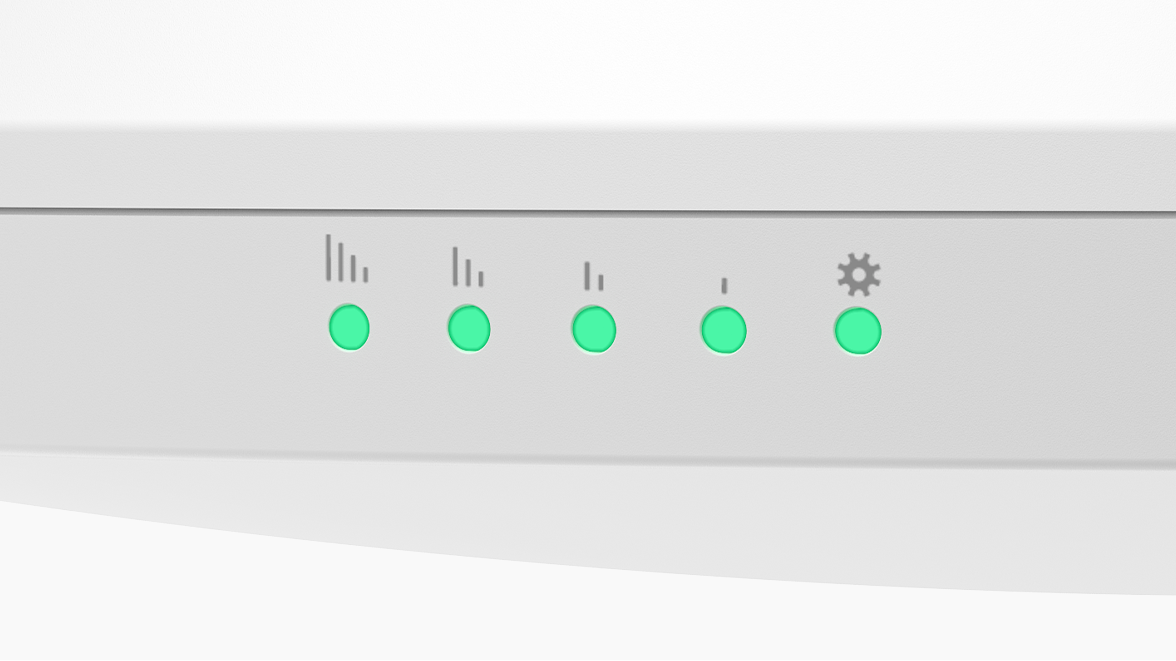

Agile LED Signal Indicators
for Easy Alignment
6 GHz Band Unlocked by AFC for Outdoor Uses
AFC compliance unlocks the 6 GHz band, offering cleaner spectrum and minimized interference essential for reliable outdoor connectivity.**
**Active internet connection is required for initial AFC (Automated Frequency Coordination) verification to enable 6GHz transmission.

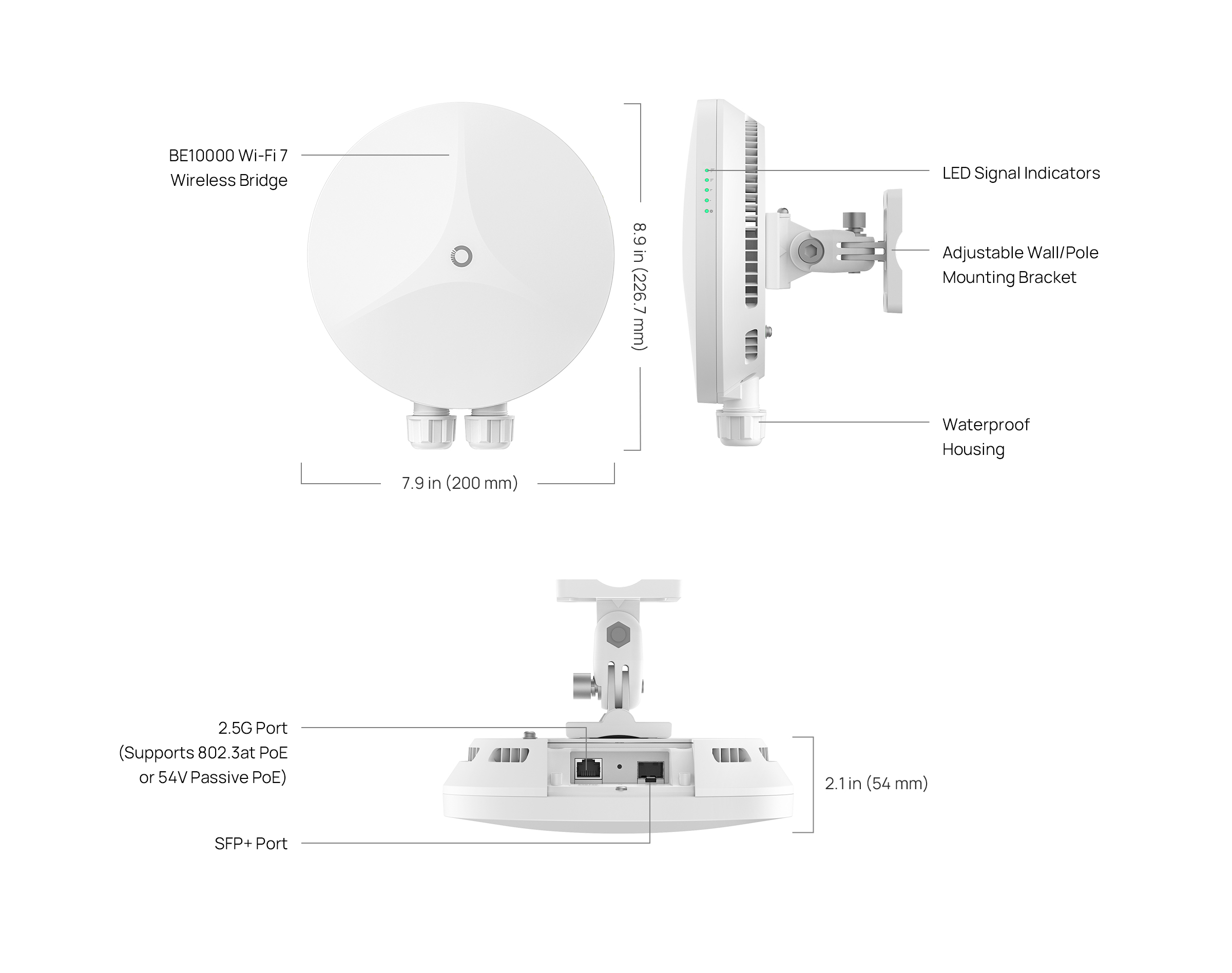

Versatile Connectivity Options for Seamless Integration
Equipped with a 2.5G PoE+ port and an SFP+ port, it eliminates wired bottlenecks to fully unleash Wi-Fi 7 speeds. Maximize your deployment flexibility with convenient single-cable PoE power for local installs, or leverage fiber connectivity for long-distance runs.
2.5G Port
SFP+ Port
(Supports 802.3at PoE or 54V Passive PoE)

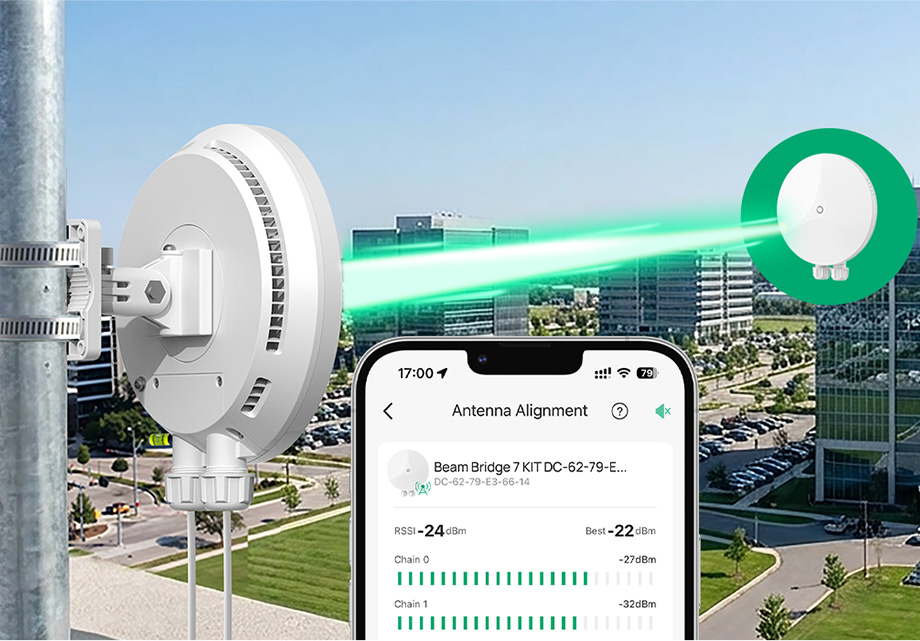

Easy Alignment with Adjustable Mounting Bracket & App Guidance
-

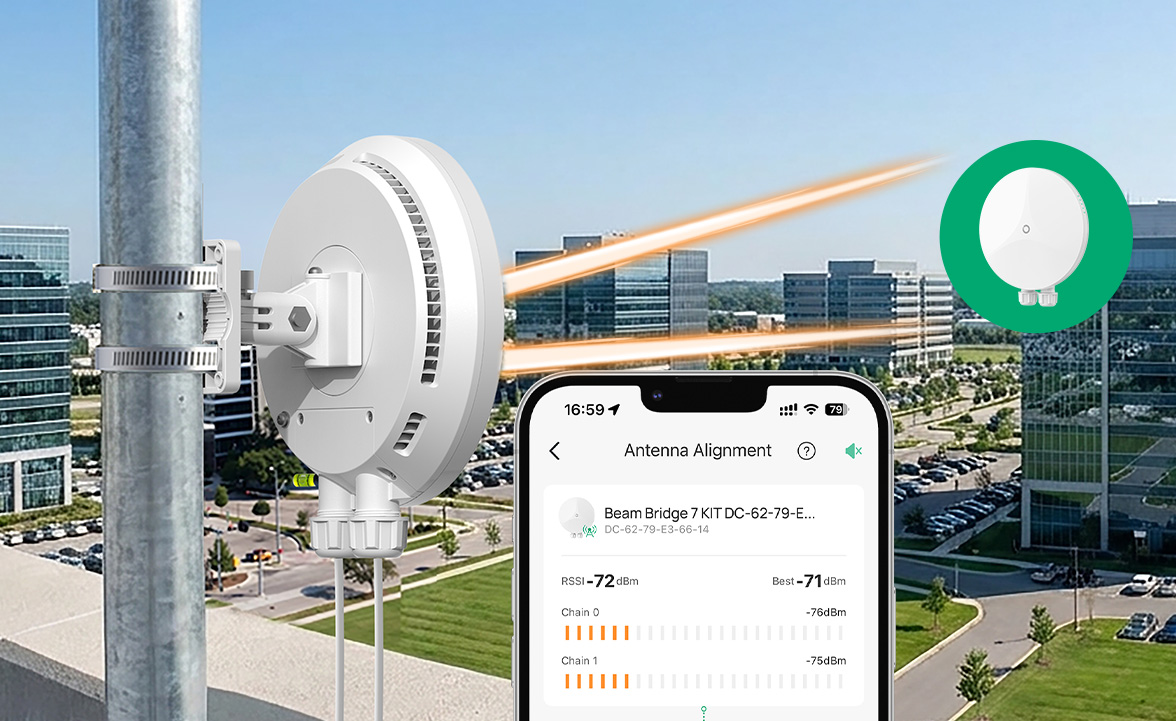

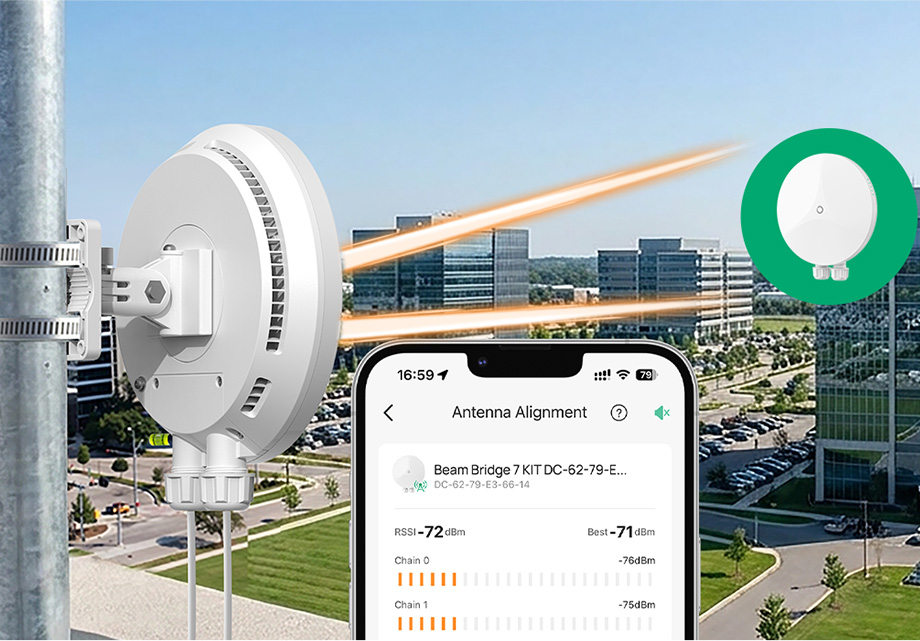

Before Alignment
-

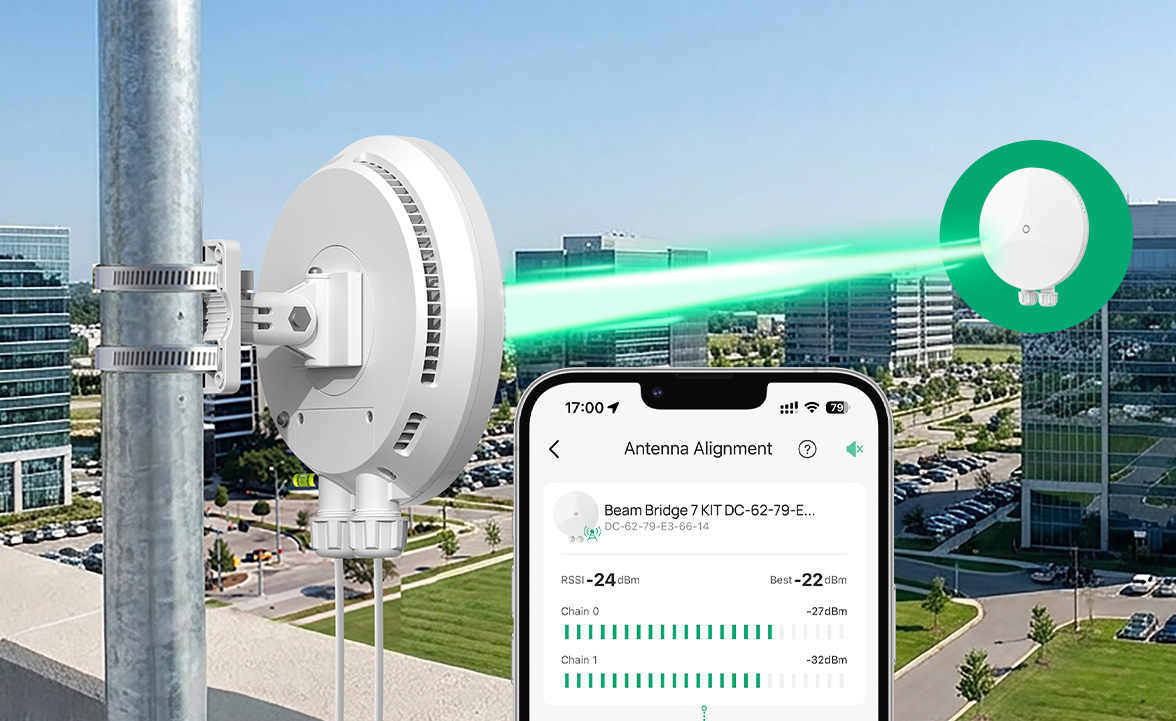

After Alignment
Effortless App-Guided Alignment

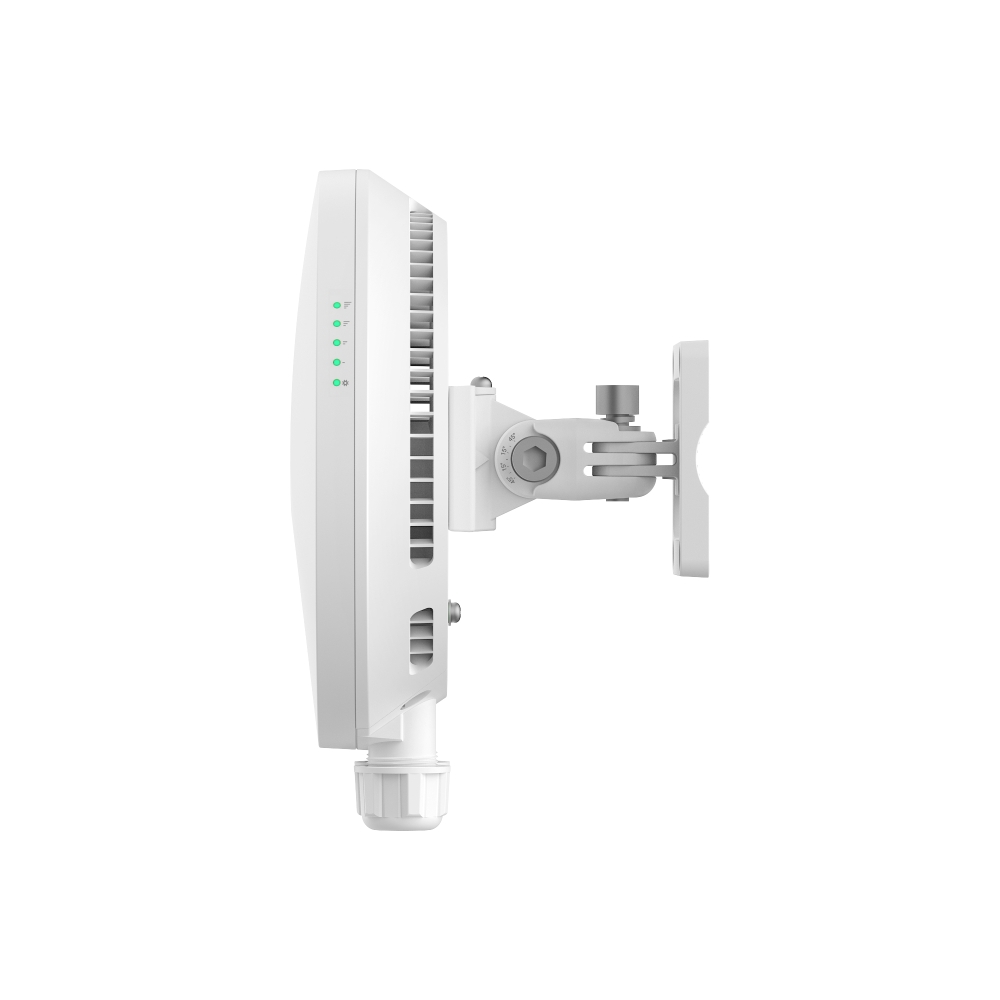

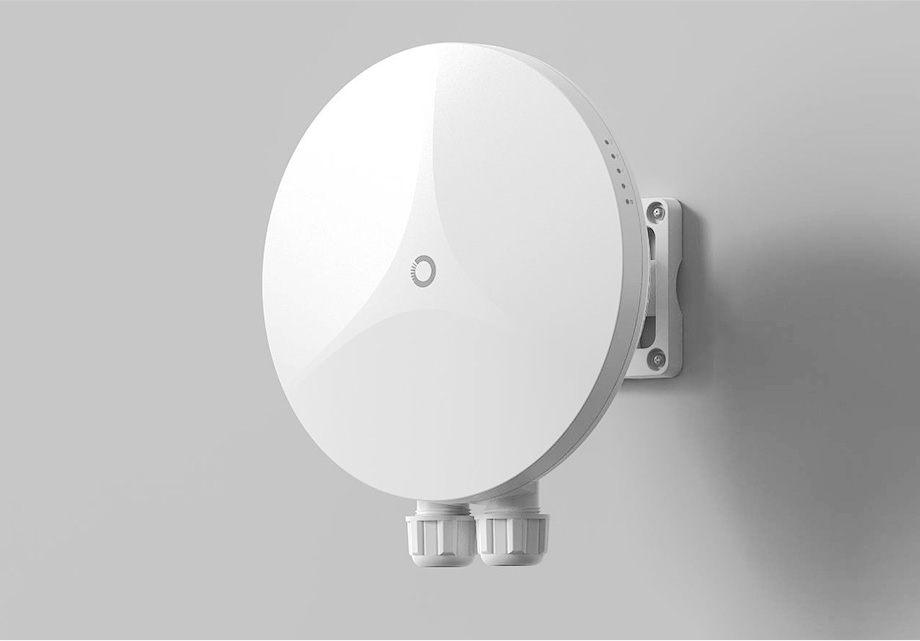

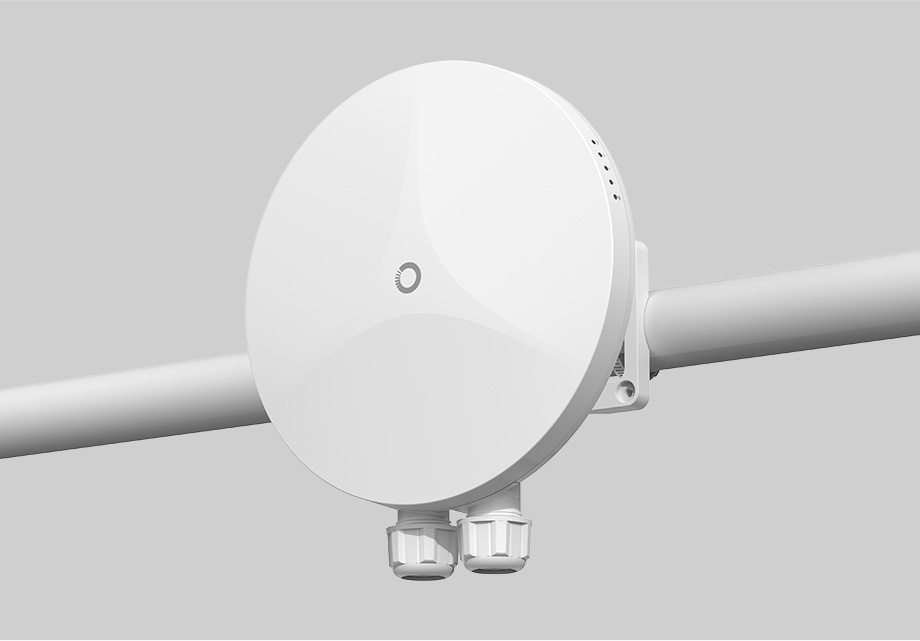

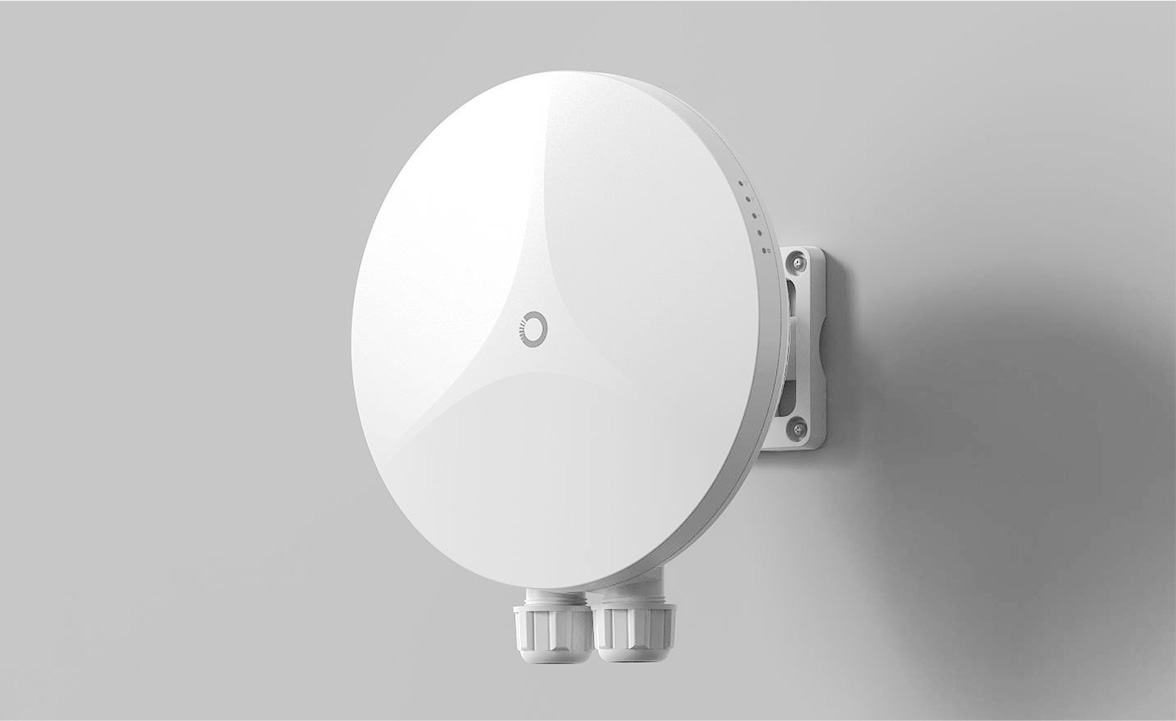

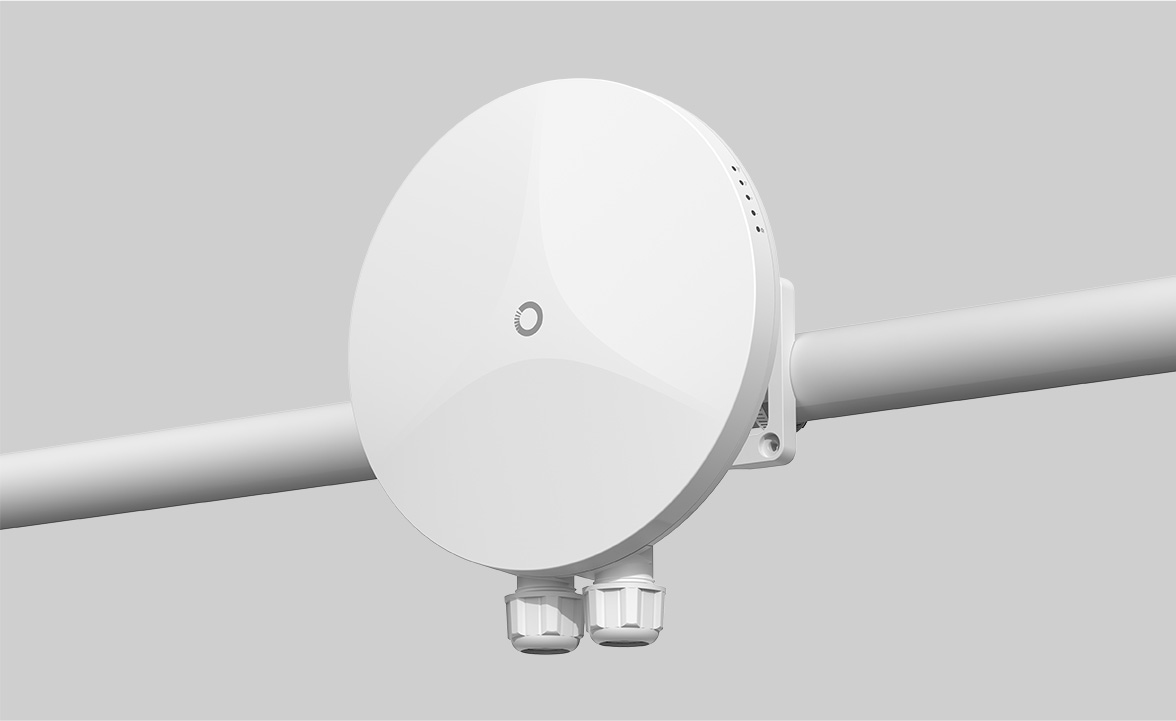

Wall/Pole Mounting with Adjustable Bracket
Industry-Leading IP68 Weatherproof with UV Resistant Coating
Ensures reliable performance and durability in harsh outdoor conditions, protecting the device from water, dust, and UV damage.
IP68 Weatherproof Enclosure
6kV Lightning Protection
-30 °C to 70 °C Working Range
High-Throughput Backhaul for Complex Environments
Beam Bridge 7 KIT creates a long-distance point-to-point link for your critical infrastructure, delivering fiber-grade stability wirelessly.
-

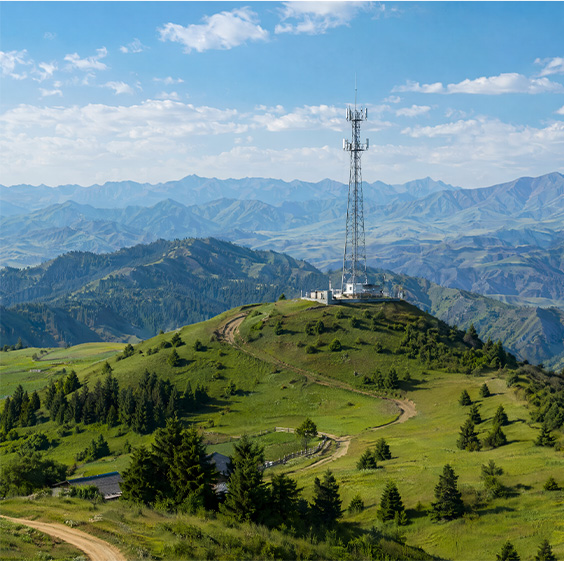

WISP Base
StationsDeliver long-reach fiber uplinks with a highly stable and uninterrupted wireless backhaul.
-
Business
CampusesBridge multiple office buildings with a multi-gigabit wireless backbone.
-
Factories
Maintain a rock-solid, cross-facility network in complex industrial settings.
-
Construction Sites
Rapidly deploy high-capacity temporary links for immediate site connectivity.
Standalone & Remote Monitoring with SDN Management
(Cloud-Based) Network Video Recorder Omada Switch Omada Gateway Main Bridge Sub-Bridge Internet Cloud Access to Omada Controller Web Browser Omada App
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× 2.5G Ethernet Port (RJ45)• 1× 10G SFP+• 1× Grounding Terminal |
| Button | 1× Reset Button |
| Power Supply | • 802.3at PoE• 54V Passive PoE (Passive PoE Adapter Included) |
| Max. Power Consumption | 18.18W |
| Dimensions ( W x D x H ) | 7.87 × 8.92 × 2.12 in (200 × 226.7 × 54 mm) (without mount) |
| Antenna | 14 dBi |
| Antenna Beamwidth | Horizontal: 45°, Vertical: 45° |
| Weatherproof Enclosure | IP68 |
| Bandwidth | • 5 GHz: 20 MHz/40 MHz/80 MHz/160 MHz/240 MHz• 6 GHz: 20 MHz/40 MHz/80 MHz/160 MHz/320 MHz |
| Mounting | Pole / Wall Mounting (Kits Included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| Transmission Distance | 3 km (1.9 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac/ax/be |
| Frequency | 5 GHz, 6 GHz |
| Signal Rate | • 5 GHz: Up to 4324 Mbps• 6 GHz: Up to 5765 Mbps |
| Wireless Functions | • Preamble Puncturing• BSS Coloring• Multi-Link Operation (MLO)• MU-MIMO• Maximum number of associated STAs: 16• Speed Test• Channel Optimization• Antenna Alignment• ACS (Automatic Channel Selection)• Rate Limit• Guest Network |
| Wireless Security | • VLAN• Rogue AP Detection• Wireless Encryption |
| Transmission Power | FCC: 4-25 dBm (5 GHz, U-NII-1 & U-NII-3)4-21 dBm (5 GHz, U-NII-2A & U-NII-2C)4-25 dBm (6 GHz) |
| OTHERS | |
|---|---|
| Certification | FCC, IC, BSMI, NCC |
| Package Content | • Beam Bridge 7 KIT• Installation Guide• Mounting Kits• Passive PoE Adapters• Power Cords• Waterproof Seals |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Environment | • Operating Temperature: -30 ℃–70 ℃ (-22 ℉–158 ℉);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |
* Based on TP-Link’s real field testing, the bidirectional wireless transmission is over 3.5 Gbps at 0.6 mi (1 km) using Wi-Fi 7’s 5 + 6 GHz MLO technology, while over 1.4 Gbps at the same distance with 5 GHz only. Actual performance varies as a result of local regulations, environmental factors, and network configuration.
** An active internet connection is required for initial AFC verification to enable 6 GHz transmission. AFC availability varies by region and country. For supported areas, refer to: https://www.omadanetworks.com/support/faq/4373/
† These functions require the use of an Omada controller.
‡ This function requires the use of an Omada controller (V6.3 or above).
