EAP650 D120-Outdoor
AX3000 Directional Indoor/Outdoor WiFi 6 Access Point
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
-
Directional Ultra-Range Coverage: Equipped with built-in high-gain 120° directional antennas to deliver broad and extended coverage.*
-
Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
-
802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.§
-
Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
-
Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.§
-
WiFi 6 Speeds up
to 3.0 Gbps† -
Directional
Antennas -
Focused &
Ultra-Range
Coverage -
PoE+
Support -
Seamless Roaming & Omada Mesh
-
Centralized Cloud
Management -
Automatic WLAN
Optimization -
IP68
Waterproofing
Designed for Warehouses
Equipped with an durable weatherproof enclosure, our EAP650 D120-Outdoor withstands the most extreme Warehouse
and outdoor scenarios.
IP68
Waterproofing
Operating
Temperature of
of -40°C to 70°C
No Ingress of
of Dust

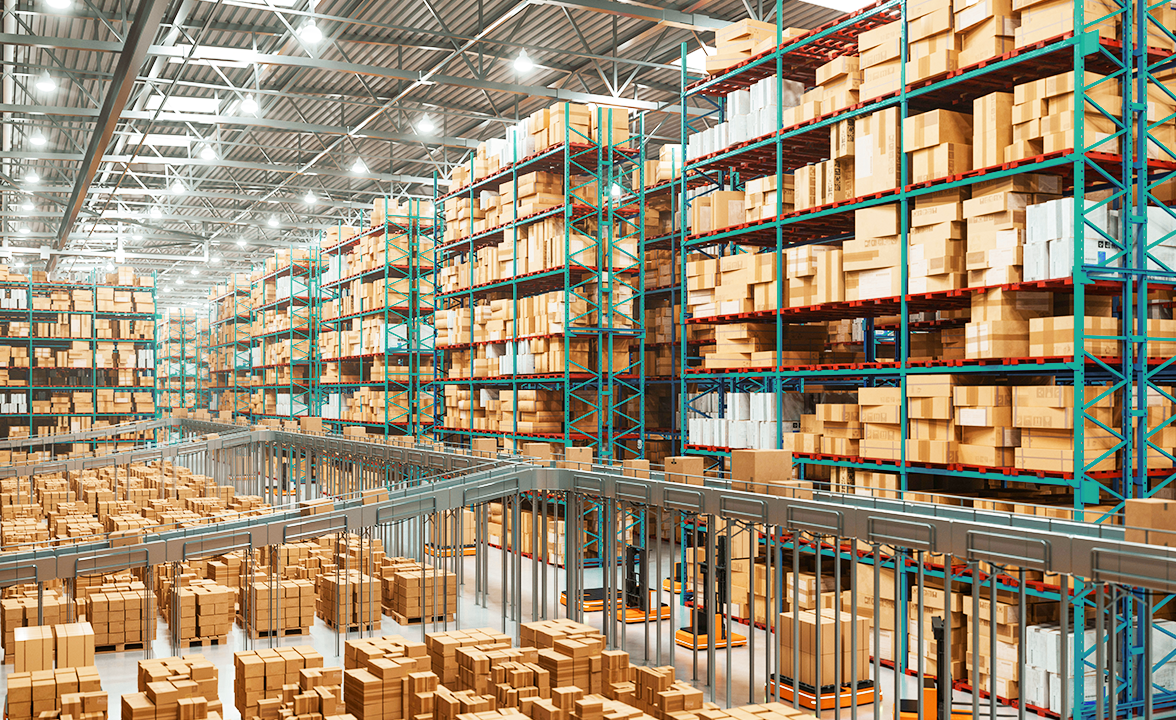

Warehouse Shelving Areas

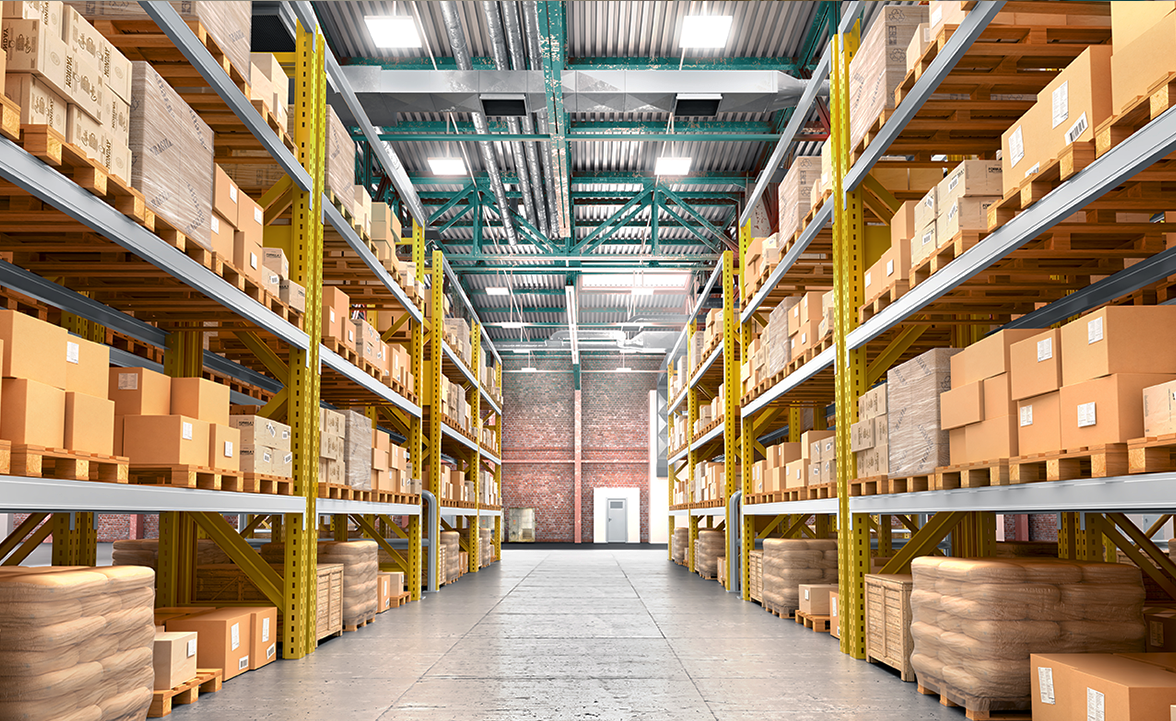

Storehouses
Full WiFi Coverage for Shelf
Areas with DirectionalAreas with Directional
Antennas
Equipped with 4× built-in dual-band (2× 2.4GHz + 2× 5GHz) directional antennas with high gain to ensure the peak WiFi experience ideal for precise and extended coverage.*
-
Installation Height Up to
15 m (49 ft)
-
Coverage Length Up to
60 m (197 ft)
Higher Installaltion
Less Disruption
Longer Coverage
Directional Antennas for
Ultra-Range Coverage in Outdoor Scenarios*
Outdoor Scenarios*
-
2.4GHz
200+ m*
-
5GHz
500+ m*
*Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D120-Outdoor which the client's signal strength is ≤ 75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Stay Smooth with
Seamless Roaming
Seamless Roaming
Seamless Integration into
the Omada SDN
On-premises Controllers
Or
Or
Omada Central
(Cloud-Based)Δ
Omada Hardware Controller
Omada Software Controller
WiFi 6 Indoor/Outdoor AP
EAP650 D120-Outdoor
Omada PoE Switch
Omada VPN Gateway
Internet
Cloud
Access
Web
Browser
Omada
App
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE• 48V Passive PoE |
| Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
| Antenna | Built-in Directional Antennas:• 2.4 GHz: 2× 8 dBi• 5 GHz: 2× 10 dBiBeamwidth: 120° Horizontal; 30° Vertical |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Optional bracket accessory APM-100:Supports vertical ±45° , horizontal ±45° adjustmentNote: Optional bracket accessories need to be purchased separately |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller• Omada Cloud-based Controller• Omada APP |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| WIRELESS FEATURES | |
|---|---|
| Coverage | • 2.4 GHz: 200+ m*• 5 GHz: 500+ m* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)† |
| Wireless Functions | • 1024-QAM• DL/UL OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 on each band)• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO• Omada Mesh§• Seamless Roaming(802.11k/v/r)§• Band Steering• Load Balance• Airtime Fairness• Beamforming• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule• Wireless Statistics• Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);• FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Access Point EAP650 D120-Outdoor• Mounting Kits• Installation Guide• Waterproof Kit |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
§Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of an Omada controller.
*Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
