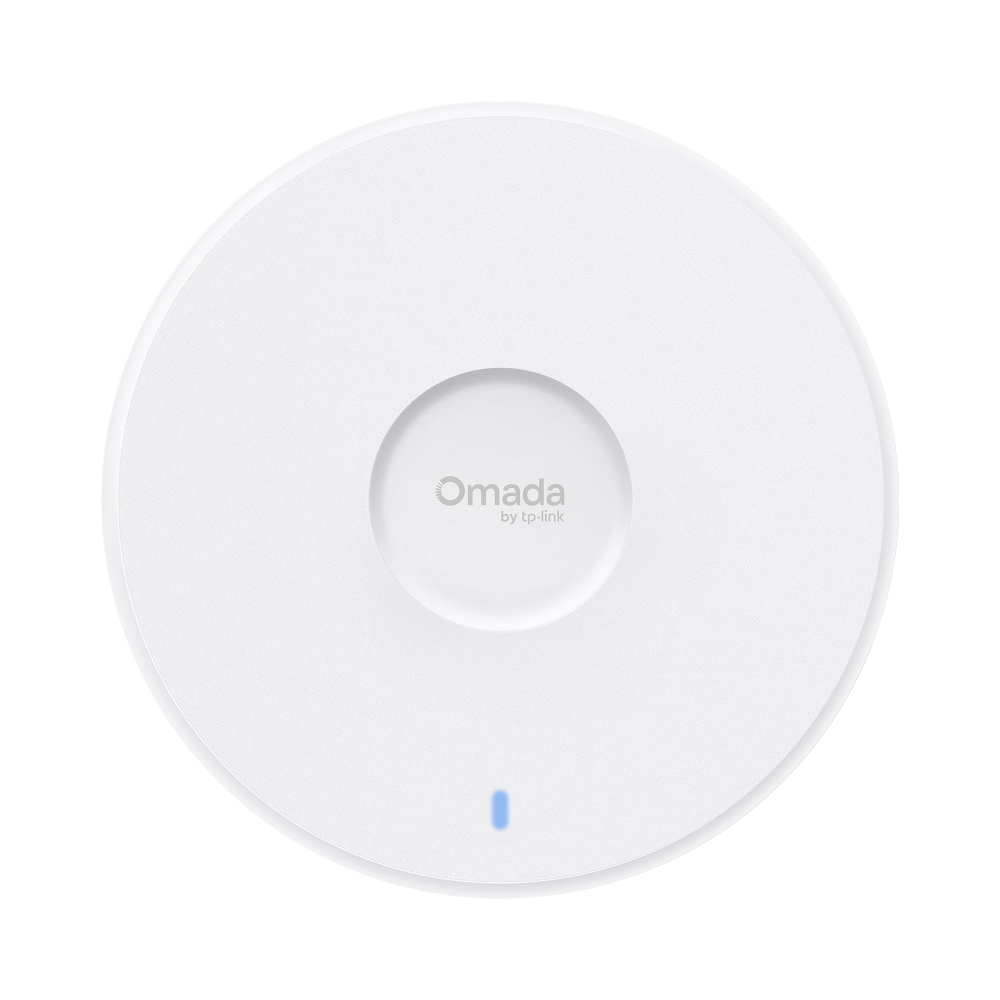

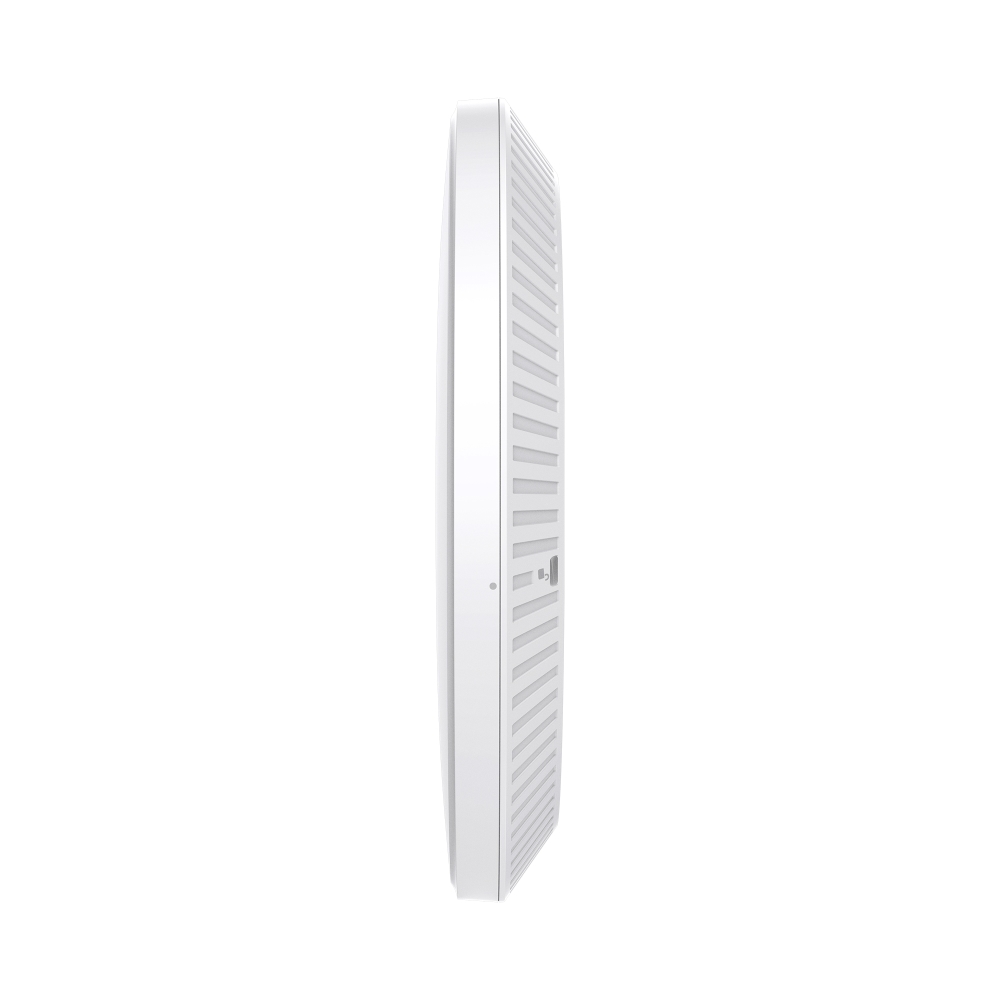

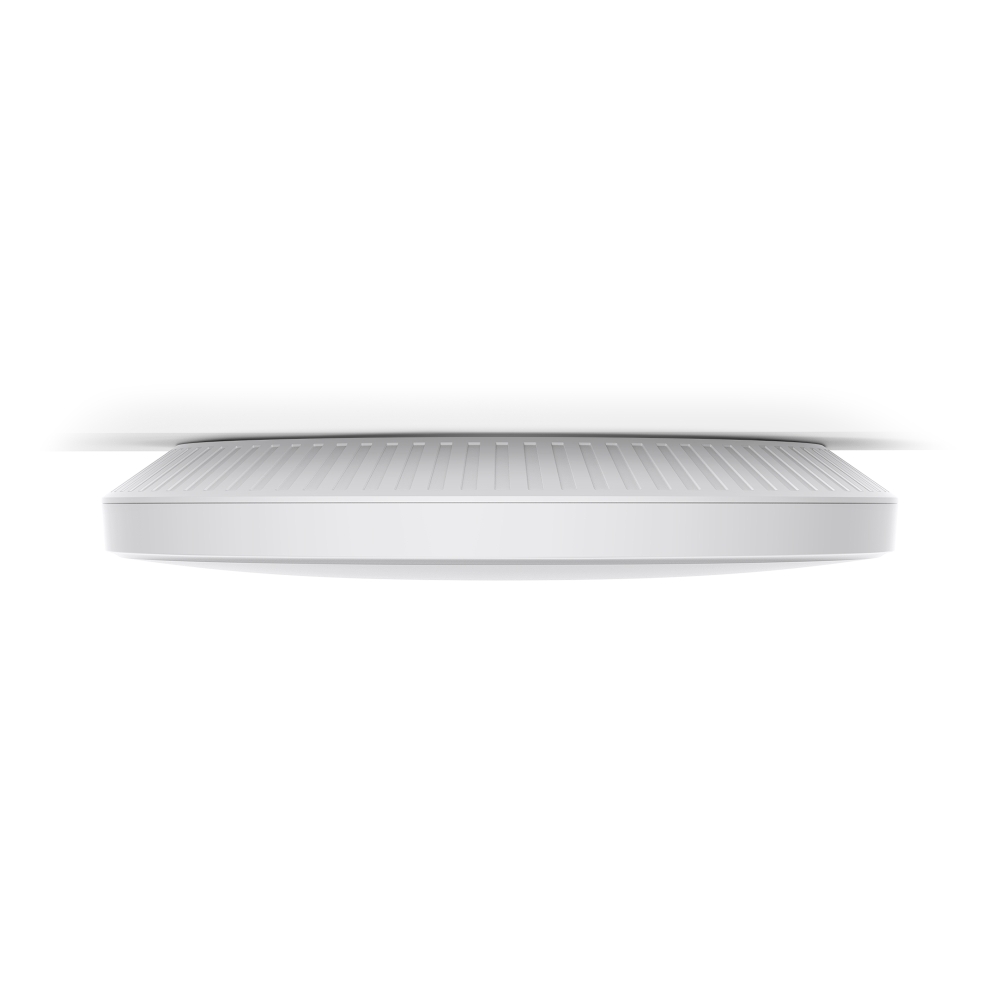

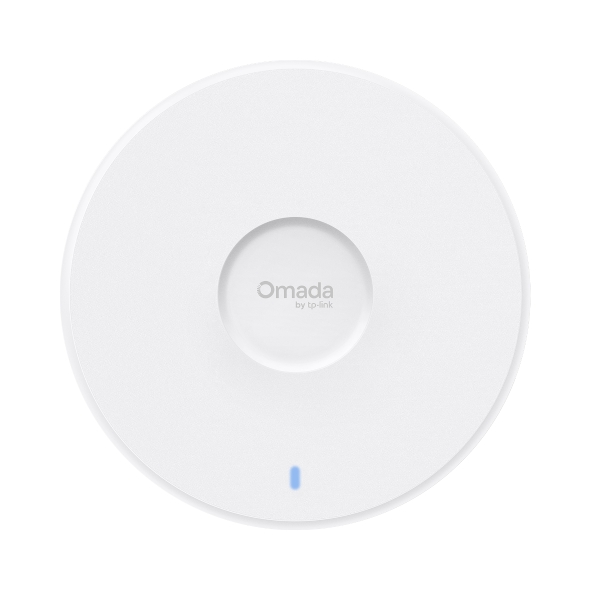

BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.△
- Magnetic Snap-On Design: Instantly holds the AP in the perfect position for a quick final lock.#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2000 ft² (185 m²)* for reliable and extensive wireless connectivity.
-
Tri-Band 8-Stream
Wi-Fi 7 -
Wi-Fi Speeds up to
15.0 Gbps† -
Magnetic Snap-On
Mounting -
Dedicated RF
Scanning△ -
1× 10G/2.5G Port
-
802.3bt/at PoE
-
Omada Mesh &
Seamless Roaming△ -
Centralized
Management

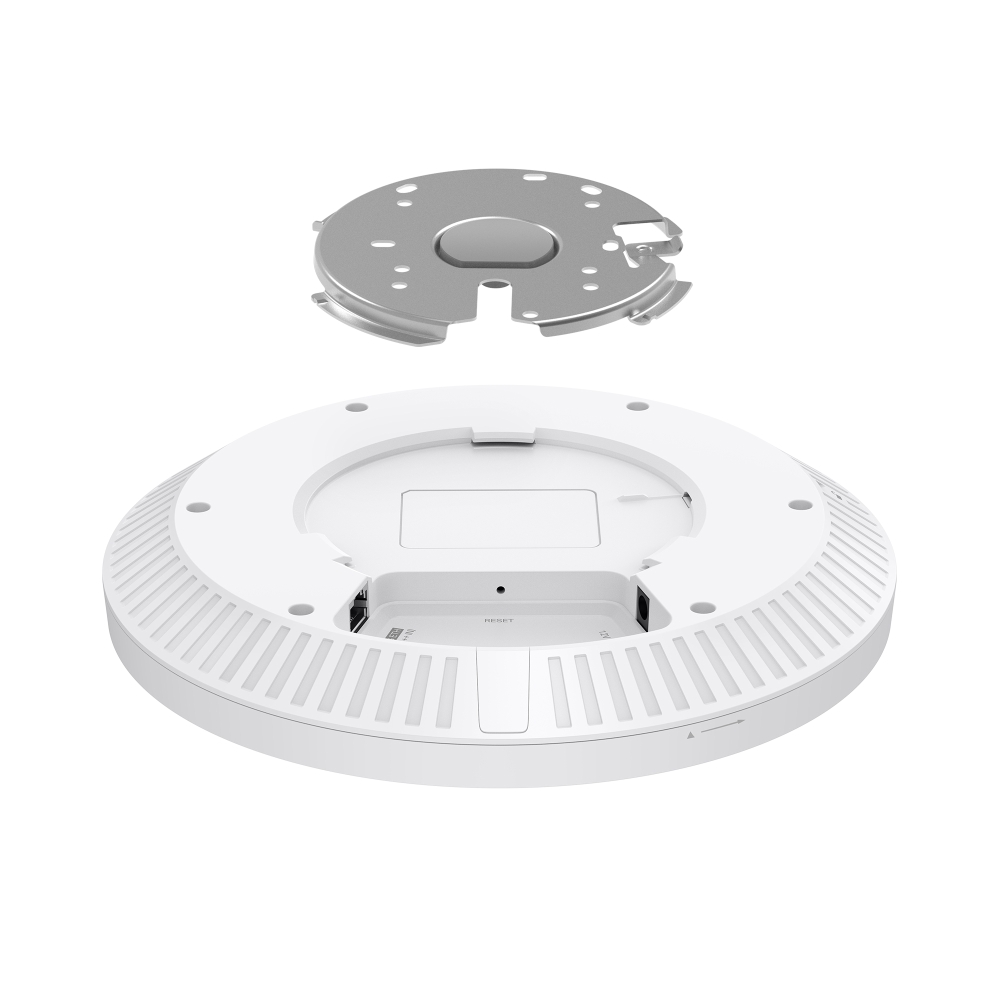

Magnetic Snap-On Design for Effortless Deployment
Eliminates blind positioning, the magnetic design instantly holds the AP in the perfect position for a quick final lock.△
WiFi 7: Swifter,
Smoother, Stronger
WiFi 7 Supersized Throughput
-
6 GHz 5765 Mbps
-
5 GHz 8648 Mbps
-
2.4 GHz 688 Mbps
-
4096-QAM for Higher Capacity
Wi-Fi 7 12 bits/symbol-v2/img/eap787-2609-arrow-web.png)
Wi-Fi 6 10 bits/symbol -
MLO for Lower Latency
6 GHz5 GHz2.4 GHz
-v2/img/eap787-2609-arrow-mobile.png){kind=icon}

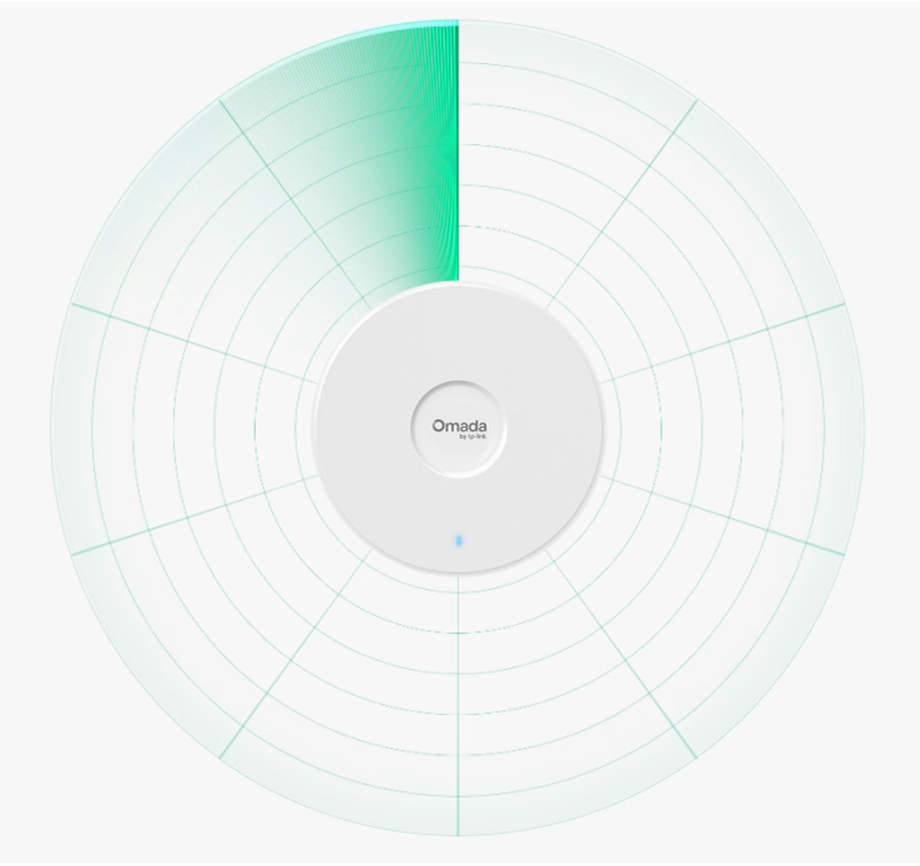

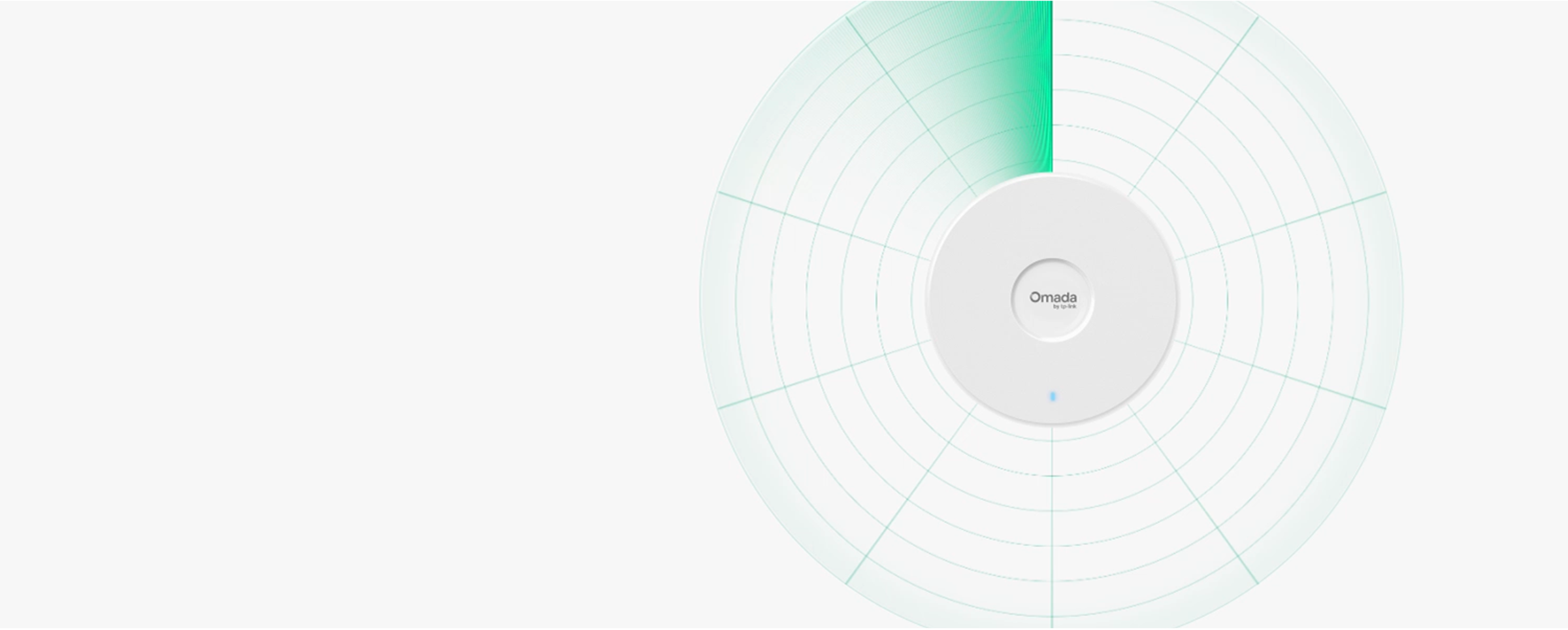

Dedicated RF Scanning for Higher Efficiency in O&M
-v2/img/eap787-2609-rf-web.png)
-v2/img/eap787-2609-rf-mobile.png)
Dedicated RF Scanning△
Real-Time Tri-Band Spectral Analysis
and Spectral AnalysisReal-Time Tri-Band
Scanning and Spectral
Analysis
Capture
Disrupting Data TransmissionsContinuous Scanning
without Disrupting Data
Transmissions
IdentificationInterference Source
Identification

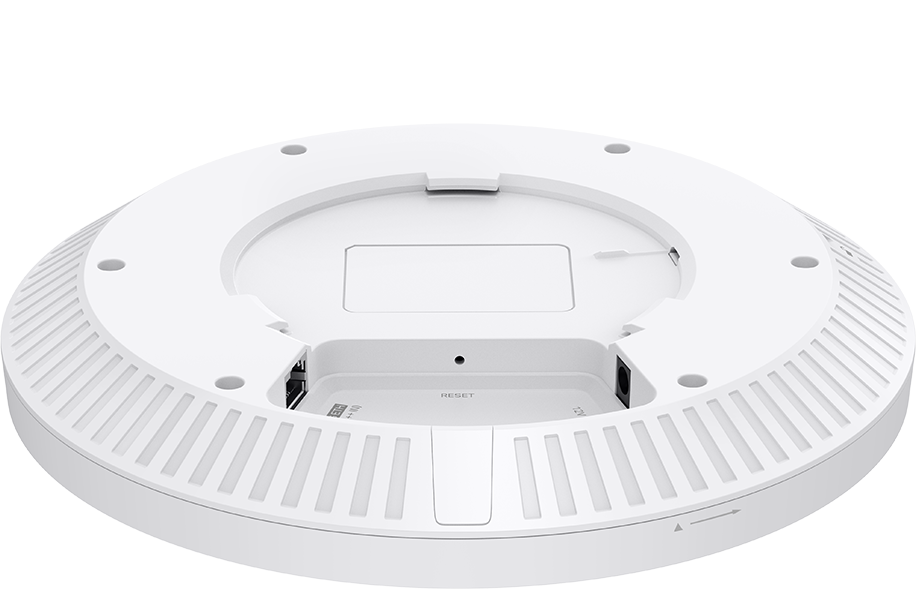

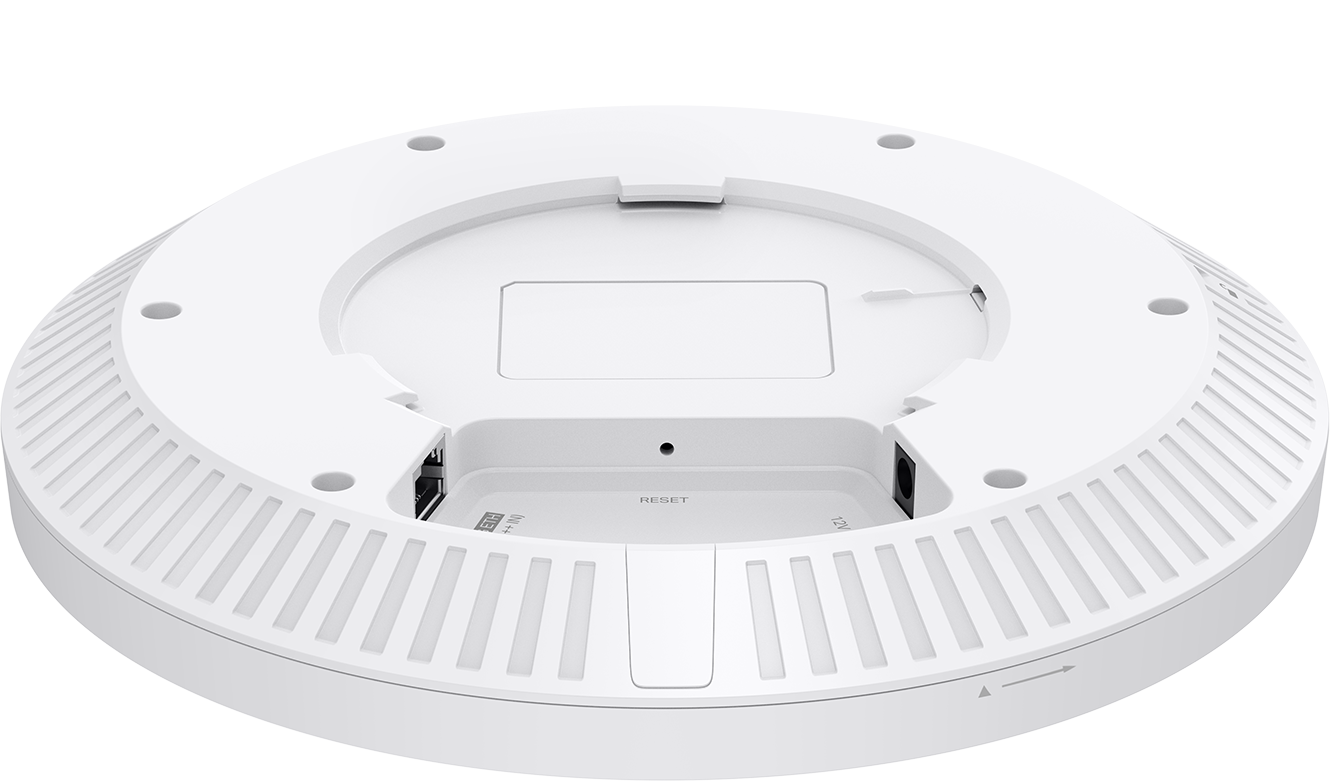

Optimized Wired
Performance with 10G
PoE++ PoE+ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.
-v2/img/eap787-2609-wired-web.png)
-v2/img/eap787-2609-wired-mobile.png)
Boosted Network
Security
-
Secure Guest Network
with up to 24 SSIDsSecure Guest
Network with up
to 16 SSIDs -
Boost Your Business
with SMS Login -
WPA3 for Worry-Free
Open Public Networks -
Rogue AP
Detection
Empowering Businesses
with Reliable Omada SDN SolutionsEmpowering Businesses
with Reliable Omada SDN
Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Mount Wi-Fi 7 AP EAP787
Wall Plate
Wi-Fi 7 AP
Outdoor
Wi-Fi 7 AP
PoE SwitchOmada PoE Switch
VPN Gateway
Access
ControllersOn-premises
Controllers
Controller
BrowserWeb Browser
AppOmada App
| HARDWARE FEATURES | |
|---|---|

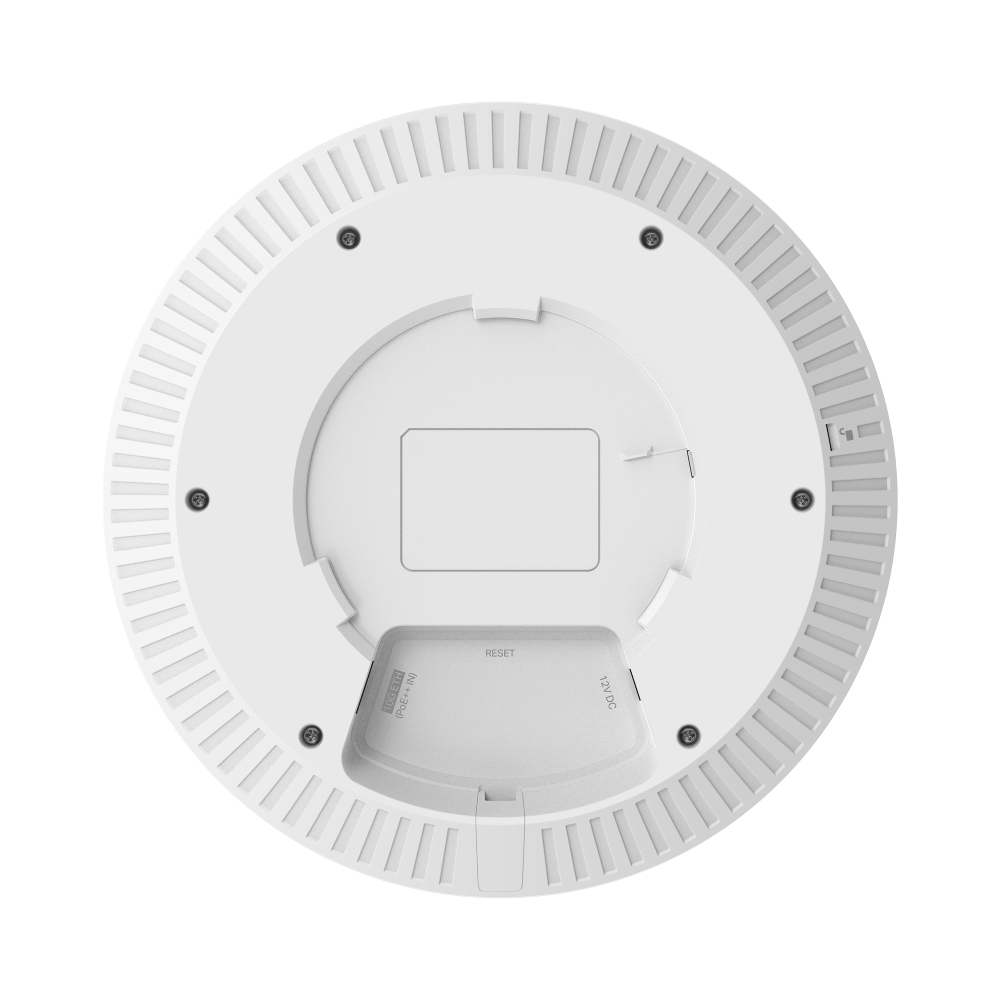

| Interface | 1× 10G/2.5G Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3bt/at PoE• 12V/2.5A DCNote：DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length. |
| Max. Power Consumption | • 29 W (For PoE); • 24.5W (For DC) |

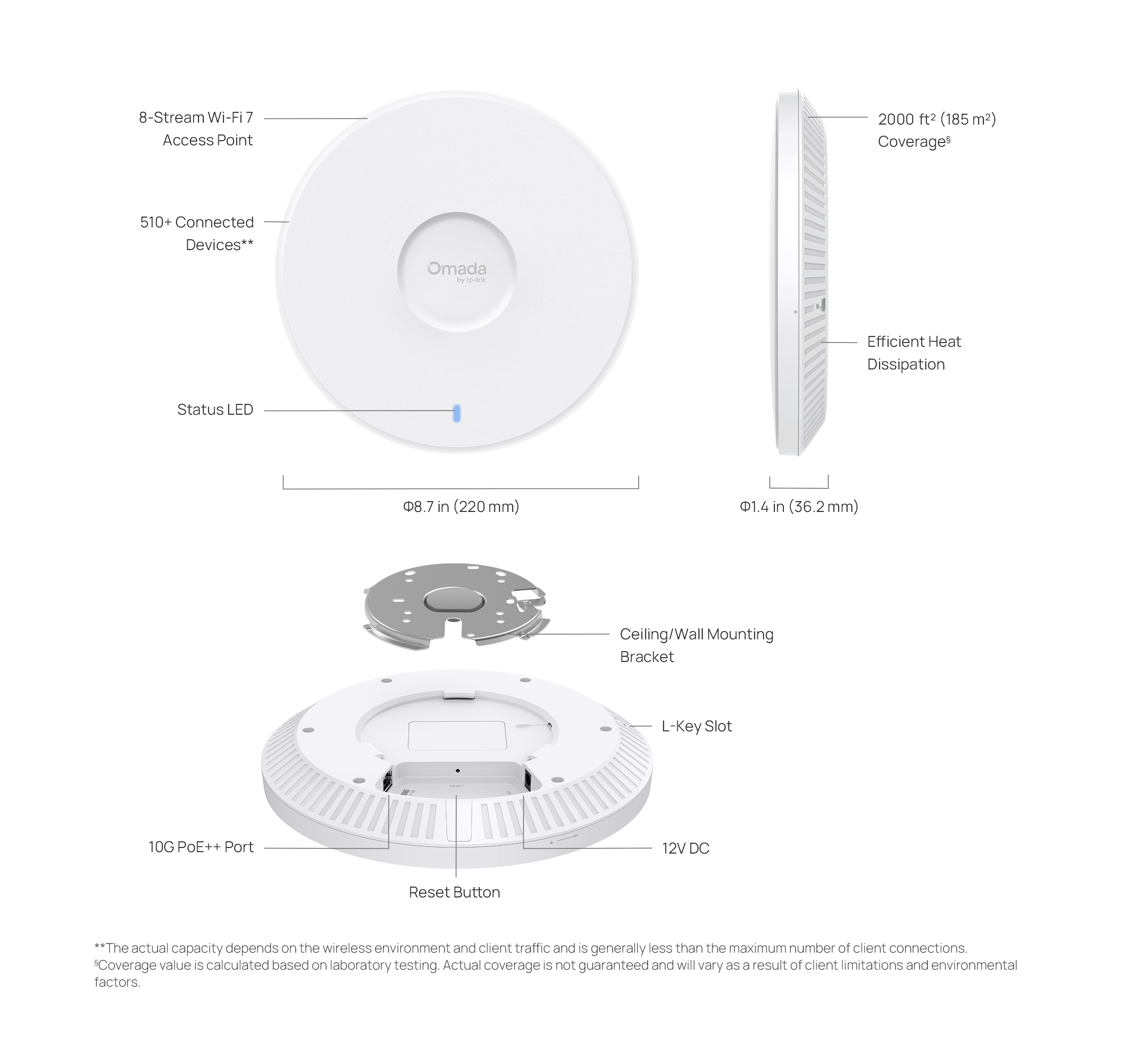

| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi• 5 GHz: 4× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 5 dBi (peak gain), Internal antenna module*Firmware update may be required. |
| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 2000 ft² (185 m²) |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • 320 MHz Bandwidth‡• MLO‡• 4K-QAM‡• Multi-RUs‡• Seamless Roaming(802.11k/v/r)• MU-MIMO‡• Mesh△• BSS Coloring‡• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:24(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• RADIUS Accounting• MAC Authentication |
| Wireless Security | • Captive Portal Authentication△• Access Control• Mac Filter• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 4-25 dBm (2.4 GHz)7-29 dBm (5 GHz, U-NII-1 & U-NII-3)7-26 dBm (5 GHz, U-NII-2A)7-24 dBm (5 GHz, U-NII-2C)4-23 dBm (6 GHz) |
| OTHERS | |
|---|---|
| Certification | • Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security• FCC/CE/NCC/VCCI/JRF/BSMI |
| Package Content | • EAP787• Installation Guide• Ceiling/Wall/Junction Box Mounting KitNote: Power Adapter is NOT included. |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing; |
△These featurees require the use of an Omada controller.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
