EAP683 UR

New

AX6000 Ceiling Mount WiFi 6 Access Point

  • Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
  • Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
  • Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
  • Integrates with the Omada SDN platform for centralized management.
  • Advanced Features: Omada Mesh, Seamless Roaming, and more.§
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).

Learn more about Omada Wi-Fi 6>​

Learn more about Omada Cloud SDN>​

  •

    4804 Mbps on 5 GHz +1148 Mbps on 2.4 GHz

  •

    High-Efficiency WiFi 6

  •

    2.5G Wired Performance

  •

    Ultra-Range Coverage

  •

    Centralized Cloud Management

  •

    PoE+ Powered

  •

    Auto Channel Selection and Power Adjustment*

  •

    Omada Mesh Technology§

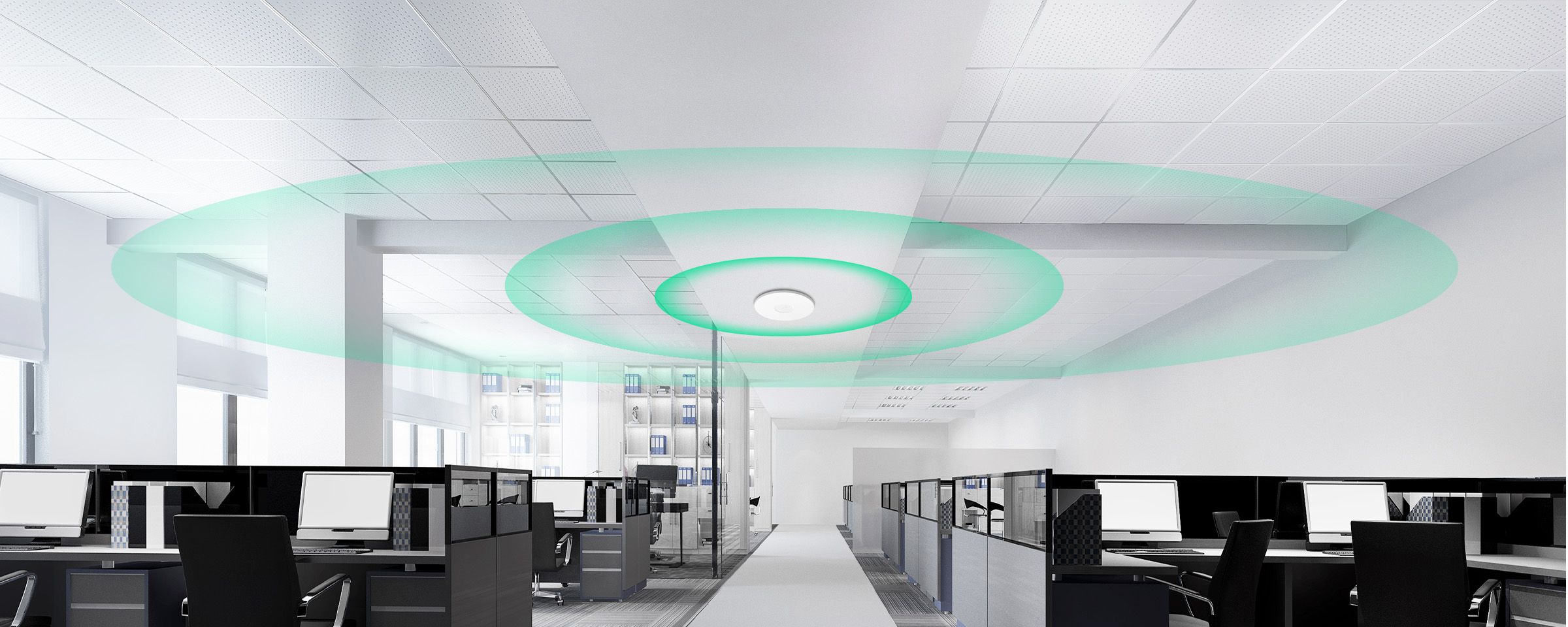

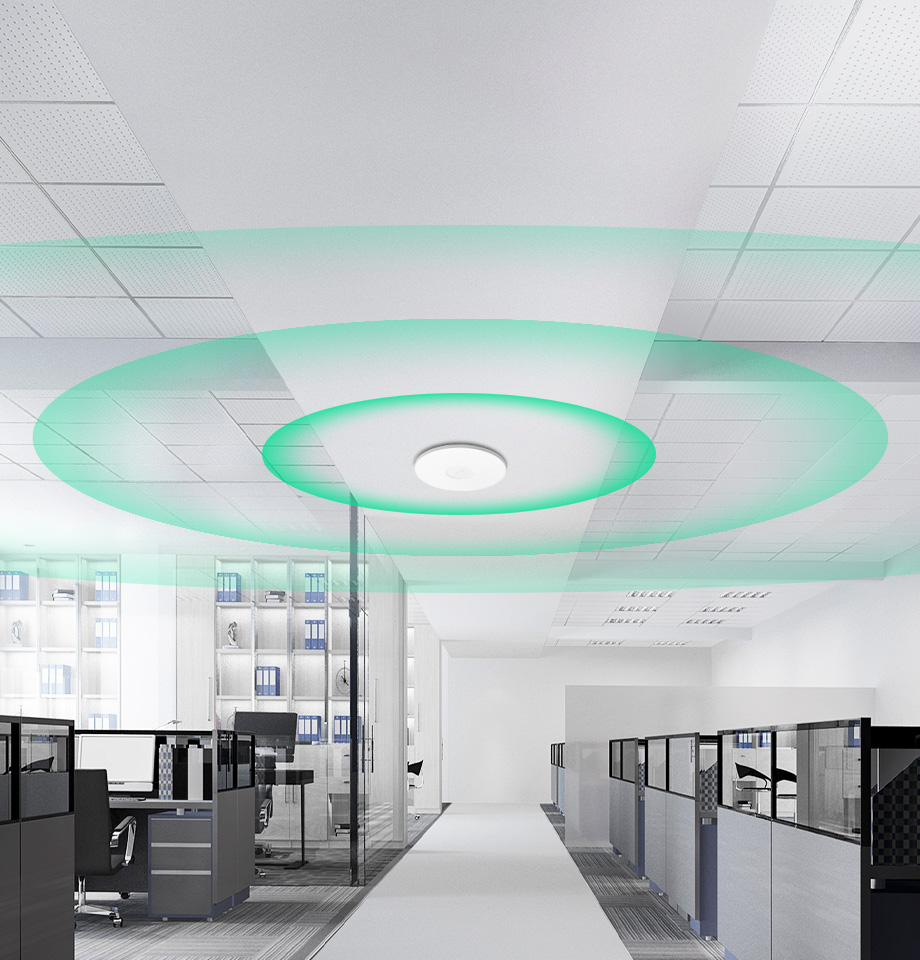

Ultra-Range Wireless Coverage

4 × 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.

Ultra-Fast AX6000 WiFi 6 Speeds

4-Stream WiFi 5

EAP683 UR: 4 Stream WiFi 6

5 GHz

177%
Faster

1734 Mbps

4804 Mbps

2 Stream WiFi 5

EAP683 UR: 4 Stream WiFi 6

2.4GHz

383%
Faster

300 Mbps

1148 Mbps

  •

    1024 QAM

  •

    Long OFDM Symbol

  •

    HE160

Seamless Integration into Omada SDN

  • Cloud Access

    WiFi6 Ceiling
    Mount AP
    EAP683UR

    Wall Plate AP

    Outdoor AP

    Omada PoE
    Switch

    Omada VPN
    Router

    Web
    Browser

    Omada
    App

    Omada Hardware
    Controller

    Or

    Or

    Omada Software
    Controller

    On-premises Controllers

    Omada Cloud-Based Controller
    (Subscription Required)

Easy Deployment and Higher Performance with Omada Mesh§

Easy Pairing, Less Wiring

  • Traditional Wired Networking

  • Mesh

    Mesh

    Mesh Wireless Networking

Optimized Network Performance

  •





    Intelligent Self-Organization

  •







    Self-Healing

HARDWARE FEATURES

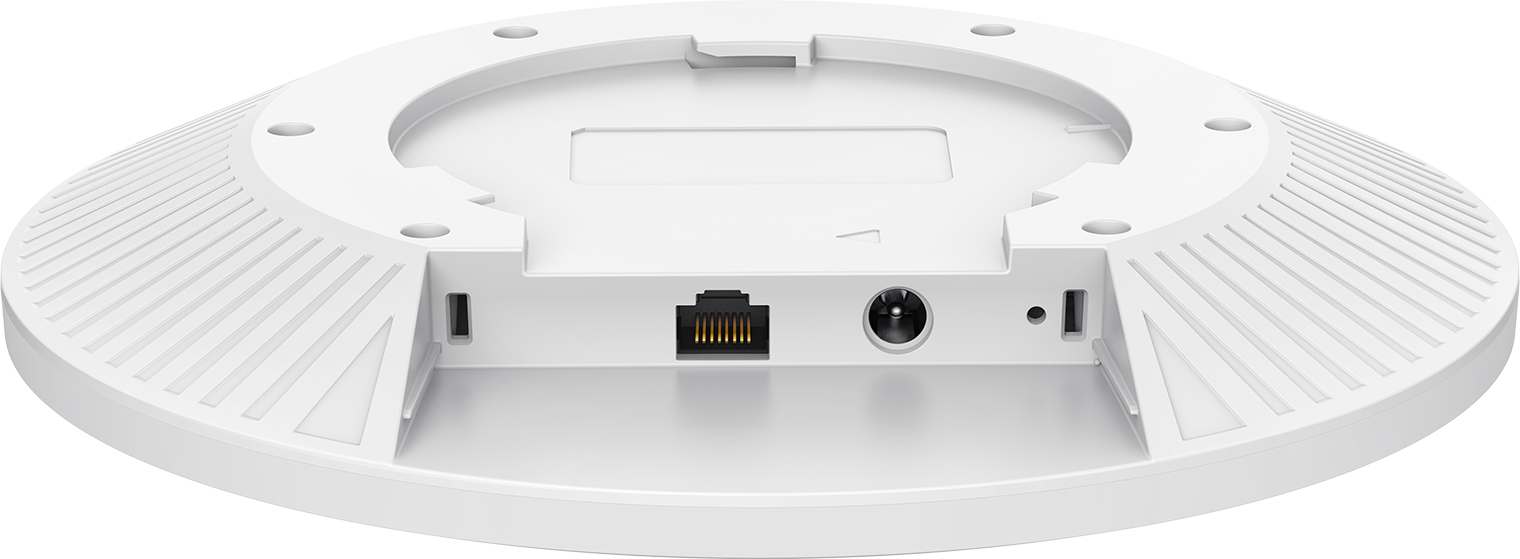

Interface 1× 2.5 Gigabit PoE+ Port
Button Reset
Power Supply • 802.3at PoE
• 12 V / 2 A DC

Note:Power adapter is not included.
Power Consumption • EU: 20.43W
• US: 23.69W
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Bluetooth Yes
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 185㎡(2000ft²)***
Concurrent Clients 510+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)

• FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE,FCC,RoHS
Package Contents • EAP683 UR
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz, compared to 80 MHz for general WiFi 6 APs.

§Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

Use of Omada Cloud-Based Controller may incur device license fees.
