Deco M4_V5_Datasheet_Egypt

AC1200 Whole Home Mesh Wi-Fi System

Highlights

Fast Mesh Wi-Fi for Your Whole Home

Deco is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home. Enjoy fast and stable connections for an army of devices in homes up to 5,500 sq. ft.  Setup is made easier with the Deco app there to walk you through every step.^‡

Wi-Fi Dead-Zone Killer

Eliminate weak signal areas with whole home Wi-Fi. No more searching around for a stable connection.

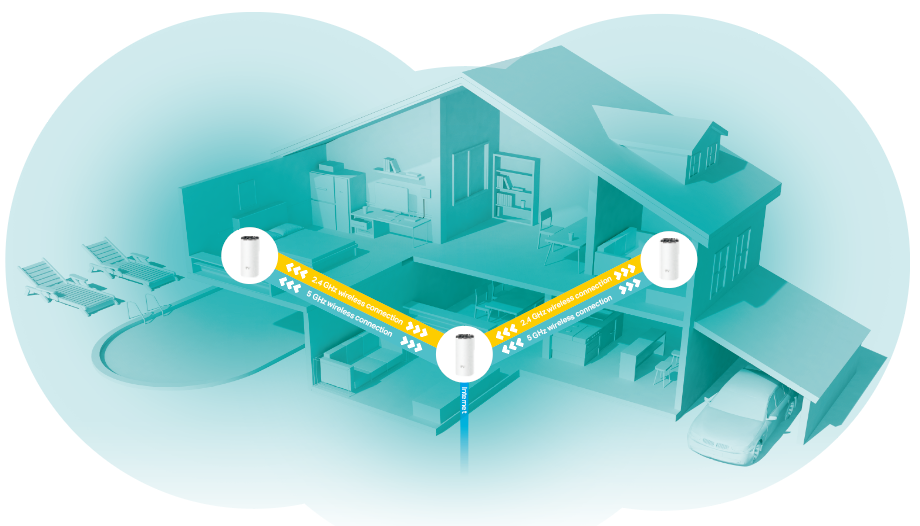

Seamless Roaming with One Wi-Fi Name

Deco units work together to form a unified Wi-Fi network with a single network name. Walk through your home and stay connected with the fastest possible speeds, made possible by Deco’s seamless coverage and Plug & Play Mesh Technology.^†

No More Buffering

3x faster AC1200 dual band Wi-Fi ensures a smooth gaming and 4K streaming experience with 11ac Wave 2 MU-MIMO technology and provides lag-free connections for up to 100 devices.^‡

Keeps Itself Fast

Adaptive path selection keeps your network running at top-speed by automatically choosing the fastest connection path.

Simple Wi-Fi Control

The easy-to-use Deco app lets you set up quickly, see the connected devices, prioritize devices, check internet history, create a guest network and more.

HomeShield

HomeShield is a built-in service, it provides a series of services for you to protect all your devices comprehensively with various features at home or on-the-go. With HomeShield, safer internet experiences bring more happiness to your smart living.*

Features

Wi-Fi Speed
Faster Wi-Fi speed with stronger whole home Wi-Fi generated from Wi-Fi 5

· Superior Wireless Speed – Combines wireless speeds up to 867 Mbps over 5 GHz, and 300 Mbps over 2.4 GHz
· More Devices Connected – Connects up to 100 Devices^†

TP-Link HomeShield
TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.^§

· Network Protection – Detects cyber threats to keep your privacy and connected devices well protected
· Parental Controls – Manages online time and block inappropriate content to keep families healthy online
· Quality of Service (QoS) – Prioritizes your bandwidth needs to get a faster networking experience
· Comprehensive Reports– Gains full statistics and insights to help you know your home network better
Note: HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

Easy Setup by Deco App
Easily set up Decos and find the ideal spot to place each unit

· Auto Connection Test – Tests the internet connection of your Decos and helps to identify a suitable location for them
· Remote Management – Manages your Deco network from a smartphone or tablet via the app, no matter where you find yourself
· Online Upgrade – Keeps informed of the latest firmware updates

Security
Safeguard your home network with a firewall and wireless encryption

· Encryption for Secure Network – WPA/WPA2/WPA3 encryptions provide active protection against security threats
· Firewall – Protects your network devices from malicious attacks
· Blocklist – Add specific devices to blocklist to protect your network from unauthorized users

Two Modes in One
Choose the Wi-Fi Router mode or Access Point mode for your network needs

· Wi-Fi Router Mode – Creates an instant private wireless network
· Access Point Mode – Creates Wi-Fi access for any existing wired network

Work with All Deco Models
Form a Mesh network with your desired Deco models

· Compatible with All Deco Models – All Deco models can work together. Just expand Mesh Wi-Fi coverage anytime by adding more Decos
· Deco Mesh Technology – Eliminates dead zones and provides uninterrupted WiFi throughout your home

Specifications

Hardware

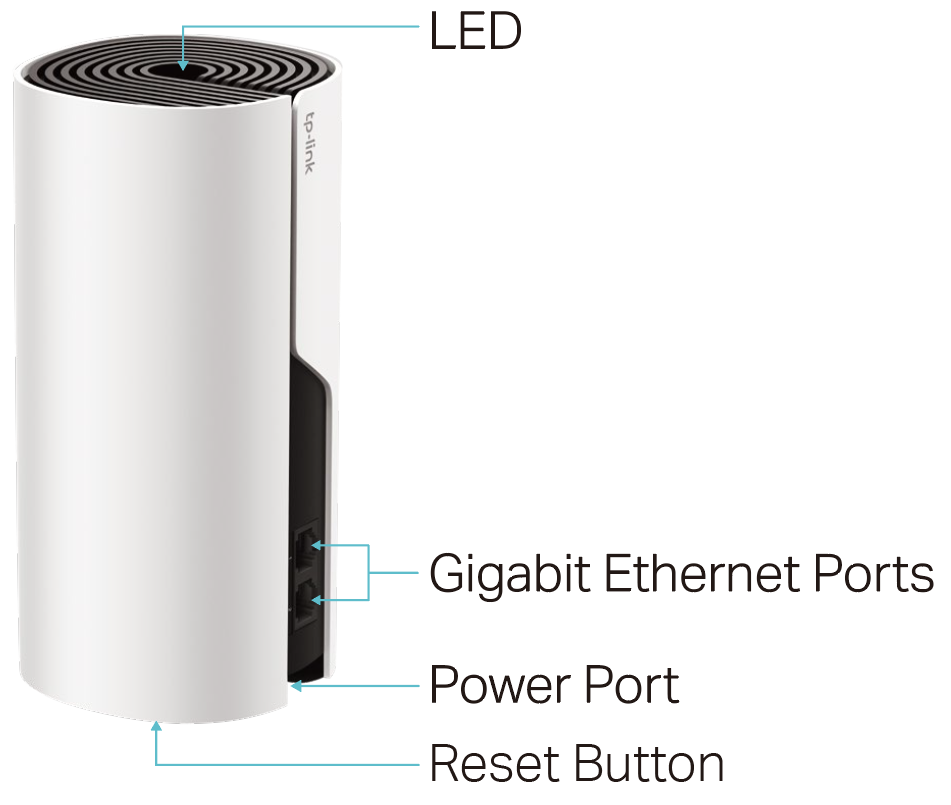

· Ports: 2 WAN/LAN Gigabit Ethernet Ports, 1 Power Port
· Buttons: 1 Reset button on the underside
· Antenna Type: 2 internal dual-band antennas per Deco unit
· Dimensions: 7.5 × 3.6 × 3.6 in. (190.5 × 90.7 × 90.7 mm)
· Power Adapter Input: 100-240 V ~ 50/60 Hz 0.6 A (US version); 100-240 V ~ 50/60 Hz 0.3 A (EU version)
· Power Adapter Output: 12 V ⎓ 1 A (EU Version); 12V ⎓ 1.5 A (US Version)

Wireless

· Wireless Standards: IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
· Frequency: 2.4 GHz and 5 GHz
· Signal Rate: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
· Transmit Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
· Wireless Security: WPA/WPA2-PSK/WPA3^△ encryptions

Software

· Working Mode: Router, Access Point
· WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
· DHCP: Server, Client
· Quality of Service: WMM
· Firewall Security: SPI Firewall
· Protocols: Supports IPv4 and IPv6
· Guest Network: 2.4 GHz guest network x 1, 5 GHz guest network x 1
· Features: Parental Controls, QoS (Quality of Service), Reporting, Assisted Setup, Address Reservation, Port Forwarding, TP-Link DDNS, VLAN, IPv6, LED Control
· Management: Local Management, Remote Management

Others

· Certification: CE,  IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
· Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

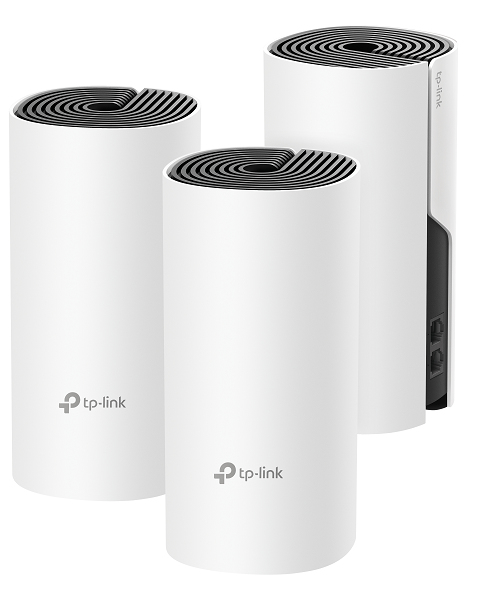

· Package Contents for Deco M4 (3-pack):
3 Deco units
3 Power Adapters
1 RJ45 Ethernet Cable
· Package Contents for Deco M4 (2-pack):
2 Deco units
2 Power Adapters
1 RJ45 Ethernet Cable
· Package Contents for Deco M4 (1-pack):
1 Deco unit
1 Power Adapter
1 RJ45 Ethernet Cable

Specifications are subject to change without notice. Other brands and product names are trademarks or registered trademark of their respective holders.
^†Seamless roaming requires that clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.
^‡Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^△Use of MU-MIMO and WPA3 encryption requires clients to also support the corresponding feature.
^*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
