Datasheet

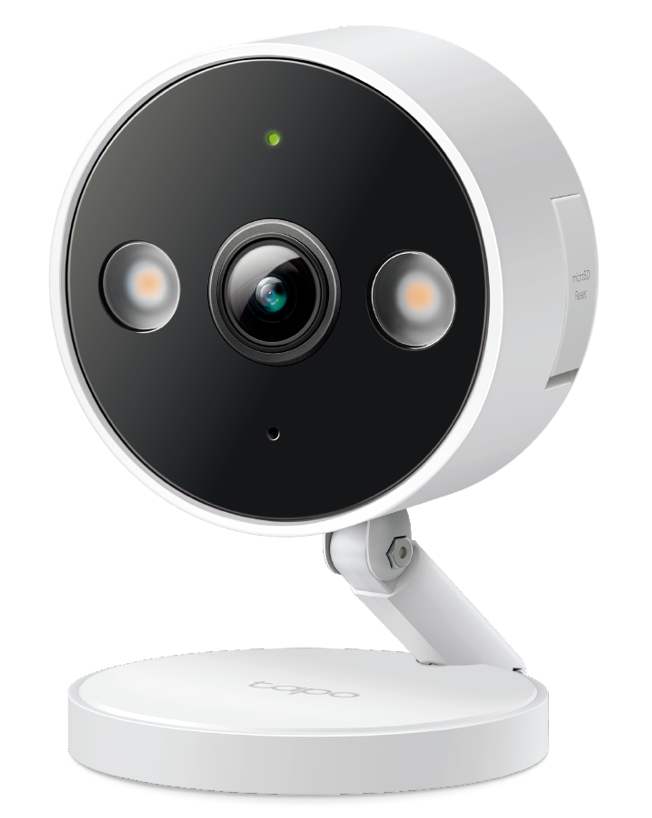

Indoor/Outdoor Home Security Wi-Fi Camera

Overview

• Indoor & Outdoor Flexibility - Place it in your living room, bedroom, baby's room, backyard, or front door. Its IP66 weather-resistant design keeps it ready for indoor or outdoor use, rain or shine.
• Crisp 2K+ Live View - See people, pets, vehicles and everyday details more clearly with sharp 2K+ resolution.
• Color Night Vision with Spotlights - Keep an eye on what matters after dark with built-in spotlights that help deliver full-color nighttime footage and reveal more useful details.
• Free Smart AI Detection - Get smarter alerts for people, pets, vehicles, and baby crying without a subscription, so you can quickly know when something needs your attention.
• Flexible Local & Cloud Storage - Record footage locally to a microSD card up to 512 GB, or subscribe to Tapo Care cloud service for added flexibility.
• Magnetic Base for Easy Installation - Set it on a table, mount it to a wall or ceiling, or attach it to a suitable metal surface with the magnetic base for flexible placement around your home.
• Light & Sound Alarm - Deter unwanted visitors with built-in light and sound alarms that can activate when activity is detected.
• Works with Your Smart Home - Connect with Amazon Alexa, Google Assistant, and Samsung SmartThings for more convenient viewing and control across your smart home ecosystem.

Highlight

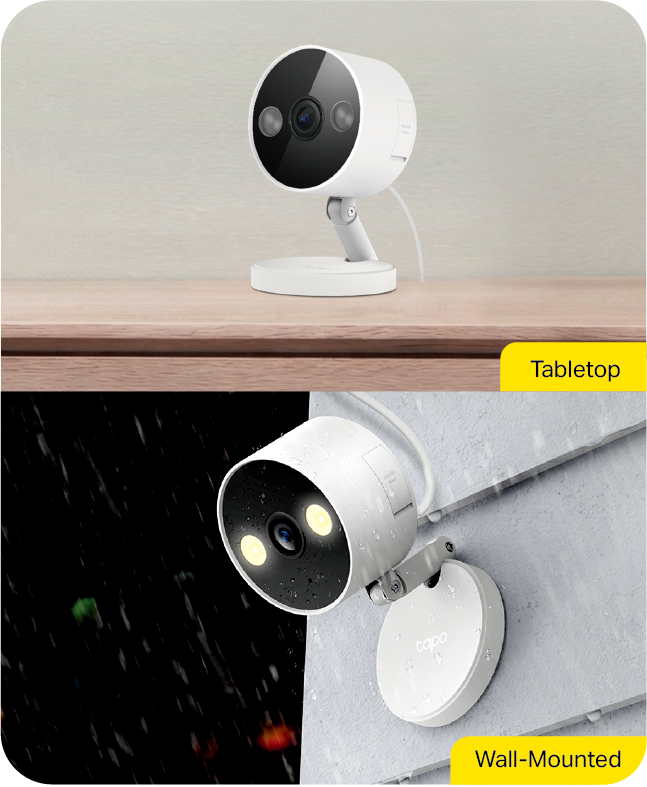

Your All-Weather Indoor/Outdoor Security Guard
From your backyard to nursery, IP66 weather resistance provides dependable security—indoors or outdoors, rain or shine.

Features

	2K+ Resolution∆ Capture sharper, more revealing images with 1.7× more pixels than 1080p.		Smart AI Detection Identifies people, pets, and vehicles, recognizes abnormal sounds, and notifies users as needed.
	Easy Installation with Magnetic Base Enjoy effortless installation and flexible mounting with a powerful, adjustable magnetic base.		Local† and Cloud‡ Storage Save recorded videos to a microSD card (up to 512 GB)† or by using Tapo Care‡ cloud storage services.

^∆Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device's specifications.
^†microSD card needs to be purchased separately.
^‡Subscribe for cloud storage at https://www.tapo.com/tapocare/

Specifications

Camera
Image Sensor	1/3'' CMOS Sensor
Lens	Focal Length: 3.1 mm Aperture: F1.6 Field of View: 115.8° (Diagonal), 98.5° (Horizontal), 53.1° (Vertical)
Night Vision	Color Night Vision (40 ft / 12 m) Infrared Night Vision (40 ft / 12 m)
Night Mode	Infrared Mode/ Full-Color Mode/ Smart Mode
Day/Night Switch	Yes
Lighting	2× 850nm IR LED  2× Spotlights
Interface & Button	1× RESET Button 1× microSD Card Slot (Up to 512 GB)
Video & Audio
Maximum Resolution	2K+ (2560 × 1440 px)
Frame Rate	20 fps
Digital Zoom	12×
Live View	Yes
Image Enhancement	3DNR WDR
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	98 dB (Level measured at 4-inch/10-cm distance)
Storage
Local Storage	microSD Card Slot on Camera (Up to 512 GB)
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)
Detection & Notification
Sensor	/
AI Detection	Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Baby Cry Detection Cat Meows Detection Dog Barks Detection Glass Break Detection Camera Tampering
Motion Detection Range	9.8 ft (3 m) in day, 9.8 ft (3 m) in night vision infrared, 9.8 ft (3 m) in night vision whitelight with lowest sensitivity 32.8 ft (10 m) in day, 29.5 ft (9 m) in night vision infrared, 26.2 ft (8 m) in night vision whitelight with default sensitivity 55.8 ft (17 m) in day, 55.8ft (17 m) in night vision infrared,32.8 ft (10 m) in night vision whitelight with highest sensitivity
Activity Zones	Yes* *Only works with Motion/Person/Pet/Vehicle Detection
Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)
Network
Network Connectivity	Connect via Wi-Fi
Wireless Connectivity	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Wireless Communication Technology	Wi-Fi Bluetooth (for setup only)
Transmission Rate	11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps
Protocol	TCP/IP, DHCP,  ICMP, DNS, NTP, HTTPS, TCP, UDP
RTSP	Yes
ONVIF	Yes (Profile S)
Security
Security	128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK/WPA3-PSK
Power
Power Source	5 V USB Power Adapter (100-240 VAC)
Adapter Input Voltage	100-240 V, 50/60 Hz, 0.2 A
Adapter Output Voltage	5.0 V, 1.0 A (Type-C Power)
Power Connector Size	Standard USB-A to USB Type-C Connector
Power Cord Length	3 m (9.8 ft)
Typical Power Consumption	1.96 W
Maximum Power Consumption	2.77 W
General
Certifications	CE, VCCI,JRF, IC,NCC, BSMI,IP66, UL
Smart Integration	Google Assistant, Amazon Alexa, Samsung SmartThings
Weather Resistance	IP66
Mounting Options	Wall-Mounted Magnetic Attachment Tabletop
Operating Temperature	-20 ℃~45 ℃ (-4 ℉~113 ℉)
Storage Temperature	-40 ºC ~ 60 ºC (-40 °F ~ 140 °F)
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	0%~90% RH, Non-condensing
Weight	3.17 oz (90 g)
Dimensions	2.65 × 2.26 × 1.74 in (67.4 × 57.4 × 44.1 mm)
Package Contents	Tapo C120 Camera ×1 USB Power Adapter ×1 3-Meter Type-C Cable ×1 Mounting Anchors ×4 Mounting Screws ×4 Cable Organizers ×2 Mounting Template Sticker ×1 Metal Plate ×1 3M Adhesive ×1 Pin Tool ×1 Quick Start Guide

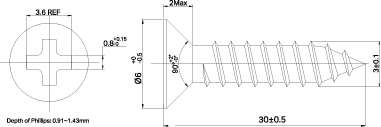

Mounting Screw Size
