Archer BN800 1.0_Product and Installation Guide

About This Guide

This guide is a complement of Quick Installation Guide. The Quick Installation Guide instructs you on quick internet setup, while this guide introduces the appearance, LEDs, buttons and ports of your router, and provides methods to connect the hardware.

Please note that the images and pathway descriptions in this guide may differ from your actual product and firmware version.

Conventions

In this guide the following conventions are used:

Convention	Description
Underline	Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section.
Bold	Contents to be emphasized and texts on the web page are in bold, including the menus, items, buttons and so on.
>	The menu structures to show the path to load the corresponding page. For example, Advanced > LAN Settings > DHCP Server means the DHCP Server Settings page is under the LAN Settings menu that is located in the Advanced tab.
Note:	Ignoring this type of note might result in a malfunction or damage to the device.
Tip:	Indicates important information that helps you make better use of your device.

More Info

The latest software, management app and utility can be found at Download Center at https://www.tp-link.com/support/download.
The Quick Installation Guide can be found where you find this guide or inside the package of the router.
Specifications can be found on the product page at https://www.tp-link.com.
TP-Link Community is provided for you to discuss our products and share knowledge at https://community.tp-link.com.
Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support.

Get to Know About Your Router

This chapter introduces what the router can do and its appearance.

It contains the following sections:

• Product Overview
• Appearance

1. Product Overview

The TP-Link Wi-Fi 8 router, featuring the advanced 802.11bn technology, achieves network reliability and performance at its highest level. Its innovative features, such as Ultra-High Reliability (UHR) and Unequal Modulation (UEQM), improve data flow and boost network efficiency. Access to these features brings more stable connections, reduced congestion, and much wider coverage, opening up flawless connections for future home innovations. Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive Tether app and powerful web interface.

2. Appearance

Front Panel

LED Explanations

Status	Indication
Solid White & Pulsing Yellow	The router is starting up.
Solid White	The router is working properly.
Solid Yellow	The router is connected to the internet, but the Wi-Fi is off.
Solid Red	No internet connection.
Cycling Red & Yellow	No internet connection, and the Wi-Fi is off.
Pulsing White Slowly	Firmware is being updated.
Pulsing White Quickly	Establishing WPS connection.

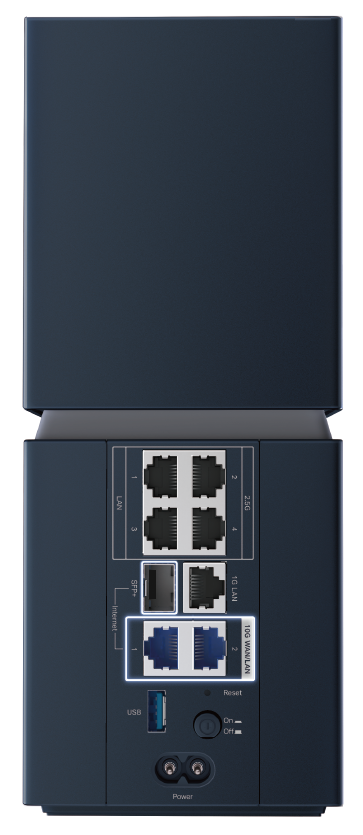

Back Panel

Button and Port Description

The following parts are located on the back panel.

Button/Port	Description
Power On/Off Button	Press this button to power on or off the router.
POWER Port	For connecting the router to a power outlet via the provided power cord.
USB 3.0 Port	For connecting your USB storage devices to the router.
10Gbps WAN/LAN Port (1)	For connecting to your modem, the Ethernet outlet or other internet devices. Used as the WAN or LAN port.
10Gbps SFP+ Port	For connecting to your optical module.
10Gbps WAN/LAN Port (2)	For connecting to your modem, the Ethernet outlet or other internet devices. Used as the WAN or LAN port.
1Gbps LAN Port	For connecting your PC or other wired devices to the router
2.5Gbps LAN Port (1-4)	For connecting your PC or other wired devices to the router
Reset Button	Press and hold this button for about 5 seconds until the LED blinks to reset the router to its factory default settings.

Note:
•  Keep the router vertical while working.
• 10Gbps WAN/LAN Port (1) and 10Gbps SFP+ port are a combo pair. Only one port in the pair can be used at a time.

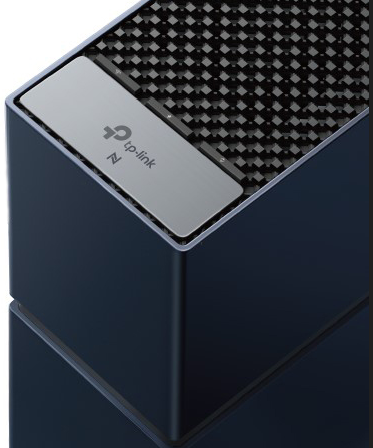

Top Panel

	Button	Description
		Press and hold the Wi-Fi button for 2 seconds to turn on or off the wireless function of your router.
		Single-press the LED button to turn on or off the router’s LED.
		Single-press the WPS button and immediately press the WPS button on your client to start the WPS process.
	NFC Detection Area	A tap-to-connect spot that lets you join the router's Wi-Fi network instantly without typing a password.

Connect the Hardware

This chapter contains the following sections:

• Position Your Router
• Connect Your Router

Position Your Router

• The product should not be located in a place where it will be exposed to moisture or excessive heat.
• Place the router in a location where it can be connected to multiple devices as well as to a power source.
• Make sure the cables and power cord are safely placed out of the way so they do not create a tripping hazard.
• The router can be placed on a shelf or desktop.
• Keep the router away from devices with strong electromagnetic interference, such as Bluetooth devices, cordless phones and microwaves.
• Generally, the router is placed on a horizontal surface, such as on a shelf or desktop.

Connect Your Router

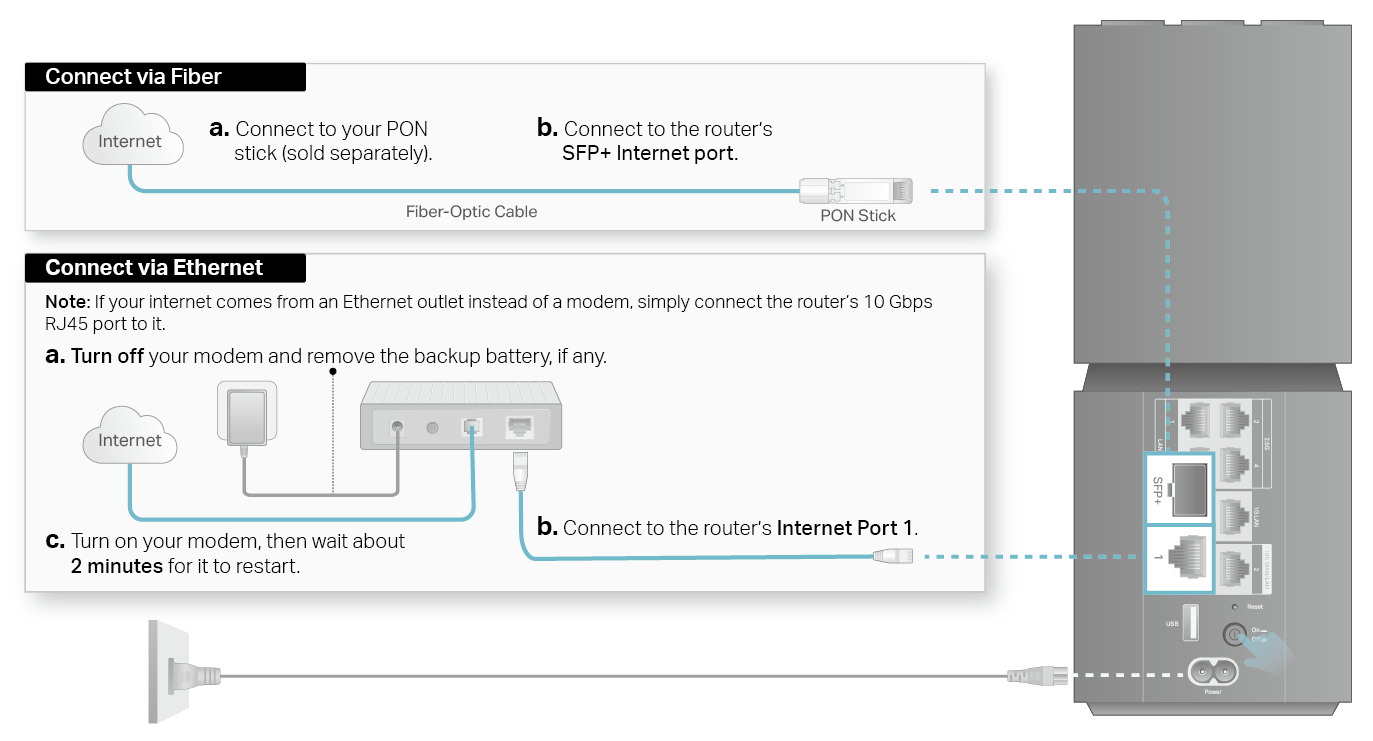

1. Connect the router’s Internet port via fiber OR Ethernet to access the internet.

Note: If you want to change the WAN port for internet service, go to the Tether app or web management page to configure it.

2. Connect the device end of the provided power cord to the router's power jack, then plug the other end into a wall outlet. Press the Power button to turn it on.
3. Wait until the LED strip on the front of the router turns solid before moving on.

4. Connect your computer to the router.

Method 1: Ethernet Cable
Turn off the Wi-Fi on your computer and connect the device to the LAN port of your router using an Ethernet cable.

Method 2: NFC Tap
Enable NFC on your phone, then hold its NFC area against the NFC area on the router until a pop-up appears. Tap Join, Connect, or the equivalent to join the Wi-Fi network.

Method 3: QR Scan / Password
1) Find the SSIDs (Network Names) and Wireless Password printed on the label at the bottom of the router.
2) Click the network icon of your computer or go to Wi-Fi Settings of your smart device, and then select the SSID to join the network.

Set Up the Router

There are two ways to set up the router:

• Via the Web Management Page: You can use management page to set up your device.
• Via the TP-Link Tether app: The Tether app walks you through the setup process.

Via Web Management Page

With a web-based utility, it is easy to configure and manage the router. The web-based utility can be used on any Windows, Mac OS or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

Follow the steps below to log in to your router and set it up:

1. Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.

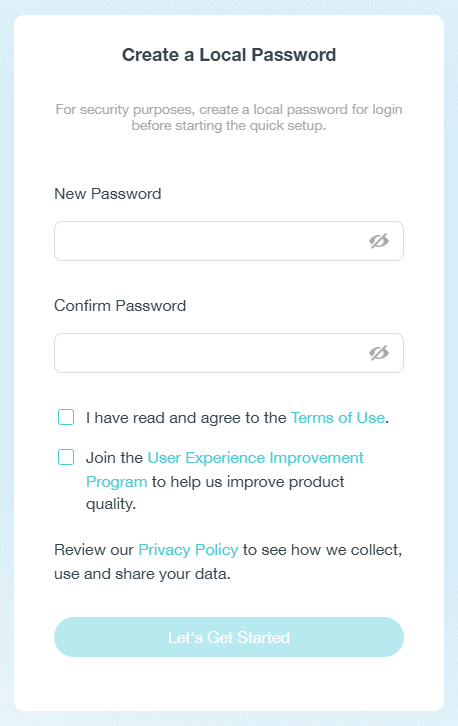

2. Visit http://tplinkwifi.net, and create a login password for secure management purposes. Then click Let’s Get Started to log in.

Note: If the login window does not appear, please refer to the FAQ Section.

3. Follow the step-by-step instructions to complete Quick Setup configuration.

Note:
• To learn more about the TP-Link Cloud service, please refer to the TP-Link Cloud Service section.
• If you do not want to register a TP-Link ID now, you may click Skip to proceed.
• If you have changed the preset wireless network name (SSID) and wireless password during the Quick Setup process, all your wireless devices must use the new SSID and password to connect to the router.

Via TP-Link Tether App

The Tether app runs on iOS and Android devices, such as smartphones and tablets.

1. Launch the Apple App Store or Google Play store and search “TP-Link Tether” or simply scan the QR code to download and install the app.

2. Launch the Tether app and log in with your TP-Link ID.
Note: If you don’t have a TP-Link ID, create one first.

3. Tap the + button, and select Add a Router.
Note: Due to Tether app updates, your actual user interface and pathway may differ from those described here.

The device can be detected via one of the methods below:

• Bluetooth: Turn on Bluetooth on your phone/tablet to search for your device.
• QR Code: Scan the QR code on the product label to join the router's network.
• Manually Setup: Connect manually using the network name and password on the product label.

4. Follow the steps to complete the setup and Connect your devices to the newly configured wireless networks of the router and enjoy the internet!

FAQ

Q1. What should I do if I forget my wireless password?

The default wireless password is printed on the label of the router. If the password has been altered:

1. Connect your computer to the router using an Ethernet cable.
2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
3. Go to Wireless to retrieve or reset your wireless password.



Q2. What should I do if I forget my web management password?

• If you are using a TP-Link ID to log in, or you have enabled the Password Recovery feature of the router, click Forgot password on the login page and then follow the instructions to reset it.

• Alternatively, press and hold the Reset button of the router until the LED blinks to restore factory default settings, and then visit http://tplinkwifi.net to create a new login password.

Note: You’ll need to reconfigure the router to surf the internet once the router is reset, and please mark down your new password for future use.



Q3. What should I do if I can’t log in to the router’s web management page?

This can happen for a variety of reasons. Please try the methods below to log in again.

• Make sure your device is connected to your router’s network, either via Wi-Fi or an Ethernet cable.

• If the computer is set to a static IP, change its settings to obtain an IP address automatically.

• Make sure http://tplinkwifi.net or http://192.168.0.1 is correctly entered.

• Check your computer’s settings:

1) Go to Start > Control Panel > Network and Internet, and click View network status and tasks.

2) Click Internet Options on the bottom left.

3) Click Connections and select Never dial a connection.

4)Click LAN settings and deselect the following three options and click OK.

5) Go to Advanced > Restore advanced settings, click OK to save the settings.

• Use another web browser or computer to log in again.

• Reset the router to factory default settings and try again. If login still fails, please contact the technical support.

Note: You’ll need to reconfigure the router to surf the internet once the router is reset.



Q4. What should I do if I can’t access the internet even though the configuration is finished?

1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2. Go to Internet to check internet status:

If IP Address is a valid one, please try the methods below and try again:
• Your computer might not recognize any DNS server addresses. Please manually configure the DNS server.
1) Go to Advanced > LAN Settings > DHCP Server.

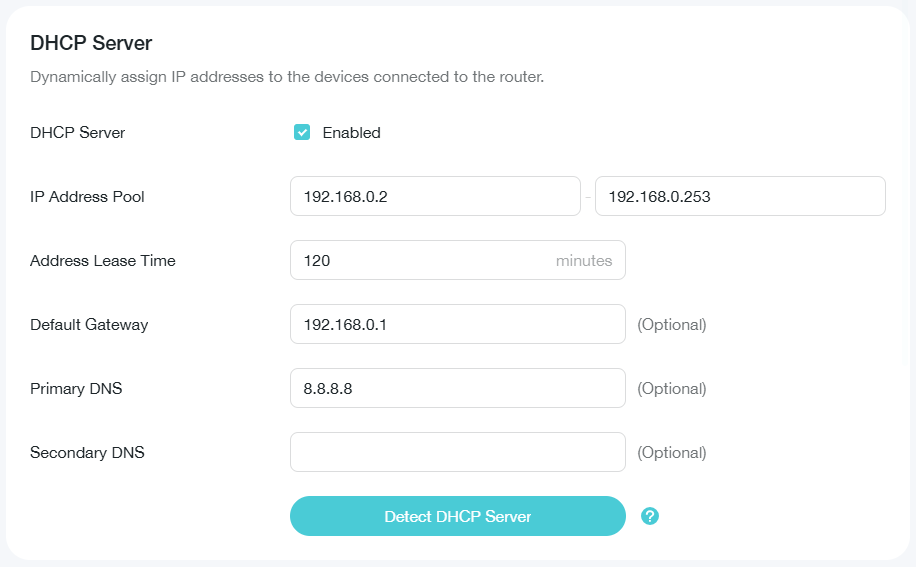

2) Enter 8.8.8.8 as Primary DNS, click SAVE.
 Tips: 8.8.8.8 is a safe and public DNS server operated by Google.

• Restart the modem and the router.
1) Power off your modem and router, and leave them off for 1 minute.
2) Power on your modem first, and wait about 2 minutes until it gets a solid cable or Internet light.
3) Power on the router.
4) Wait about 3 minutes and check the internet access.

• Reset the router to factory default settings and reconfigure the router.

• Upgrade the firmware of the router.

• Check the TCP/IP settings on the particular device if all other devices can get internet from the router.

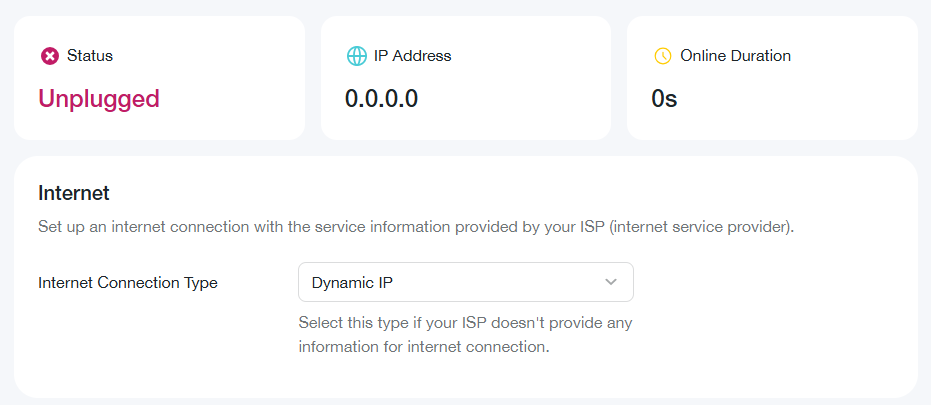

As the picture below shows, if the IP Address is 0.0.0.0, please try the methods below and try again:

• Make sure the physical connection between the router and the modem is proper.

• Clone the MAC address of your computer.
1) Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

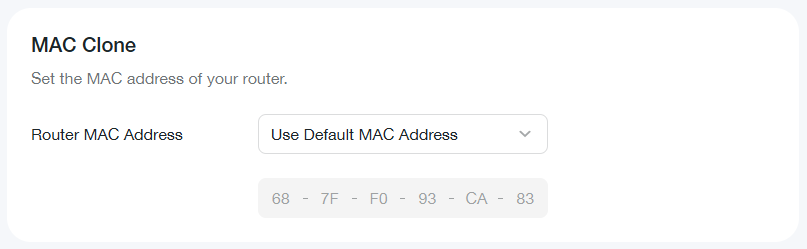

2) Go to Internet, click Easy Setup on the upper right corner of the page and focus on the MAC Clone section.
3) Choose an option as needed (enter the MAC address if Use Custom MAC Address is selected), and click SAVE.

Tips:
Some ISP will register the MAC address of your computer when you access the internet for the first time through their Cable modem, if you add a router into your network to share your internet connection, the ISP will not accept it as the MAC address is changed, so we need to clone your computer’s MAC address to the router.
The MAC addresses of a computer in wired connection and wireless connection are different.

• Modify the LAN IP address of the router.
Note:
Most TP-Link routers use 192.168.0.1/192.168.1.1 as their default LAN IP address, which may conflict with the IP range of your existing ADSL modem/router. If so, the router is not able to communicate with your modem and you can’t access the internet. To resolve this problem, we need to change the LAN IP address of the router to avoid such conflict, for example, 192.168.2.1.
1) Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2) Go to Advanced > LAN Settings> LAN.

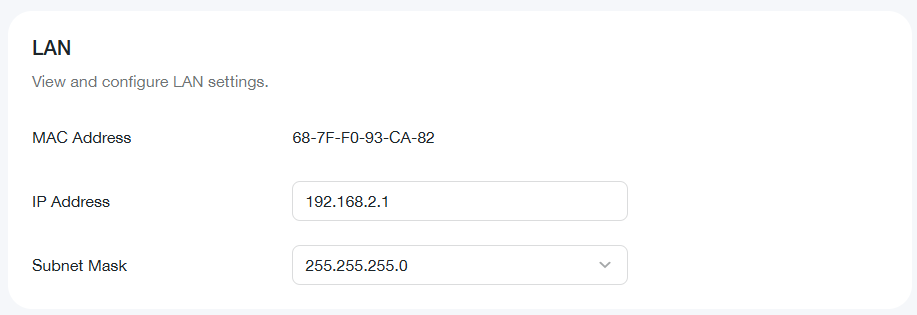

3) Modify the LAN IP address as the follow picture shows. Here we take 192.168.2.1 as an example.
4) Click SAVE.

• Restart the modem and the router.
1) Power off your modem and router, and leave them off for 1 minute.
2) Power on your modem first, and wait about 2 minutes until it get a solid cable or Internet light.
3) Power on the router.
4) Wait another 1 or 2 minutes and check the internet access.

• Double check the internet connection type.
1) Confirm your internet connection type, which can be learned from the ISP.
2) Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
3) Go to Internet.

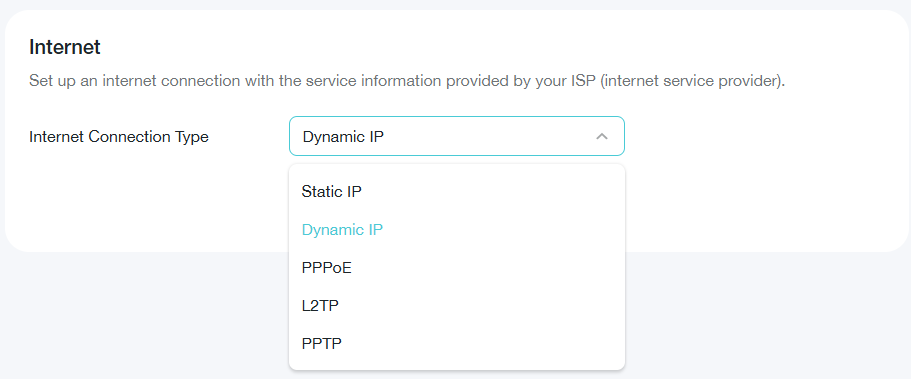

4) Select your Internet Connection Type and fill in other parameters.
5) Click SAVE.

6) Restart the modem and the router again.

• Please upgrade the firmware of the router.
If you’ve tried every method above but still cannot access the internet, please contact the technical support.



Q5. What should I do if I can’t find my wireless network or I cannot connect the wireless network?

If you fail to find any wireless network, please follow the steps below:
• Make sure the wireless function of your device is enabled if you’re using a laptop with built-in wireless adapter. You can refer to the relevant document or contact the laptop manufacturer.
• Make sure the wireless adapter driver is installed successfully and the wireless adapter is enabled.

• On Windows 11

1. Right-click Start and select Device Manager.
2. Expand the Network adapters section.
3. Find your wireless adapter (e.g., Intel, Realtek).
4. Driver Check: No yellow triangle means it is successfully installed.
5. Status Check: If the icon has a down arrow, right-click it and choose Enable device.

• On Windows 7

1. If you see the message No connections are available, it is usually because the wireless function is disabled or blocked somehow.
2. Click Troubleshoot and windows might be able to fix the problem by itself.

• On Windows XP

1. If you see the message Windows cannot configure this wireless connection, this is usually because windows configuration utility is disabled or you are running another wireless configuration tool to connect the wireless.
2. Exit the wireless configuration tool (the TP-Link Utility, for example).
3. Select and right click on My Computer on desktop, select Manage to open Computer Management window.
4. Expand Services and Applications > Services, find and locate Wireless Zero Configuration in the Services list on the right side.
5. Right click Wireless Zero Configuration, and then select Properties.
6. Change Startup type to Automatic, click on Start button and make sure the Service status is Started. And then click OK.

If you can find other wireless network except your own, please follow the steps below:

• Check the WLAN LED indicator on your wireless router/modem.
• Make sure your computer/device is still in the range of your router/modem. Move it  closer if it is currently too far away.
• Go to Wi-Fi, and check the wireless settings. Double check your wireless Network Name and SSID is not hided.

If you can find your wireless network but fail to connect, please follow the steps below:

• Authenticating problem/password mismatch:

1) Sometimes you will be asked to type in a PIN number when you connect to the wireless network for the first time. This PIN number is different from the Wireless Password/Network Security Key, usually you can only find it on the label of your router.

2) If you cannot find the PIN or PIN failed, you may choose Connecting using a security key instead, and then type in the Wireless Password/Network Security Key.

3) If it continues to show note of Network Security Key Mismatch, it is suggested to confirm the wireless password of your wireless router.
Note: Wireless Password/Network Security Key is case sensitive.

• Windows unable to connect to XXXX / Can not join this network / Taking longer than usual to connect to this network:

• Check the wireless signal strength of your network. If it is weak (1~3 bars), please move the router closer and try again.
• Change the wireless Channel of the router to 1, 6 or 11 to reduce interference from other networks.
• Re-install or update the driver for your wireless adapter of the computer.

Authentication

CE Mark Warning

OPERATING FREQUENCY(the maximum transmitted power)

2400 MHz -2483.5 MHz (20dBm)

5150 MHz -5250 MHz (23dBm)

5250 MHz -5350 MHz (23dBm)

5470 MHz -5725 MHz (30dBm)

5945MHz -6425 MHz (23dBm)

EU Declaration of Conformity
TP-Link hereby declares that the BN19000 Tri-Band Wi-Fi 8 Router is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/

RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.

National Restrictions

Frequency band: 5150 - 5250 MHz:
Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band.

Frequency band: 5250 - 5350 MHz:
Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted.

Frequency band: 5470 - 5725 MHz:
Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted.

Frequency band 5945 -6425MHz:

Restricted to indoor use, including in trains with metal-coated windows and aircraft. Outdoor use, including in road vehicles, is not permitted

UKCA Mark

UK Declaration of Conformity
TP-Link hereby declares that the BN19000 Tri-Band Wi-Fi 8 Router is in compliance with the essential requirements  and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca

National Restrictions
Attention: This device may only be used indoors in Great Britain.

Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Caution:
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz.

Avertissement:
Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
Les produits utilisant la technique d’atténuation DFS (sélection dynamique des fréquences) sur les bandes 5250- 5350 MHz, 5470-5600MHz et 5650-5725MHz.

Devices shall not be used for control of or communications with unmanned aircraft systems.
Devices shall not be used on oil platforms.
Devices shall not be used on aircraft, except for the low-power indoor access points, indoor subordinate devices, low-power client devices, and very low-power devices operating in the 5925-6425 MHz band, that may be used on large aircraft as defined in the Canadian Aviation Regulations, while flying above 3,048 metres (10,000 feet).

Les dispositifs ne doivent pas être utilisés pour commander des systèmes d'aéronef sans pilote ni pour communiquer avec de tels systèmes;
Les dispositifs ne doivent pas être utilisés sur les plateformes de forage pétrolier;
Les dispositifs ne doivent pas être utilisés dans les aéronefs, à l'exception des points d'accès intérieurs de faible puissance, des dispositifs subordonnés intérieurs, des dispositifs clients de faible puissance et des dispositifs de très faible puissance fonctionnant dans la bande de 5 925 à 6 425 MHz, qui peuvent être utilisés dans les gros aéronefs tel qu'il est défini dans le Règlement de l'aviation canadien, et ce, lorsqu'ils volent à une altitude supérieure à 3 048 mètres (10 000 pieds).

Devices shall not be used on automobiles.
Devices shall not be used on trains.
Devices shall not be used on maritime vessels.

Les dispositifs ne doivent pas être utilisés dans les automobiles;
Les dispositifs ne doivent pas être utilisés dans les trains;
Les dispositifs ne doivent pas être utilisés sur les navires maritimes.

Operation shall be limited to indoor use only.

Le fonctionnement doit être limité à une utilisation en intérieur uniquement.

Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Industry Canada Statement

CAN ICES-003 (B)/NMB-003(B)

Korea Warning Statements
해당 무선설비는 운용중 전파혼신 가능성이 있음.

NCC Notice & BSMI Notice

注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
應避免影響附近雷達系統之操作。

安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。

限用物質含有情況標示聲明書



Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.

Safety Information

•  Keep the device away from water, fire, humidity or hot environments.
•  Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
•  Do not use the device where wireless devices are not allowed.
•  Place the device with its bottom surface downward.
•  The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.
Operating Temperature: 0℃ ~ 40℃  (32℉ ~ 104℉)
This product uses radios and other components that emit electromagnetic fields. Electromagnetic fields and magnets may interfere with pacemakers and other implanted medical devices. Always keep the product more than 15 cm (6 inches) away from any pacemakers or other implanted medical devices. If you suspect your product is interfering with your pacemaker or any other implanted medical device, turn off your product and consult your physician for information specific to your medical device.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label

Note: The product label is on the bottom of the product. Symbols may vary from products.

注意：產品標籤可以在產品底部上找到。符號可能因產品而異。

1. Power consumption in networked standby: 8 W
2. Power consumption in off mode: 0.5 W
3. Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 31.13 W.
4. The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: 20 minutes
5. How to activate and deactivate the wireless network: Press and hold the Wi-Fi button for 2 seconds to turn the wireless function of your router on or off. Alternatively, connect to the router using an Ethernet cable and visit http://tplinkwifi.net. Go to Wi-Fi > Main Network and tick the checkbox for the 2.4GHz/5GHz/6GHz network.
