Aggregation Series Switches

Equipped with all-fiber ports, Aggregation Series Switches deliver up to 25 Gbps. With features such as Static Routing, DHCP Server, ACL, IGMP Snooping, STP, LAG, and centralized cloud management, they offer a robust and reliable solution for the aggregation layer of SMB networks. Select models also support physical stacking and advanced Layer 3 features for greater reliability and scalability.


	SX6632YF	SX3032F	SX3016F	SX3008F	SG3428XF
Total Port Count	32	32	16	8	28
Downlink Port	(26) 10G SFP+ Ports	(32) 10G SFP+ Ports	(16) 10G SFP+ Ports	(8) 10G SFP+ Ports	(20) GbE SFP Ports (4) GbE RJ45/SFP Combo Ports
Uplink Port	(6) 25G SFP28 Ports	-	-	-	(4) 10G SFP+ Ports
Console Port	√	√	√	√	√
Power Redundancy	√ (Hot-swappable)	√	√	-	√
Mounting	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount

Total Number of Ports
1. 5-11
2. 16-20
3. 24-32
4. 48-54
Max Downlink Port Speed/Type
1. 10 Gb/s SFP+
2. 10 Gb/s RJ45
3. 2.5 Gb/s RJ45
4. 1 Gb/s SFP
5. 1 Gb/s RJ45
6. 100 Mb/s RJ45
Max Uplink Port Speed/Type
1. 25 Gb/s SFP28
2. 10 Gb/s SFP+
3. 10 Gb/s RJ45
4. 2.5 Gb/s RJ45
5. 1 Gb/s SFP
6. 1 Gb/s RJ45
7. 100 Mb/s RJ45
PoE Support
1. Yes
2. No
PoE Type / Max PoE Budget per Port
1. 802.3af/at PoE+ (30W)
2. 802.3af/at/bt PoE++ (60W)
3. 802.3af/at/bt PoE++ (90W)
Number of PoE Ports
1. 4
2. 8
3. 16
4. 24
5. 48
Form Factor
1. Desktop
2. Wall Mounting
3. Pole Mounting
4. Rackmount
Cloud Centralized Management
1. Yes
2. No
Features
1. Physical Stacking
2. VRRP
3. OSPF
4. ERPS
5. PBR
6. PIM-SM/DM
7. Perpetual PoE
8. Fast PoE
9. Static Routing
10. STP/RSTP/MSTP
11. ACL
12. 802.1x
13. CLI Configuration
14. SNMP
Surveillance-Related Features
1. VLAN
2. QoS
3. PoE Auto Recovery
4. 250m (820ft) PoE Transmission under Extend Mode
5. Port Isolation
6. Auto Loop Detection
7. Cable Test
8. Port Management for Remote Camera Reboot
9. Physical Surveillance DIP Switch
Special Hardware Design
1. Fanless Design
2. Redundant Power Supply (RPS)
3. Console Port
4. Outdoor

Compare

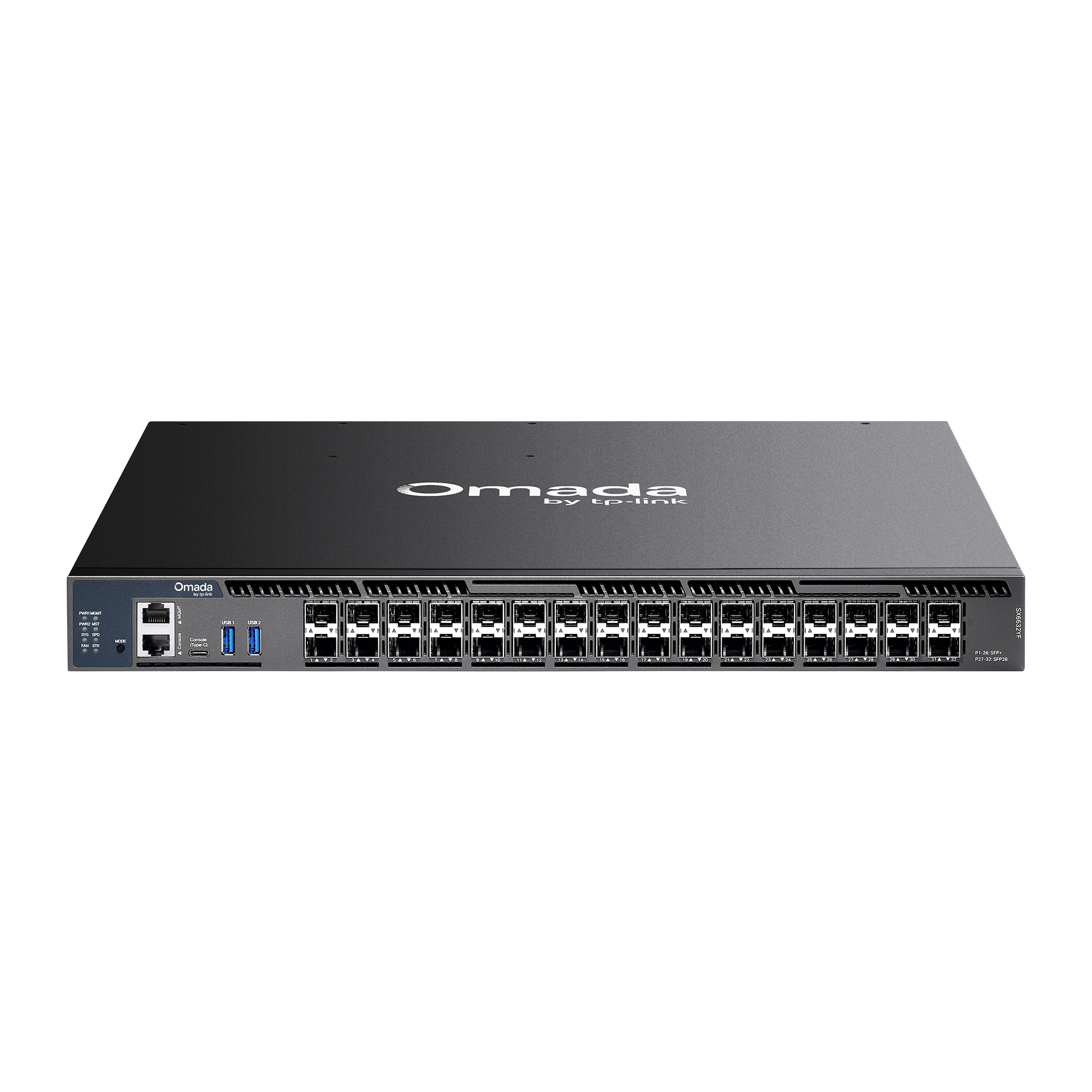

SX6632YF

Aggregation

Omada 26-Port 10G SFP+ Stackable L3 Managed Aggregation Switch with 6× 25G Slots
26× 10G SFP+ Slots

6× 10/25G SFP28 Slots

Stackable

Dual Redundant Power Supplies

Centralized Management
Compare

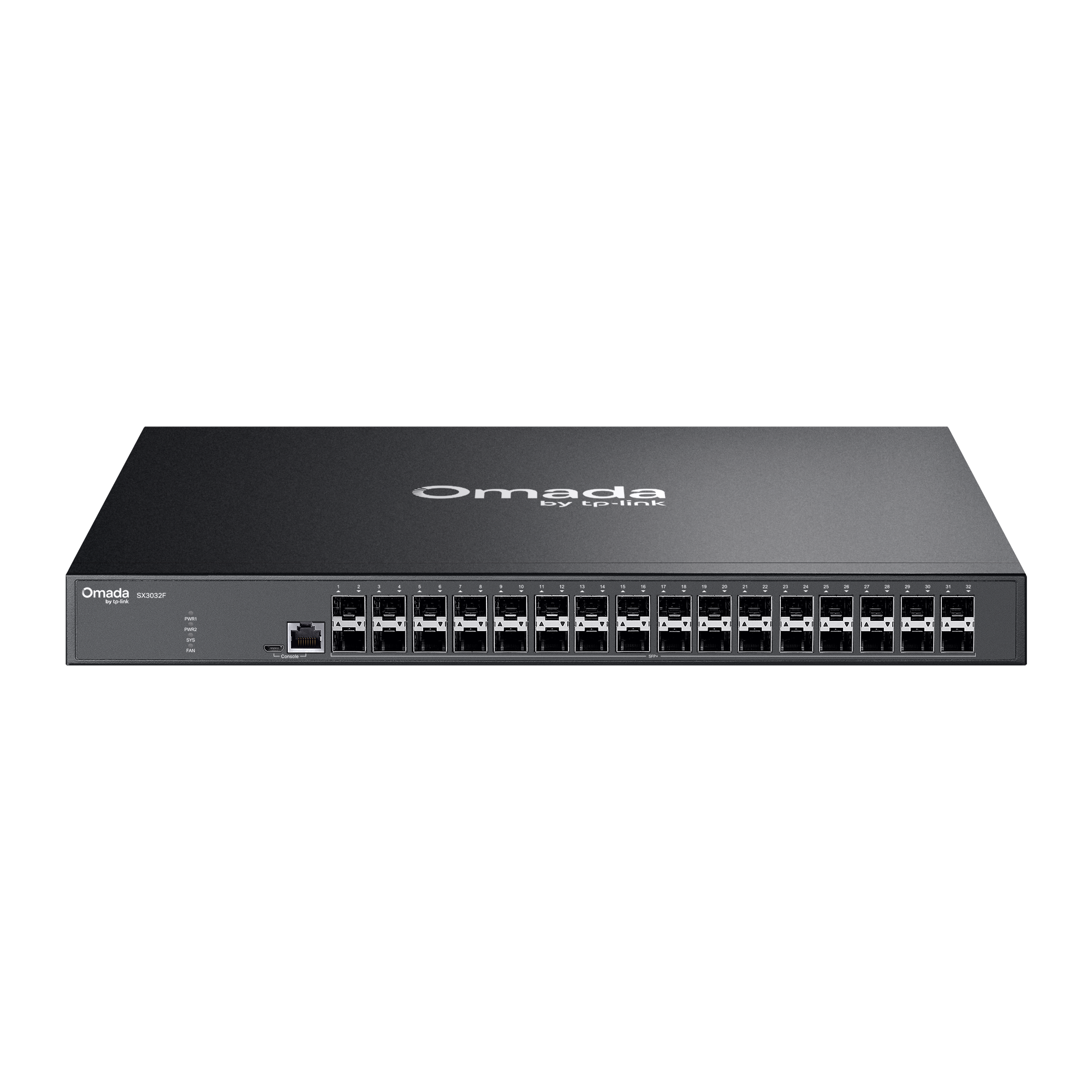

SX3032F

Aggregation

Omada Aggregation 32-Port 10GE SFP+ Switch
Centralized Cloud Management

32× 10 Gbps SFP+ Slots

640 Gbps Switching Capacity

1+1 Redundant Power Supply

Static Routing and ERPS
Compare

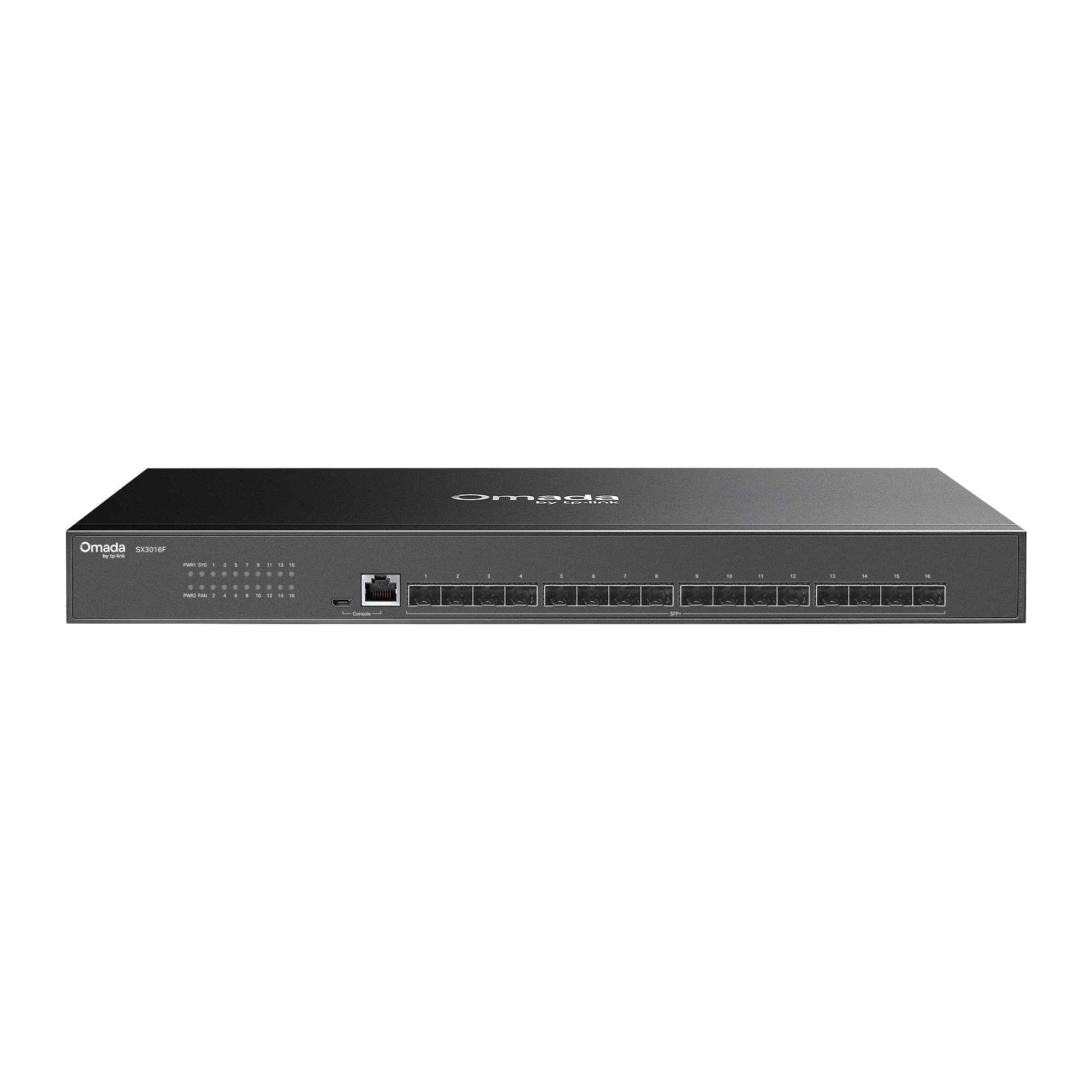

SX3016F

Aggregation

Omada Aggregation 16-Port 10GE SFP+ Switch
Centralized Cloud Management

16× 10 Gbps SFP+ Slots

320 Gbps Switching Capacity

1+1 Redundant Power Supplies

Static Routing and ERPS
Compare

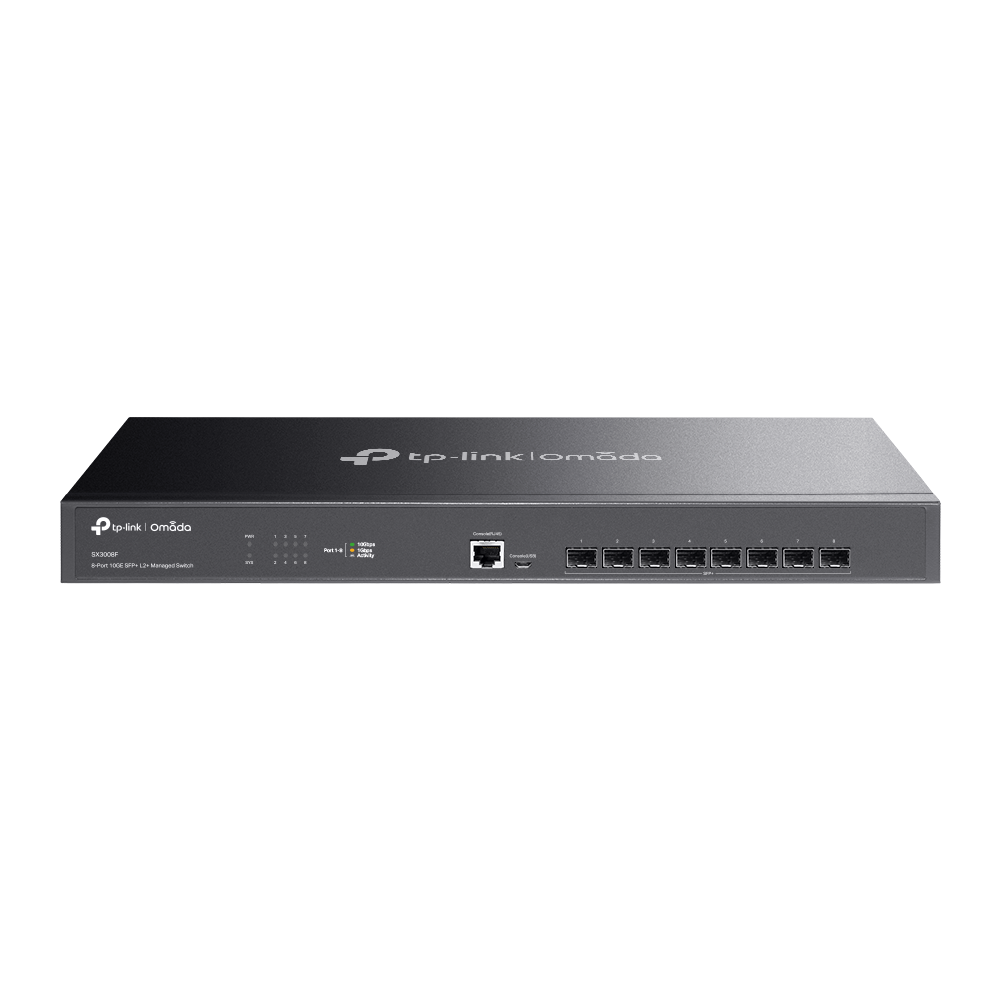

SX3008F

Aggregation

Omada 8-Port 10GE SFP+ L2+ Managed Switch
Centralized Cloud Management

8× 10 Gbps SFP+ Slots

160 Gbps Switching Capacity

Fanless Design for Silent Operation

Static Routing

ERPS
Compare

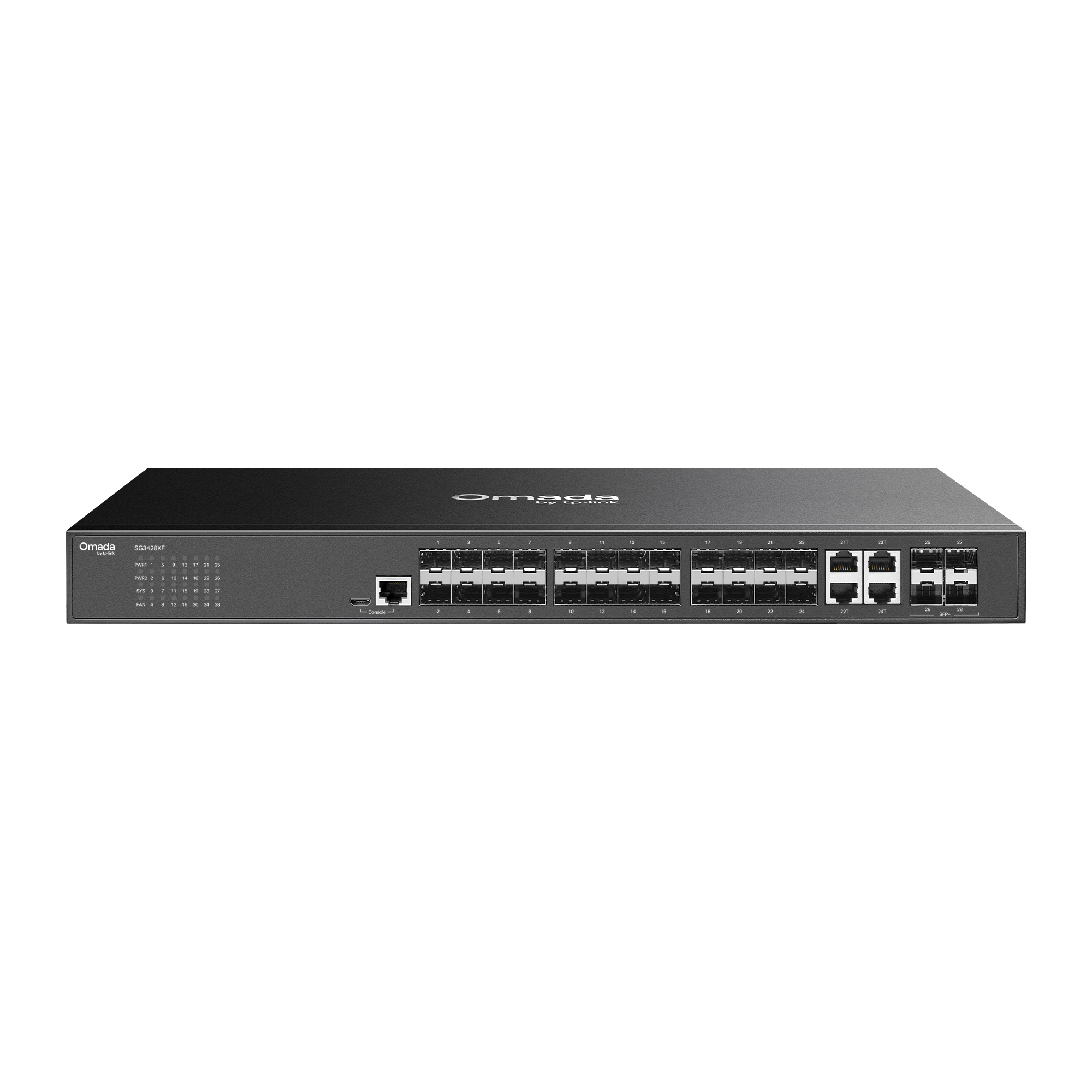

SG3428XF

Aggregation

Omada Aggregation 24-Port SFP Switch with 4 10GE SFP+ Slots
Centralized Cloud Management

20× Gigabit SFP Slots

4× Gigabit SFP/RJ45 Combo Ports

4× 10G SFP+ Slots

Dual Redundant Power Supplies

ERPS
