Omada Hardware Controller
- Centralized Management: Recommended for managing 25 devices.*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two gigabit ports.
- Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
- Easier Network Maintenance: Wi-Fi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.
-

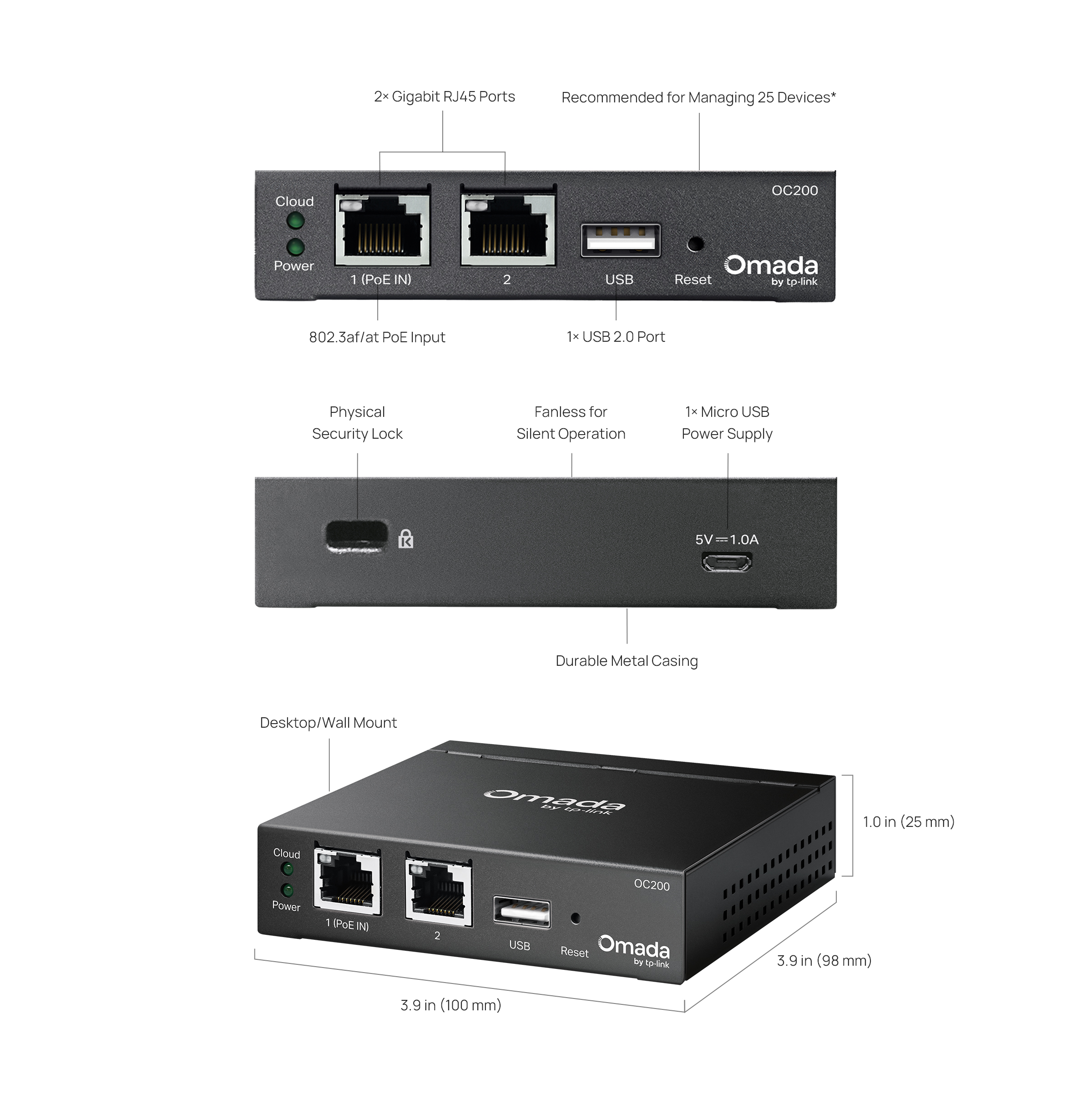

Recommended for Managing 25 Devices*
-
No Need for a Running PC/Server
-
Optional Cloud with No License Fees
-
Manage via Omada App
-
Flexible 802.3af/at PoE or Micro USB Power Supply
-
Durable Metal Casing
-
Fanless for Silent Operation
-
USB 2.0 Port
for Auto-Backup
Hybrid Cloud Management for Maximum Convenience
Centrally manage a recommended 25 Omada devices via the Omada app or Web UI for
a consistently stable and responsive experience.*
VPN Gateway
PoE Switch
Access Points
Hardware Controller
OC200

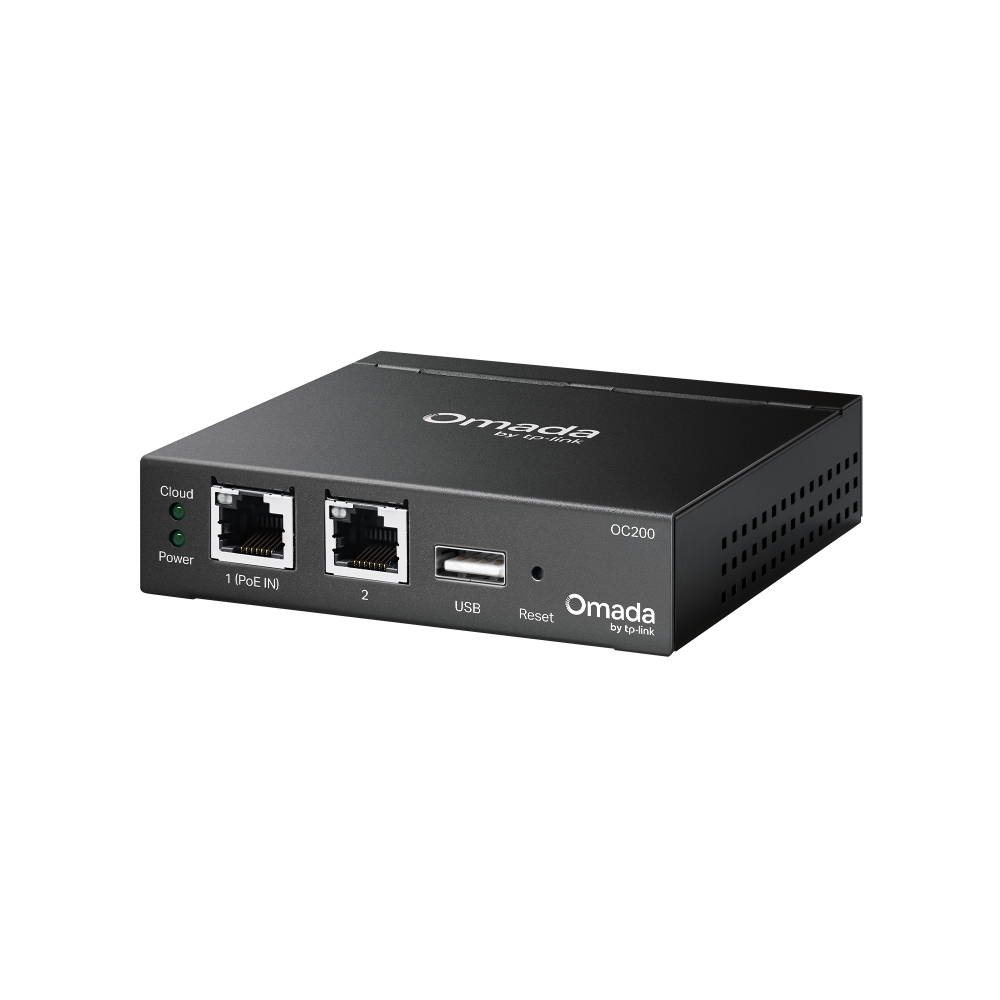

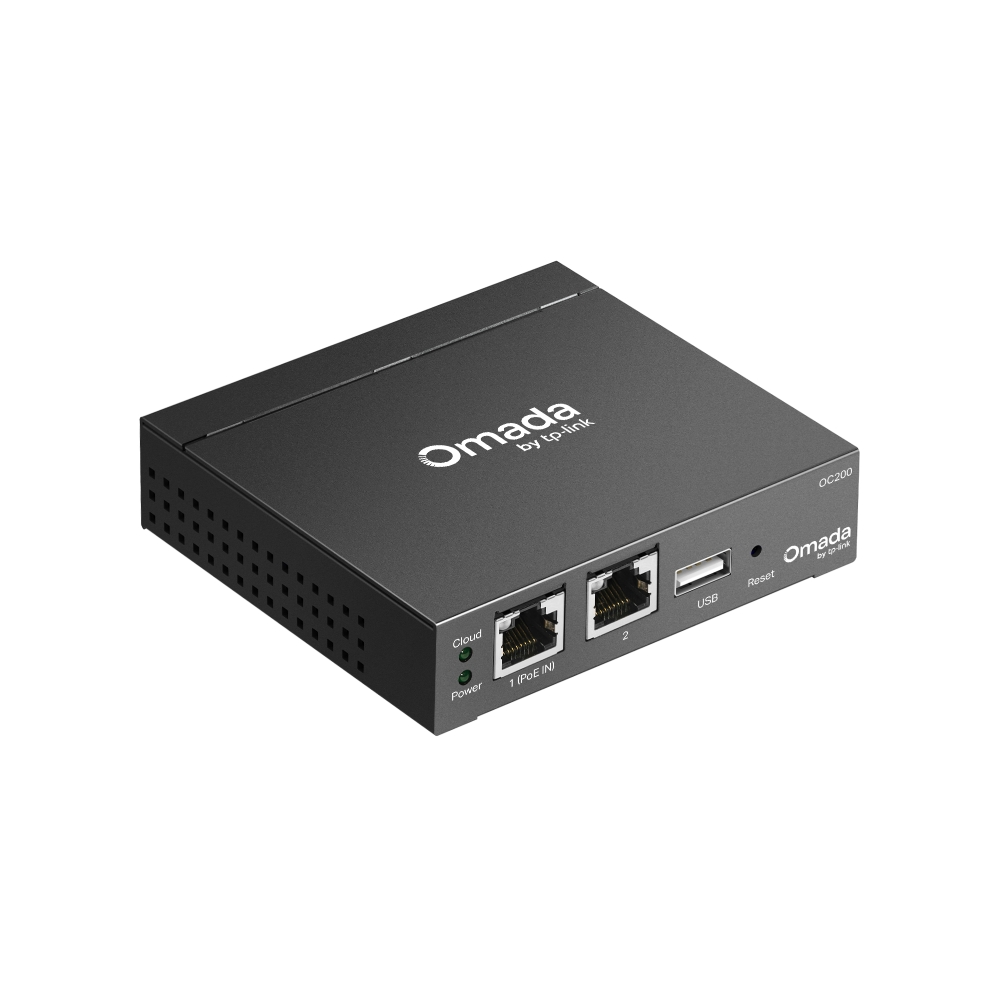

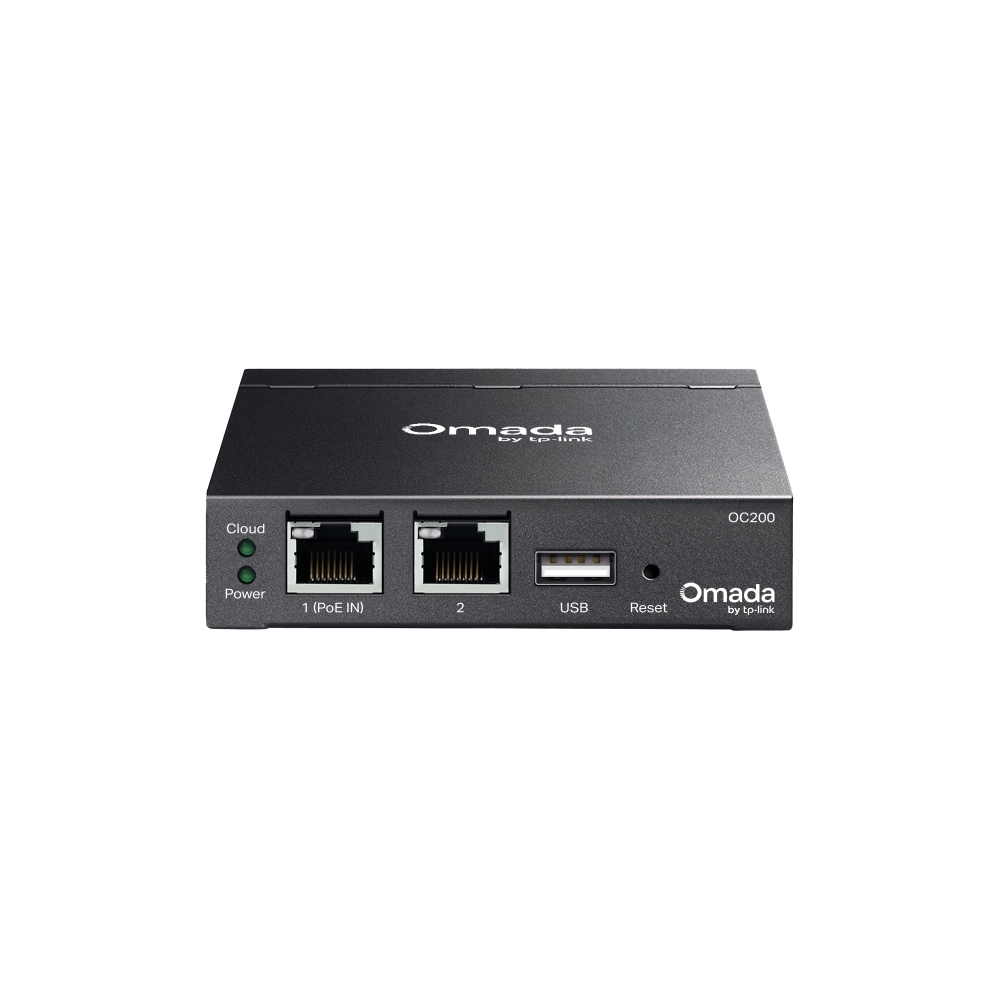

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, the Omada OC200 delivers more than enough processing
power to support massive network management—while its enterprise-grade reliability ensures uninterrupted, 24/7
operation under heavy loads. Rackmount/desktop design benefits easier and flexible installation.
2× Gigabit
RJ45 Ports
1× USB 2.0 Port
Auto-Backup
PoE or Micro USB
Powered
Fanless Design
for Silent Operation
Greater Convenience
with the Omada App
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 2× 10/100/1000 Mbps Ethernet Port• 1× USB 2.0 Port• 1× Micro USB Port (only for power supply) |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5 V/Minimum 1 A） |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | Recommended for managing 25 Omada devices*Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC200 |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration• Batch Firmware Upgrading • Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

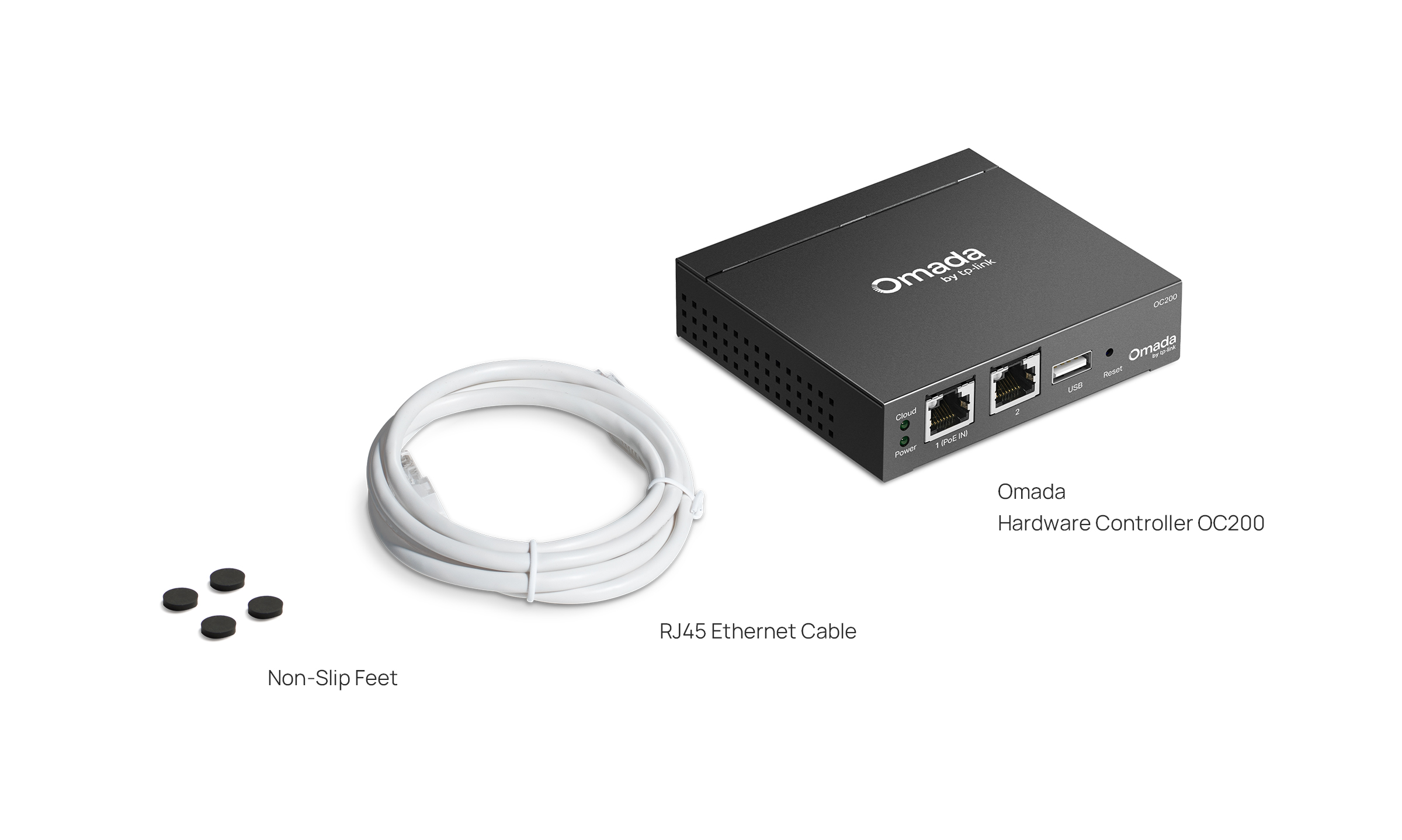

| Package Content | • Omada Hardware Controller OC200• Quick Installation Guide • Ethernet Cable |
| System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: -5–50℃ (23–122℉)• Storage Temperature: -40–70℃ (-40–158℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*The stated management capacity is based on laboratory testing. Actual management capacity and performance may vary depending on deployment and network conditions.
ErP Information:
1) Power consumption in networked standby: 3.3 W
2) Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 3.8 W
3) The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: 20 minutes
4) Recommended power supply: A209-050200U-EU1
