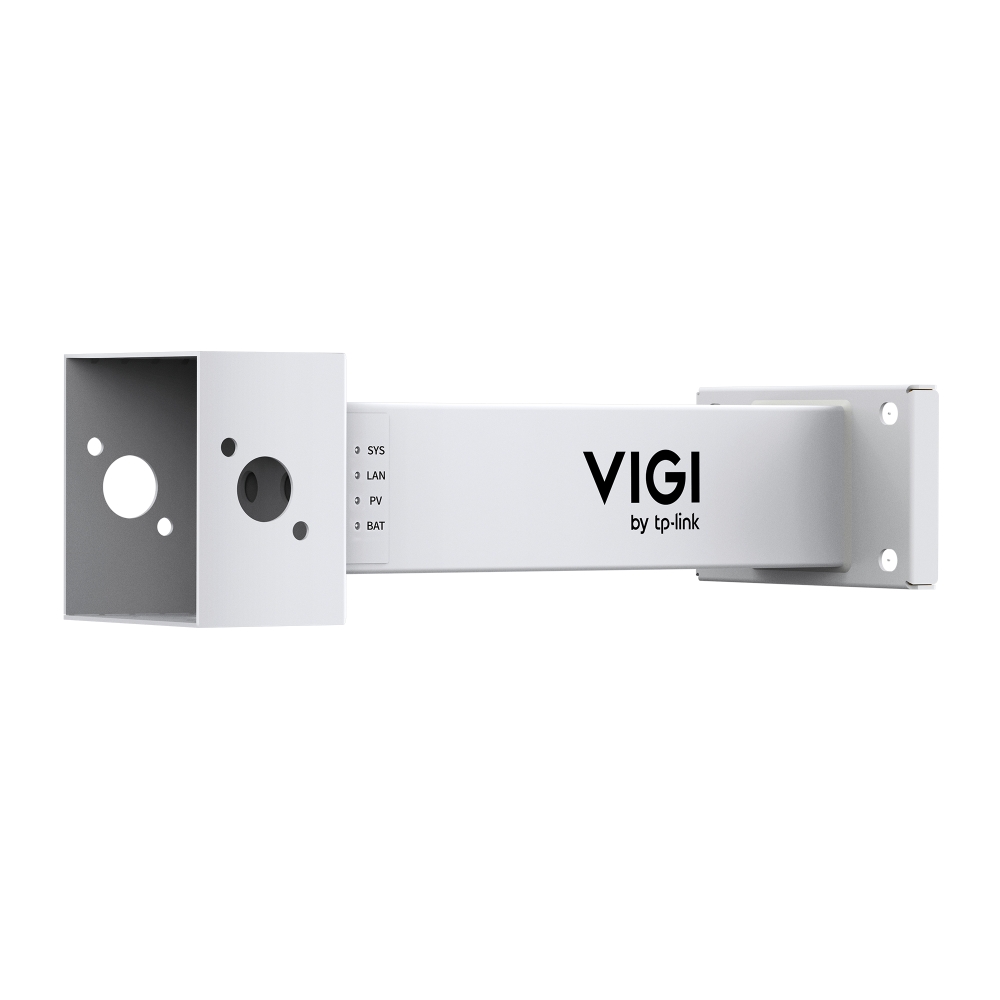

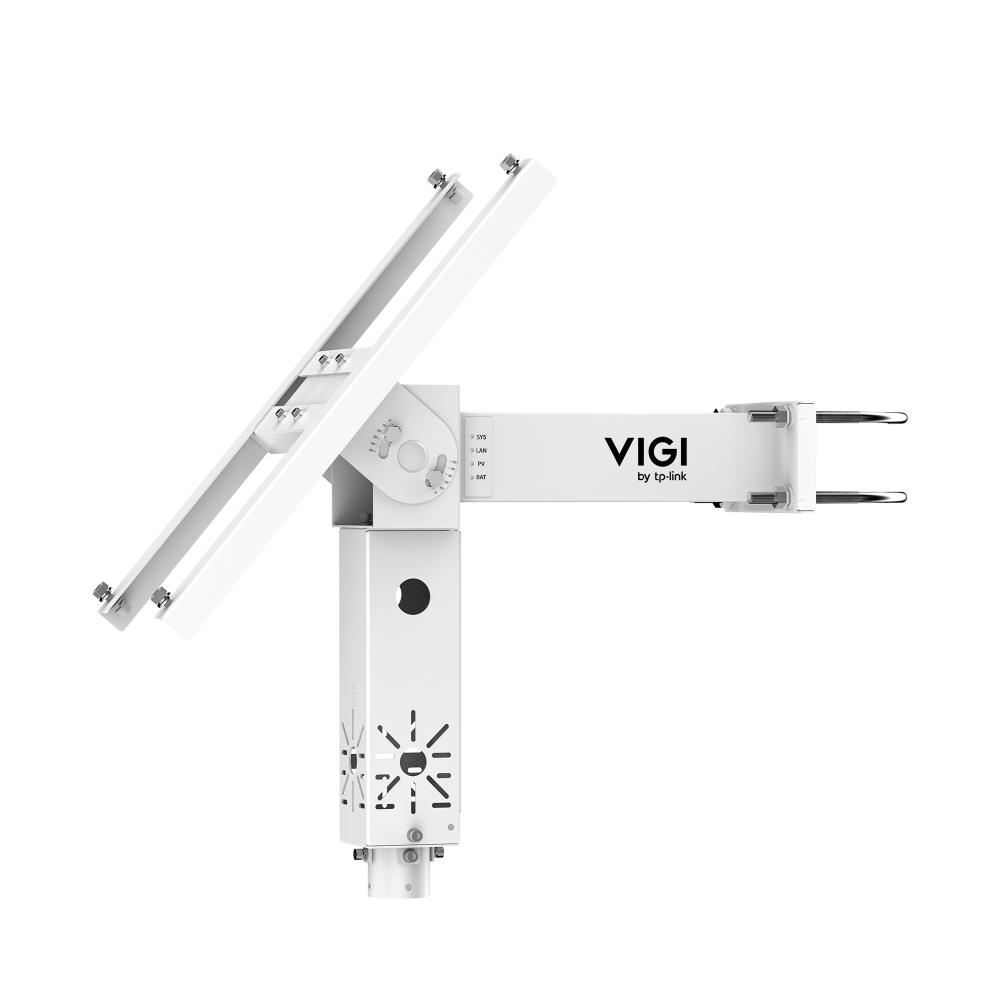

VIGI PS30
NewVIGI Solar System Controller

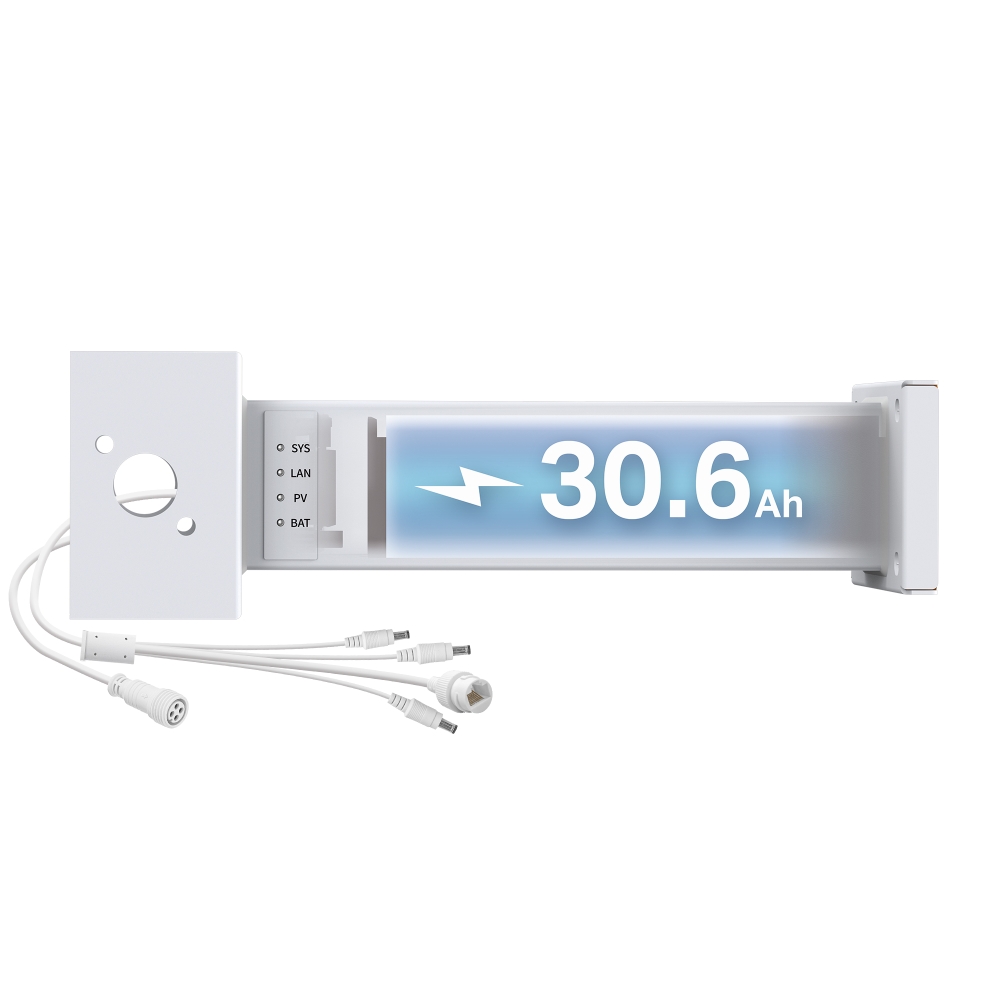

- 31.2Ah/10.8V Automotive-Grade Lithium Battery
- Remote Management and Maintenance via the VIG app or VIGI Cloud VMS
- Intelligent Auxiliary Heating Technology Ensures Optimal Battery Performance in Extreme Cold Weather
- Maximum Power Point Tracking (MPPT) Charging Controller Increases Charging Efficiency by 20%*
- Over-charge, Over-discharge, Over-current, Overheat, and Short-circuit Protections
- Remaining Capacity > 70%** after 500 Cycles
- IP66 Weatherproof
Battery | |
---|---|
Type | Lithium |
Intelligent Auxiliary Heat | Yes |
Battery Capacity | 31.2 Ah |
Voltage | 10.8 V |
Max. Output Voltage | 12.6 V |
Life | More than 500 cycles△ |
Dimension | 242×70×65 mm (9.5×2.8×2.6 in) |
Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
HARDWARE | |
---|---|
Interface | • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |

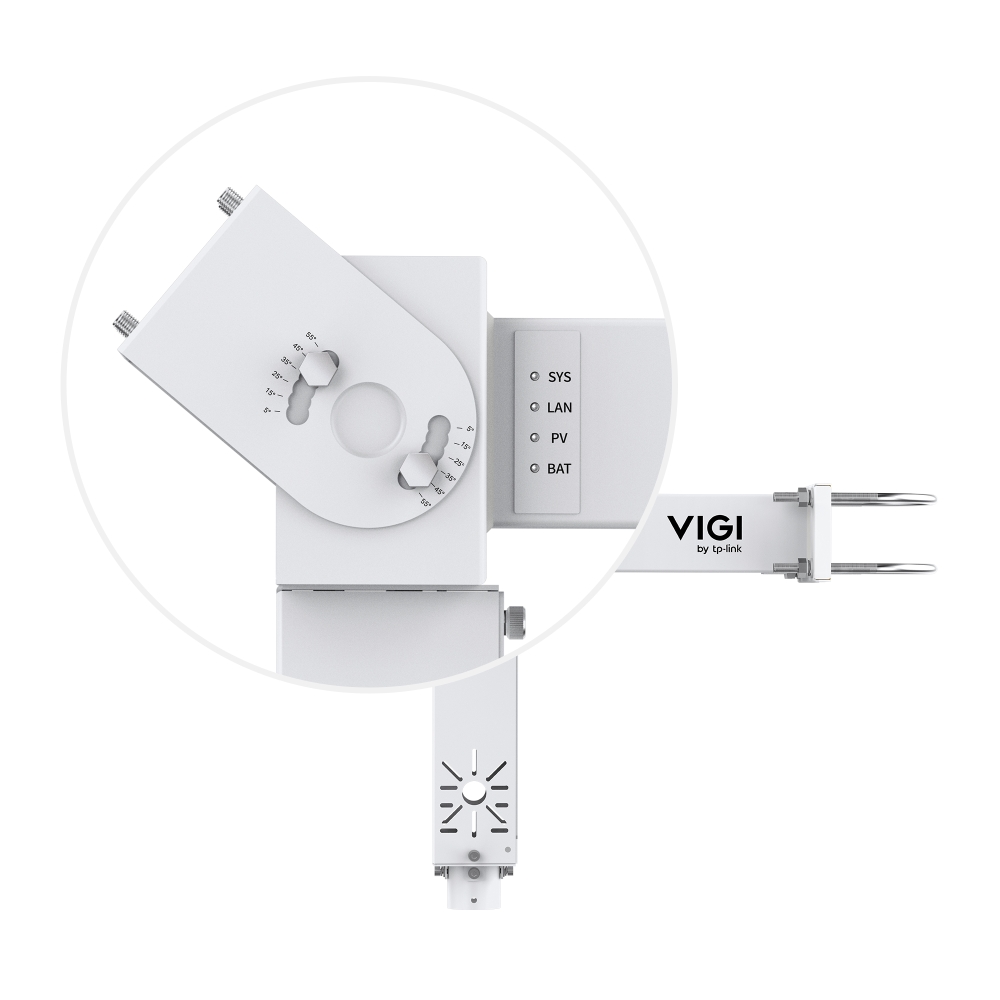

Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue |
SOFTWARE FEATURES | |
---|---|
Load Control | Yes |
High and Low Temperature Protection | Yes |
Overdischarge Protection | Yes |
Power Consumption Statistics | Yes |
Displays Real-time Load Status | Yes |
Battery Level Display | Yes |
Time Zone Selection | Yes |
Region Selection | Yes |
Schedule Saving | Yes |
Firmware Remote Update | Yes |
Remote Reboot | Yes |
Local LAN Management | Yes |
Smart Charging Control | -30°C~5°C |
Account Management | Yes |
Remote Reset | Yes |
Remote Message Push | Yes |
OTHERS | |
---|---|
Certification | • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 Weatherproof |
Package Contents | • VIGI Solar System Controller • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
Box Dimensions (W X D X H) | 580×320×225 mm (22.83×12.60×8.86 in) |
Weight | Package Weight: 9.9 kg |
Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
*This value is compared to the PWM (Pulse Width Modulation) controller. Actual performance will vary as a result of client limitations and environmental factors.
**Calculations based on laboratory testing. Actual performance will vary as a result of client limitations and environmental factors.
△A cycle represents one full charge and discharge. Based on 30Ah capacity with VIGI C540-4G, 500 cycles approximate a 10-year lifespan.
