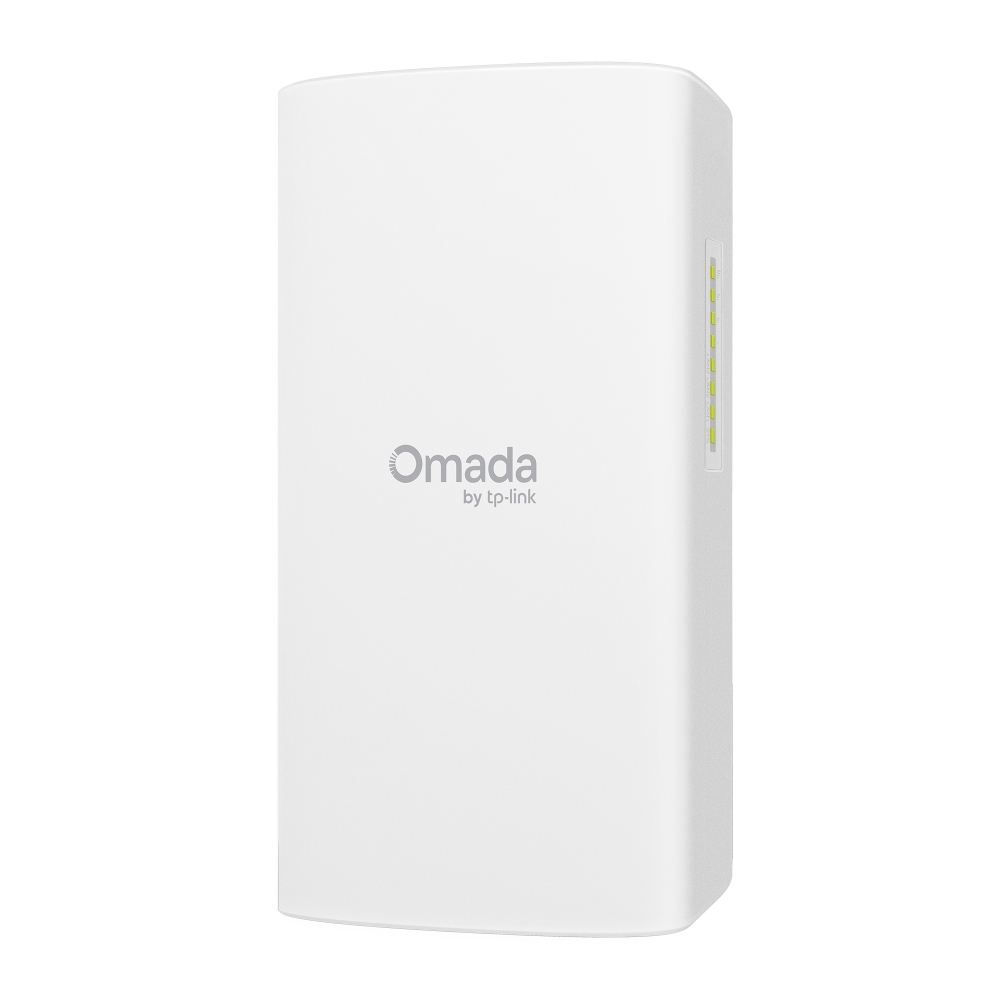

Flex Bridge 5
NewOmada 5 GHz 867 Mbps Long-Range Connectivity for Indoors/Outdoors Wireless Flex Bridge
- Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging: Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub.*
- Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles: Ideal for extending networks across buildings and remote locations.△
- Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
- Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.

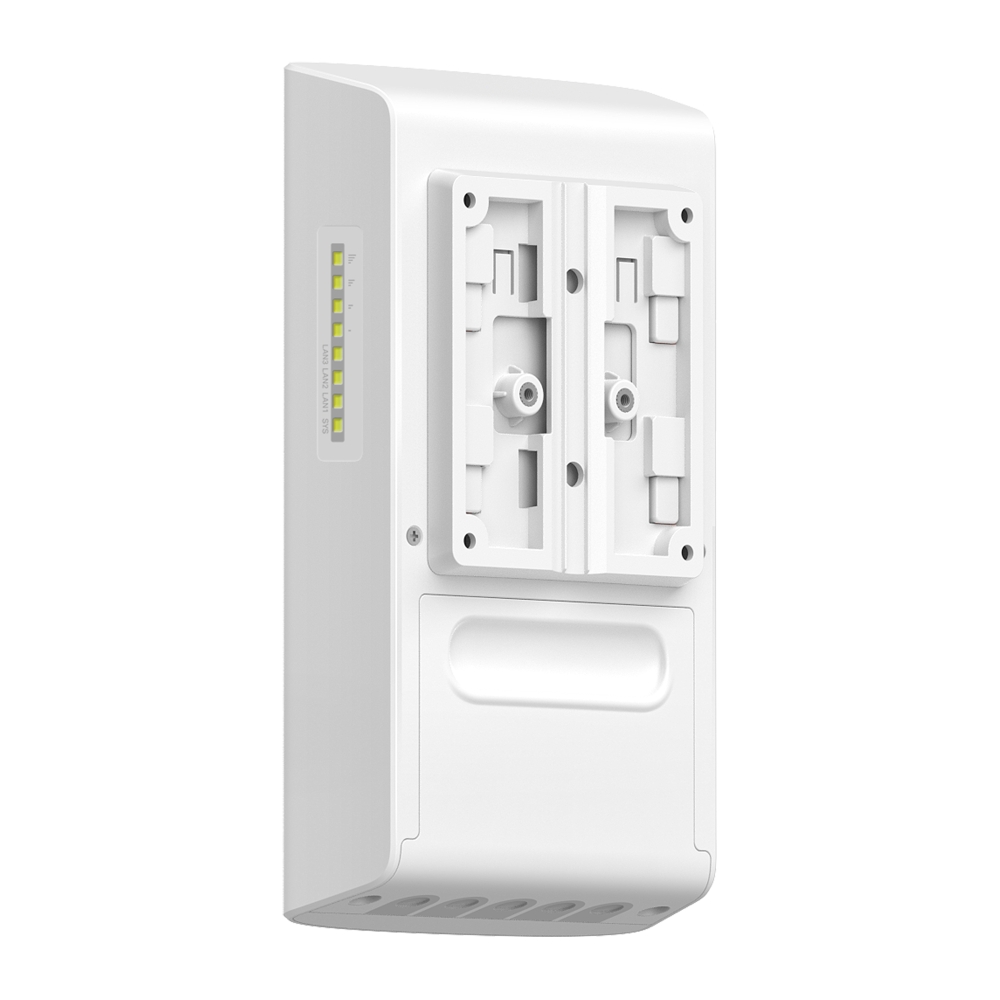

- Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
- Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.**
- Flexible Power Supply Options: Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.
- App-Guided Alignment for Optimal Performance: Simply bridge alignment with real-time signal strength visualization on the Omada app.
- Remote Monitoring with Standalone & SDN Management: Use the Omada app for easy on-site setup-no internet required. For added flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.†
-
Point-to-Point/
Multipoint Bridging up to
3.1 mi (5 km)* -
Works with Sector Bridge
for Multipoint Bridging
up to 32 Flex Bridges† -
2× PoE Out for
Powering Surveillance -
3× Gigabit
PoE Ports -
Role & DIP Switches
for Simple Pairing -
IP66
Weatherproof -
Wall & Pole
Mounted -
802.3at/af PoE/Passive
PoE/12V DC

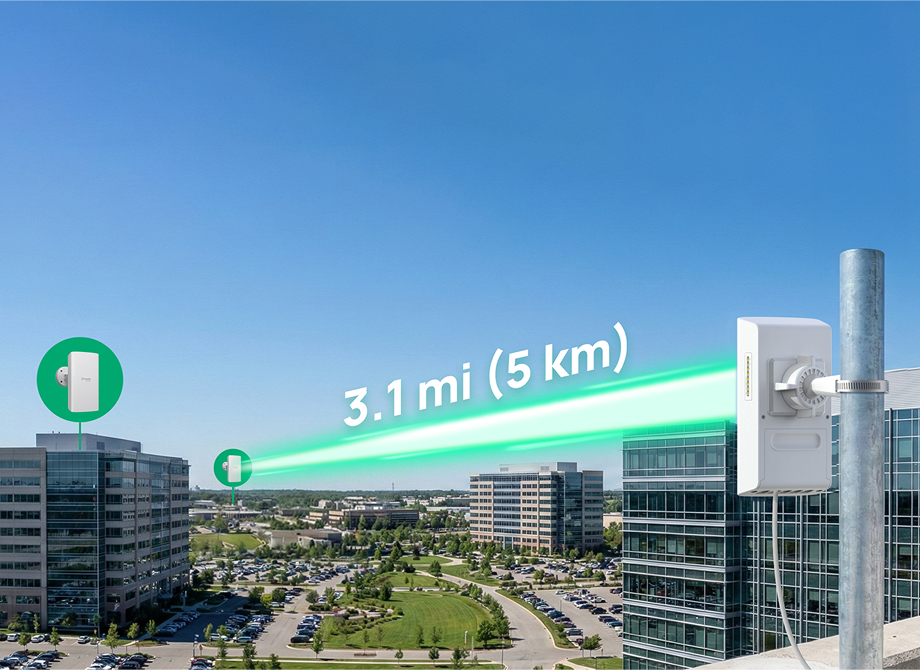

Flexible Bridge Point for 3.1 mi (5 km) Transmission
Delivers speeds up to 867 Mbps on 5 GHz with integrated 17 dBi high‑gain dual‑polarized
directional antennas for long‑range, uninterrupted wireless transmission.*

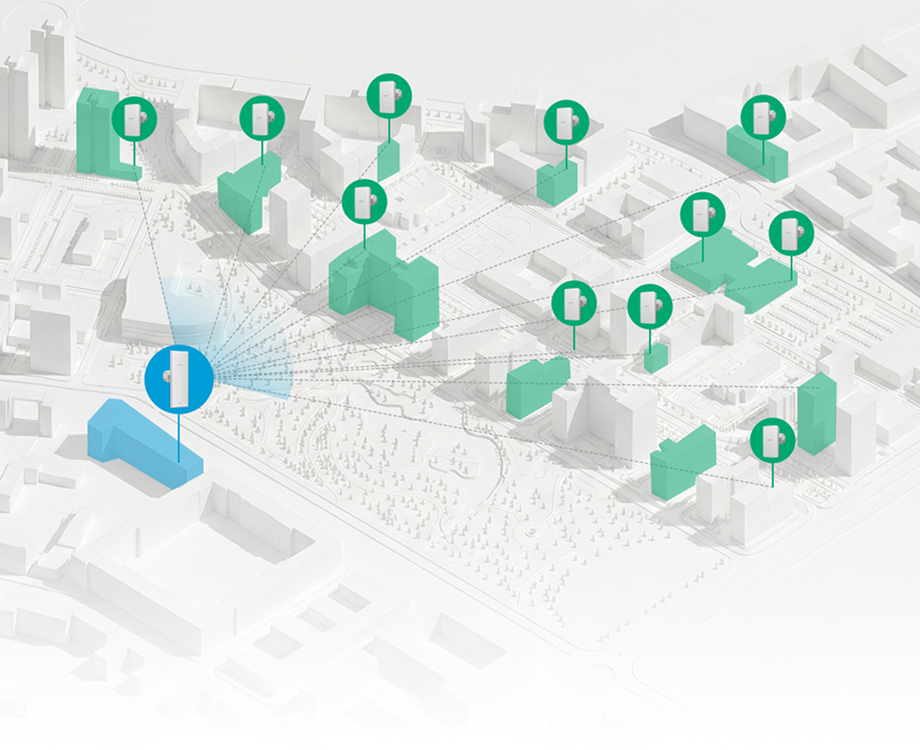

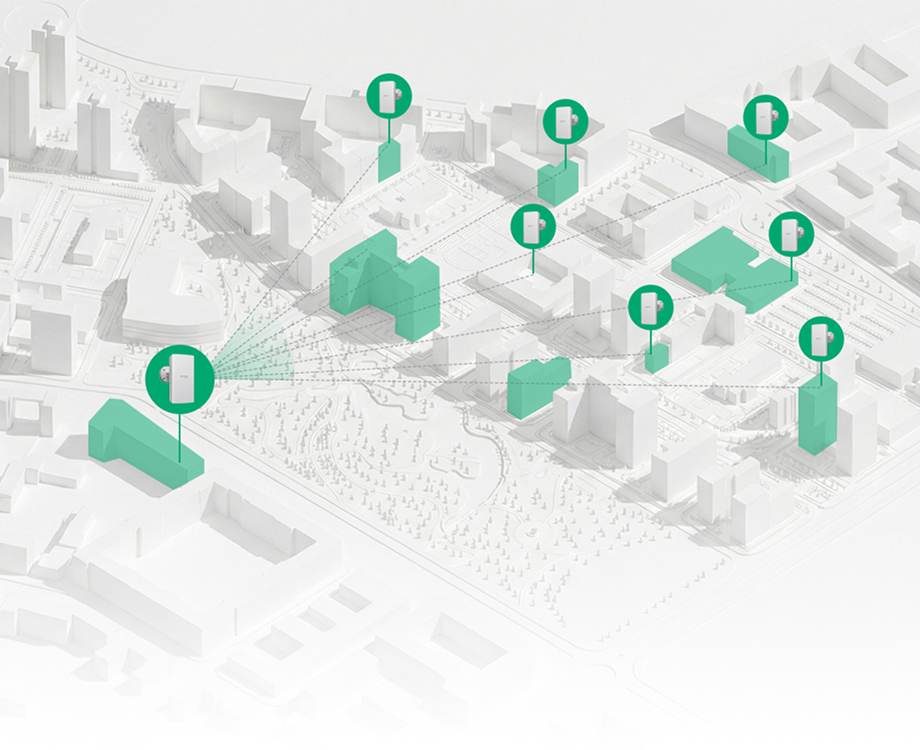

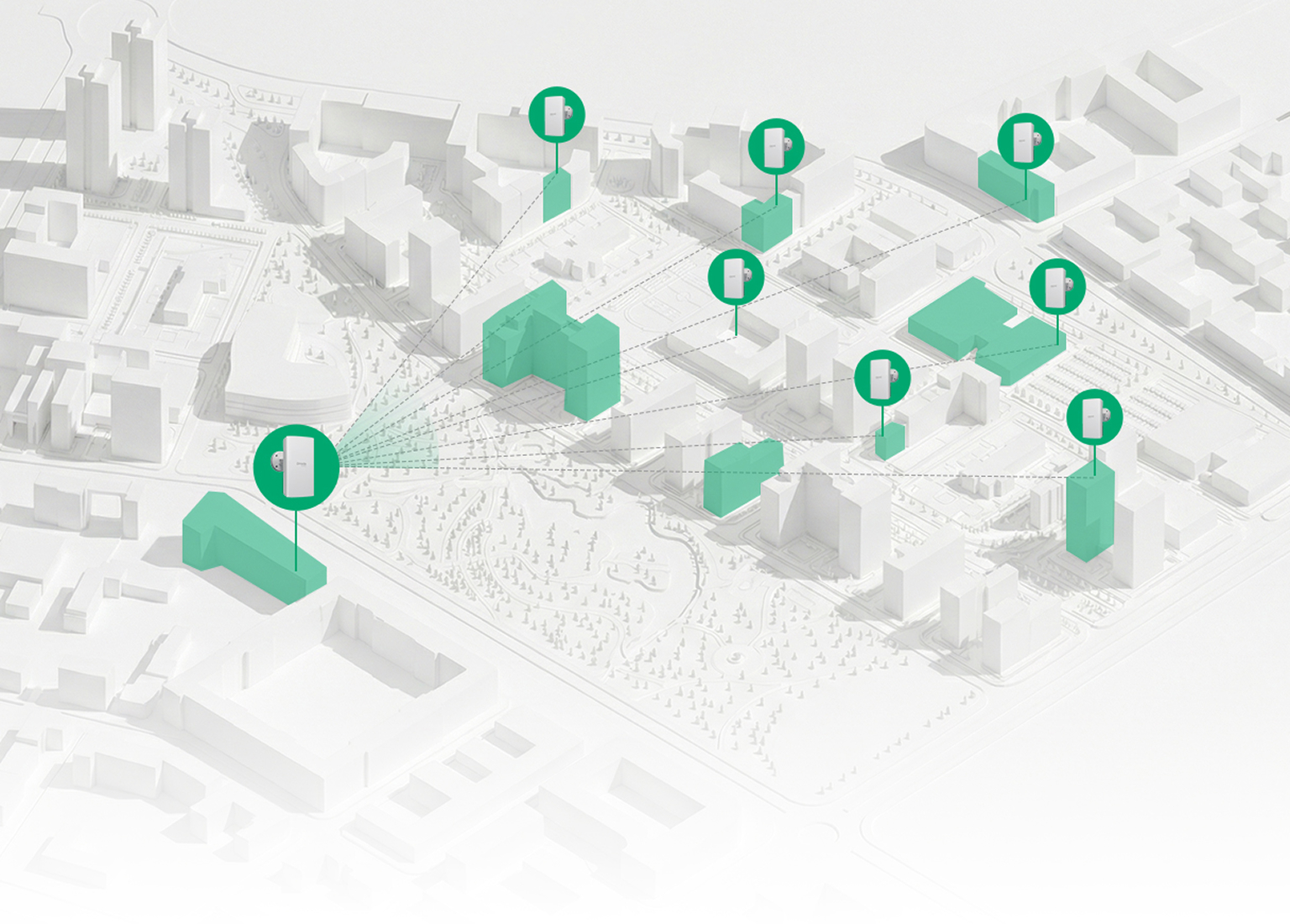

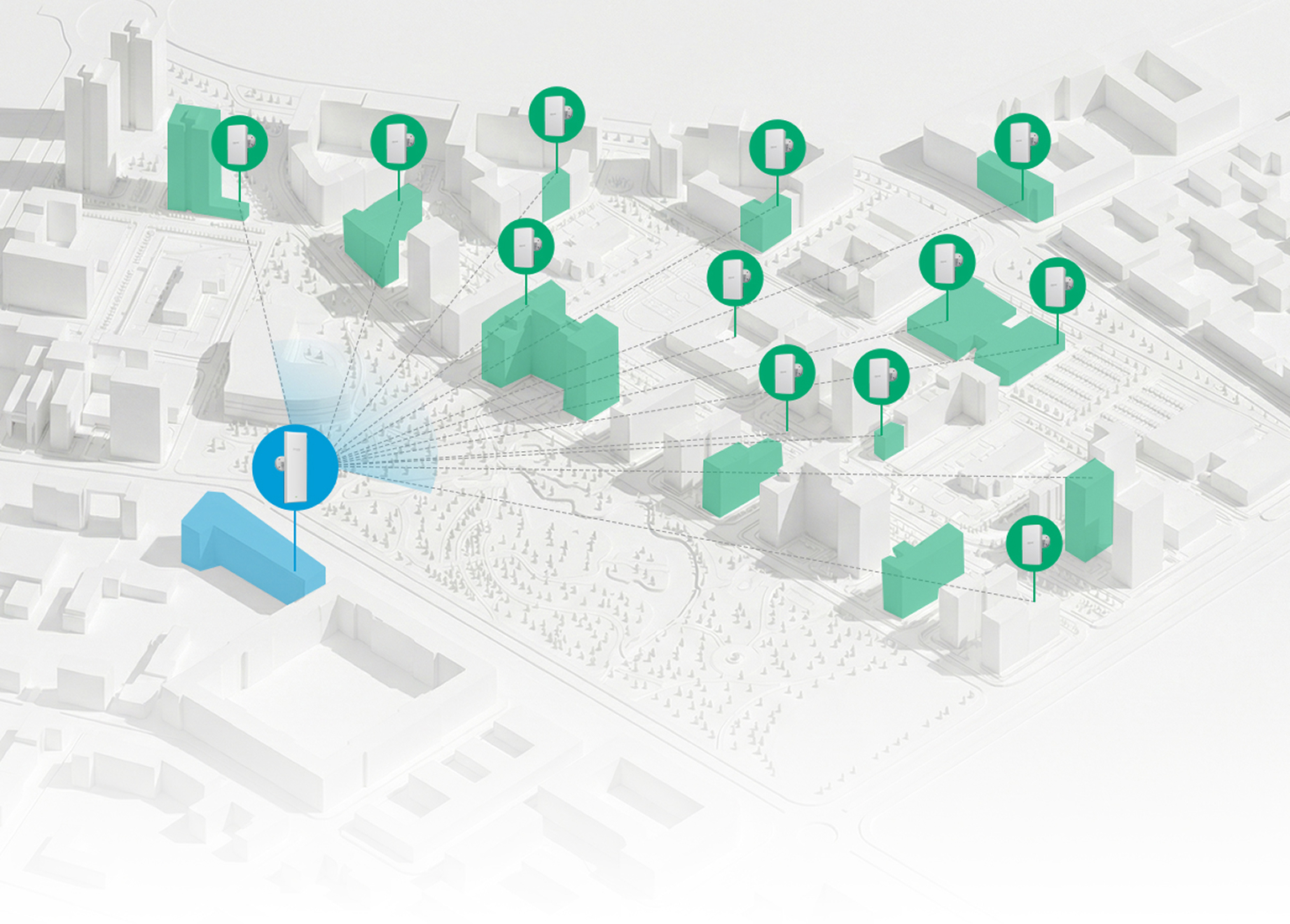

Flex Bridge Multipoint Deployment Options
-
Flex Bridge 5 40° Flex Bridge 5 -
Flex Bridge 5 120° Sector Bridge 5
(sold separately)

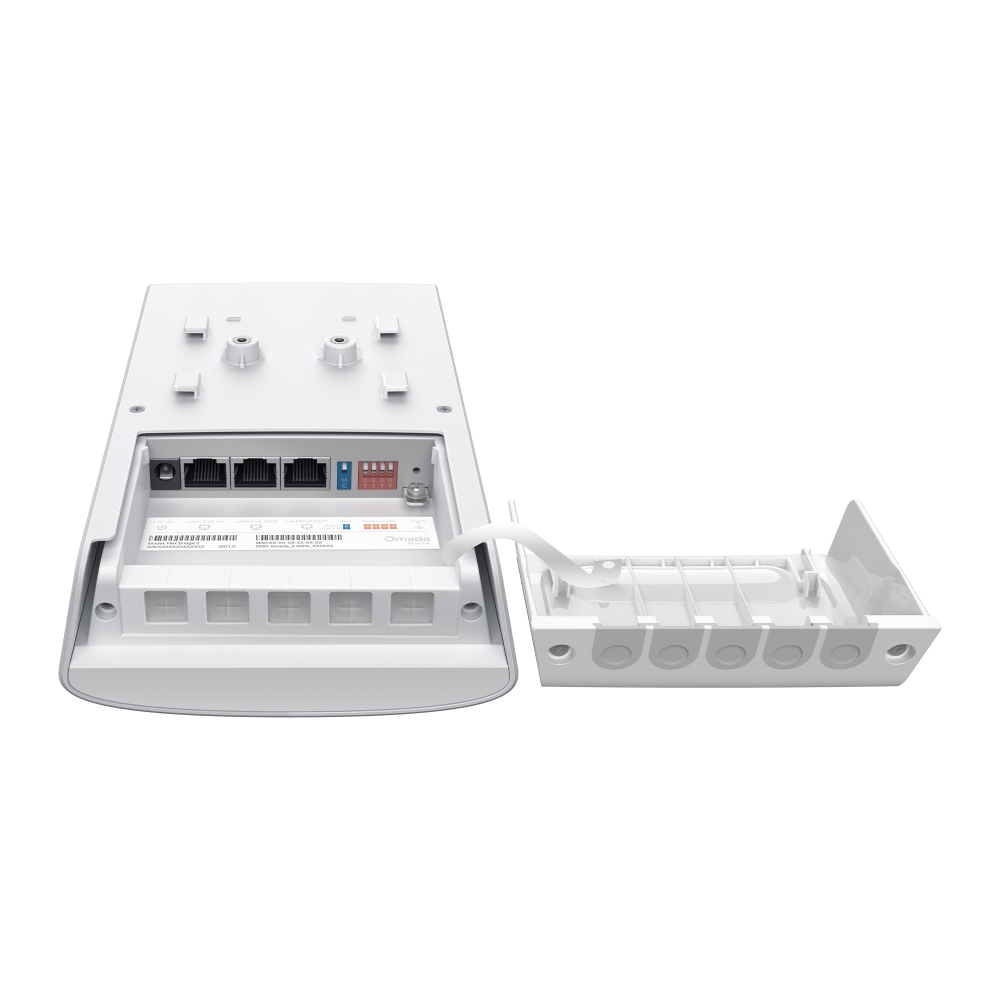

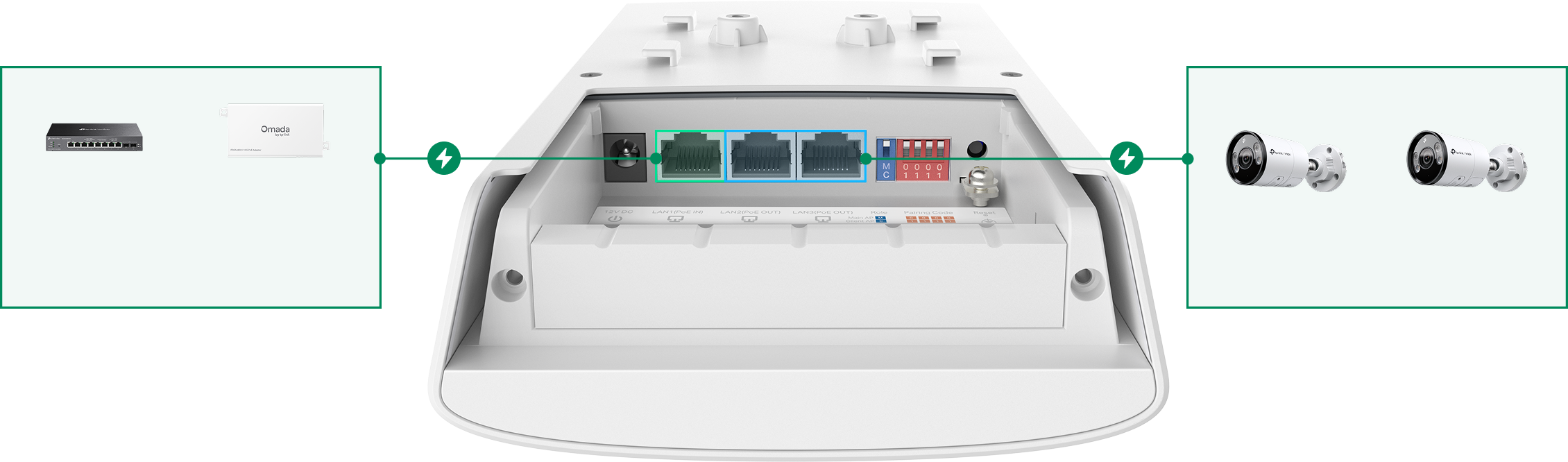

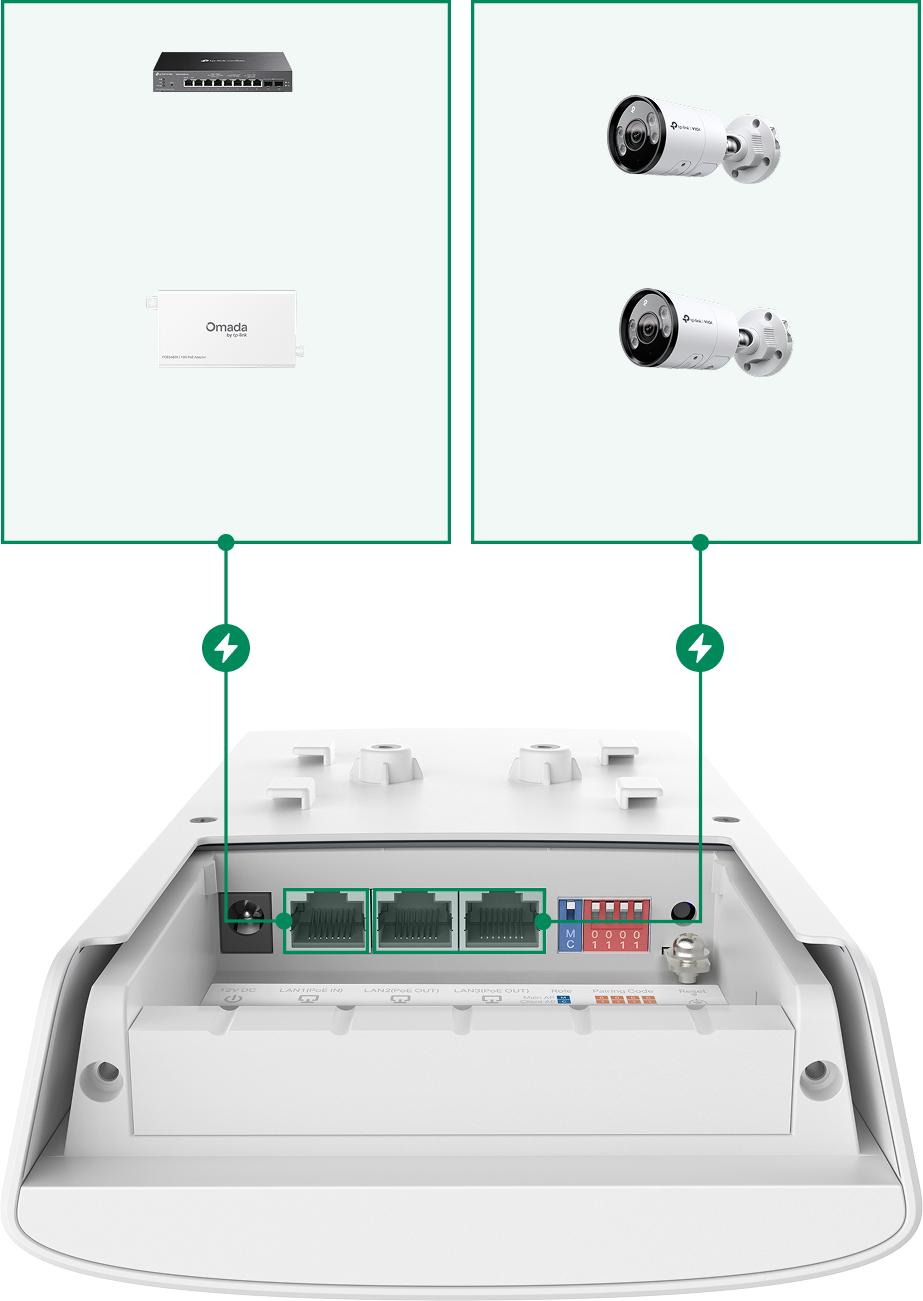

Powering Surveillance with 2x PoE Out Ports
Features 3 gigabit ports, including 1 PoE In to power the bridge and 2 PoE Out ports delivering up to 10W on a single port or 5W per port when both are used, easily powering IP cameras and simplifying surveillance network expansion.
Effortless Alignment with Ball-Joint Mounting &
App Guidance
-

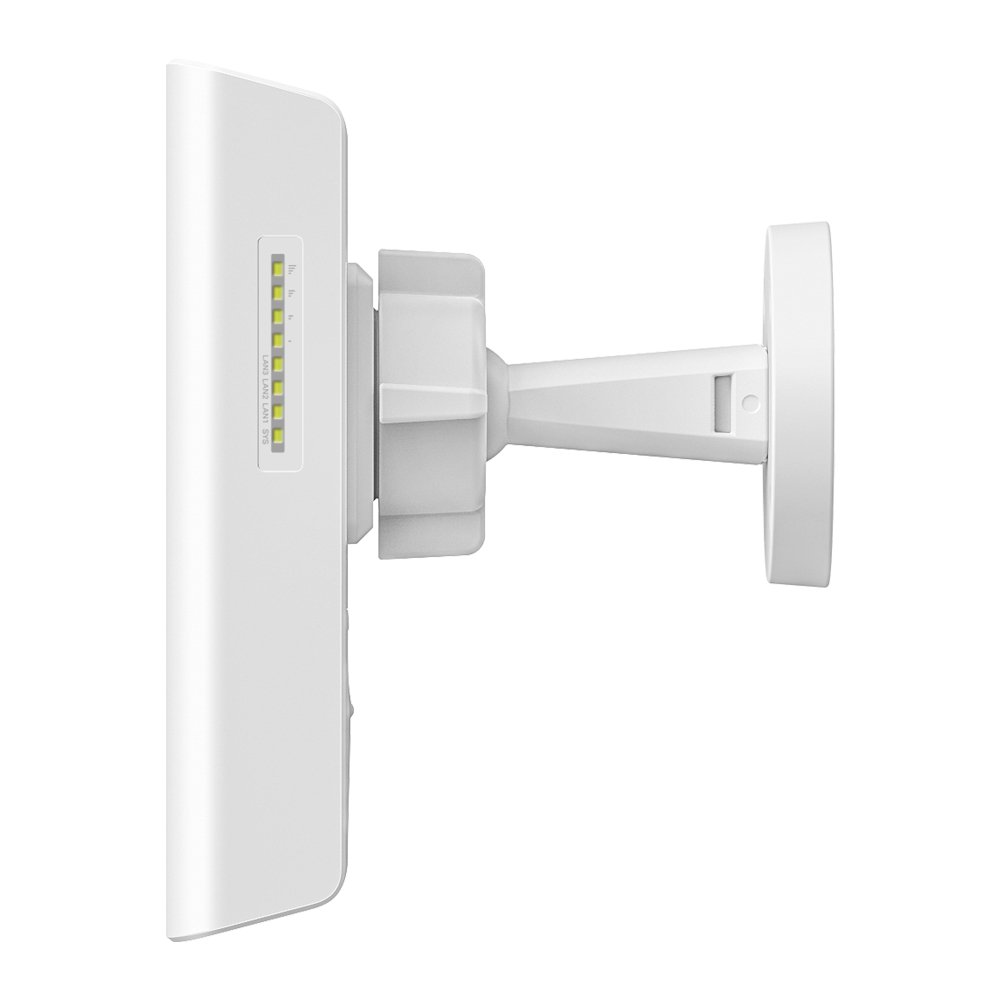

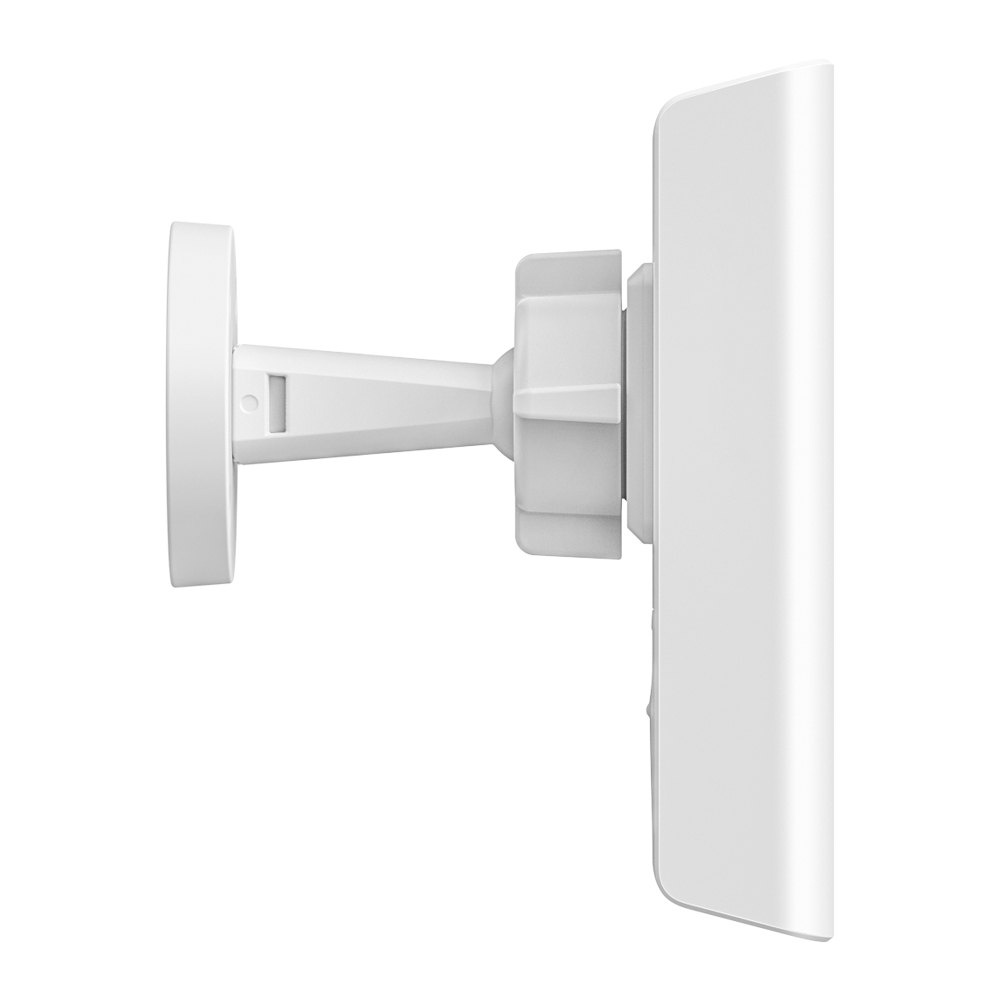

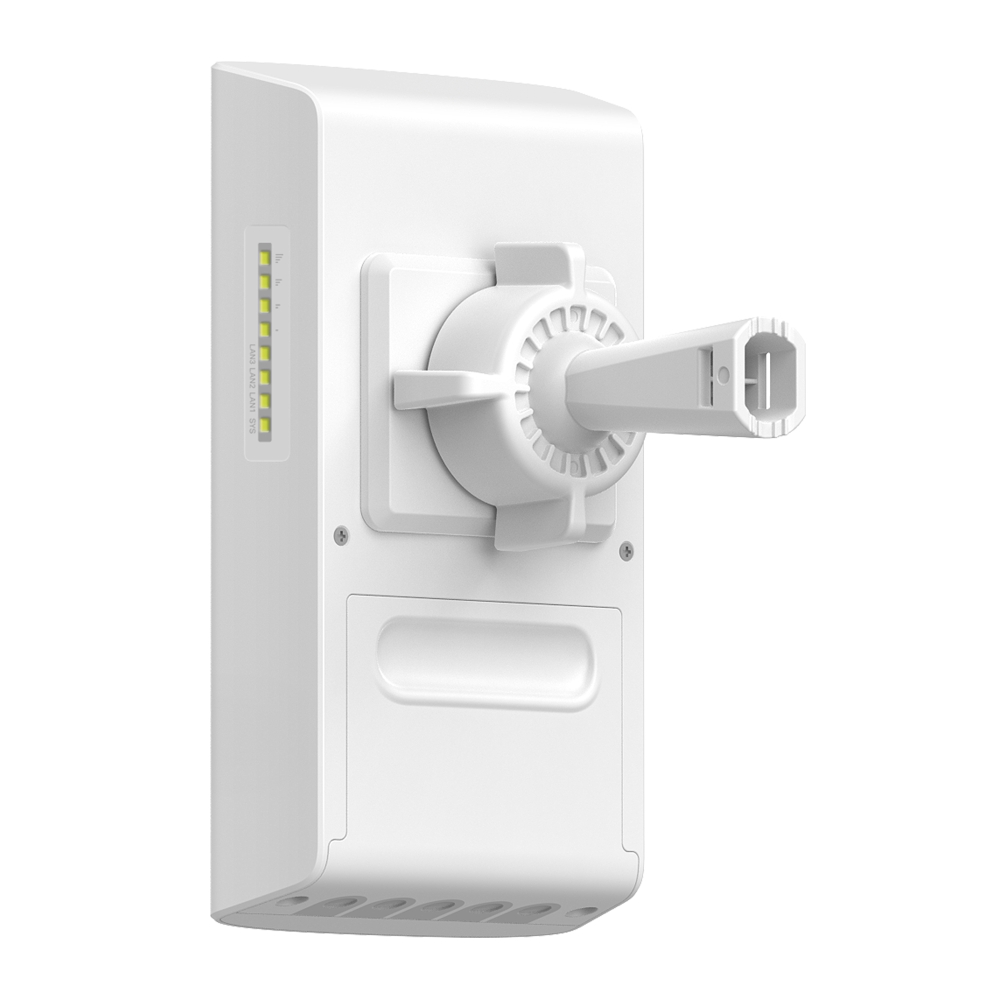

Ball-Joint Mounting
-
App-Guided Alignment
Role & DIP Switches for Simple Pairing
Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
Switch to C for Client Bridges
Main AP and Client AP with Consistent DIP Settings can Automatically Form a Network.*
*In general the bridge will connect within 2 minutes. If the bridge fails to connect, check the code/antenna alignment. Under factory settings, the network provisioning window is 2 hours. After this period, if you need to expand the network, you must reopen the provisioning window via the App, Controller, or Web interface. If the DIP switch settings on the Main AP are modified, the network will be reconfigured.

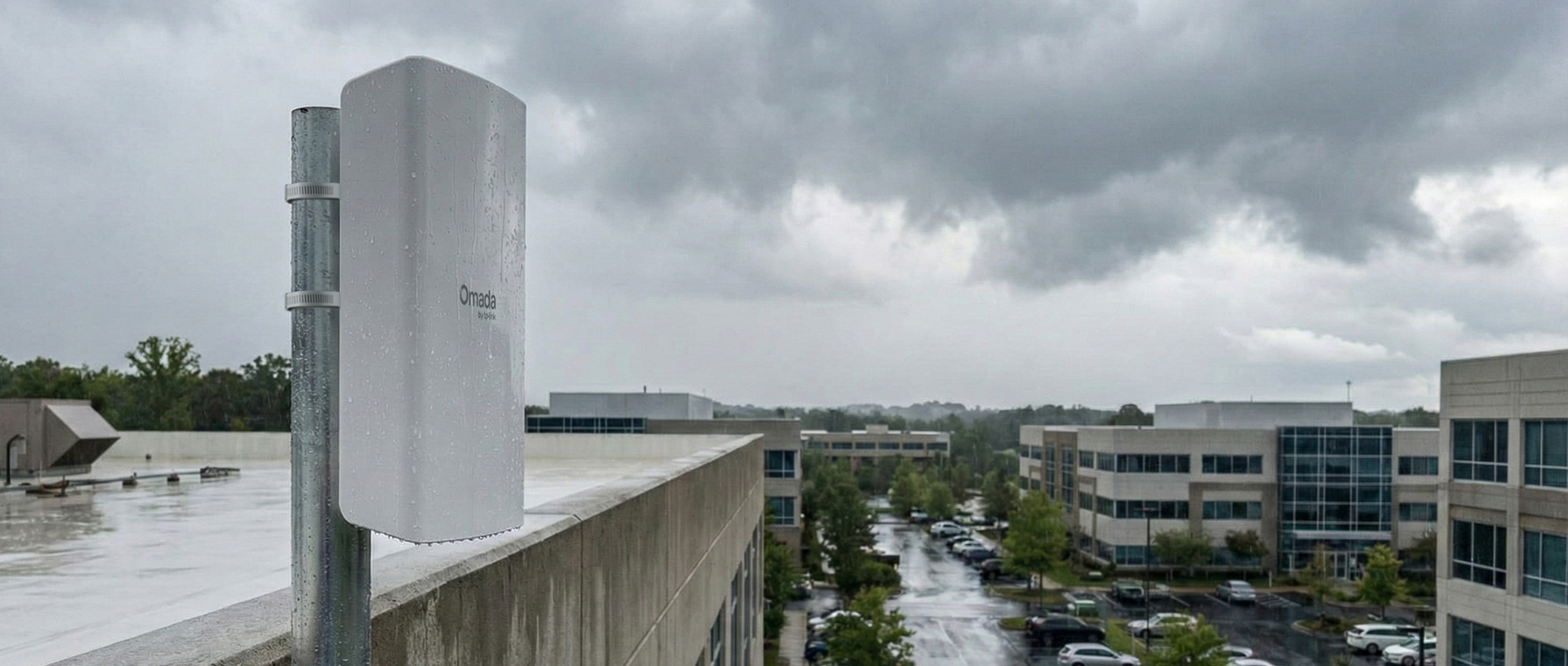

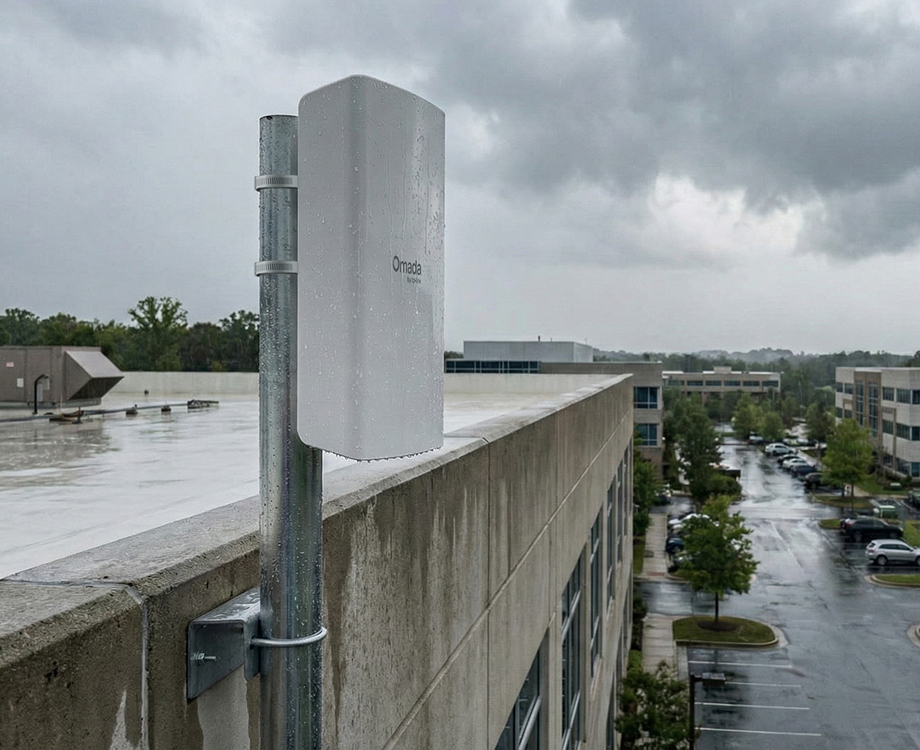

Robust Outdoor Design for
Long‑Lasting Reliability
-
IP66
Weatherproof -
6 kV Lightning
Protection -
‑40 °C to 70 °C
(-40 °F to 158 °F)
Working Range

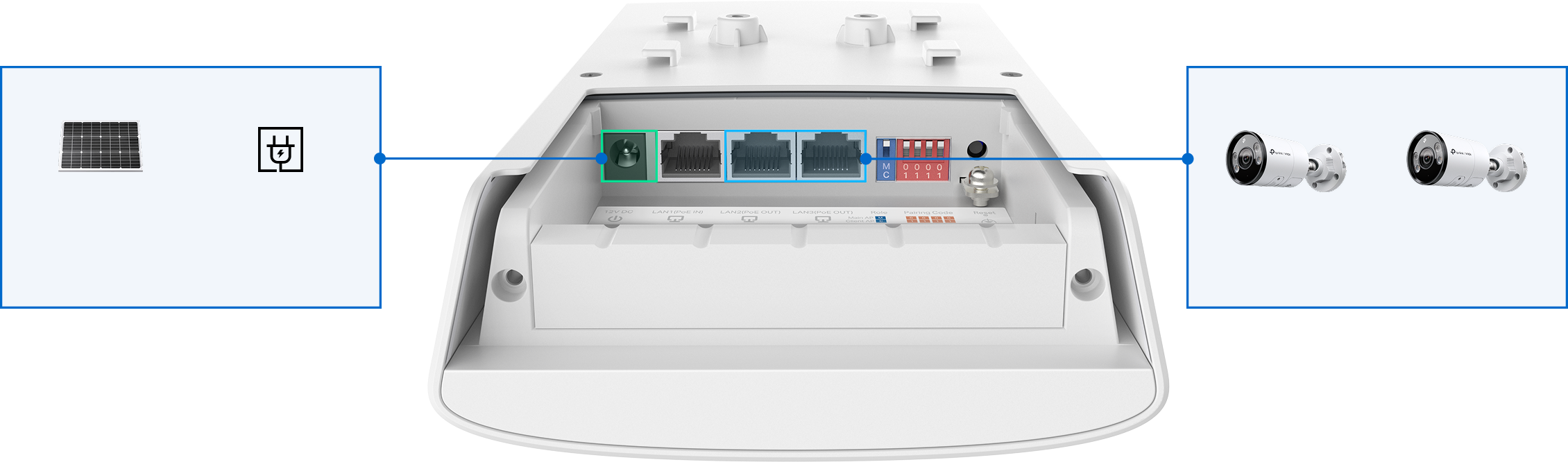

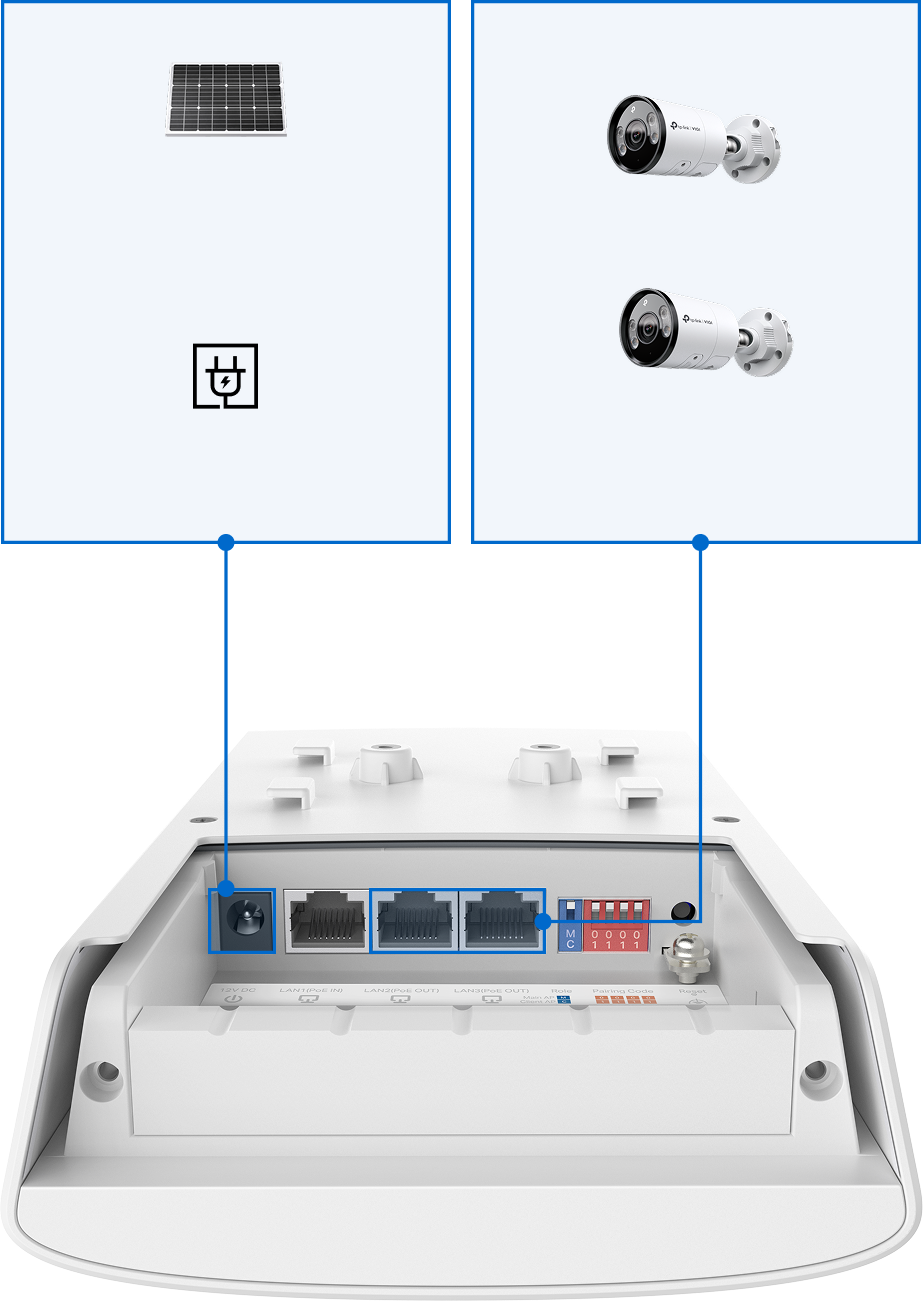

Versatile Power Management: Integrated Edge
Power for Any Scenario
Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible
power supply via a PoE switch, the included passive PoE adapter, or solar power.
Switch

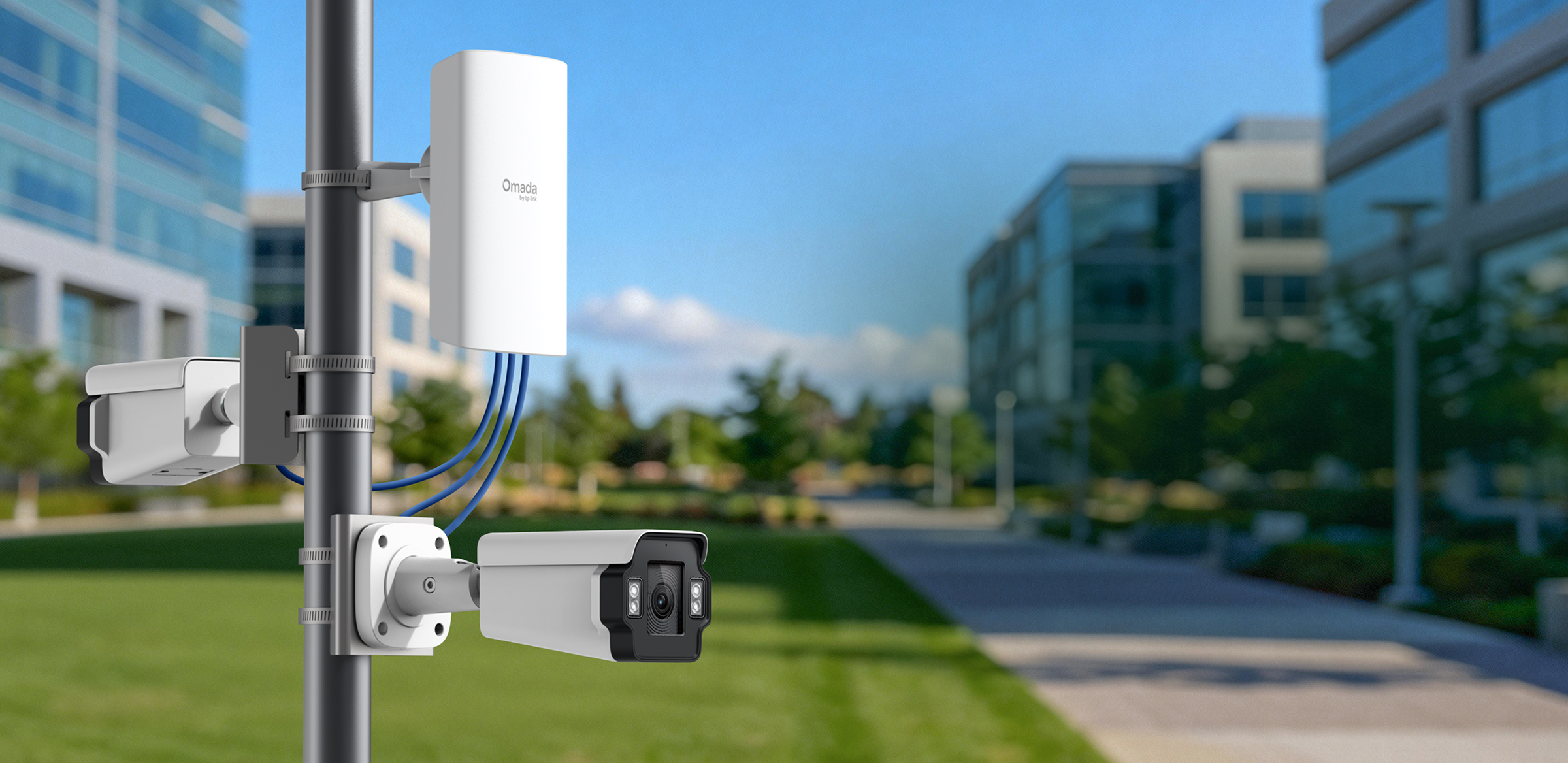

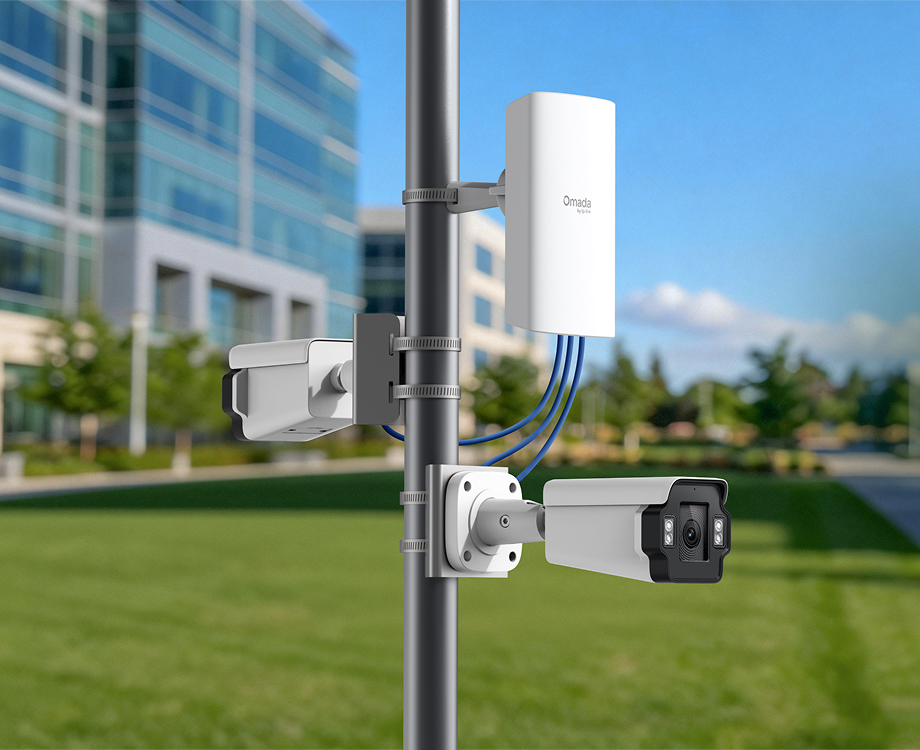

Perfect for Surveillance and More
Standalone & Remote Monitoring with SDN Management

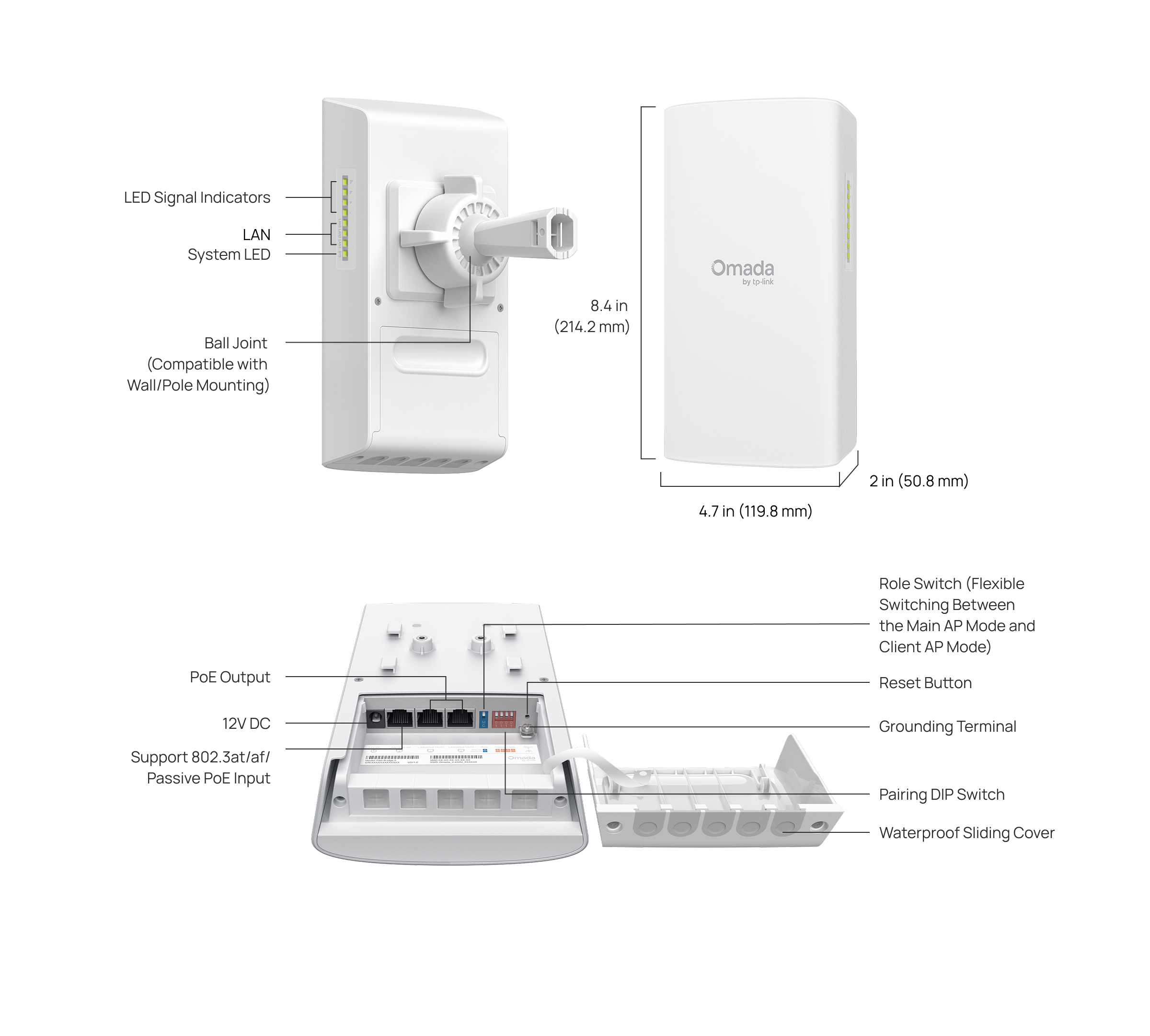

| HARDWARE FEATURES | |
|---|---|
| Interface | 3× Gigabit Ethernet Ports (2 Support PoE Out) |
| Button | Reset |
| DIP Switch | • Role Switch• Pairing Code Switch |
| Power Supply | • 12V DC• 802.3at/af PoE• 24V Passive PoE (54V Passive PoE Adapter Included - For Dry Indoor Use Only) |
| Max. Power Consumption | DC: 12W PoE: 26.06W with PoE out |
| Dimensions ( W x D x H ) | 8.4 × 2 × 4.7 in (214.2 × 50.8 × 119.8 mm) |
| Antenna | • 2.4 GHz: 1 × 1 dBi (peak gain), internal omnidirectional antennas • 5 GHz: 2 × 17 dBi (peak gain), internal directional antennas • Beamwidth: Horizontal 40°, Vertical 18° |
| Weatherproof Enclosure | IP66 |
| Mounting | Pole and wall mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| PtMP | 8 Recommended, 32 Maximum |
| Transmission Distance | 5,000 m (3.1 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2x2 MU-MIMO DL • Multiple SSIDs: 1• Wireless Statistics• Reboot Schedule• RADIUS Accounting• Static IP/Dynamic IP• Rate Limit• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN• Rogue AP Detection• Wireless Encryption |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP)<30dBm (5 GHz band3, EIRP)• FCC: <23.5dBm (5 GHz band1)<25dBm (5 GHz band4) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

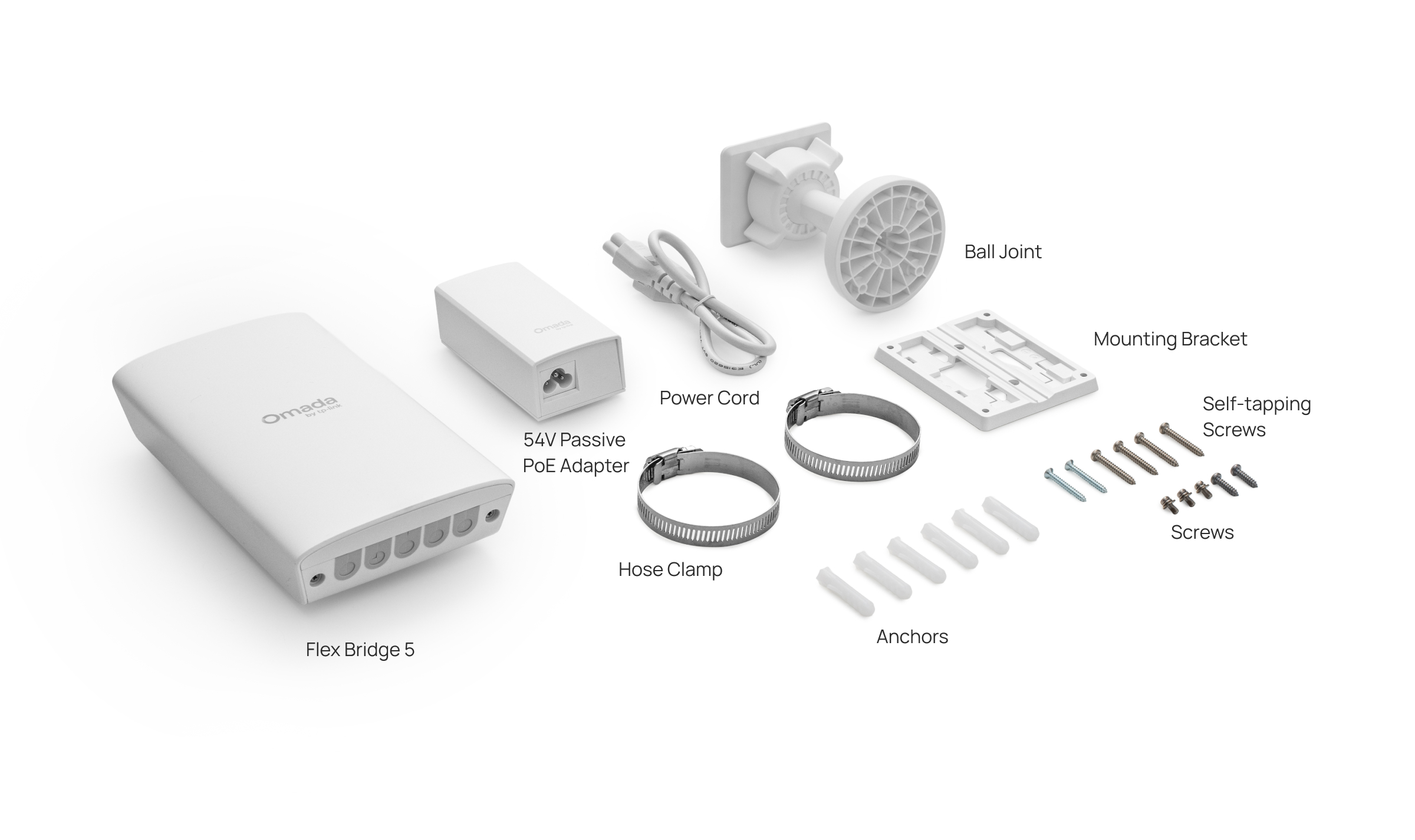

| Package Content | • Flex Bridge 5• Installation Guide• Mounting Kit• Passive PoE Adapter• Power Cord |
| Lightning Protection | • Air discharge: ±8kV• Contact discharge: ±4kV• Common mode 10/700: ±6kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
| Weight | 0.59 kg (1.3 lbs) |
Note: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*This capacity is achievable only when used with Sector Bridge 5. The stated value is based on laboratory testing. Actual capacity may vary due to installation conditions, mounting location, network traffic, radio frequency interference (RFI), and other factors.
△The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
**Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
†These functions require the use of an Omada controller.
