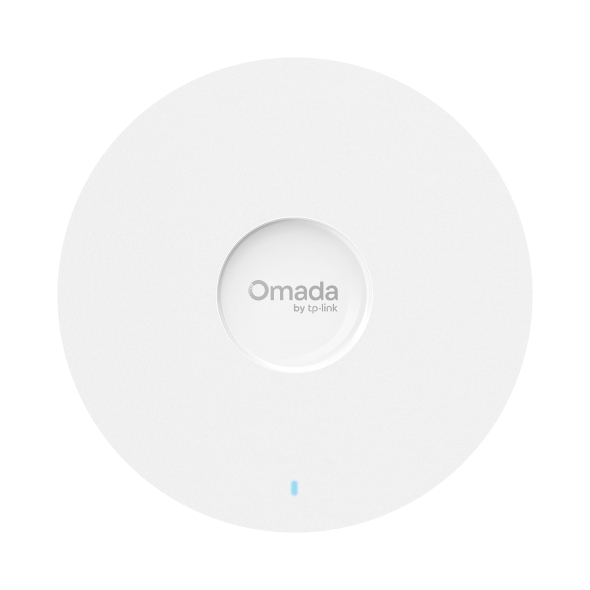

AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
- 8-Stream Dual-Band Wi-Fi 6: 2,402 Mbps on 5 GHz and 1,148 Mbps on 2.4 GHz.†
- High-Density Connectivity: Up to 1,000+ Concurrent connections in crowded network environments.**
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- Wider Coverage: Covers up to 1500 ft² (140 m2) for reliable and extensive wireless connectivity.*
Omada AX3600
Ceiling Mount
Wi-Fi 6 Access Point for
High-Density Environments
AX3000 Dual-Band Wi-Fi 6†
High-Density Connectivity
1× 2.5GbE Port
802.3at PoE
Omada Mesh & Seamless Roaming△
Centralized Management
Enhanced Security
Easy Installation
Power Up Your Business
with New-Era Wi-Fi 6
Lightning-Fast AX3600 Wi-Fi 6 Speeds
5 GHz
2402 Mbps
2.4 GHz
1148 Mbps
Wi-Fi 6 with OFDMA
Wi-Fi 5 with OFDM

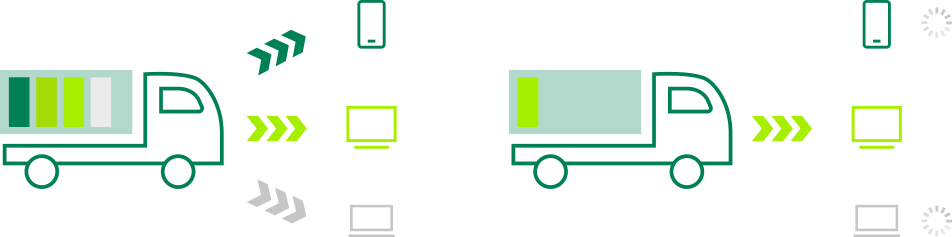

Higher Efficiency with OFDMA

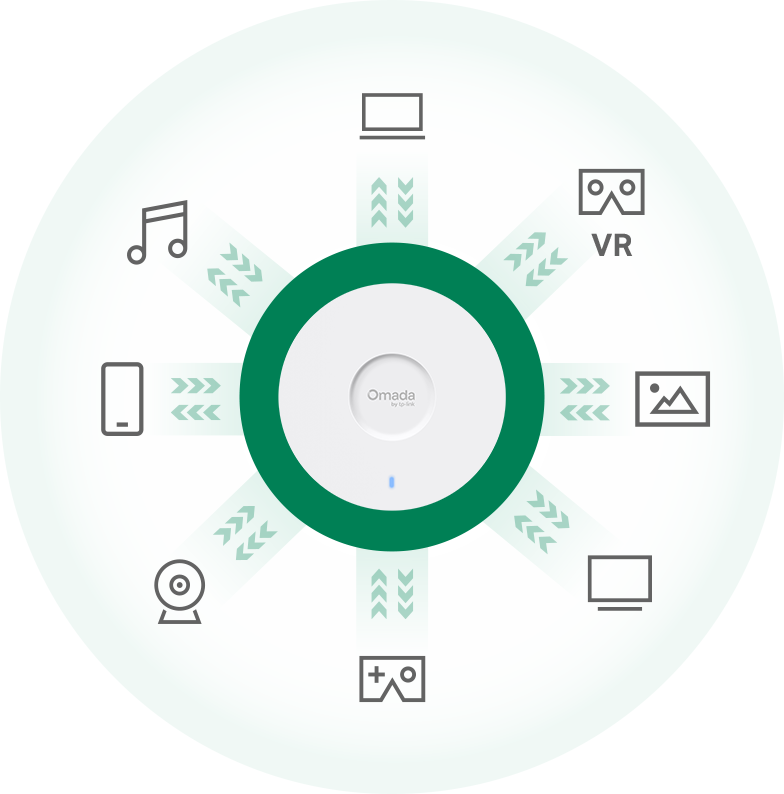

More Simultaneous Connections with
MU-MIMO
Reliable Performance
for High-Density Scenes
OFDMA and Uplink/Downlink MU-MIMO provide simultaneous connections for dozens of clients, optimizing network efficiency in high-density deployments. Leverage multi-user capabilities and upgrade your business like never before.

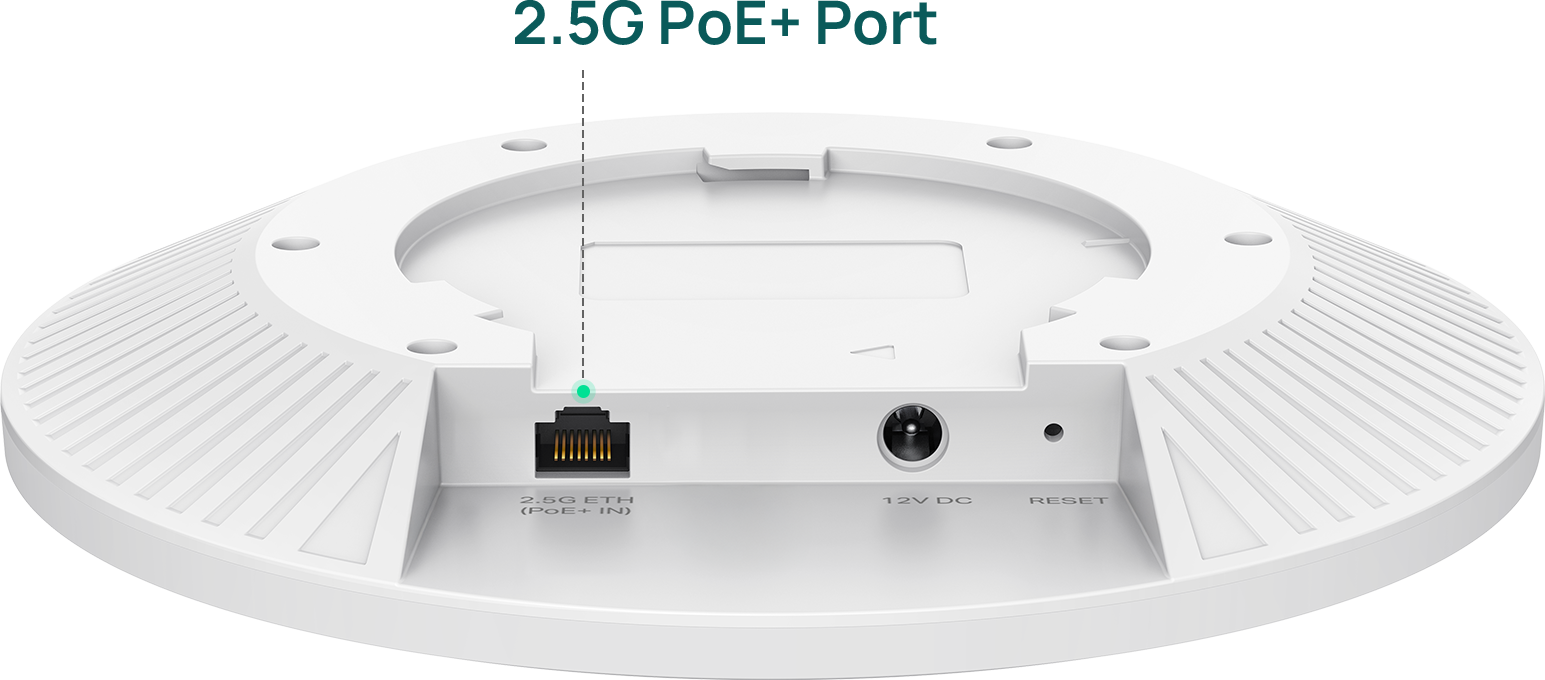

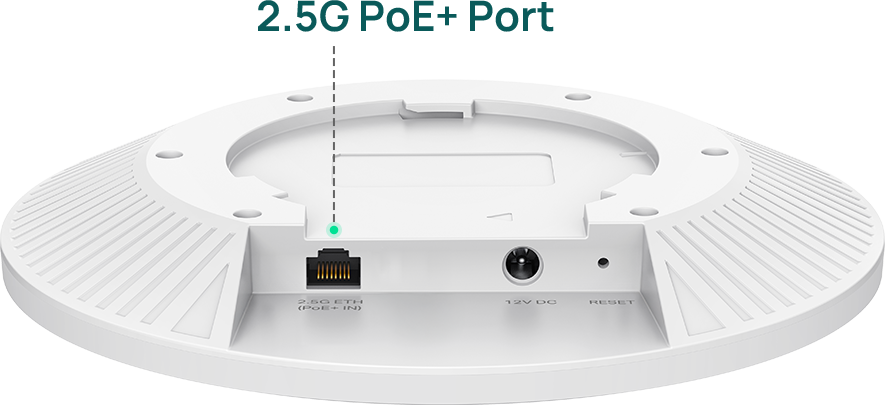

Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 GbE Port, EAP660 HD delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi.
Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security
Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free
Open Public Networks
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN
Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches,
and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP
EAP660 HD
WiFi 6 Wall
Plate AP
Outdoor
AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud Based)
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5 Gigabit RJ45 Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 12 V/2 A DC |
| Max. Power Consumption | • EU: 21.5 W• US: 22.5 W |

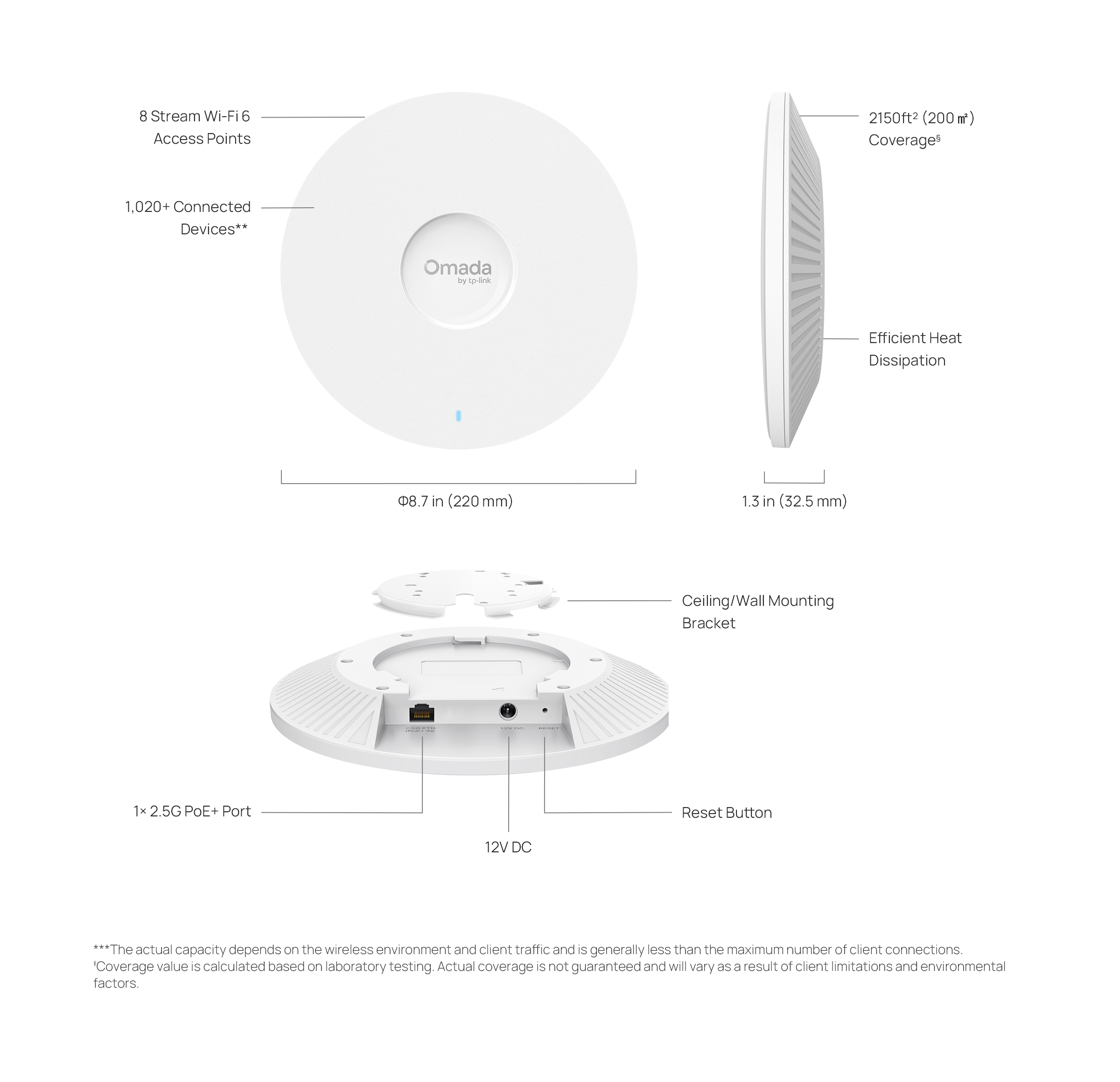

| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | Internal Omni• 2.4 GHz: 4× 6 dBi• 5 GHz: 4× 6.5 dBi |
| Bluetooth | V5.2 |

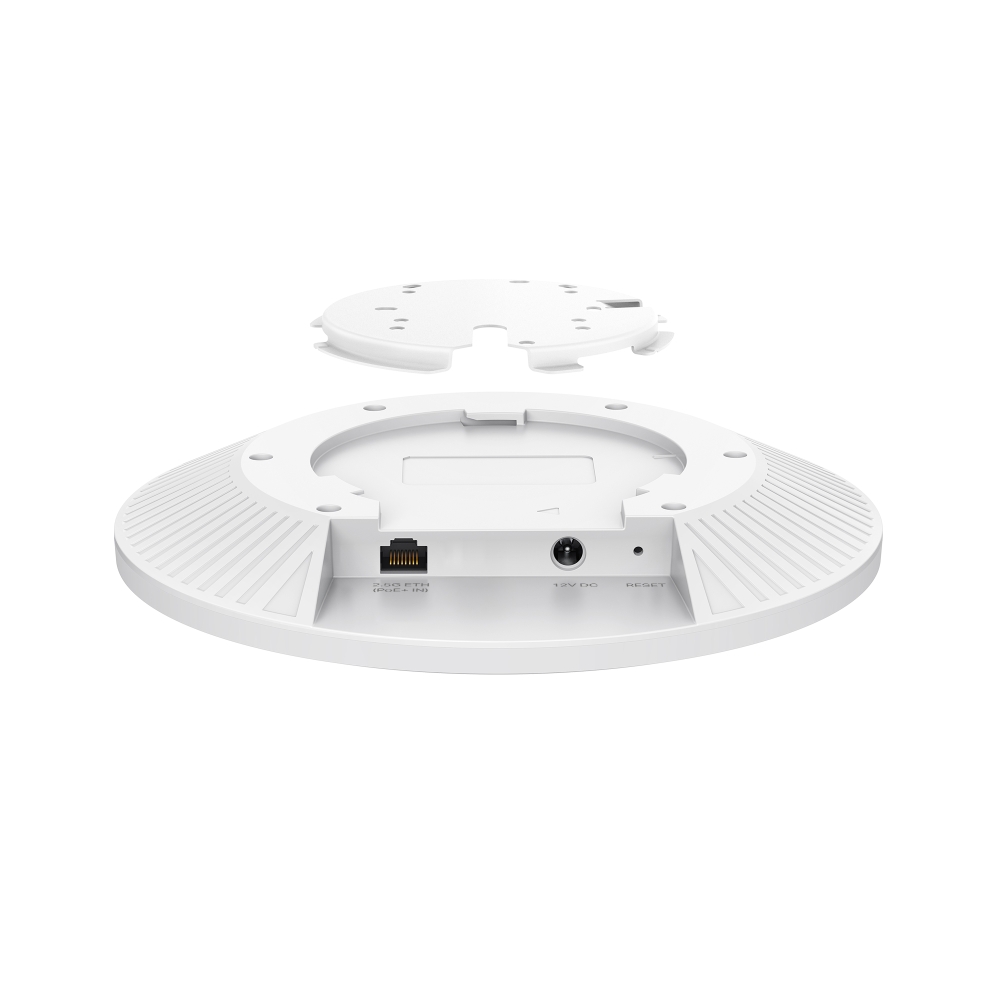

| Mounting | Ceiling /Wall/Junction Box/T-Bar Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 2150ft²(200㎡)* |
| Concurrent Clients | 1,020+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO (2G: 4x4 DL MU-MIMO; 5G: 4x4 DL MU-MIMO)• Seamless Roaming(802.11k/v/r)△• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, U-NII-1 & U-NII-2A，EIRP)<30 dBm(5 GHz, U-NII-2C，EIRP)• FCC:<22 dBm (2.4 GHz)<22 dBm (5 GHz, U-NII-1 & U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of an Omada controller. |
| OTHERS | |
|---|---|
| Certification | FCC/IC, CE/NTRA, JRF,VCCI |
| Package Content | • EAP660 HD• Power Adapter• Mounting Kit• Installation Guide• Cable Compartment Cover |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.
