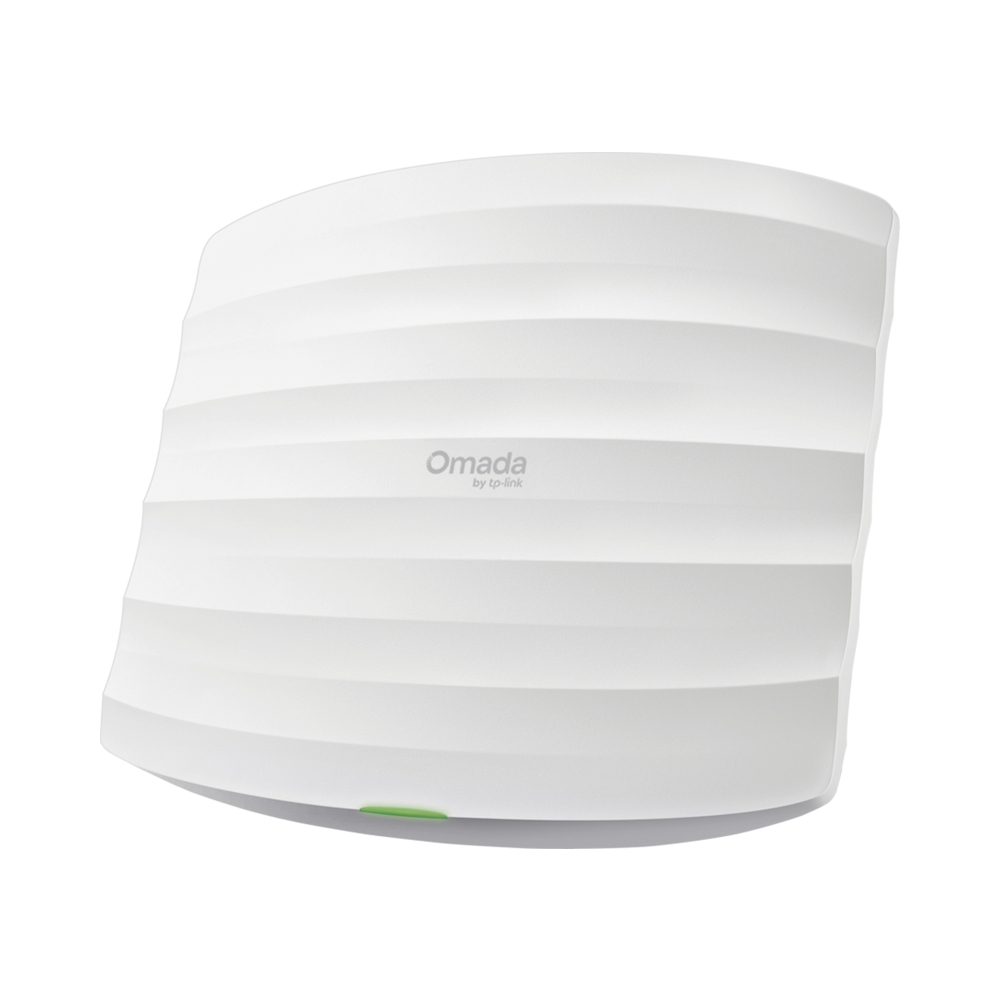

EAP115
300Mbps Wireless N Ceiling Mount Access Point
- Smooth Wi-Fi 4: Up to 300 Mbps Wi-Fi with 2×2 MIMO.†
- 1× Fast Ethernet Port: Provides a reliable wired connection for standard network access.
- Optimized Network Performance: Load Balance, Scheduling, and QoS (WMM) work in concert to deliver a smooth and responsive experience.
- Flexible Deployment and Easy Setup: Supports 802.3af PoE for flexible installation and Omada SDN for one-click setup.
- Advanced Features: Supports centralized management and 802.11r seamless roaming.△
- Stable Capacity and Coverage: Supports 100+ concurrent clients** and covers up to 650 ft² (60 ㎡)* for reliable wireless connectivity.
300 Mbps Wireless N Ceiling Mount Access Point
EAP115
300 Mbps Wi-Fi 4
Load Balancing
1× Fast RJ45 Port
802.3af PoE
Seamless Roaming△
Centralized Management
Enhanced Security
Easy, Quick Setup
Smooth Wi-Fi 4 Speeds at 2.4 Ghz
300 Mbps (2.4 GHz)
Load Balance
QoS
Scheduling

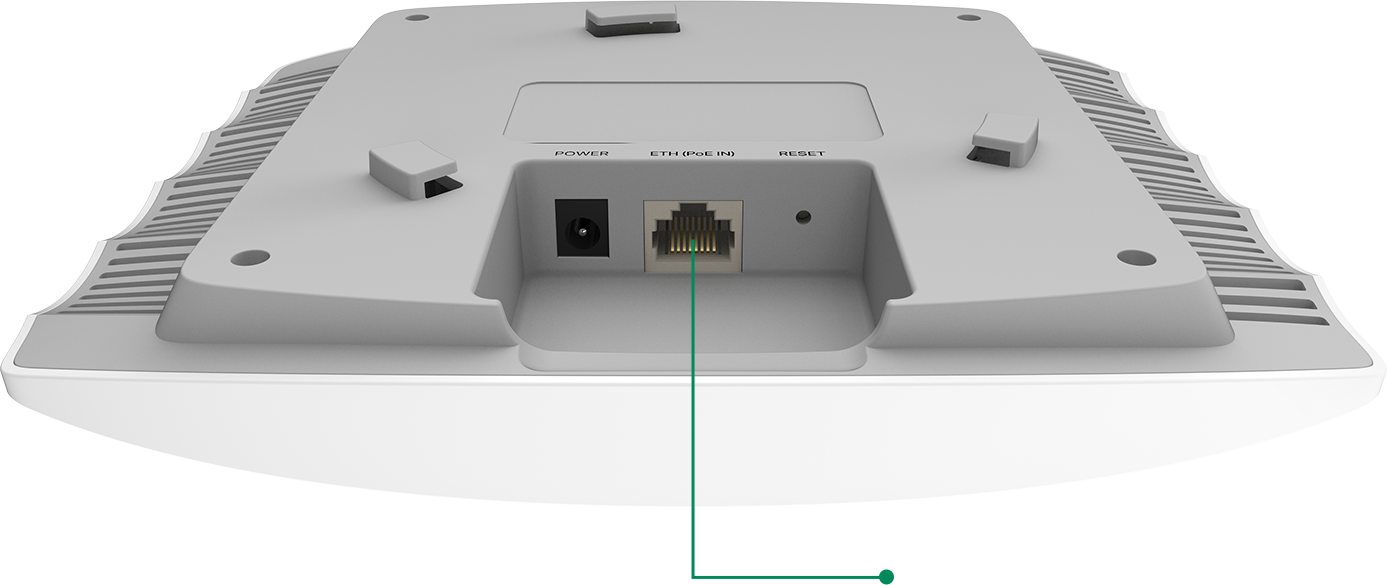

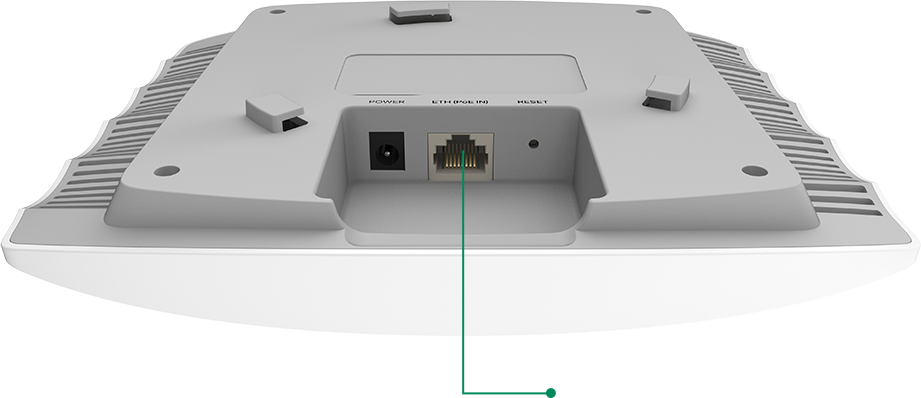

Unlock Effortless Deployment with PoE Port
802.3af PoE Port
Boosted Network Security
Secure Guest Network with up to 8 SSIDs
Boost Your Business with SMS Login
WPA2 for Worry‑Free Open Public Networks
Rogue AP Detection
Seamless Integration into Omada SDN
Omada Wi-Fi 4 Ceiling Mount AP EAP115
Omada Wall Plate AP
Omada Outdoor AP
Omada PoE Switch
Omada VPN Gateway
Cloud Access
Web Browser
Omada App
On-Premises Controllers
Hardware
Or
Software
Internet
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 x 10M/100M Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3af PoE• 9V/0.6A DC |
| Max. Power Consumption | 2.8 W |
| Weight | • Main Unit: 0.22 kg (0.485 lbs) • Mounting Bracket: 0.031 kg (0.068 lbs) • Shipping Unit: 0.72kg (1.59 lbs) |

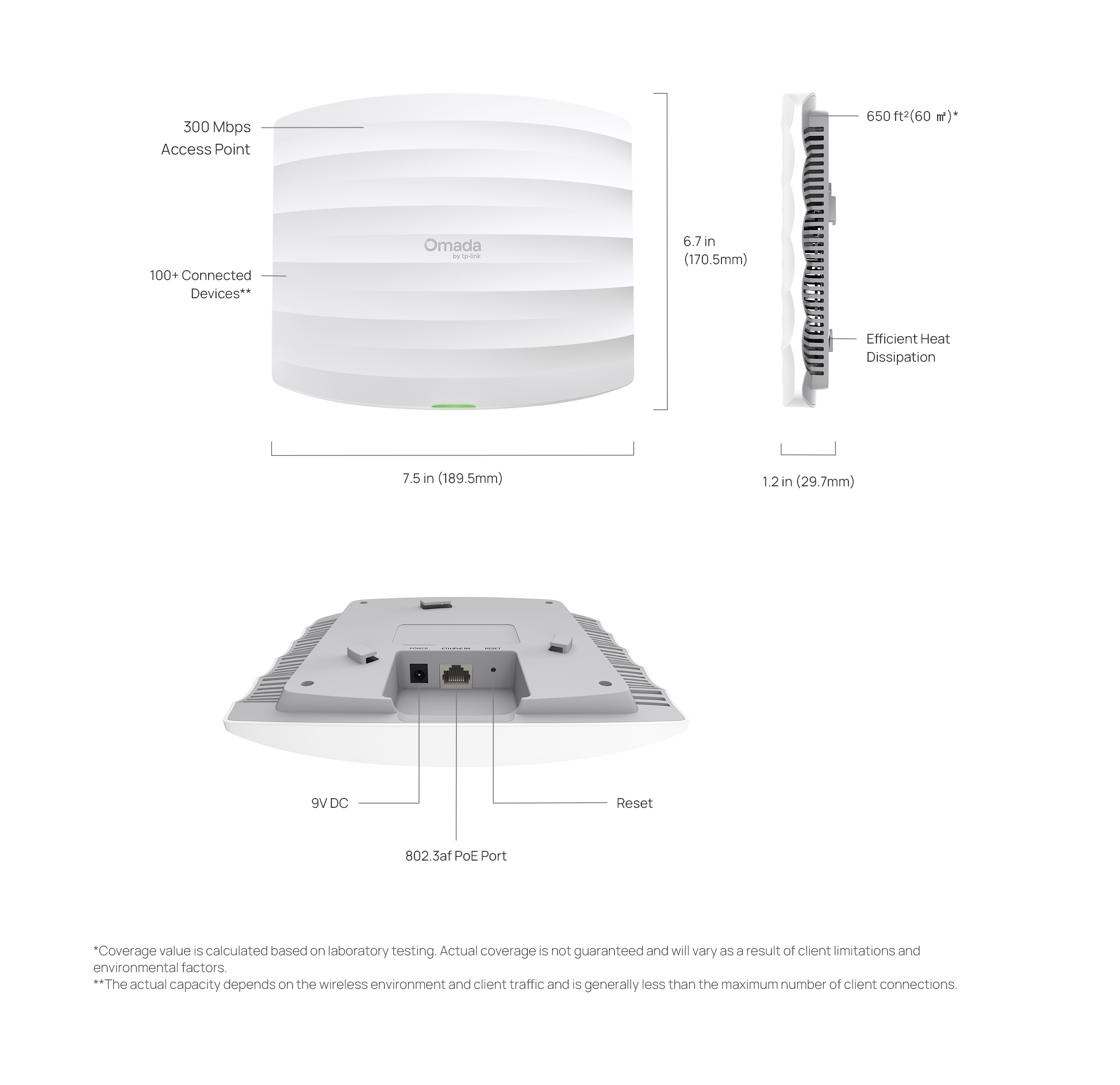

| Dimensions ( W x D x H ) | 7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7mm) |
| Antenna | Internal 2× 4 dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 650 ft² (60 ㎡)* |
| Concurrent Clients | 100+** |
| Wireless Standards | 2.4 GHz: IEEE 802.11b/g/n |
| Frequency | 2.400 to 2.4835 GHz ISM |
| Signal Rate | 6.5 Mbps to 300 Mbps |
| Wireless Functions | • Multiple SSIDs （Up to 8 SSIDs）• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control （Adjust Transmit Power on dBm）• QoS(WMM)• Seamless Roaming(802.11r)• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication• Access Control• Wireless MAC Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | • CE:10-19 dBm (2.4GHz, EIRP)• FCC:6-21 dBm (2.4GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada on-premises controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC |
| Package Content | • EAP110• Power Adapter• Mounting Kit• Installation Guide |
| Environment | • Operating Temperature: 0 ℃–40 ℃ (32 ℉–104 ℉)• Storage Temperature: -40 ℃–70 ℃ (-40 ℉–158 ℉)• Operating Humidity: 10%–90% RH non-condensing• Storage Humidity: 5%–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△These features require the use of an Omada on-premises controller.
